140NG Estes Low Square Fire Table
Owner’s Manual
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
DANGER!
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut o gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area
immediately.
• After leaving the area, call your
gas supplier or fire department.
Failure to follow these instructions
could result in fire or explosion,
which could cause property damage,
personal injury, or death.
!DANGER !WARNING: FOR OUTDOOR USE ONLY.
Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
!
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may result
causing property damage, serious injury, or loss of life.
!
WARNING: Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this
or any other appliance.
An LP gas tank not connected for use shall not be
stored in the vicinity of this or any other appliance.
TABLE OF CONTENTS
Important Safety Information
Natural Gas (NG) Dangers and Warnings
Parts List
Assembly Instructions
Pre-Use Instructions
Lighting Instructions
Care and Cleaning
Spider and Insect Warning
Tips and Troubleshooting
Technical Parts List
Warranty
Return Policy
SPECIFICATIONS
Product Name
Estes Low Square Fire Table
Model No.
140NG
Rated Heat Output
60,000 BTUs/hr
Type of Gas
Natural Gas (NG)
Gas Supply
Professionally Installed
NG System
2
ATTENTION
Please register your fireplace for recall notifications, proof of ownership
and quality assurance at https://www.realflame.com/registration.
3
5
6
7
10
11
12
13
14
15
16
17
IMPORTANT SAFETY INFORMATION
General Warnings
•Children and adults should be alerted to the hazards of high surface temperatures
and should stay away to avoid burns or clothing ignition.
•Children should be carefully supervised when in the area of the fireplace.
•Clothing or other flammable materials should not be hung from the fireplace or placed
on or near the fireplace.
•Any guard or other protective device removed for servicing the fireplace must be
replaced prior to operating the fireplace.
• Installation and service must be performed by a qualified service agency or gas
supplier. Real Flame recommends using professionals who are certified in the U.S.
by the National Fireplace Institute®(NFI) as NFI Gas Specialists.
• More frequent cleaning may be required as necessary. It is imperative that the
control compartment, burners, and circulating air passageways of the appliance
are kept clean.
• Do not store or use gasoline or other flammable vapors or liquids within 25 ft (7.62 m)
of this fireplace or any other appliance.
• Do not store combustible materials in the fireplace enclosure.
• Be sure to protect the hose and its components from any hot surfaces. It is dangerous
to allow the hose to come into contact with any hot surface.
• Use only the natural gas hose and quick connect assembly provided. The replacement
NG hose and quick connect assembly shall be that specified by the manufacturer.
• Do not attempt to disconnect natural gas hose or quick connect socket from the main
gas supply or any gas fitting while the outdoor fireplace is in use.
• Always shut o gas at the shut-o valve and disconnect the quick connect socket
from the main gas supply when the fireplace is not in use.
• Keep all parts of the fireplace clean including the burner and hose assembly. For more
information on cleaning your fireplace please refer to the “Care and Cleaning” section
of this manual.
• Do not use this fireplace if any part has been under water. Immediately call a qualified
service technician to inspect the fireplace and replace any part of the system that has
been under water.
• Do not use this fireplace for cooking.
• Do not pour water into the fireplace.
• Do not attempt to move or store this fireplace until all parts are cool.
• Always shut o the gas supply at the source and disconnect the hose when the fireplace
is not in use.
•Any alteration of this fireplace that is not specifically directed in the owner’s manual
will void the manufacturer’s warranty. This includes the use of unapproved filler materials.
3
Installation Warnings
•Minimum clearance from the fireplace to combustible materials is 48 inches (121.9 cm) on
all sides. Do not place this fireplace under any overhead structure or vegetation.
•The normal inlet pressure for this fireplace is 7.0" W.C. (1.74 kPa). Maximum inlet pressure
is 10.5" W.C. (2.61 kPa). Minimum inlet pressure is 3.5" W.C. (0.87 kPa).
•A fireplace with a connection to a fixed piping system must conform with local codes, or in the
absence of local codes with The National Fuel Gas Code, ANSI Z223.1/NFPA 54, or International Fuel
Gas Code.
•Do not remove the feet from this fireplace.
•Do not place the fireplace on anything that blocks or seals the gap between the fireplace and the ground.
•Do not permanently secure the fireplace in any way or to any surfaces.
•Do not bury the hose. You must be able to visually inspect the hose for damage before each use.
•Do not coil or hide the hose under the fireplace. The hose could be damaged if it touches hot surfaces.
Set Up Warnings
•Prior to each operation, check the hose assembly for evidence of excessive abrasion, wear or
damage. Use a handheld mirror, if necessary, to see the hose sections located below the unit.
•If the hose assembly is damaged, cracked, or cut, it must be replaced before using the fireplace.
The hose assembly must be replaced with a hose assembly specified by Real Flame.
Please contact Real Flame Customer Service at 1-800-654-1704 for assistance.
•Place the hose out of the pathways where people may trip over it. Do not place the hose
in areas where it may be accidentally damaged.
•Before each use, examine the burner and its components for dirt and debris. If cleaning is required,
use a pipe cleaning brush and compressed air. Also examine the area around the burner.
Any dirt or foreign material, such as spider webs, nests, leaves, etc., should be removed. If it is
evident that the burner is damaged, the fireplace must not be used, and the burner assembly
must be replaced. Please contact Real Flame Customer Service at 1-800-654-1704 for support.
In-Use Warnings
•NEVER LEAVE this fireplace unattended when in use.
•Do not burn solid fuels, such as charcoal briquettes, lump charcoal, manufactured logs, trash, leaves
paper, cardboard, any type of natural or treated wood, or any other materials in this fireplace.
•The use of alcohol, prescription or non-prescription drugs may impair your ability to safely
operate this fireplace.
•Always use in accordance with all applicable local, state, and national codes. Contact your
local fire department for details on outdoor burning.
•Do not use in windy conditions. Windy conditions may cause the flame to drift out of the designated
burn area or may cause the flame to extinguish. Prolonged exposure to wind with the fire table in
operation can damage the finish around the burner area, causing discoloration or cracking.
•Some surfaces of this fireplace may become hot during use. Be careful and do not touch
surfaces until the unit has cooled.
•Do not attempt to disconnect the gas supply from the fireplace when the unit is in use.
•Do not sit on the fireplace. 4
IMPORTANT SAFETY INFORMATION
NATURAL GAS (NG) DANGERS AND WARNINGS
!DANGER
This outdoor fireplace is for use with natural gas only. The conversion to or attempted use of
liquid propane in this outdoor fireplace is dangerous and could result in property damage,
serious injury, or death.
Natural Gas Characteristics
•Natural gas is flammable, explosive under pressure, lighter than air, and collects in high
areas. Collected gas may ignite causing a fire or explosion which could cause property
damage, serious injury, or death.
•In its natural state, natural gas has no odor. For your safety, a scent has been added.
•Direct contact with natural gas can burn your skin.
•Natural gas is extremely flammable and hazardous if handled improperly.
Natural Gas Information
•This natural gas fireplace is designed to operate on natural gas only at a pressure of
7" W.C. (1.74 kPa).
•Check with your local gas provider for local gas pressure, because in some areas natural
gas pressure varies.
Natural Gas Connection
•It is recommended that an ON/OFF manual shut-o valve be installed outdoors at the
gas supply source after the gas line exits the outside wall or before the gas line enters
the ground, and before the quick connect.
•When making a connection, sealing compound or pipe thread tape of the type resistant to the
action of natural gas must be applied on 3 to 4 threads of all male pipe threads.
•Connect the end of the natural gas hose with the quick release connector to the manual shut-o
valve at the gas supply.
5
!WARNING
Natural gas is flammable and hazardous if handled improperly. Become aware of its characteristics
before using any natural gas product. Failure to understand and follow these warnings or any
directions and warnings provided by your gas supplier may result in property damage, serious
injury, or death.
!CAUTION
During any high pressure testing of the gas supply piping system at test pressures in excess of 1/2
psi. (3.5 kPa) the fireplace and its individual shut-o valve must be disconnected from the gas supply
piping system.
!WARNING
Burner valves are pre-tested at the factory to operate on natural gas. Do not attempt to
convert or change.
PARTS LIST
6
ITEM JCo NUMBER QUANTITY
Fire Table Body N/A 1
NG Hose and 056NG010 1
Quick Connect Socket
Black Lava Rock 100240120J 2
Protective Cover 01400101 1
Key 11110004 1
1
2
3
4
5
1
2
3
4
5
ASSEMBLY INSTRUCTIONS

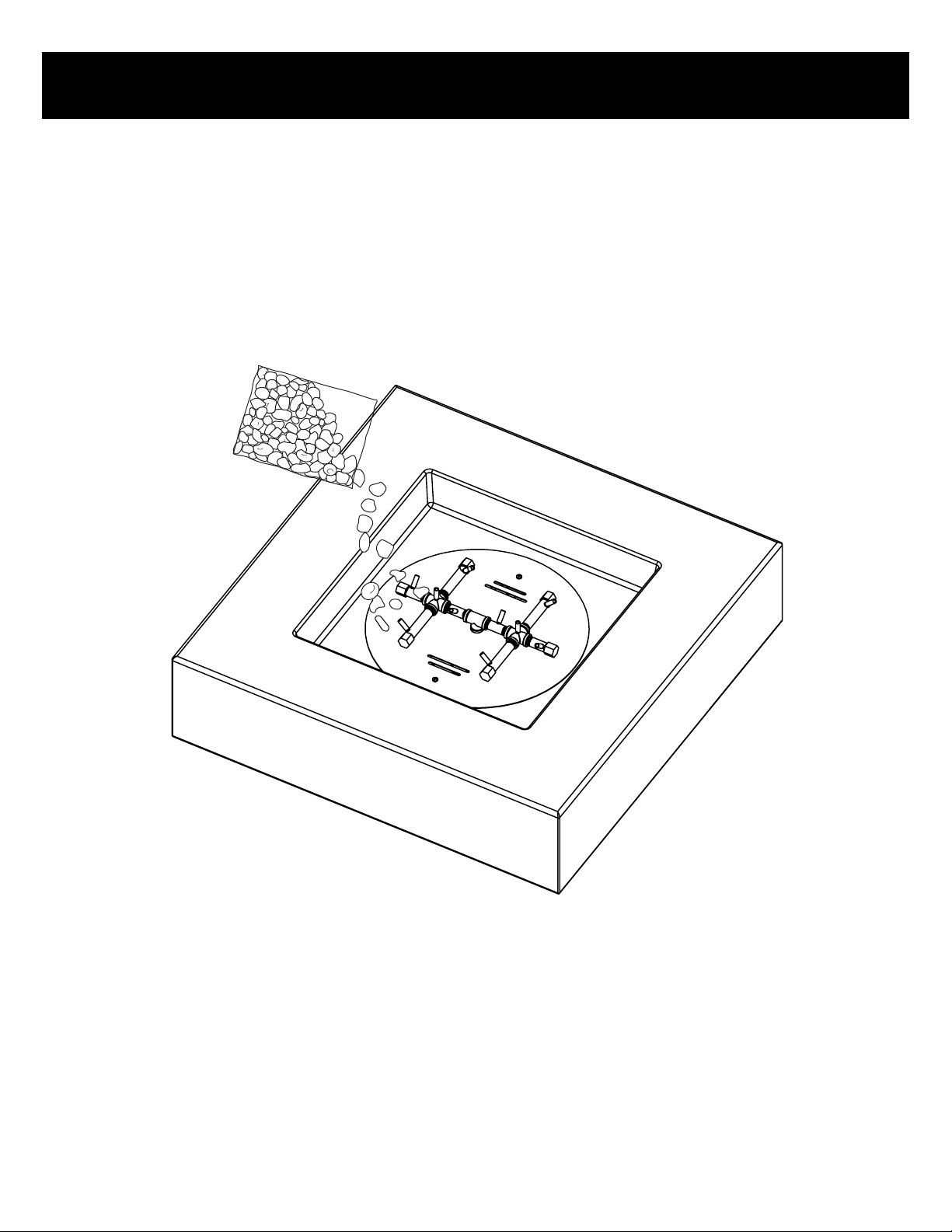

1. Place the filler material into the burner pan by hand. To avoid clogging the burner with dust
do not dump the bag into the burner pan. Position the filler across the burner pan to a level
that is 1 inch (2.54 cm) above the burner tube. Make sure you do not block the igniter housing
with the filler material to ensure proper ignition and operation.
If using glass filler, Real Flame suggests first placing a layer of lava rock in the burner pan
to improve airflow.
Filler Material Warning
•Do not overfill the burner area with rock or glass filler; use only the specified amount. The
depth of the filler should not be more than 1 inch (2.54 cm) above the burner tube. Only
Real Flame filler products have been certified and tested for safe use with this Real Flame
fireplace. Using other filler material may result in increased popping and cracking or increased
carbon monoxide emissions.
•Do not light or use this fireplace if the filler is wet. Ensure filler is completely dry before lighting.
Intense heat can cause wet filler to explode and hit someone causing property damage,
serious injury, or death.
•Keep away from the fireplace for at least 20 minutes during initial start-up as filler could
retain moisture from manufacturing and shipping.
7
ASSEMBLY INSTRUCTIONS
8
Natural Gas Source
Quick Connect Socket
Natural Gas Hose
Shut-O Valve
To Fireplace
2. Connect the fireplace to the natural gas source:
A professionally installed shut-o valve between the supply piping and the socket is
recommended by The National Fuel Gas Code, and must be used for the fireplace. A
professional gas technician or plumber must make sure that your gas system is capable of
providing the correct amount of gas at the correct pressure for your fireplace to operate
safely and correctly.
The quick connect socket connection must be made outdoors. The diagram below shows the
main components of a standard natural gas connection.
If the socket connection is below the fireplace, no part of the hose may contact the side
panels or base panel of the burner area when the fireplace is in its normal operating position.
ASSEMBLY INSTRUCTIONS
9
Apply gas approved, pipe
compound or tape.
valve on the gas supply line.
Screw the provided quick connect
socket onto the gas supply pipe.
To Fireplace

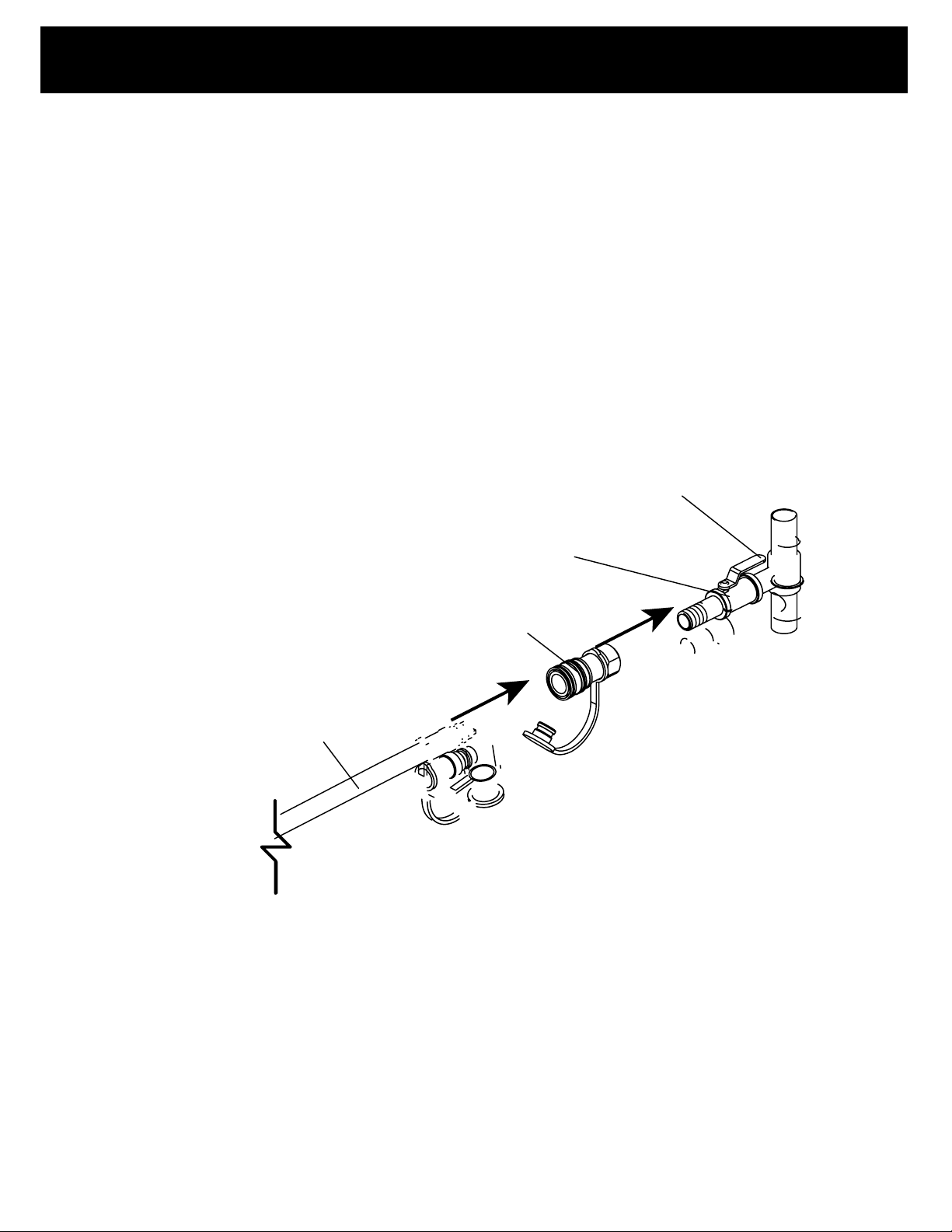

3. Install the quick connect socket:
Coat the gas supply threading with gas approved pipe compound or tape. Screw the quick
connect socket included with the fireplace onto the gas supply pipe.
The quick connect should not be permanently attached to the gas hose on the fireplace.
The direction of the gas flow is indicated on the socket.
Using one hand, pull back the sleeve on the quick connect socket and with the other
hand, insert the unattached end of the fireplace gas hose into the socket. Release the
sleeve and continue pushing the hose into the socket until the sleeve snaps into the
locked position.
After making the connection, perform a leak check as described on the next page.
10
PRE-USE INSTRUCTIONS
!WARNING
Before using this fireplace, make sure you have read, understand, and are following all information
provided in this manual. Failure to follow these instructions could cause property damage,
serious injury, or death.
Checking for Leaks
1. Make a leak check solution by mixing 1 part dishwashing soap with 3 parts water in a spray bottle.
2. Make sure the control knob on the fireplace is in the “OFF” position, then connect your
fireplace to the gas supply line and turn the gas on.
3. Spray the leak solution on the valve connections, paying particular attention to the areas
indicated by arrows in the diagrams below.
4. If bubbles appear, shut o the gas supply, disconnect the hose and inspect all connections
making sure threads are clear of debris. Reconnect the hose, turn the gas supply on and
retest. If you continue to see bubbles, turn the gas supply o, disconnect the hose, and call
Real Flame Customer Service at 1-800-654-1704 for assistance.
5. If no bubbles appear after 1 minute, wipe away excess leak solution and proceed to
“Lighting Instructions.”
Pay close attention to the areas indicated by the arrows.
Tabla de contenidos
Idiomas:
Otros manuales de Chimenea de interior de Jensen
