RANGE HOOD

ModeJ Number: ]X[9030CDP

Manufactu wetNumber: MK7030

Size: 30"

JX[9036CDP

MK7036

36"

JXT9048CDP

MK7048

48"

GUIDE

TABLE OF CONTENTS

Satet_ Instructions .................................................... 1

Mountin¢ Heights 2

Ducting .................................................................... 3

Specifications ........................................................... 4

Installation ............................................................ 5-7

MK7030

_o_ NJENNoAiR

MK7048

F:orm No. A/06/04 Part No. 8110P262-60 ,¢2004 Maytag Appliances Sales (o. litho U.S.A.

IVIODEL$:JXT9030 JXT9036 JXT9048

Installation

Theinstallationin thismanuarisintendedforquarifiedinstallers,servicetechniciansor persons

withsimilarqualifiedbackground.DONOTattempttoinstarlthisapplianceyourserf,rniurycourd

resurtfrominstallingtheunitdueto rackofappropriateerectricalandtechnicalbackground.

Air erectricar wiring must be properly installed, insulated and grounded. Overly accumulated

greasein old duct work should becleaned out or duct work should be replaced if necessary to

avoid the possibility of a grease fire. Checkall ioints on duct work to insure proper connection

andall ioints should be properly taped.

* Please check for latest specification revisions before any custom work or cutouts.

LiST OF MATERIALS

1-Hood

2-Bafflefilters (2°30", 3°36", 4-48")

2-Halogenlight bulbs (3°48")

1-Hardwarepacketcontaining:

4-2" drywall screws

4-1 1/2" drywall screws

4-1" drywall screws

4-1/2" washers

3-wire connectors

NODUOTINGISINCLUDED

MOUNTINGHEIGHTS

Minimum mounting height between range top

to hoodbottom shouM be no tessthan 24".

12 _'

\1_

Min24"-Max 32"

36"

Maximum mounting height shouM be no

higher than 32".

rt is important to instarl the hoodat the

proper mounting height. Hoodsmounted too

row courd result in heat damageand fire

hazard; while hoods mounted too high will be

hard to reach and will rooseperformance

and efficiency.

rf availabb, arso referto rangemanufacturer's

height clearance requirements and recom-

mended hood mounting height above range.

DUCTING

A minimum of 8" round duct must be used to

maintain maximum air flow efficiency.

Alwaysuserigidtypemetalductsonly,

Flexibleductscouldrestrictair flowbyupto 50%.

Also use calculation (on right)to compute total

available duct run when using elbows, transitions

and caps.

ALWAYS,when possible, reducethe number of

transitions and turns. If long duct run is required,

increase duct size from 8" to 9" or 10". If a reduc-

er is used,install a long reducer insteadof a pan-

cake reducer. Reduceduct size as far away from

opening as possible.

Ifturns or transitions are required:

Install asfar away from opening andas far

apart, between 2, as possible.

Duct Run Calculation:

Maximum run

8" 100FT

CalculatedLength:

each 90 Elbowused 15 FT

each 45 elbowused 9 FT

each 8"

transition used 1 FT

each 3/14 x 10" to 8"

transition used 5 FT

SideWallCapw/damper 30 FT

RoofCap 30 FT

e,g,- 1 roof cap, 2x90 elbows, 1 x 45 elbow used;

=30' + 30' + 9' =69' used, 31' available for stroiqht duct runs,

DUCTJNG

NEVERexhaust air or terminate duct work into spaces between walls, crawl spaces,ceiling, attics or

garages.AIrexhaust must beducted to the outside.

UseMetal ductwork only.

FastenaHconnections with sheet metal screws and tape aHjoints w/certified SHyerTapeor DuctTape.

SomeDuctingOptions:

Sidewailcap ]

w/gravitydamper

:ydamper

RoofPitch w/

Flashing& Cap

SPECIFICATIONS

Position of electrical knockout

30" 13 3/4" from the right

1 3/4" from the front

36" 3 7/32" from the right

4 23/32" from the back

48" 4 3/8" from the right

4 23/32" from the back

4-5/8"

TOPVIEW

1/2"ElecK,0.

MOUNTINGTHERANGEHOOD

ELECTRICAL

All Electricalwork mustbyperformedbyqualifiedelectricianor personwith similartechnical

knowhowandbackground.

Forpersonalsafety,removehousefuseoropencircuitbreakerbeforebeginninginstallation+

Donotuseextensioncordor adapterplugwiththis appliance+

FollowNationalelectricalcodesor prevaifinglocalcodesandordinances.

ElectricalSupply:

Thisappliancerequiresa 120V60Hzelectricalsupply,connectedtoan individual,properlygrounded

branchcircuit,protectedbya 15or 20 amperecircuitbreakeror timedelayfuse:Wiringmustbe2

wirew/ground:PleasealsoreferElectricalDiagramlabeledonproduct:

Cable Lock:

A cable locking connector (not supplied) might also required by local codes. Checkwith local

requirements and codes, purchaseand install appropriate connector if necessary.

CaNeLock

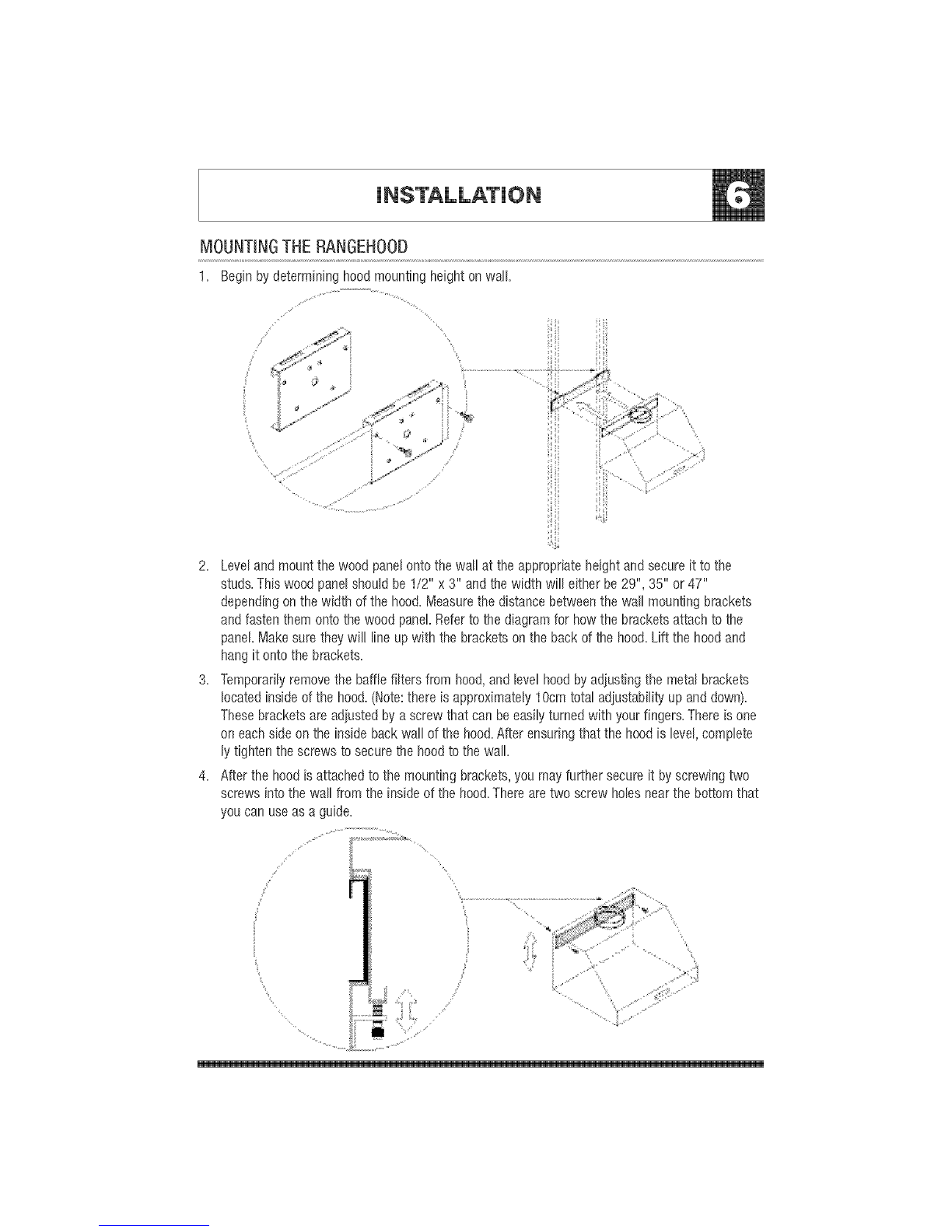

MOUNTINGTHERANGEHOOD

Begin bydetermining hood mounting height on wall.

2. Leverand mount the wood paneronto the wall at the appropriate height and secure it to the

studs. This wood panershourd be 1/2" x 3" and the width will either be 29", 35" or 47"

depending on the width of the hood. Measurethe distance between the wall mounting brackets

and fasten them onto the wood panel.Referto the diagram for how the brackets attach to the

panel Make sure they wil! fine up with the brackets on the back of the hood.Lift the hood and

hang it onto the brackets.

3. Temporarily removethe baffrefilters from hood,and feverhoodbyadjusting the metal brackets

rocated inside of the hood.(Note:there is approximately lOcm total adjustability up and down).

These brackets are adjusted by ascrew that can beeasily turned with your fingers. There is one

on each side on the inside back wall of the hood.After ensuring that the hood is level,complete

ly tighten the screws to secure the hood to the wall.

4. After the hood is attached to the mounting brackets, you may further secure it by screwing two

screws into the wall from the inside of the hood.There are two screw holes near the bottomthat

you can useas a guide.

.....

MOUNTINGTHERANGEHOOD

5. hstaHerectricaL

6. hstaHductworkandtapeaHioints.

7. Poweruphoodandcheckforteaksaroundductjoints,andif necessaryapprymoreducttape.

tape

8. hstaH optional duct coverand/or backsprash.Notethat the duct cover and backsprashare

sold separately.

9. Reinstallthe baffrefilters.
