Jenn-Air JXT5830 Manual de usuario

RANGE HOOD

INSTALLATION

GUIDE

TABLE OF CONTENTS

Safety Instructions.................................................... 1

Mounting Heights.................................................... 3

Ducting....................................................................4

Specications...........................................................5

Installation............................................................ 6-8

Model Number: JXT5830 JXT5836

Manufacturer Number: S26E30 S26E36

Size: 30” 36”

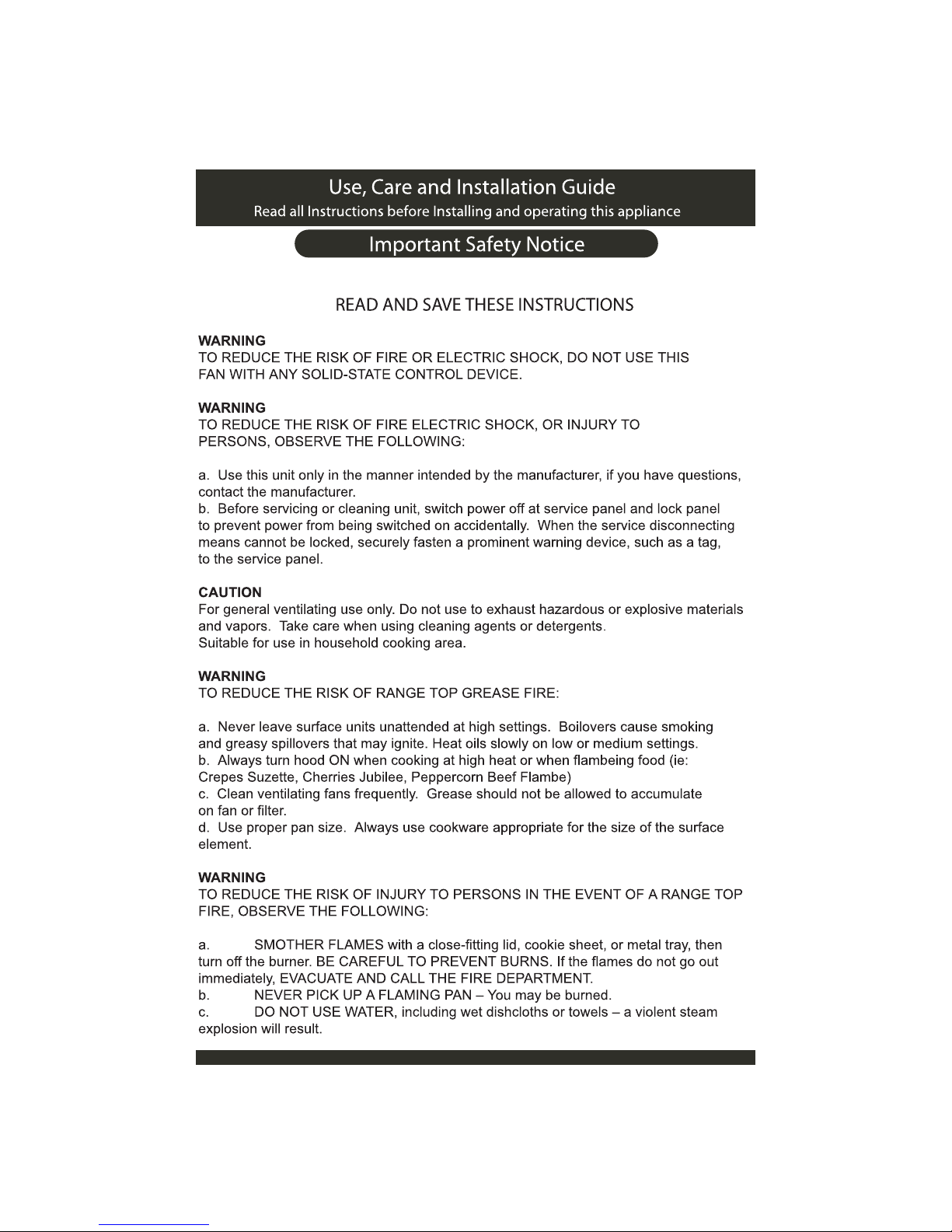

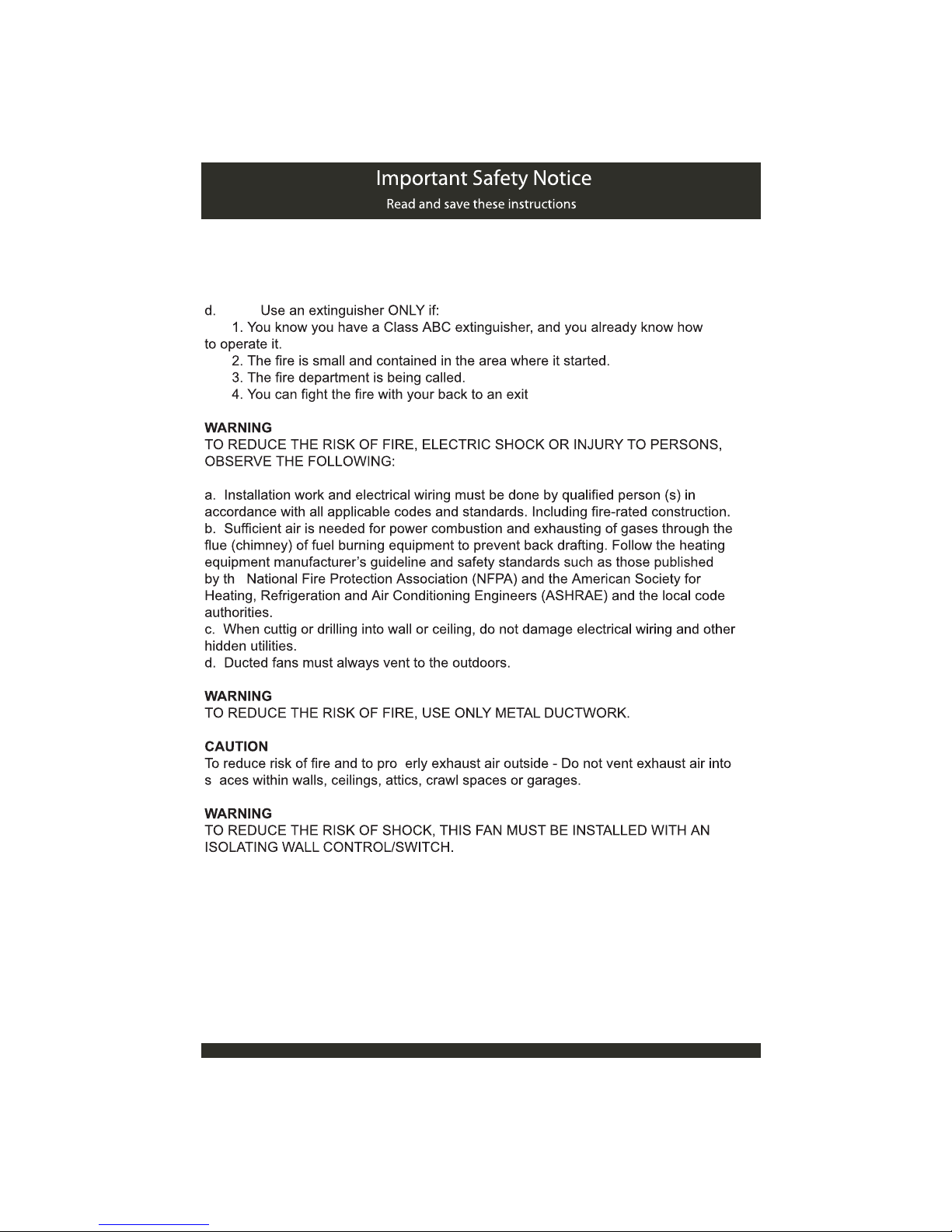

LIST OF MATERIALS 2

1 - Hood

1 - Utensil Bar

2 - Metallic Filters (3 - 36”)

2 - Halogen Light Bulbs (pre installed)

1 - Rectangular Starting Collar

1 - 5” Round Plastic Cap

1 - Hardware Packet Containing:

1 - Damper

1 - 5” Round Starting Collar

1 - Packet of Screws

NO DUCTING IS INCLUDED

INSTALLATION 3

MOUNTING HEIGHTS & CLEARANCE

DUCTING

6-3/4"

36"

96"

Min 28"-Max 36"

Minimum mount height between range top to

hood bottom should be no less than 28".

Maximum mount height should be no higher

than 36".

It is important to install the hood at the

proper mounting height. Hoods mounted too

low could result in heat damage and fire haz-

ard; while hoods mounted too high will be

hard to reach and will loose its performance

and efficiency.

If available, also refer range manufacturer's

height clearance requirements and recom-

mended hood mounting height above range.

A minimum of 5" round or 3-1/4” x 10"rectangu-

lar duct must be used to maintain maximum air

flow efficiency.

Always use rigid type metal ducts only.

Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on right) to compute total

available duct run when using elbows, transitions

and caps.

ALWAYS, when possible, reduce the number or

transitions and turns. If long duct run is required,

increase duct size from 6" to 7 or 8". If a reducer

is used, install a long reducer instead of a pan-

cake reducer. Reduce duct size as far away from

opening as possible.

If turns or transitions are required:

Install as far away from opening and as far

apart, between 2, as possible.

*Minimum clearance of 28” hood above range

height.

** Maximum clearance 36" hood above range

height.

Minimum Duct Size:

Round:

5" minimum

Rectangular:

Requires an adaptor. Readily available at most

hardware stores.

Duct Run Calculation:

Maximum run

5" or 3-1/4” x 10" duct

Calculated Length:

each 90 Elbow used

each 45 elbow used

each 6" to 3/14 x 10"

transition used

each 3/14 x 10" to 6"

transition used

Side Wall Cap w/ damper

Roof Cap

100 FT

15 FT

9FT

1FT

5FT

30 FT

e.g.- 1 roof cap, 2x90 elbows, 1 45 elbow used:

=30' + 30' + 9' =69' used, 31' available for straight duct runs.

INSTALLATION 4

DUCTING

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or

garages. All exhaust must be ducted to the outside.

Use Metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or DuctTape.

WARNING FIRE HAZARD

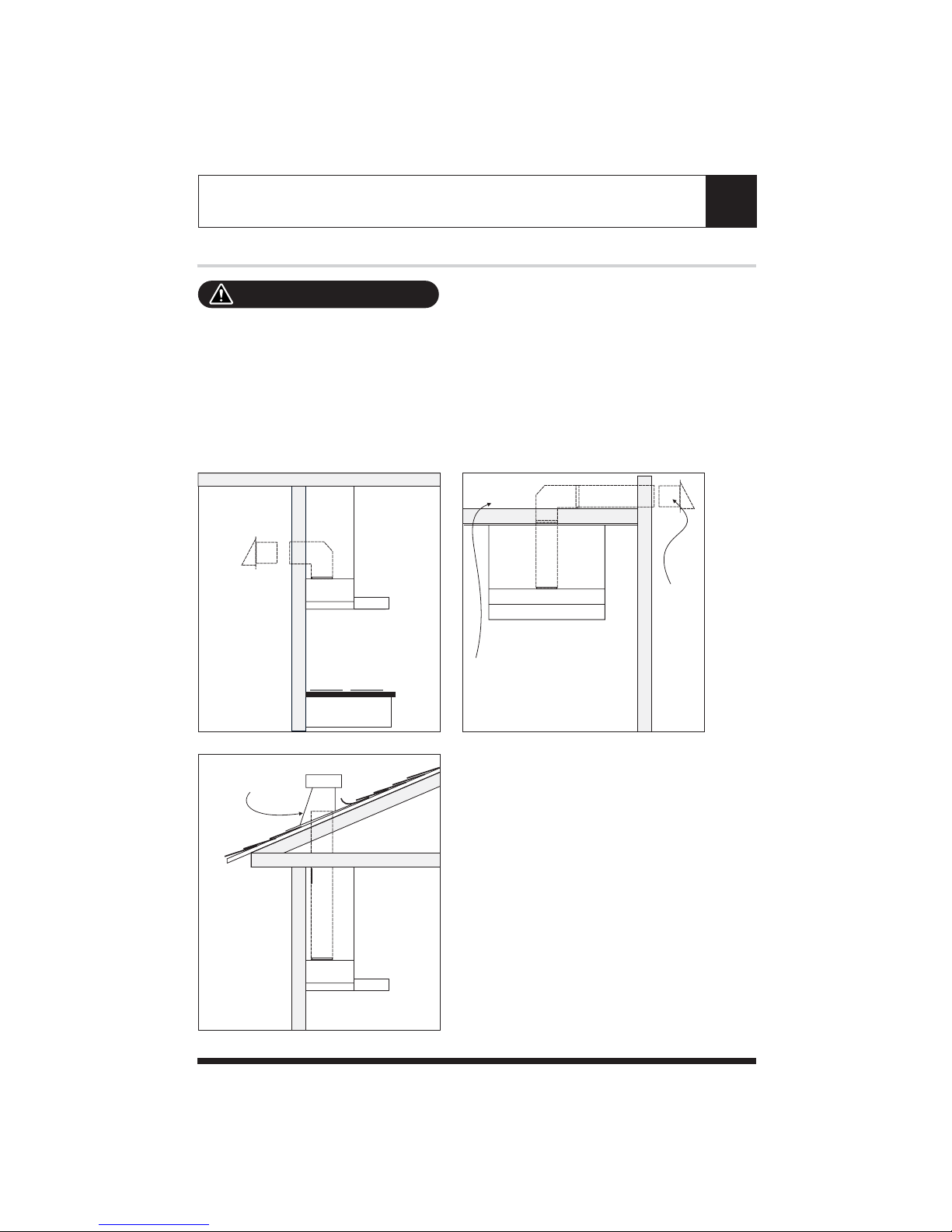

Some Ducting Options:

side wall cap

w/ gravity damper

side wall cap

w/ gravity damper

Soffit or crawl space

Roof Pitch w/

Flashing & Cap

,167$//$7,21 

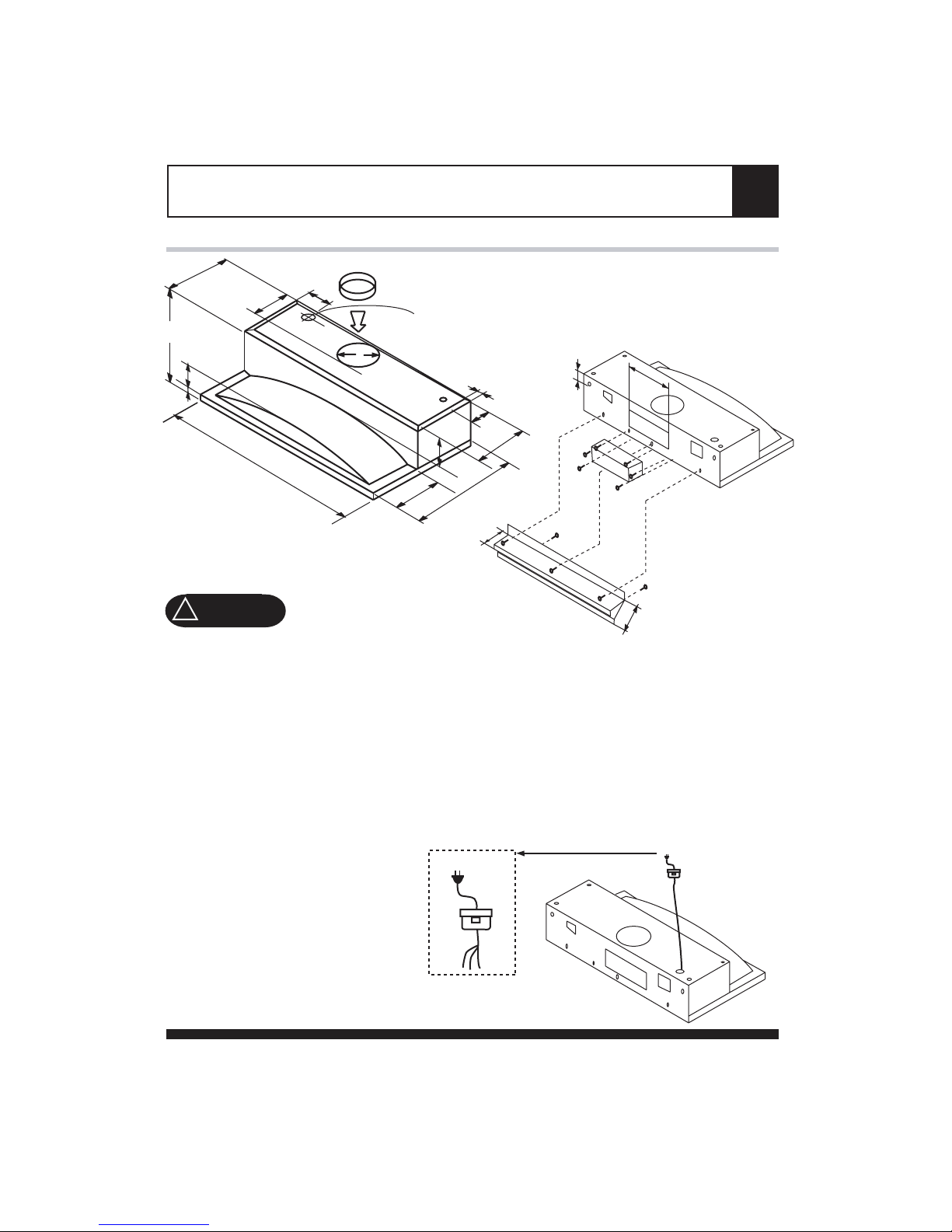

63(&,),&$7,216

(/(&75,&$/

$OO(OHFWULFDOZRUNPXVWEHSHUIRUPHGE\DTXDOLILHGHOHFWULFLDQRUSHUVRQZLWKVLPLODUWHFKQLFDO

NQRZKRZDQGEDFNJURXQG

)RUSHUVRQDOVDIHW\UHPRYHKRXVHIXVHRURSHQFLUFXLWEUHDNHUEHIRUHEHJLQQLQJLQVWDOODWLRQ

'RQRWXVHH[WHQVLRQFRUGRUDGDSWHUSOXJZLWKWKLVDSSOLDQFH

)ROORZ1DWLRQDO(OHFWULFDO&RGHVRUSUHYDLOLQJORFDOFRGHVDQGRUGLQDQFHV

(OHFWULFDO6XSSO\

7KLVDSSOLDQFHUHTXLUHV9+]HOHFWULFDOVXSSO\DQGFRQQHFWHGWRDQLQGLYLGXDOSURSHUO\

JURXQGHGEUDQFKFLUFXLWSURWHFWHGE\DRUDPSHUHFLUFXLWEUHDNHURUWLPHGHOD\IXVH:LULQJ

PXVWEHZLUHZJURXQG3OHDVHDOVRUHIHUWRWKH(OHFWULFDO'LDJUDPODEHOHGRQSURGXFW

&DEOH/RFN

$FDEOHORFNLQJFRQQHFWRUQRW

VXSSOLHGPLJKWDOVREHUHTXLUHGE\

ORFDOFRGHV&KHFNZLWKORFDO

UHTXLUHPHQWVDQGFRGHVSXUFKDVH

DQGLQVWDOODSSURSULDWHFRQQHFWRULI

QHFHVVDU\

:$51,1*



µ

PP

µ

PP

&DEOH/RFN

µ

PP

´

PP

´

PP

´

PP

´

PP

µ

PP

µ

PP

µµ

PPPP

µ

PP

µ

PP

µ

PP

µ

PP

µ

PP

´

PP

µPP

µµ

PPPP

µ

PP

INSTALLATION 6

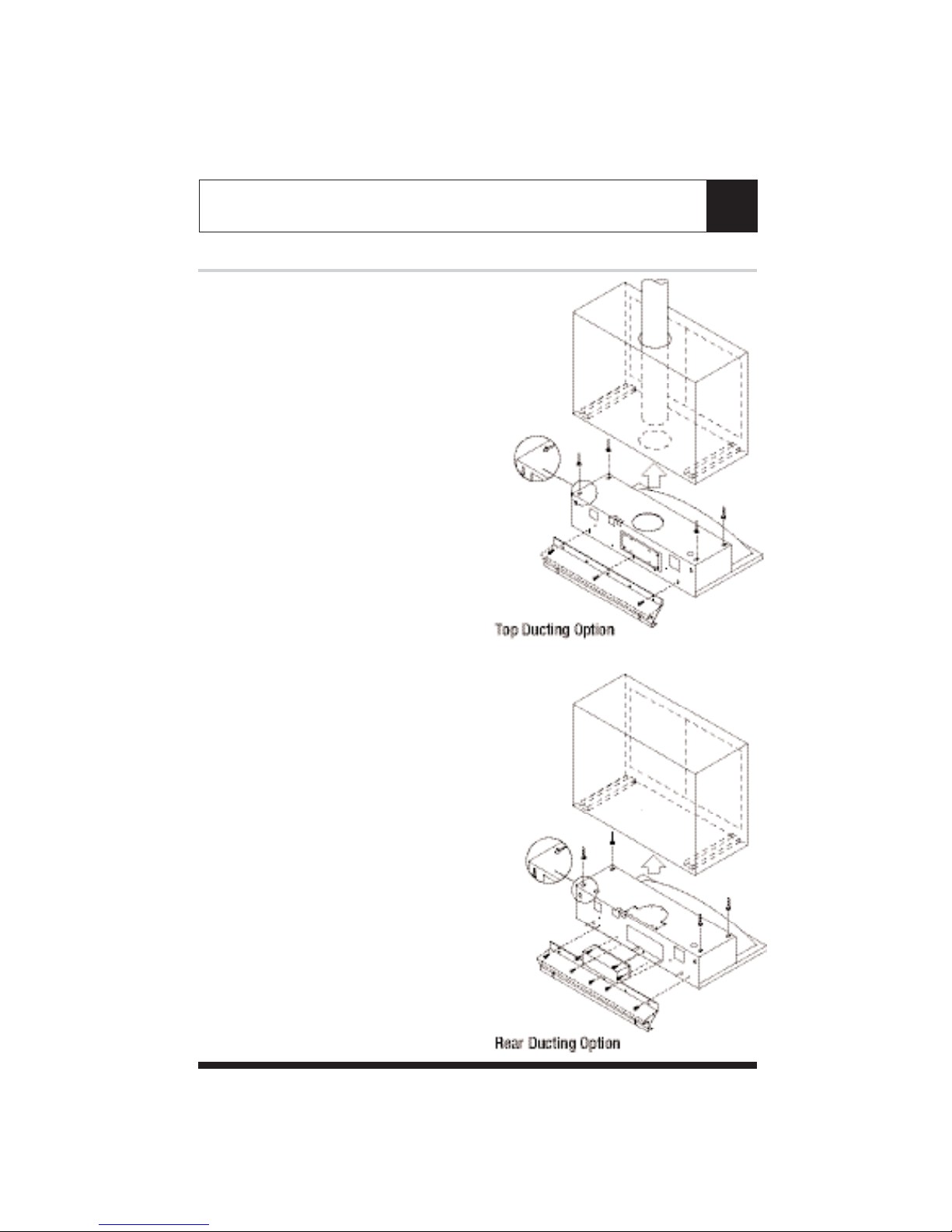

MOUNTING THE RANGEHOOD

1. This range hood is mounted under a

kitchen cabinet unit.

2. Select preferred duct location on rear or

top of unit. For ductless conversion, no

ducting is required, however front cover

panel must be removed prior to installation.

(See page 7)

3. An optional spacer plate is provided to

cover the gap between the back of the

hood and the wall. If using this plate, screw

it onto the hood prior to installation.

4. Begin installation by temporarily removing

the mesh filter panels.

5. Unscrew the two interior side panels and

slide them sideways to allow access for

marking the mounting hole locations.

(See page 7)

6. Temporarily position the range hood in the

desired mounting location.

7. Mark the mounting holes, duct and

electrical access locations with a pencil.

For ductless conversion, no hole is required

for a duct.

8. Drill/cut out the required openings for duct

and electrical access.

9. Install duct work and electrical.

10. Fasten mounting screws into

underside of mounting location,

and reposition hood into place.

11. Hang hood onto mounting screws and

hand tighten.

INSTALLATION

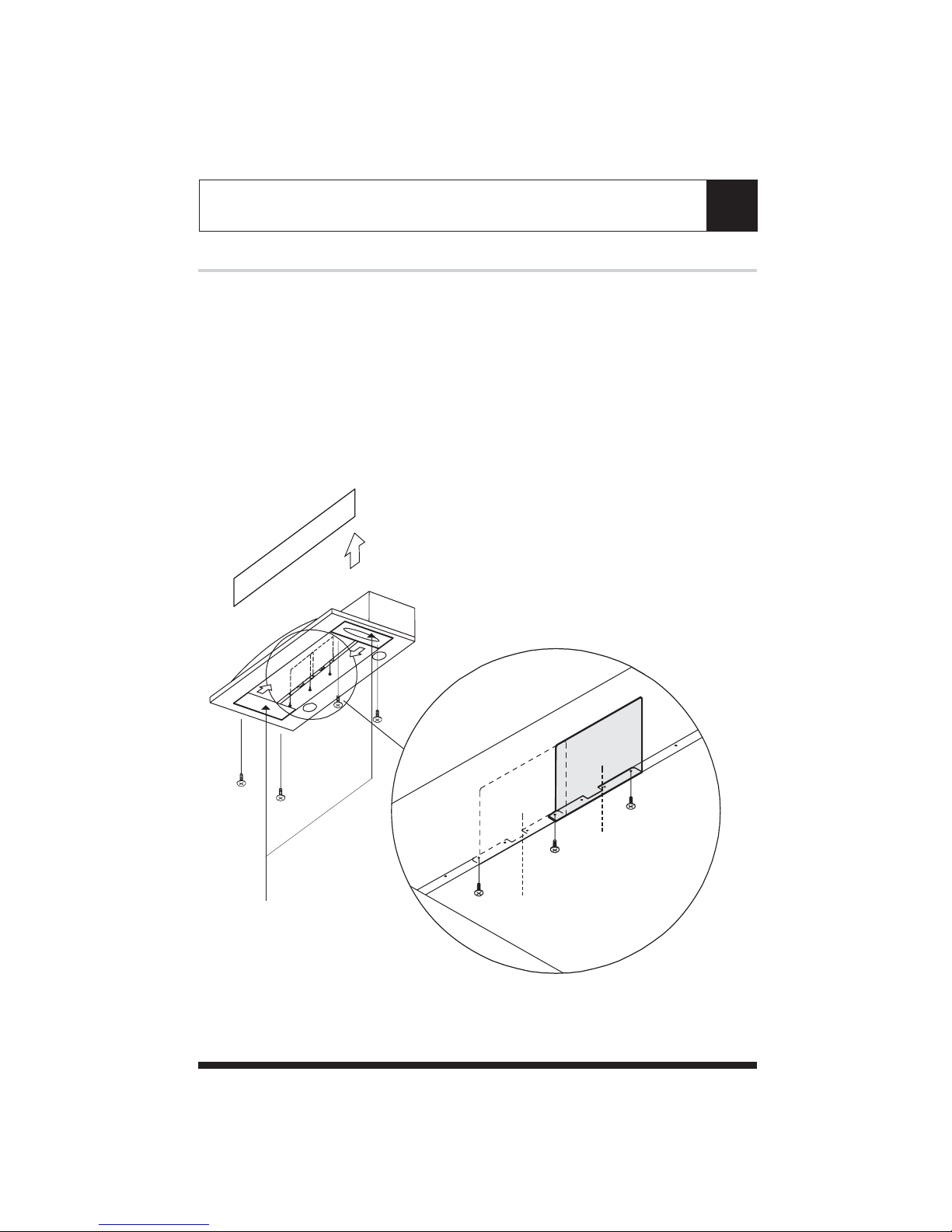

DUCTLESS CONVERSION

12. For ductless conversion, the interior

cover plate must be unscrewed and

removed as shown. (See diagram page 7)

13. Reposition the interior side panels to

original location, and screw into place.

14. Reinstall the filter panels.

interior side panels

Cover panel position

for duct exhaust

Front cover panel

(remove for ductless conversion)

Cover panel position

for ductless conversion

INSTALLATION 8

DUCTLESS CONVERSION

Ductless conversion is intended for applications where an exhaust duct work is not possible to be

installed. When converted, the hood functions as a "purifying" hood rather than an exhaust hood.

Fumes and exhaust from cooking is drawn and filtered by a set of optional Carbon Filters. The air

is then purified and re-circulated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing

new duct work, if possible. The hood is most effective and efficient as an Exhaust unit. Only when

the exhaust option is not possible should you recourse to converting the hood into a "purifying"unit.

When converted to be a "purifying" unit, a set of Carbon Filters is required on top of the standard

Metal Filter set. Order according to Part numbers below. The standard Metal Filters are intended

to capture residue from cooking and the optional Carbon Filters help to purify fumes exhausted

from cooking for re-circulation.

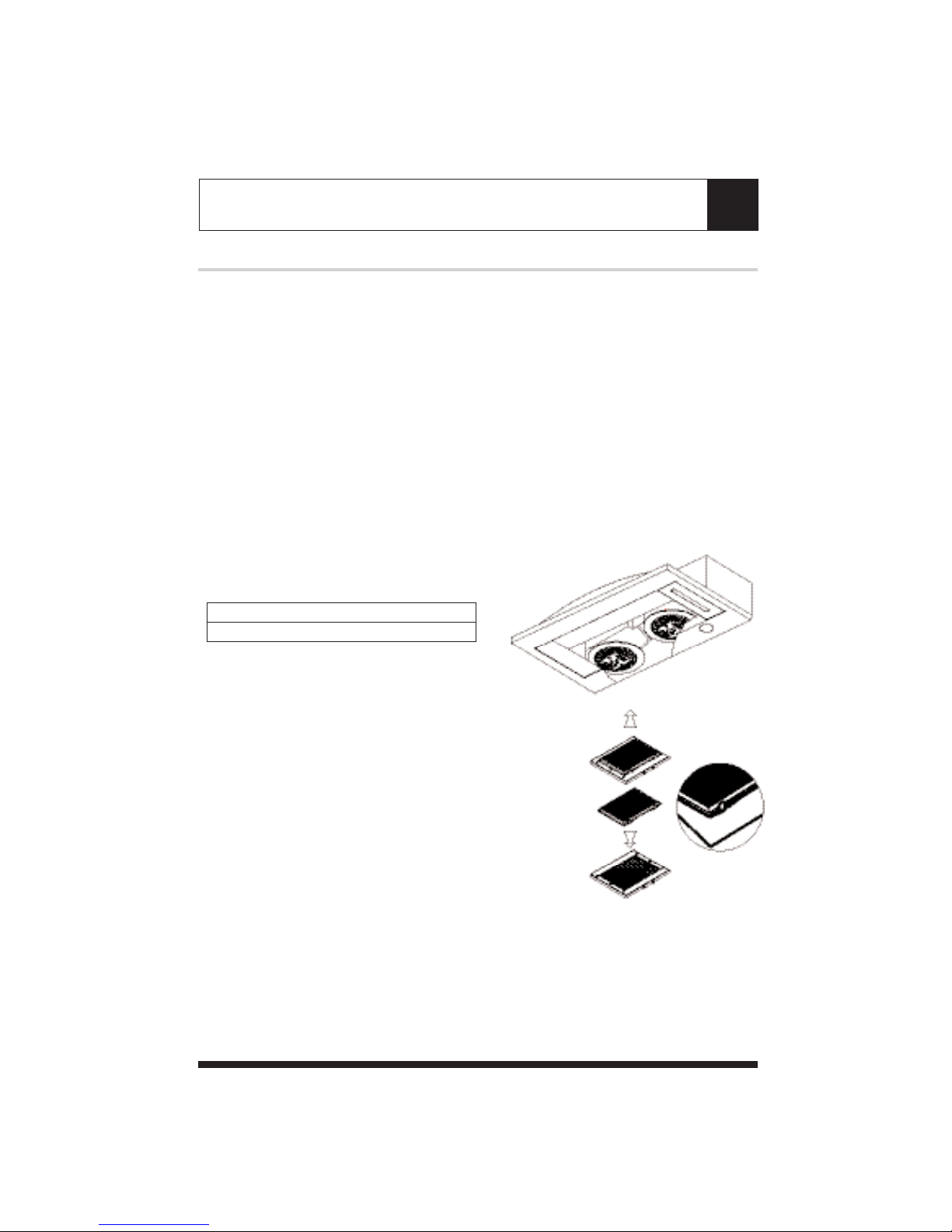

Carbon Filters (Required)

1. Purchase ductless Charcoal Filters as follows:

2. Remove metal filters on hood.

3. Install attachment bracket into metal filter.

4. Clip carbon filter onto bracket.

5. Re-install metal filters.

6. Carbon Filters must be replaced after

every 120 hours of use (or approximately

every 2 to 3 months based on the average

of 1-2 hrs. of daily cooking time).

The microprocessor in the controls when

set, will count usage time and indicate

when carbon filter replacement is required.

Carbon Filter Dimensions:

9” x 6.4”

228 mm X 162 mm

Note: see User Guide for more information on

ductless conversion options.

Hood Model: Part No. Filters in pkg.

JXT5830 JFLTRC5830 2

JXT5836 JFLTRC5836 3
