Jenn-Air JCD2591WES00 Manual de usuario

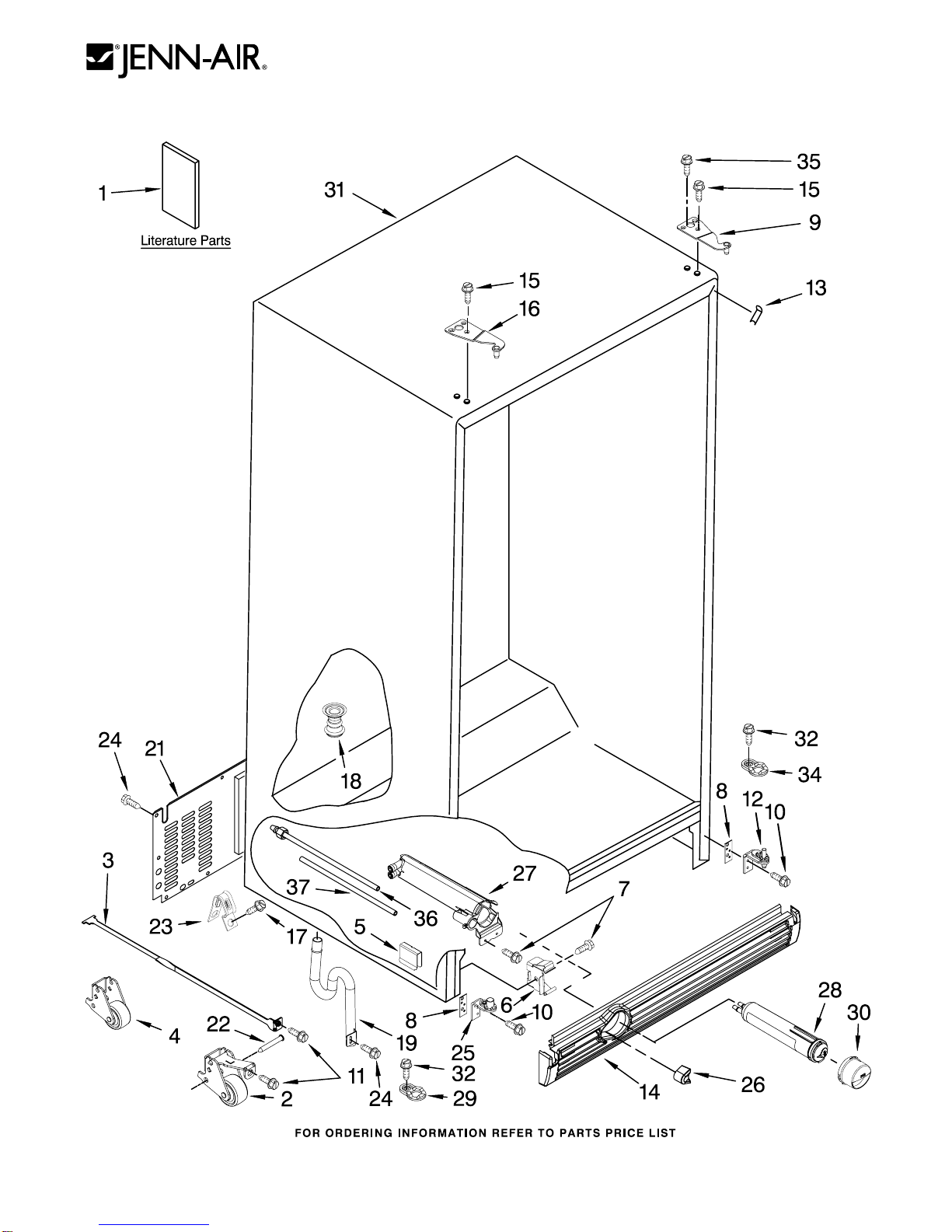

CABINET PARTS

For Models: JCD2591WES00

(Stainless)

3−09 Printed In U.S.A. (jdc)(bay) Part No. W10259852 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10203274

Use & Care Guide

W10152832

Service & Wiring

Sheet

2318510 Installation

Instructions

W10236452

Energy Guide

2220407 Modular Icemaker

Service Sheet

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

W10001260

Screw

8 2223545 Shim

9 Hinge Top, RC

2307008AP

Apollo Gray

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

(Includes #34)

13 Filler, Wrapper

2223893AP

Apollo Gray

14 Grille

W10194061

Midnight Grey

15 3400108 Screw

16 Hinge, Top FC

2307007AP

Apollo Gray

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

26 Button, Water

Filter

2260503MG

Midnight Grey

W10121140

Housing, Water

Filter

28 8212650 Water Filter

29 2307051 Door Closer, FC

30 Cap, Water

Filter

2260502MG

Midnight Grey

31 Cabinet (Not A

Serviceable Part)

W10142234

Screw

34 2307049 Door Closer, RC

35 3400858 Screw

36 2224020 Tube, Filter

Outlet

37 2319867 Tube, Filter Inlet

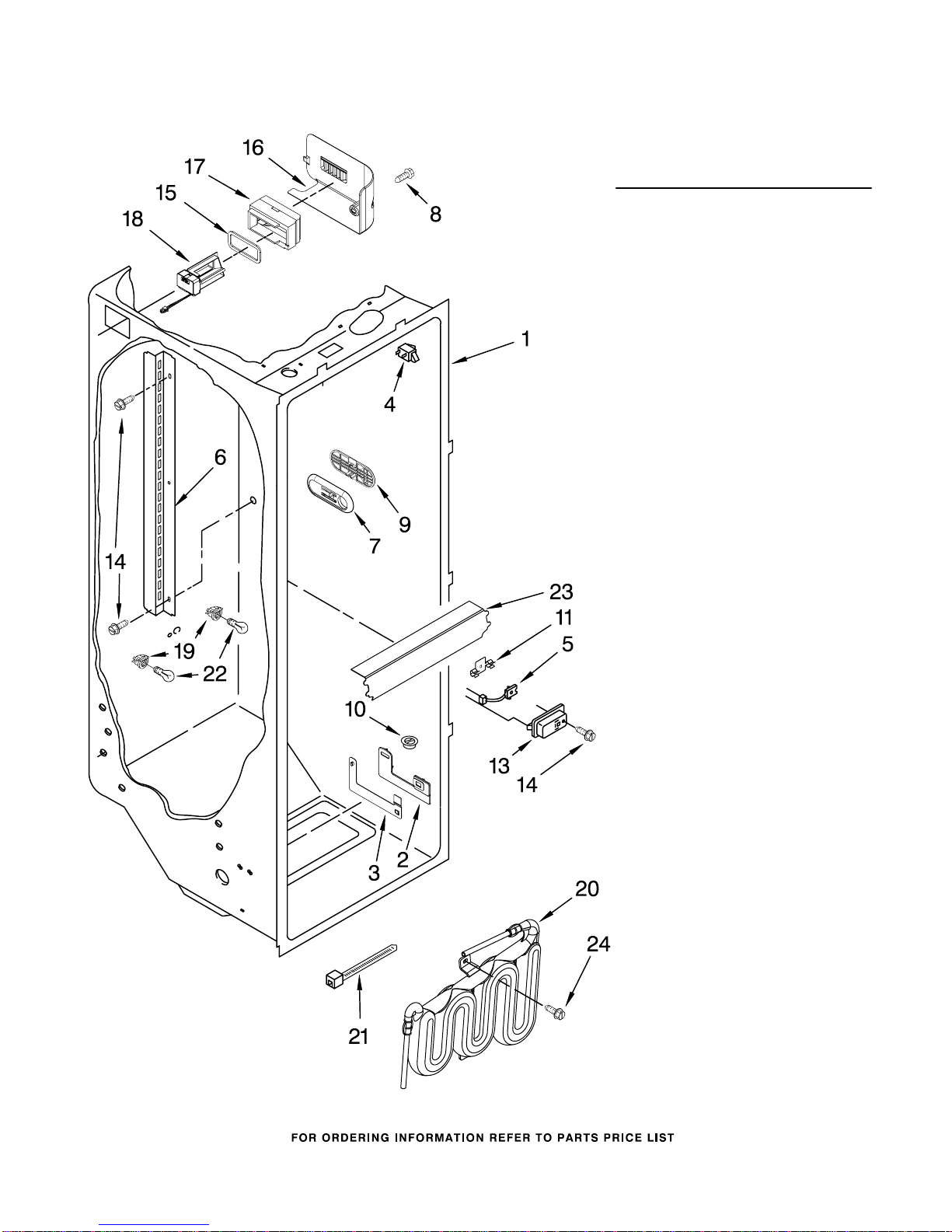

REFRIGERATOR LINER PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2223524 Escutcheon, Meat

Pan Control

3 2223339 Slide, Meat

Pan Control

4 1118894 Switch, Rocker

Arm

5 2188820 Thermistor

6 2223456 Ladder, Shelf (2)

7 2301234 Housing, Door

Control

8 489084 Screw

W10162918

Slide, Door

Control

10 2171846 Release Valve

11 2209204 Clip, Thermistor

13 1116793 Cover, Thermistor

W10001260

Screw

15 2304597 Gasket,

Air Baffle

16 2223403 Cover,

Air Baffle

17 2224076 Air Diffuser

Assembly

18 2220377 Air Baffle

19 2162085 Socket

20 2307107 Reservoir

21 2205813 Strap

W10194422

Light Bulb

23 2223663 Light Lens

W10141625

Screw

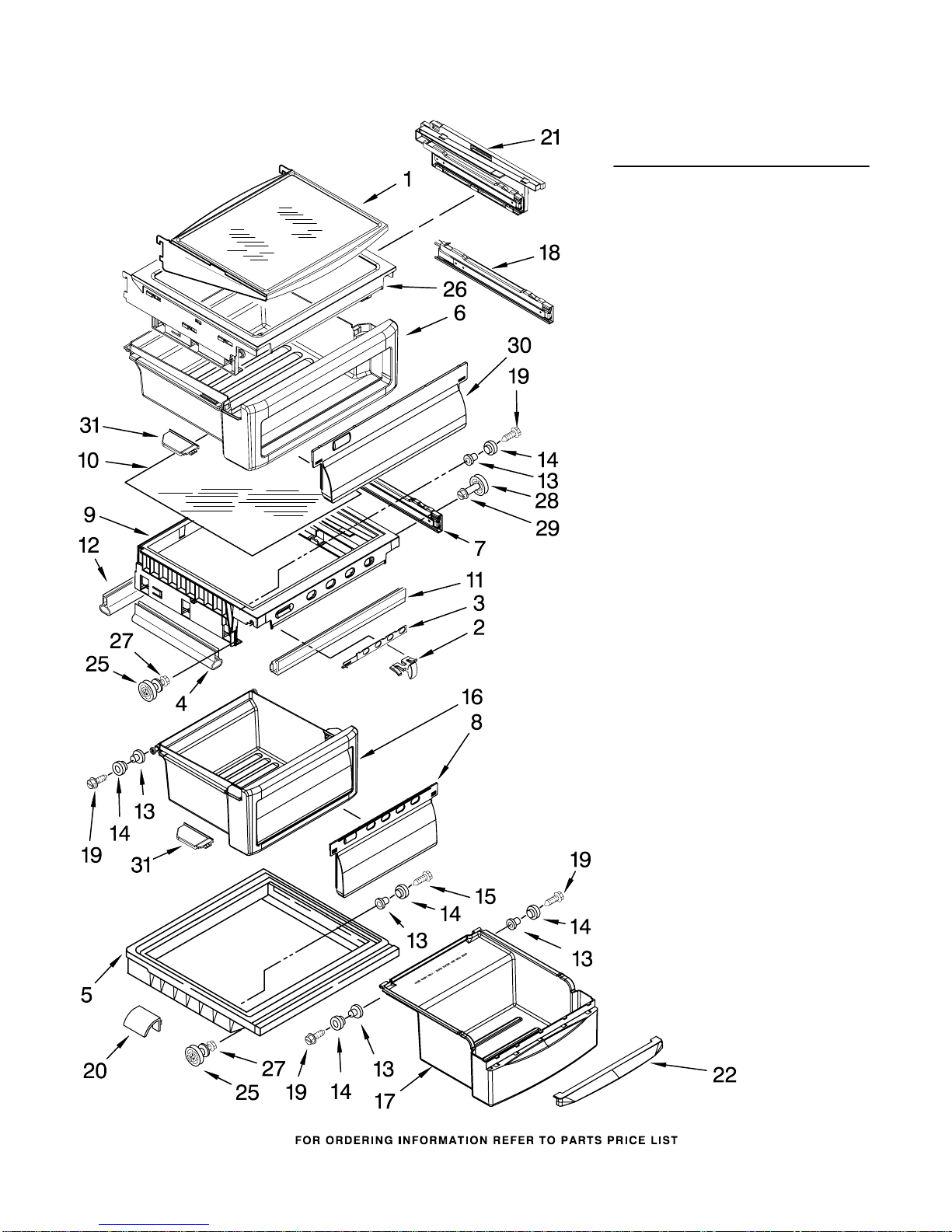

REFRIGERATOR SHELF PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

Illus. Part

No. No. DESCRIPTION

W10163053

Shelf Assembly,

Cantilever (3)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

W10163047

Snack Pan

(Includes 30 & 31)

14, & 19)

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

W10163043

Cover, Crisper

(Includes 2, 3,

4, 11, 12, 13,

14, & 19)

W10163045

Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

W10163039

Crisper Pan

(Includes 8, 13,

14, 19, & 31)

W10162924

Meat Pan

(Includes 13, 14,

19, & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

25 2196485 Stud Assembly

W10163048

Shelf, Snack Pan

W10191954

Screw

28 2196483 Stud Assembly

W10191952

Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

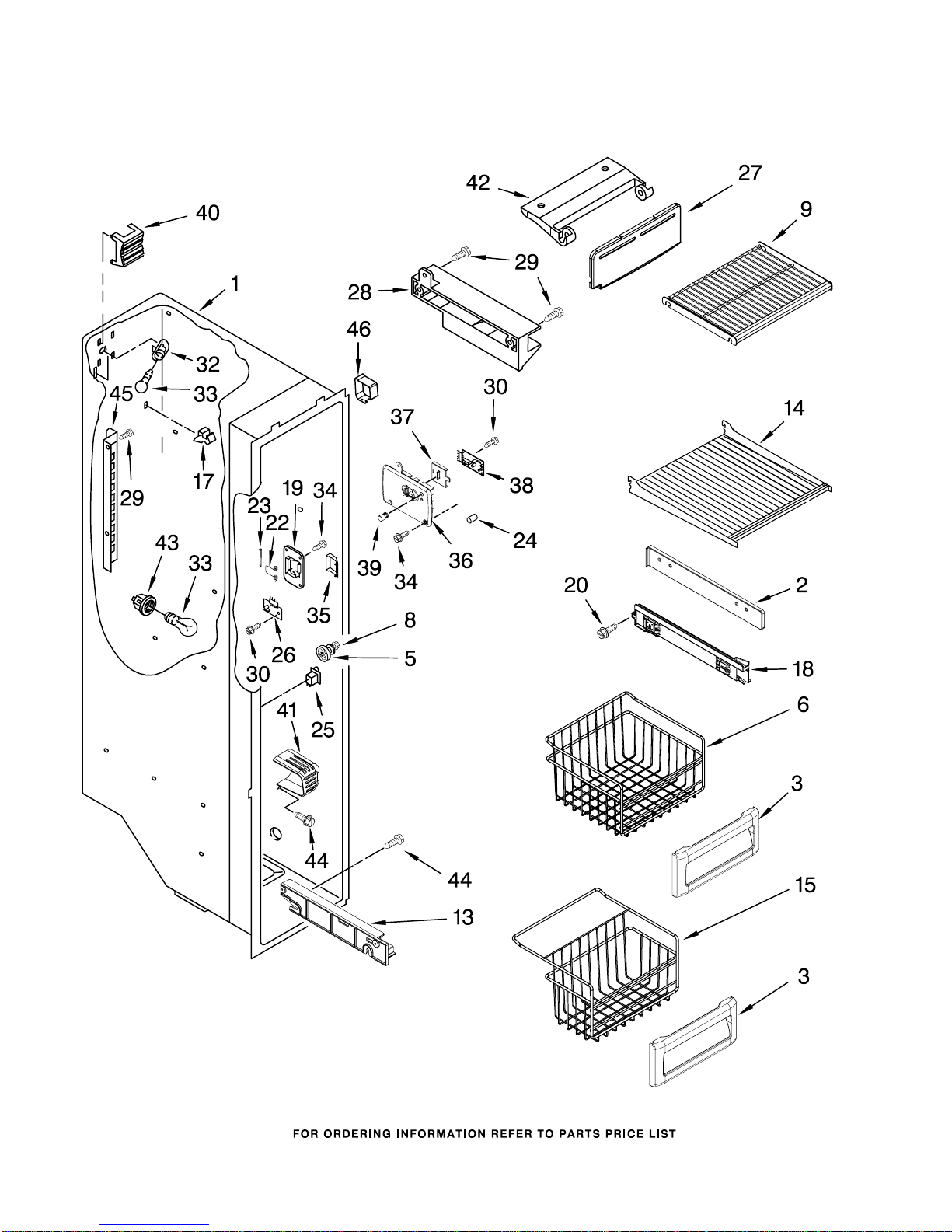

FREEZER LINER PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

FREEZER LINER PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

3 2224053 Basket, Front

5 2196483 Stud Assembly

6 2223691 Basket, Deep (2)

(Includes #3)

W10191952

Screw

9 2223500 Shelf Assembly,

Cantilever (2)

13 Shelf Track

2223787 Right Side

2223788 Left Side

14 2254615 Shelf, Fixed

15 2223694 Basket, Lower

(Includes #3)

17 842534 Clip, Air Duct

18 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

19 2259487 Cover, Emitter

20 8534064 Screw

22 2198635 Spring

23 2198634 Pin

24 2198665 Tube, P.C. Board

25 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

W10185438

Cover, Ice Maker

28 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

W10001260

Screw

30 489214 Screw

32 2162085 Light Socket

W10194422

Light Bulb

34 8281185 Screw

35 2198633 Flipper

W10173569

Cover, Receiver

37 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

44 3400893 Screw

45 Ladder

2223414 Left Side

2223415 Right Side

46 2303378 Shield, Wiring

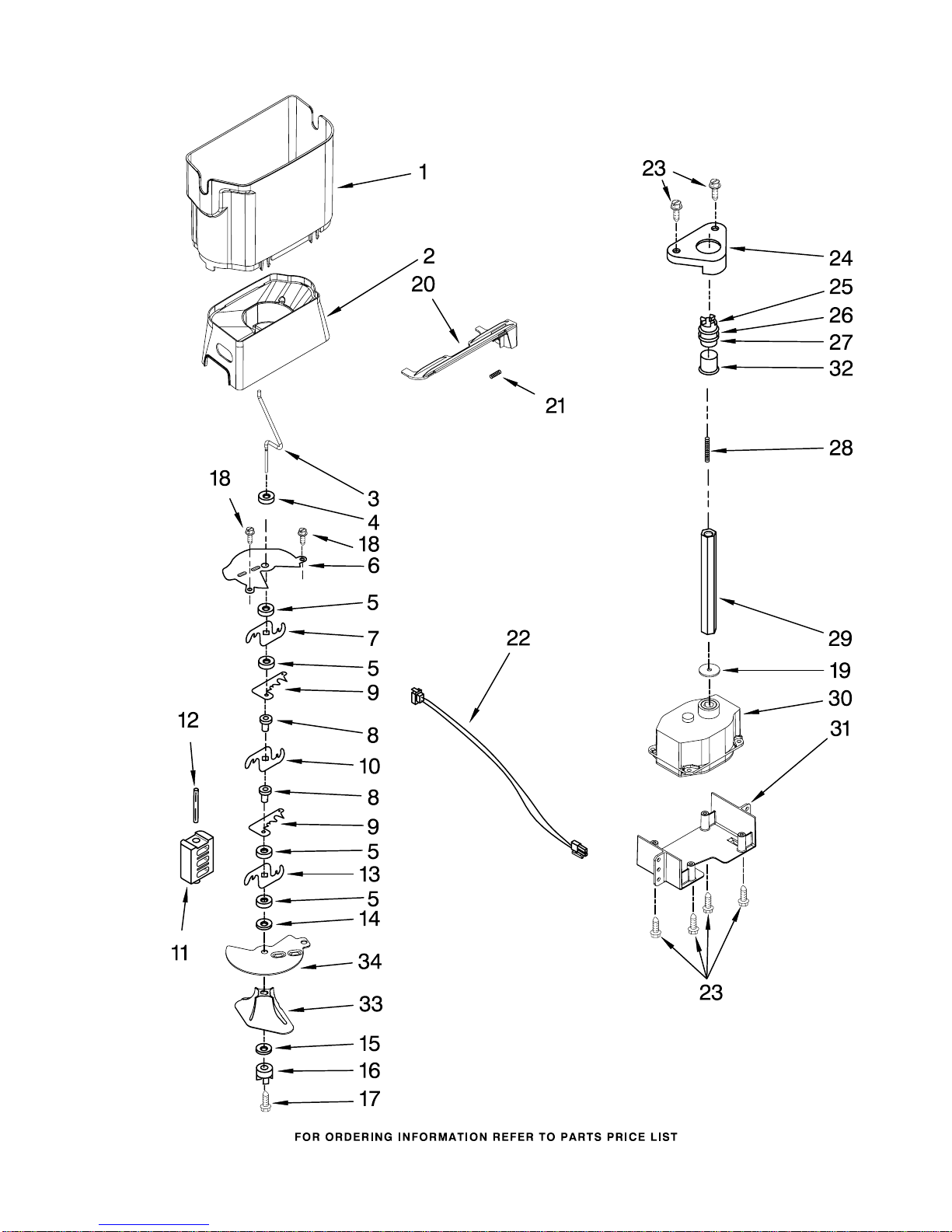

MOTOR AND ICE CONTAINER PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

MOTOR AND ICE CONTAINER PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

Illus. Part

No. No. DESCRIPTION

W10139482

Ice Bin

W10205004

Crusher Bin

W10140642

Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

W10139321

Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2305382 Rubber Boot

W10140685

Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Harness,

IDI Motor

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

28 2198607 Spring

29 2305243 Drive Shaft

30 2252130 Dispenser, Motor

31 2305208 Bracket, Motor

32 2212365 Sleeve, Coupling

33 2317243 Wiper

34 2317250 Divider−Chamber

100

W10205005

Ice Container

(Complete)

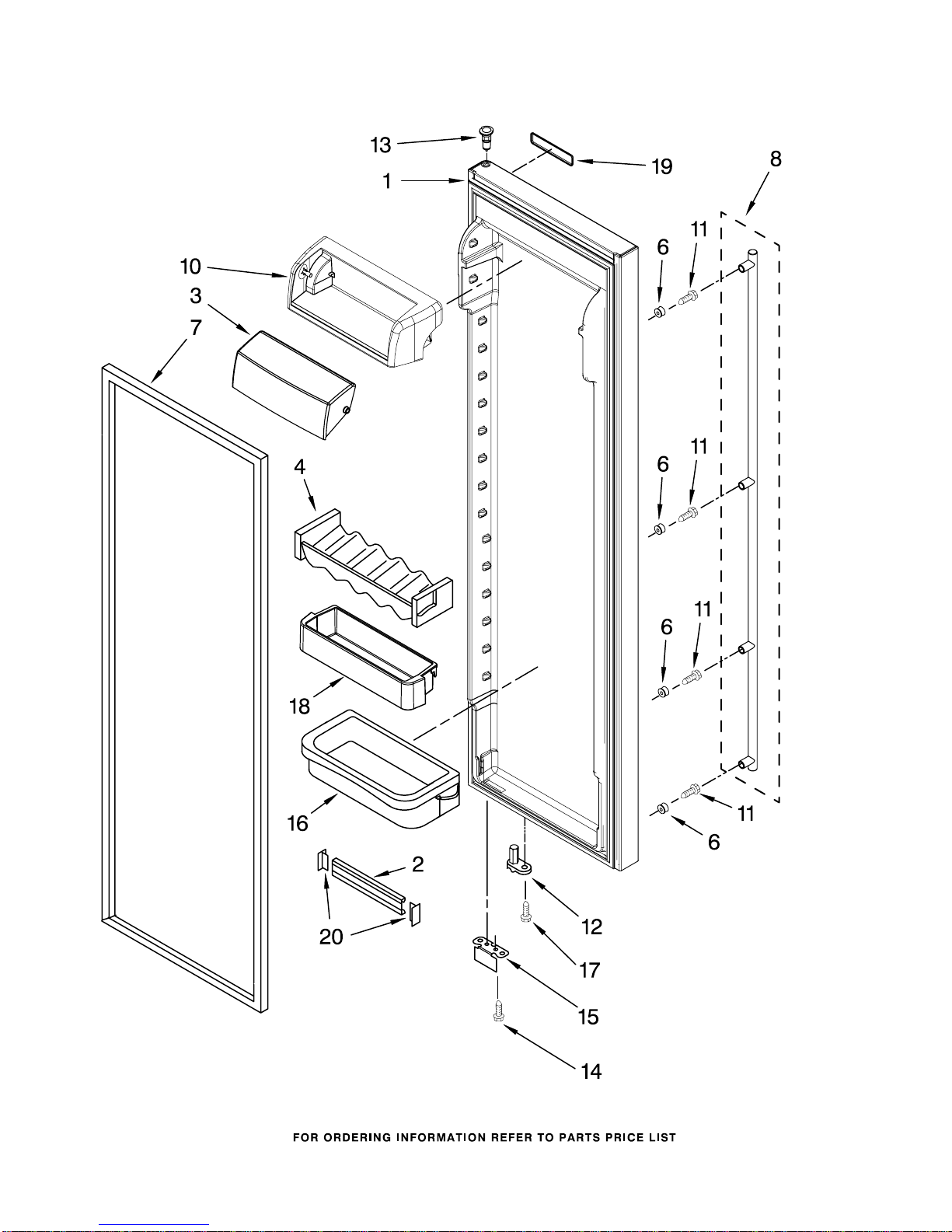

REFRIGERATOR DOOR PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

REFRIGERATOR DOOR PARTS

For Models: JCD2591WES00

(Stainless)

W10259852

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

W10173220SA

Stainless

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

6 12945201 Stud, Handle

7 Door Gasket,

Magnetic

2326341 Apollo Grey

8 Handle Assy

12850925 Stainless

10 2223879 Dairy Compartment

W10160454

Screw

12 2307048 Door Closer,

Upper Cam

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 12848704 Nameplate

20 2156006K Plug, Trim
