Jenn-Air SVE47100 Manual de usuario

Electric and Dual-FuelTM Slide-In Range

Dimensions

SVE47100, SVE47500,

SVE47600, SVE87600, SVD48600

Important: Because of continuing product improvements, Jenn-Air reserves the right to change specifications without

notice. Dimensional specifications are provided for planning purposes only. For complete details see installation

instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

www .jennair .com

Inches Centimeters

A2 35 1/2 90.2

B 29 7/8 75.9

C3 26 3/8 67.0

D 35 3/8 minimum 89.9 minimum

E 29 7/8 75.9

F 21 53.3

G 29 3/8 74.6

H 1/4 .6

I 30 1/8 ± 1/16 76.5

Notes:

1. Free-Standing installation requires optional

 backsplash. Unit does not overhang on counter.

 Side panels required if sides are exposed.

2. May vary depending on leveling legs.

3. Excluding handle. Dimension given is from

 wall to front of oven door.

X. If overhang is 1/2" to 1", dimension X=22 5/8".

 If overhang is 1" to 1 3/4", dimension X=23".

Y. The minimum clearance required between

 cabinet and cabinet drawer edge is

 minimum 7/8".

Z.  Select appropriate duct cutout

 (see ducting installation instructions).

"Drop-In Look" Option:

Order "Drop-In Look" Kit model A513. Attach

custom wood panel to supplied metal panel and clip

to range front (lower panel). Can be used with

SVE47100, SVE47500, SVE47600, SVE87600,

SVD48600.

Free Standing

Installation1

Slide-In

Installation

30"

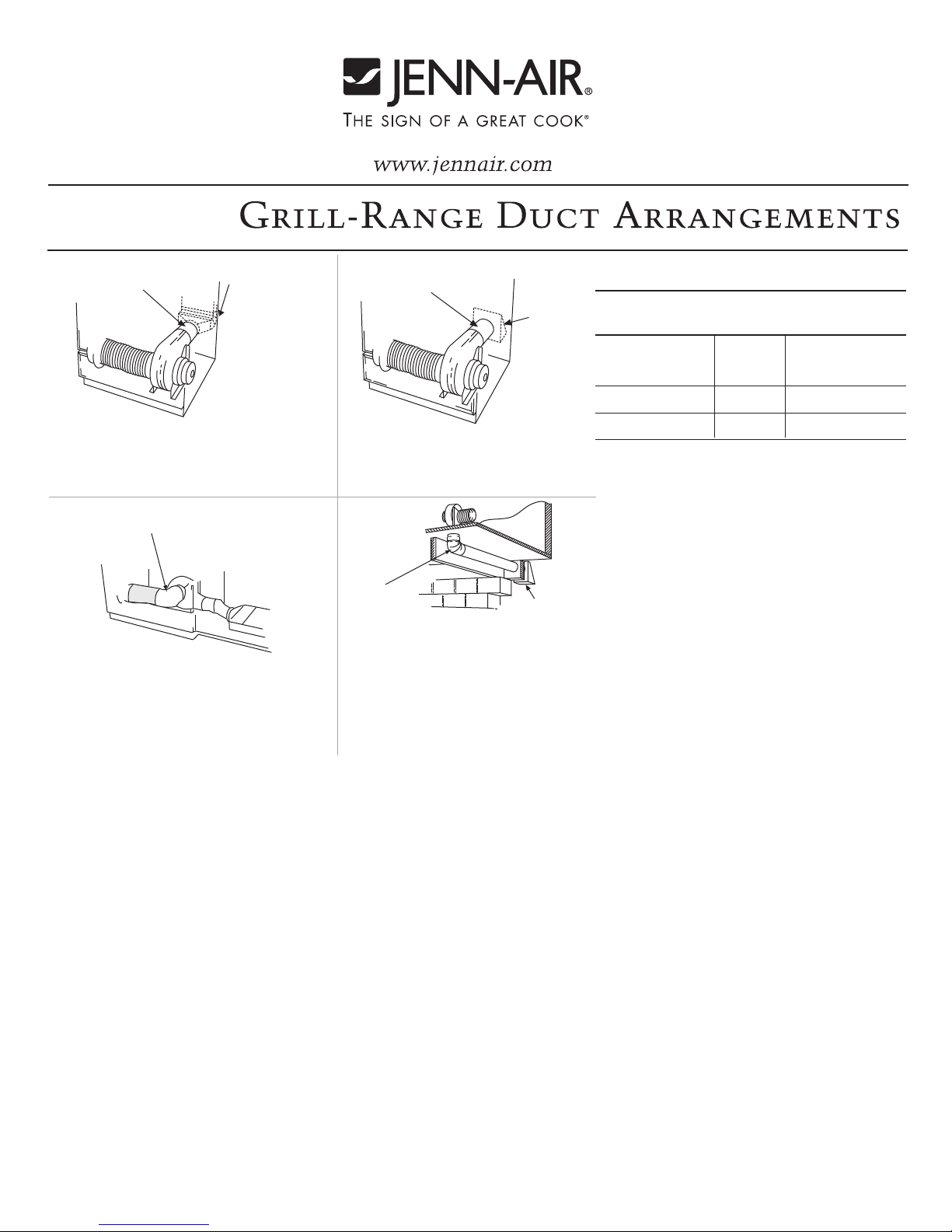

Duct Length RecommendationsA

5" Dia.C 6" Dia. or

  3 1/4 x 10"C

All ElectricD 10' 60'

All GasE 10' 60'

Notes:

A. For venting up to the equivalent of 60', use standard steel ducting and elbows.

B.  IMPORTANT: See installation instructions shipped with product before selecting island cabinetry,

 making cutouts or beginning installation. For best performance, it is suggested that no more than



three 90 degree elbows be used with 6" or 3 1/4" x 10" duct. Each foot of metal flex duct counts as two

 feet of rigid metal duct. Each flex elbow counts as two metal elbows. For longer duct runs of 31' to 60',

 the restricter ring on the blower inlet housing must be removed. 6" round or 3 1/4 x 10" duct must

 be used for ducting beyond 10' (up to 60'). Failure to follow ducting recommendations or use

 recommended ducting accessories may result in substandard performance.

C.  Count each 90 degree elbow as 5' of duct.

D. When venting electric ranges, 5" diameter round duct may be used to vent straight out the back of

 appliance and directly through the wall for runs of 10' or less.

E.  When venting dual-fuel ranges, 5" diameter round duct must be used for runs of 10' or less.

F. When installing through a slab, it is essential that the system be properly calculated, designed

 and installed before the house is built, when the slab is poured.

(Maximum)B

5" Dia. Duct

5" to

3 1/4" x 10"

Transition

Elbow

Rear Duct (Inside Wall)

6" Dia. Elbow

5" Wall

Cap

Through the wall in back of

the grill-range directly to

the outside

5" - 6"

Transition 6" Wall

Cap

Down through the floorF, along

the floor joists and through

the foundation or an outside wall

Out from the right of the

appliance through cabinet toe-

kick space to an outside wall

The Long Duct Run

With Jenn-Air's powerful blower,

Jenn-Air downdraft grill-ranges

can vent up to the equivalent of

60 feet.

Here's how it works.

For duct runs equivalent to 30'

or less, install as received. For

duct runs equivalent to 31' to

60', simply snap out the restricter

ring on the blower inlet housing.

See installation instructions for

specific information.
