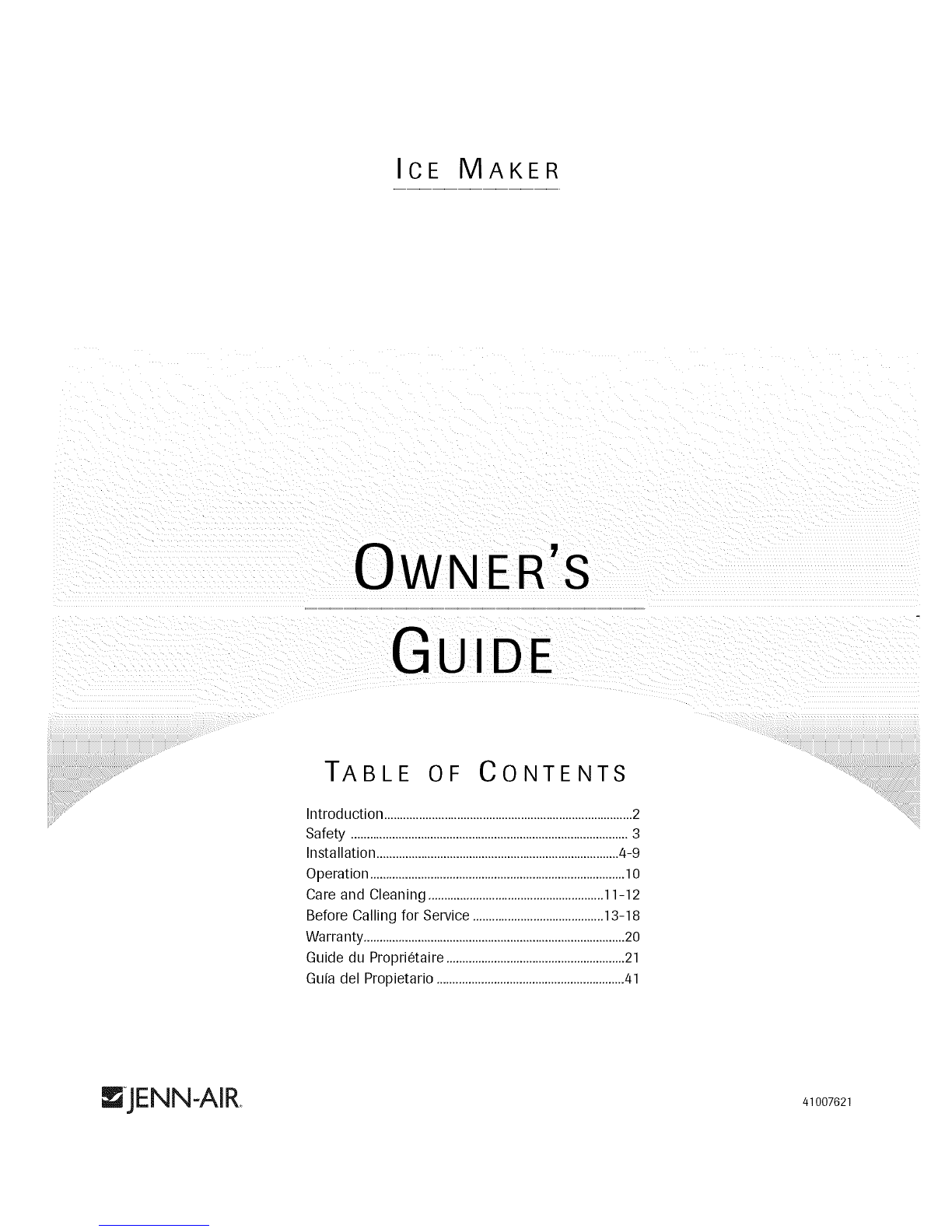

ICE MAKER

OWNER'S

GUIDE

TABLE OF CONTENTS

Introduction ..............................................................................2

Safety .......................................................................................3

Installation ............................................................................4-9

Operation ................................................................................10

Care and Cleaning .......................................................11-12

Before Calling for Service .........................................13-18

Warranty ..................................................................................20

Guide du Proprietaire ........................................................21

Guia del Propietario ...........................................................41

_JENN-AIR _,oo7621

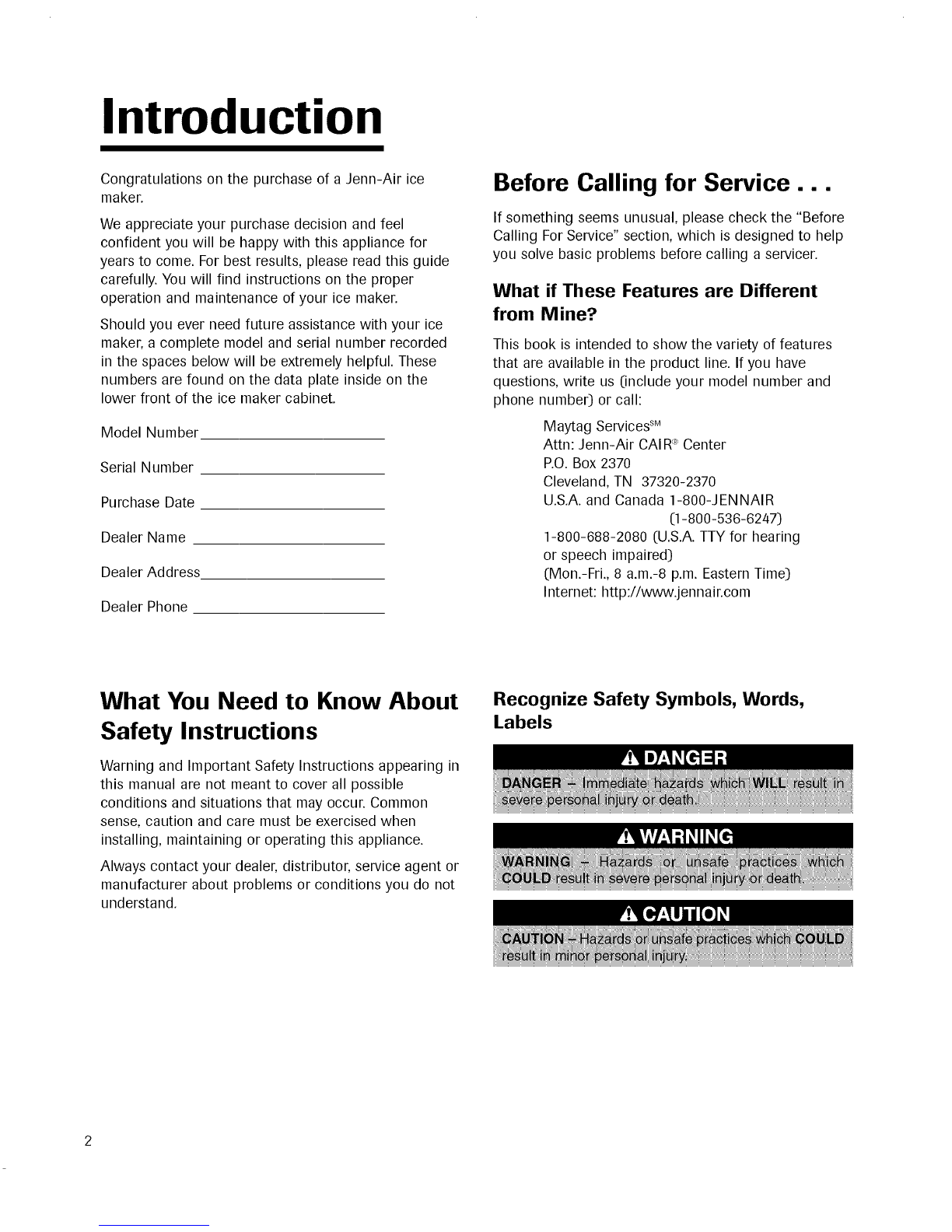

Introduction

Congratulations on the purchase of a Jenn-Air ice

maker.

We appreciate your purchase decision and feel

confident you will be happy with this appliance for

years to come. For best results, please read this guide

carefully. You will find instructions on the proper

operation and maintenance of your ice maker.

Should you ever need future assistance with your ice

maker, a complete model and serial number recorded

in the spaces below will be extremely helpful. These

numbers are found on the data plate inside on the

lower front of the ice maker cabinet.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Before Calling for Service...

If something seems unusual, please check the "Before

Calling For Service" section, which is designed to help

you solve basic problems before calling a servicer.

What if These Features are Different

from Mine?

This book is intended to show the variety of features

that are available in the product line. If you have

questions, write us (include your model number and

phone number) or call:

Maytag Services sM

Attn: Jenn-Air CAIR" Center

P.O. Box 2370

Cleveland, TN 37320-2370

U.S.A. and Canada 1-800-JENNAIR

(1-800-536-62/47)

1-800-688-2080 (U.S.A. TTY for hearing

or speech impaired)

(Mon.-Fri., 8 a.m.-8 p.m. Eastern Time)

Internet: http://www.jen nair.com

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating this appliance.

Always contact your dealer, distributor, service agent or

manufacturer about problems or conditions you do not

understand.

Recognize Safety Symbols, Words,

Labels

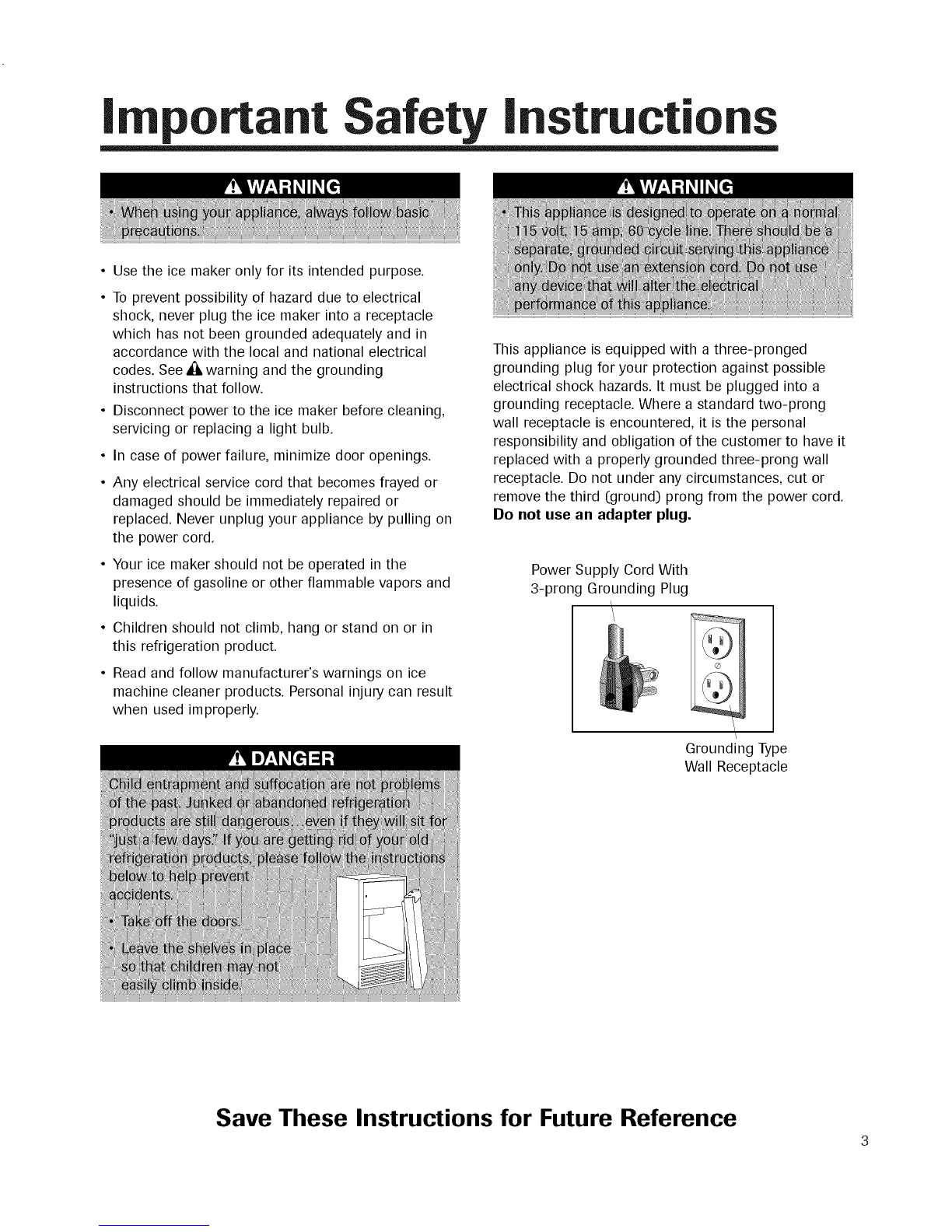

portant Safety nstructio

• Use the ice maker only for its intended purpose.

• To prevent possibility of hazard due to electrical

shock, never plug the ice maker into a receptacle

which has not been grounded adequately and in

accordance with the local and national electrical

codes. See A(_warning and the grounding

instructions that follow.

• Disconnect power to the ice maker before cleaning,

servicing or replacing a light bulb.

• In case of power failure, minimize door openings.

• Any electrical service cord that becomes frayed or

damaged should be immediately repaired or

replaced. Never unplug your appliance by pulling on

the power cord.

• Your ice maker should not be operated in the

presence of gasoline or other flammable vapors and

liquids.

• Children should not climb, hang or stand on or in

this refrigeration product.

• Read and follow manufacturer's warnings on ice

machine cleaner products. Personal injury can result

when used improperly.

This appliance is equipped with a three-pronged

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power Supply Cord With

3-prong Grounding Plug

Grounding Type

Wall Receptacle

Save These Instructions for Future Reference

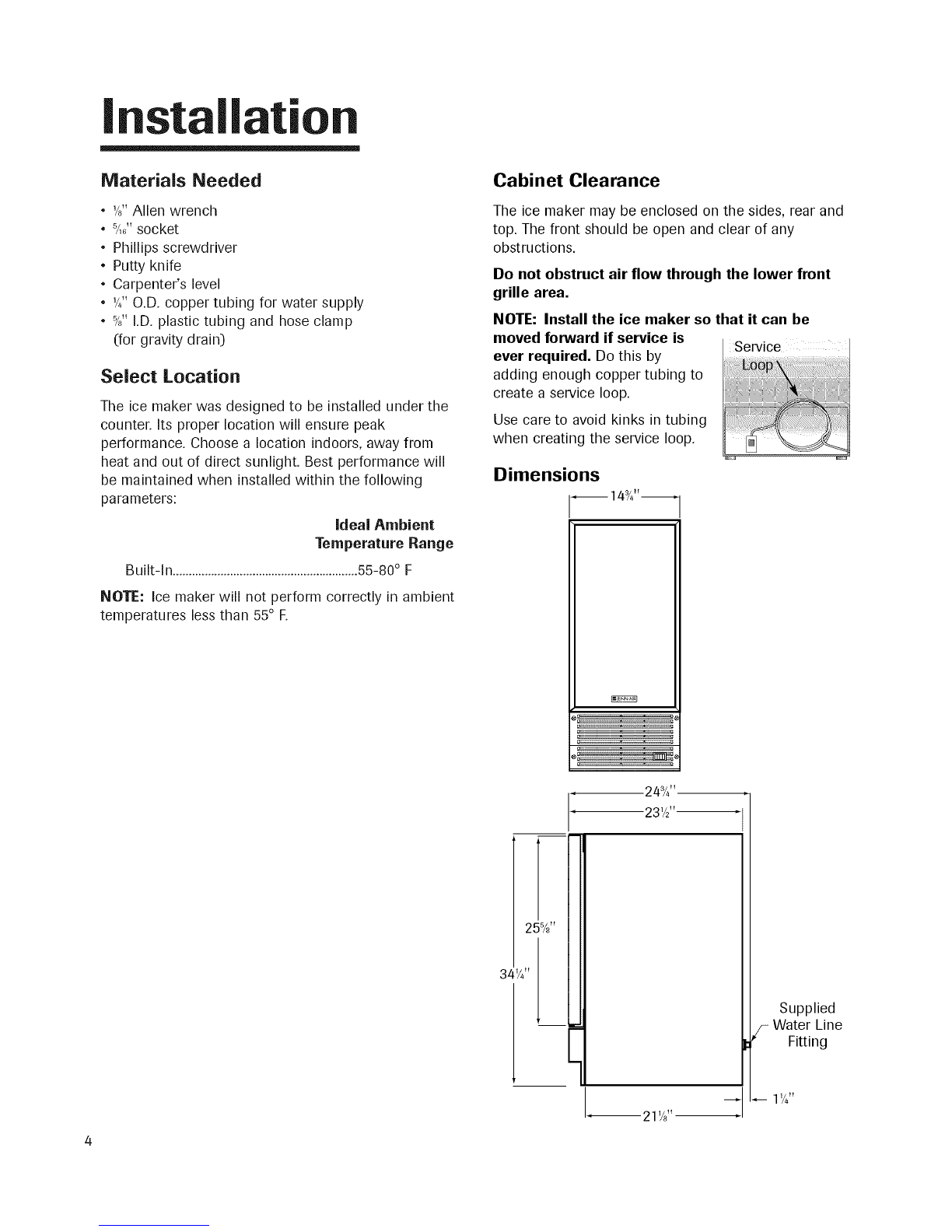

nstall "

Materials Needed

• Ys"Allen wrench

• 5A6"socket

• Phillips screwdriver

• Putty knife

• Carpenter's level

• Y4"O.D. copper tubing for water supply

•%"I.D. plastic tubing and hose clamp

(for gravity drain)

Select Location

The ice maker was designed to be installed under the

counter. Its proper location will ensure peak

performance. Choose a location indoors, away from

heat and out of direct sunlight. Best performance will

be maintained when installed within the following

parameters:

Ideal Ambient

Temperature Range

Built-in ..........................................................55-80 ° F

NOTE: Ice maker will not perform correctly in ambient

temperatures less than 55° F.

Cabinet Clearance

The ice maker may be enclosed on the sides, rear and

top. The front should be open and clear of any

obstructions.

Do not obstruct air flow through the lower front

grille area.

NOTE: Install the ice maker so that it can be

moved forward if service is

ever required. Do this by

adding enough copper tubing to

create a service loop.

Use care to avoid kinks in tubing

when creating the service loop.

Service

Dimensions

__ 143/4''__

--21Y8"

Supplied

/-Water Line

Fitting

1'/4"

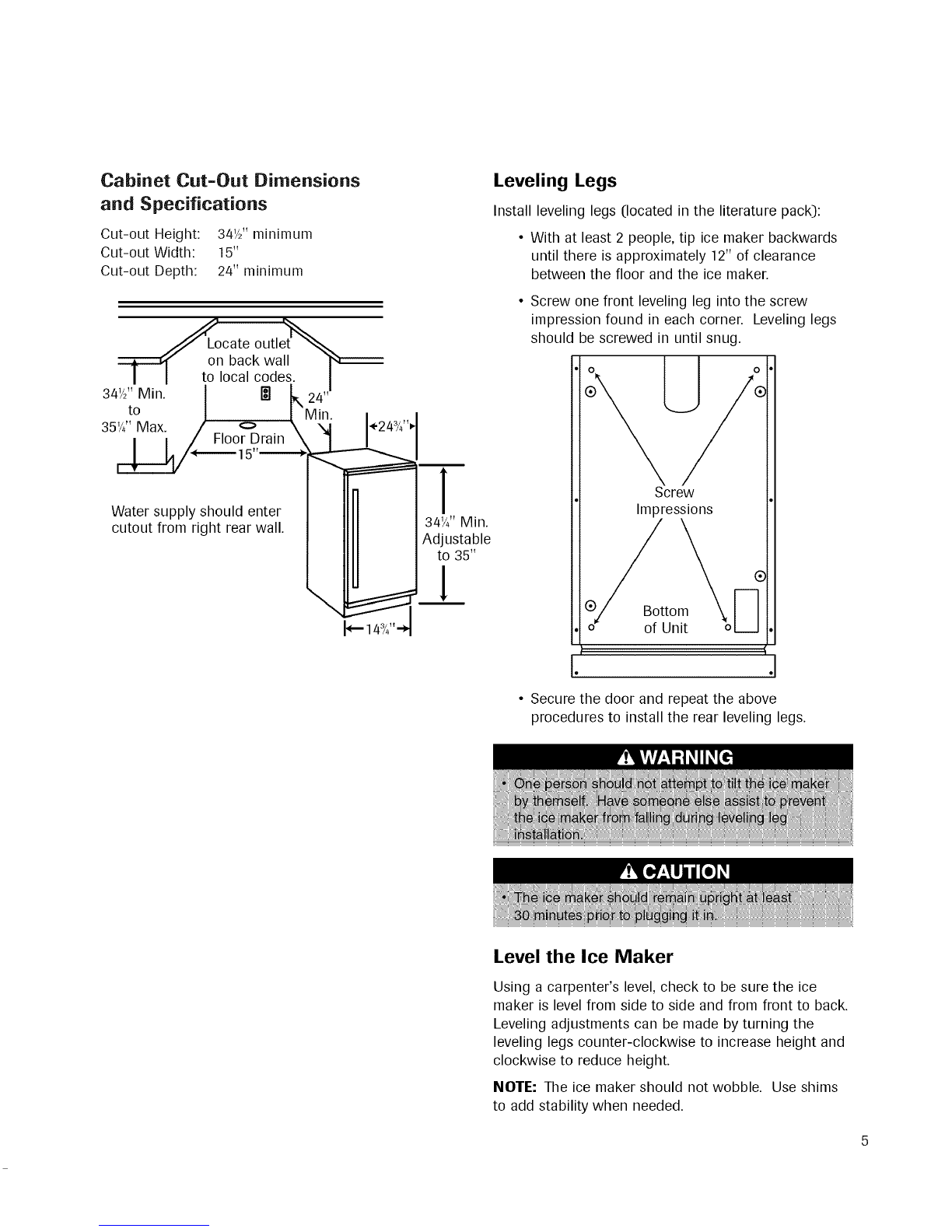

Cabinet Cut=Out Dimensions

and Specifications

Cut-out Height: 34'/z" minimum

Cut-out Width: 15"

Cut-out Depth: 24" minimum

=f ,o oOcateo°t,et .

back wall

local codes. I

34'fJ' Min. __'_ z41_l 24"

to Min. I ,,

35'/4" Max.

Water supply should enter

cutout from right rear wall.

34V4"Min.

Adjustable

to 35"

Leveling Legs

Install leveling legs (located in the literature pack):

• With at least 2 people, tip ice maker backwards

until there is approximately 12" of clearance

between the floor and the ice maker.

• Screw one front leveling leg into the screw

impression found in each corner. Leveling legs

should be screwed in until snug.

•

• Secure the door and repeat the above

procedures to install the rear leveling legs.

Level the Ice Maker

Using a carpenter's level, check to be sure the ice

maker is level from side to side and from front to back.

Leveling adjustments can be made by turning the

leveling legs counter-clockwise to increase height and

clockwise to reduce height.

NOTE: The ice maker should not wobble. Use shims

to add stability when needed.

nstall " ,

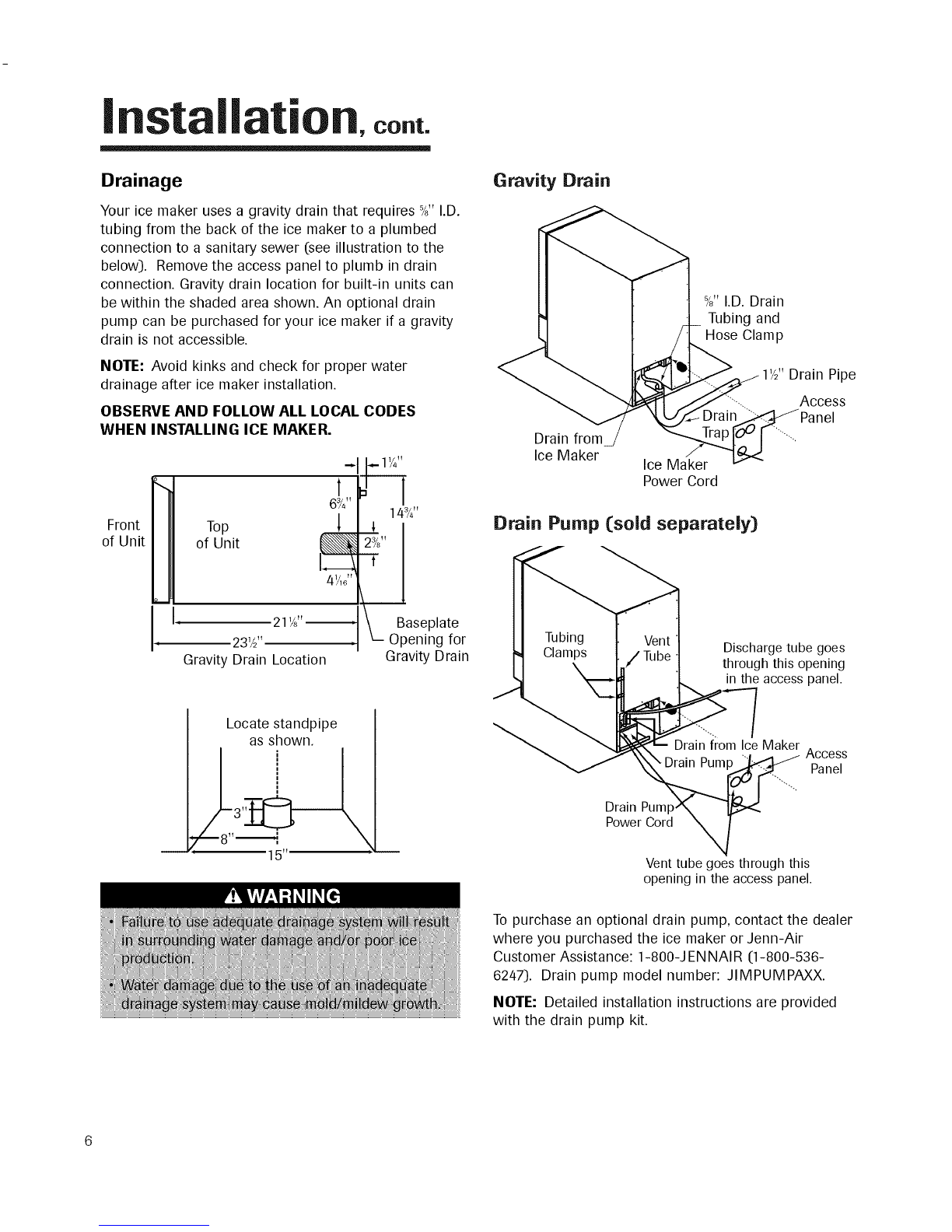

Drainage

Your ice maker uses a gravity drain that requires 5/8"I.D.

tubing from the back of the ice maker to a plumbed

connection to a sanitary sewer (see illustration to the

below). Remove the access panel to plumb in drain

connection. Gravity drain location for built-in units can

be within the shaded area shown. An optional drain

pump can be purchased for your ice maker if a gravity

drain is not accessible.

NOTE: Avoid kinks and check for proper water

drainage after ice maker installation.

OBSERVE AND FOLLOW ALL LOCAL CODES

WHEN INSTALLING ICE MAKER.

Front

of Unit Top

of Unit

I, 21'/8"_

23'/J'

Gravity Drain Location

Baseplate

Opening for

Gravity Drain

Drain from

Ice Maker Ice Maker

Power Cord

5/8"I.D. Drain

Tubing and

Hose Clamp

Drain Pipe

Access

Drain Pump (sold separately)

Tubing Vent

Clamps -ube Discharge tube goes

through this opening

in the access panel.

Locate standpipe

as shown.

15"

"'-.

Drain from Ice Maker

Drain Pump

Drain Pum

Power Cord

Vent tube goes through this

opening in the access panel.

Access

Panel

To purchase an optional drain pump, contact the dealer

where you purchased the ice maker or Jenn-Air

Customer Assistance: 1-800-J ENNAI R (1-800-536-

62/47). Drain pump model number: JIMPUMPAXX.

NOTE: Detailed installation instructions are provided

with the drain pump kit.

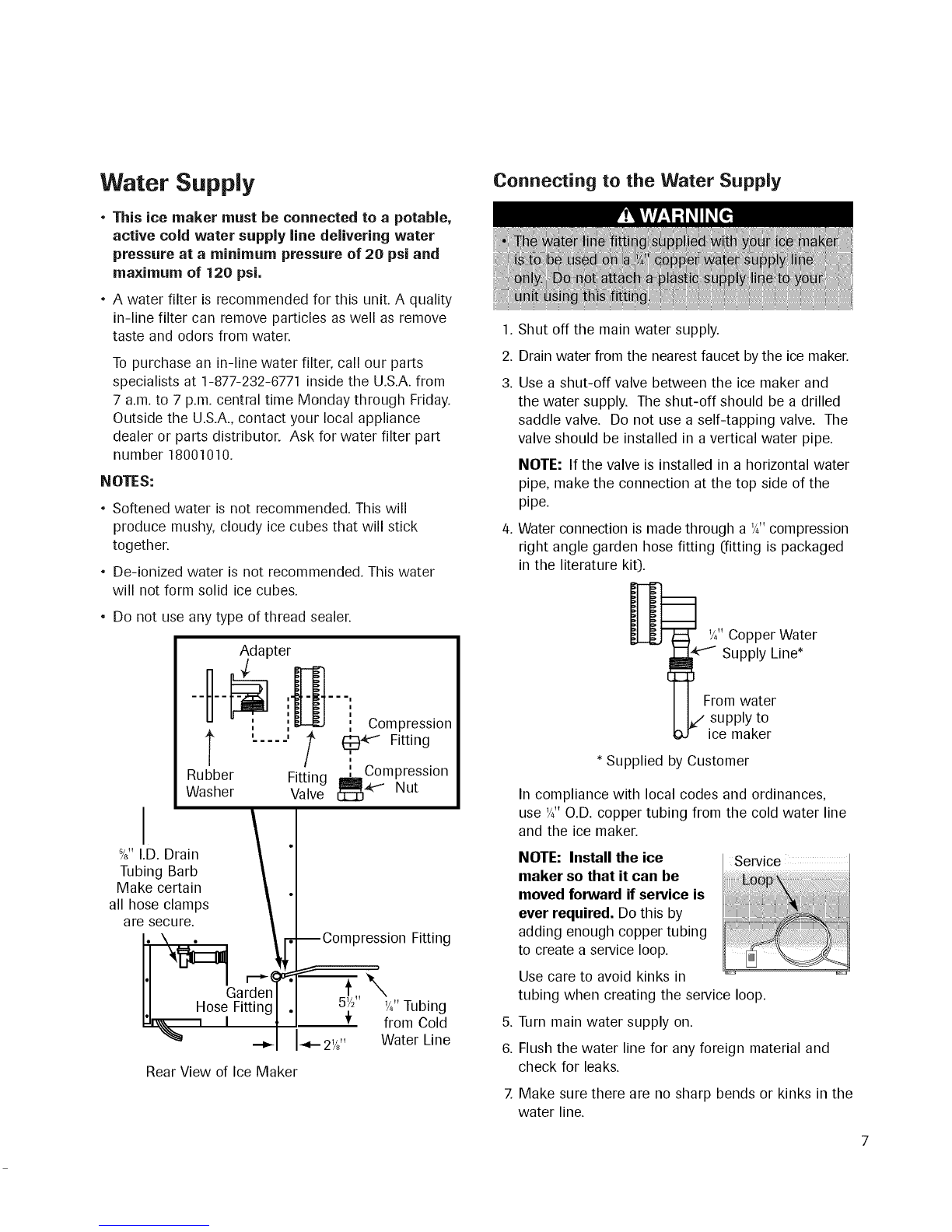

Water Supply

This ice maker must be connected to a potable,

active cold water supply line delivering water

pressure at a minimum pressure of 20 psi and

maximum of 120 psi.

* A water filter is recommended for this unit. A quality

in-line filter can remove particles as well as remove

taste and odors from water.

To purchase an in-line water filter, call our parts

specialists at 1-877-232-6771 inside the U.S.A. from

7 a.m. to 7 p.m. central time Monday through Friday.

Outside the U.S.A., contact your local appliance

dealer or parts distributor. Ask for water filter part

number 18001010.

NOTES:

•Softened water is not recommended. This will

produce mushy, cloudy ice cubes that will stick

together.

De-ionized water is not recommended. This water

will not form solid ice cubes.

Do not use any type of thread sealer.

Adapter

i "

, 1 Compression

t ' " f_F'tt'ng,

_ Compression

Rubber Fitting _,_ Nut

Washer Valve

5/8"I.D. Drain

Tubing Barb

Make certain

all hose clamps

are secure.

" Garde

__._lH osI Fittm.._g[ 2Y8" from Cold

1_._ Water Line

Rear View of Ice Maker

Connecting to the Water Supply

Shut off the main water supply.

Drain water from the nearest faucet by the ice maker.

Use a shut-off valve between the ice maker and

the water supply. The shut-off should be a drilled

saddle valve. Do not use a self-tapping valve. The

valve should be installed in a vertical water pipe.

NOTE: If the valve is installed in a horizontal water

pipe, make the connection at the top side of the

pipe.

Water connection is made through a Y4"compression

right angle garden hose fitting (fitting is packaged

in the literature kit).

'/4"Copper Water

_ Supply Line*

From water

supply to

ice maker

* Supplied by Customer

In compliance with local codes and ordinances,

use '/4"O.D. copper tubing from the cold water line

and the ice maker.

NOTE: Install the ice

maker so that it can be

moved forward if service is

ever required. Do this by

adding enough copper tubing

to create a service loop.

Use care to avoid kinks in

tubing when creating the service loop.

Service

Turn main water supply on.

Flush the water line for any foreign material and

check for leaks.

Make sure there are no sharp bends or kinks in the

water line.

nstall " ,

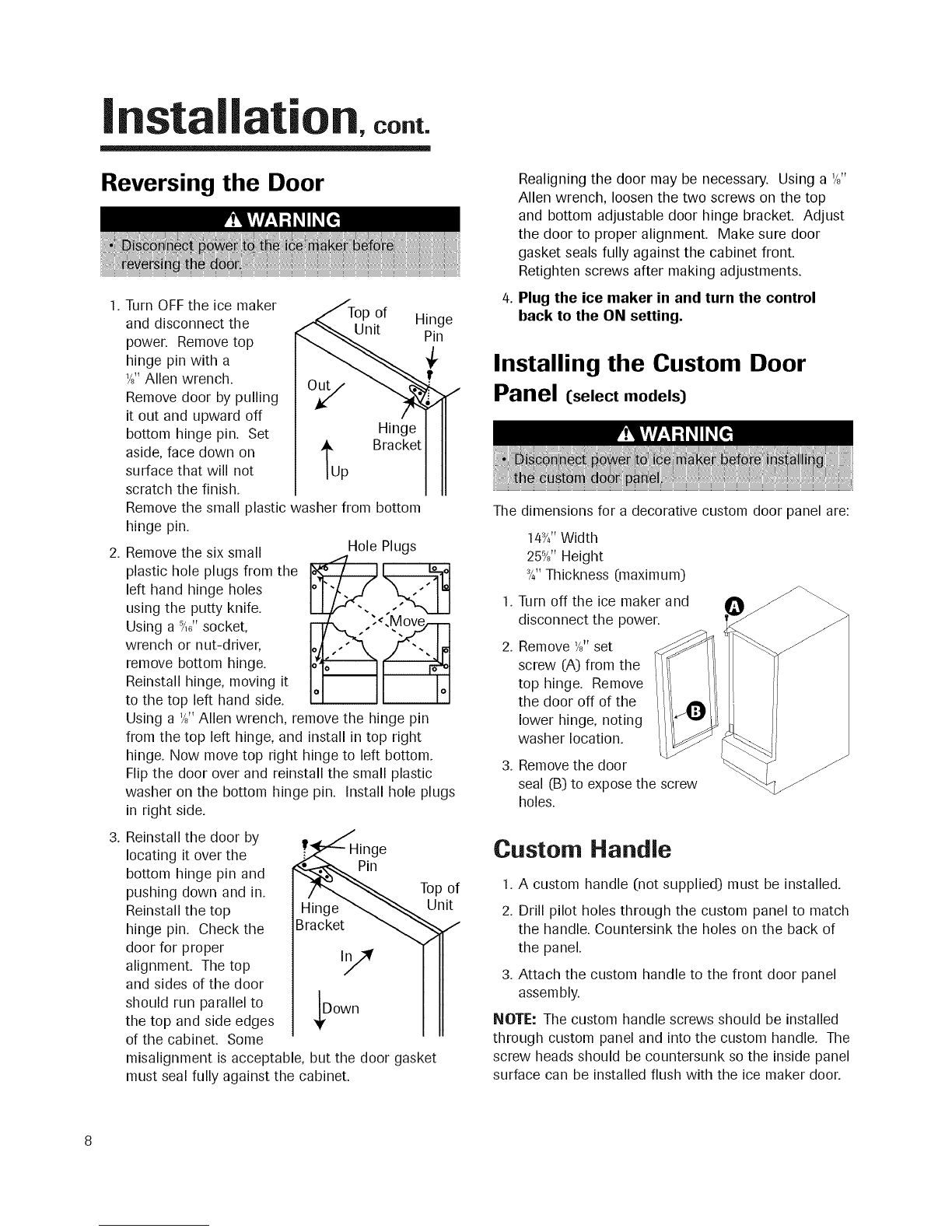

Reversing the Door

Turn OFF the ice maker

and disconnect the

power. Remove top

hinge pin with a

Ys"Allen wrench.

Remove door by pulling

it out and upward off

bottom hinge pin. Set

aside, face down on

surface that will not

scratch the finish.

Hinge

tUp Bracket

Remove

hinge pin.

the small plastic washer from bottom

Remove the six small

plastic hole plugs from the

left hand hinge holes

using the putty knife.

Using a 5/,8"socket,

wrench or nut-driver,

remove bottom hinge.

Reinstall hinge, moving it

to the top left hand side.

Hole Plugs

Using a '//Allen wrench, remove the hinge pin

from the top left hinge, and install in top right

hinge. Now move top right hinge to left bottom.

Flip the door over and reinstall the small plastic

washer on the bottom hinge pin. Install hole plugs

in right side.

Reinstall the door by

locating it over the

bottom hinge pin and

pushing down and in.

Reinstall the top

hinge pin. Check the

door for proper

alignment. The top

and sides of the door

should run parallel to

the top and side edges

of the cabinet. Some

_inge

_Uown

misalignment is acceptable, but the door gasket

must seal fully against the cabinet.

Top of

Unit

Realigning the door may be necessary. Using a '/8"

Allen wrench, loosen the two screws on the top

and bottom adjustable door hinge bracket. Adjust

the door to proper alignment. Make sure door

gasket seals fully against the cabinet front.

Retighten screws after making adjustments.

Plug the ice maker in and turn the control

back to the ON setting.

Installing the Custom Door

Panel (select models)

The dimensions for a decorative custom door panel are:

14"74"Width

25%" Height

3/4"Thickness (maximum)

Turn off the ice maker and

disconnect the power.

Remove '/8"set

screw (A) from the

top hinge. Remove

the door off of the

lower hinge, noting

washer location.

Remove the door

seal (B) to expose the screw

holes.

Custom Handle

1. A custom handle (not supplied) must be installed.

2. Drill pilot holes through the custom panel to match

the handle. Countersink the holes on the back of

the panel.

3. Attach the custom handle to the front door panel

assembly.

NOTE: The custom handle screws should be installed

through custom panel and into the custom handle. The

screw heads should be countersunk so the inside panel

surface can be installed flush with the ice maker door.

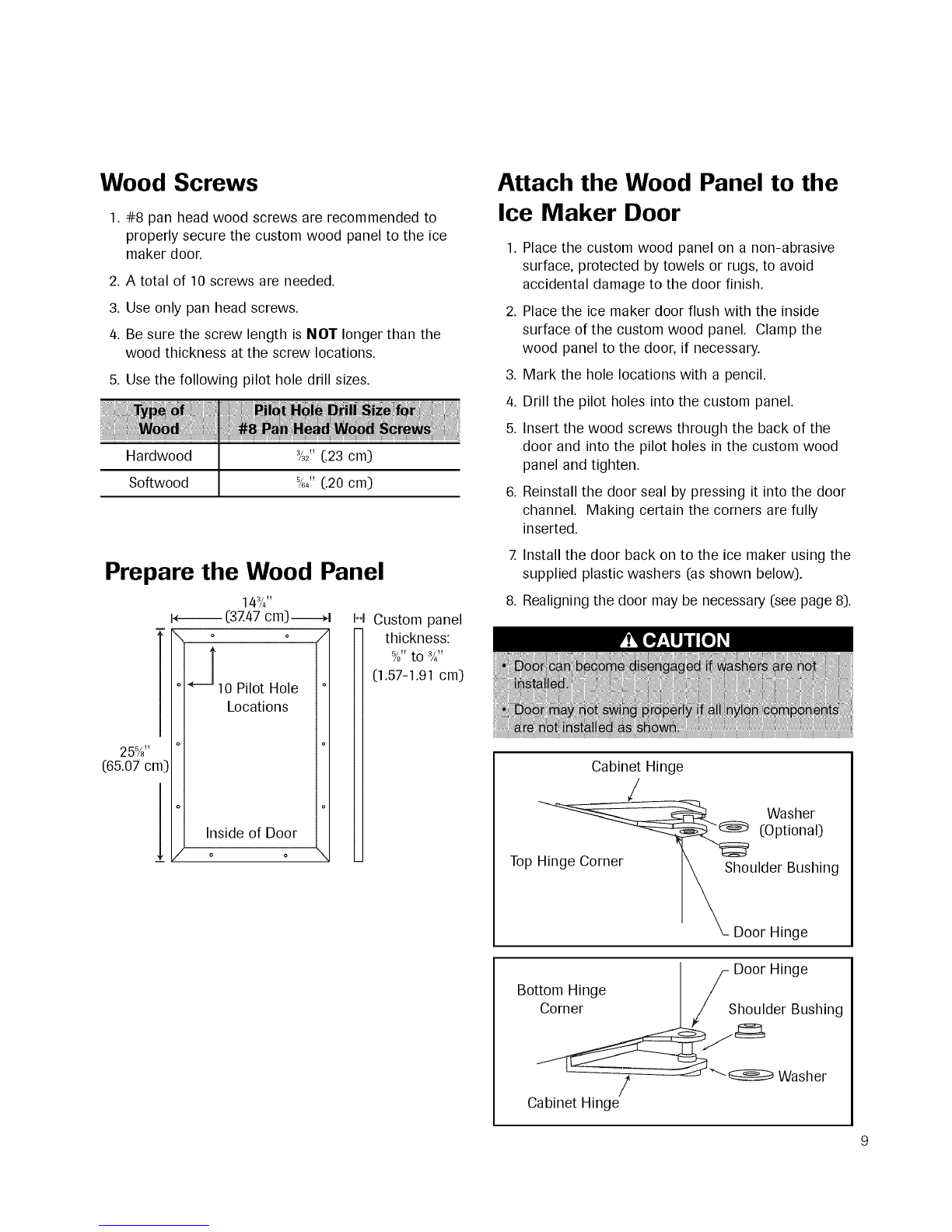

Wood Screws

1. #8 pan head wood screws are recommended to

properly secure the custom wood panel to the ice

maker door.

2. Atotal of 10 screws are needed.

3. Use only pan head screws.

4. Be sure the screw length is NOT longer than the

wood thickness at the screw locations.

5. Use the following pilot hole drill sizes.

Hardwood s/32"(.23 cm)

Softwood 5/64"(.20 cm)

Prepare the Wood Panel

25%"

(65.07 cm)

14s/4''

14------ (37.47 cm)----4

10 Pilot Hole

Locations

Inside of Door

H Custom panel

thickness:

5/8"to s/4"

(1.57-1.91 cm)

Attach the Wood Panel to the

Ice Maker Door

Place the custom wood panel on a non-abrasive

surface, protected by towels or rugs, to avoid

accidental damage to the door finish.

Place the ice maker door flush with the inside

surface of the custom wood panel. Clamp the

wood panel to the door, if necessary.

Mark the hole locations with a pencil.

Drill the pilot holes into the custom panel.

Insert the wood screws through the back of the

door and into the pilot holes in the custom wood

panel and tighten.

Reinstall the door seal by pressing it into the door

channel. Making certain the corners are fully

inserted.

7. Install the door back on to the ice maker using the

supplied plastic washers (as shown below).

8. Realigning the door may be necessary (see page 8).

Cabinet Hinge

Top Hinge Corner

Washer

(Optional)

Shoulder Bushing

Door Hinge

/- Door Hinge

Bottom Hinge /

Corner /Shoulder Bushing

, --_r _ Washer

Cabinet Hinge

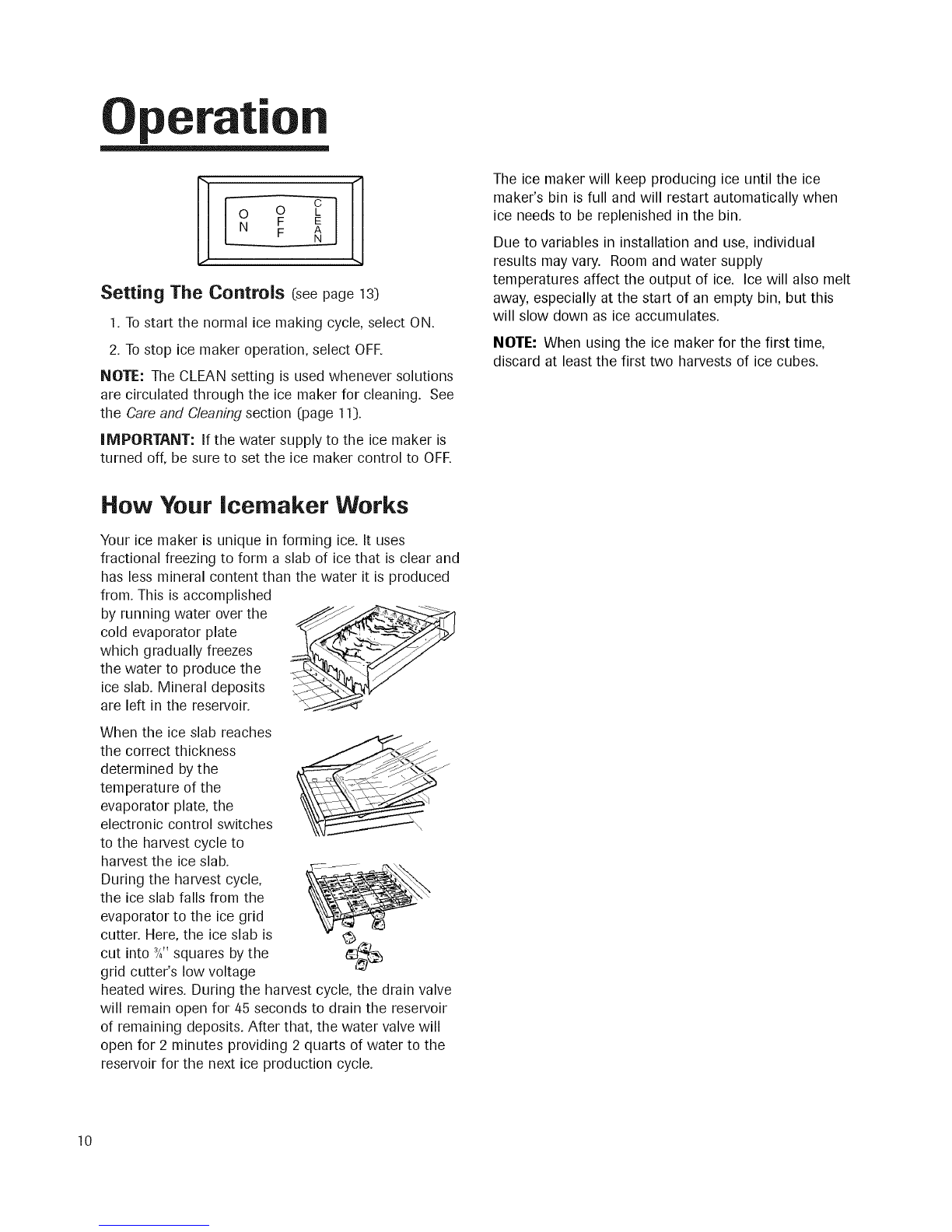

Operation

IIOOFC IIEL

_ F

Setting The Controls (seepage 13)

1. To start the normal ice making cycle, select ON.

2. To stop ice maker operation, select OFE

NOTE: The CLEAN setting is used whenever solutions

are circulated through the ice maker for cleaning. See

the Care and Cleaning section (page 11).

IMPORTANT: If the water supply to the ice maker is

turned off, be sure to set the ice maker control to OFE

The ice maker will keep producing ice until the ice

maker's bin is full and will restart automatically when

ice needs to be replenished in the bin.

Due to variables in installation and use, individual

results may vary. Room and water supply

temperatures affect the output of ice. Ice will also melt

away, especially at the start of an empty bin, but this

will slow down as ice accumulates.

NOTE: When using the ice maker for the first time,

discard at least the first two harvests of ice cubes.

How Your Icemaker Works

Your ice maker is unique in forming ice. It uses

fractional freezing to form a slab of ice that is clear and

has less mineral content than the water it is produced

from. This is accomplished

by running water over the

cold evaporator plate

which gradually freezes

the water to produce the

ice slab. Mineral deposits

are left in the reservoir.

When the ice slab reaches

the correct thickness

determined by the

temperature of the

evaporator plate, the

electronic control switches

to the harvest cycle to

harvest the ice slab.

During the harvest cycle,

the ice slab falls from the

evaporator to the ice grid

cutter. Here, the ice slab is

cut into 3/4"squares by the

grid cutter's low voltage

heated wires. During the harvest cycle, the drain valve

will remain open for 45 seconds to drain the reservoir

of remaining deposits. After that, the water valve will

open for 2 minutes providing 2 quarts of water to the

reservoir for the next ice production cycle.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Máquina de hielo de Jenn-Air

Jenn-Air

Jenn-Air A912 Manual de usuario

Jenn-Air

Jenn-Air JIM158XBCX2 Manual de usuario

Jenn-Air

Jenn-Air JIM1550ARB Manual de usuario

Jenn-Air

Jenn-Air JIM158XXCX Manual de usuario

Jenn-Air

Jenn-Air JIM158XXRS Manual de usuario

Jenn-Air

Jenn-Air W10520236B Manual de usuario

Jenn-Air

Jenn-Air JIM1550ACX Manual de usuario

Jenn-Air

Jenn-Air Ice Maker Manual de usuario

Jenn-Air

Jenn-Air JENN-AIR ICE MAKER Manual de usuario

Jenn-Air

Jenn-Air JUIFX15HX Manual de usuario

Jenn-Air

Jenn-Air JUIFN15HX00 Manual de usuario

Jenn-Air

Jenn-Air JIM158XWRB0 Manual de usuario

Jenn-Air

Jenn-Air Ice Maker Manual de usuario

Jenn-Air

Jenn-Air ICE MAKER Manual de lista de piezas

Jenn-Air

Jenn-Air JUIFN15HX Manual de usuario

Jenn-Air

Jenn-Air W11528111A Manual de usuario

Jenn-Air

Jenn-Air JIM158BCX3 Manual de usuario

Jenn-Air

Jenn-Air W10520236E Manual de usuario

Jenn-Air

Jenn-Air JENN-AIR ICE MAKER Manual de usuario

Jenn-Air

Jenn-Air JENN-AIR ICE MAKER Manual de usuario

Jenn-Air

Jenn-Air w10519943b Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario
