USER GUIDE

VERSION 1.4

Techno-Haze

TechnoHaze performance

‘Performance’

www.audiovias.com

MARTIN MANUFACTURING (UK) PLC

TECHNO-HAZE USER GUIDE

Pro-Haze

Fluids suitable for this machine:

Note:

The JEM warranty will be void if any fluid other then JEM approved fluid is used. If

other fluids are used there could be serious damage to the machine and the fluid

may not of been tested for use in public areas.

TECHNO-HAZE USER GUIDE

How To Contact Us

Address:

Telephone:

Fax:

Email: [email protected]

Website: Http://www.jemsmoke.com/

PAGE 9

MARTIN MANUFACTURING (UK) PLC

Martin Manufacturing (uk) Plc

Belvoir Way,

Fairfield Industrial Estate,

Louth, Lincolnshire. LN11 0LQ.

+44 (0) 1507 604399

+44 (0) 1507 601956

www.audiovias.com

PAGE 8

TECHNO-HAZE USER GUIDE

Trouble Shooting

CAUSE CURE

SYMPTOM

The mains switch does not light

when I switch on.

Main fuse blown..

No power connected.

Check main fuse.

Check power is connected.

The power LED does not light on

the remote control.

Fuse on main PCB blown.

Remote control not connected.

Check fuse on Main PCB.

Check connection of remote control.

The ready LED does not light.

even after 15 minutes.

Thermocouple fault

Thermal trip fault

Contact your Distributor.

No haze output. Low fluid level.

No fluid in container.

Check fluid level LED.

Replenish fluid container.

MARTIN MANUFACTURING (UK) PLC

•

User Guide Index

Introduction

Safety

Machine Layout

Getting Started

Using The Remote Control

Trouble Shooting

How To Contact Us

PAGE 1

TECHNO-HAZE USER GUIDE

MARTIN MANUFACTURING (UK) PLC

Note:

Martin Manufacturing (UK) reserves the right to modify or change the

specification of this product without prior notice.

No part of this publication shall be copied without permission

www.audiovias.com

TECHNO HAZE USER GUIDE

Introduction

The TECHNO-HAZE has been designed to produce a perfect translucent

environment for today’s intelligent lighting effects.

Furthermore, this unique design is guaranteed to give the user maximum

reliability thanks to features such as the “Low fluid cut off system”,which

protects the pump in the event of machine running out of fluid.

Creating the perfect ambient haze relies heavily on the correct particle size

and dispersion. The TECHNO-HAZE produces this by vapourising the special

working fluid at very precise temperature in a high mass heater block which

contains a cuperous helicoil of 3 metres length.

The product of this process is injected into the uniquely designed JEM

‘Expansion Chamber’ where it is mixed with a turbulent airflow and projected

from the machine as an optically translucent haze at 1200 ft / minute (exit

velocity).

The Techno-Haze uses a ‘Direct Thermal Protection Device’ to ensure maximum

overheat protection and therefore greater reliability.

“DTP” Safety system

SMD electronics

Low fluid cut off system

Variable output remote

2.5 Litre fluid capacity

Expansion chamber

High power fan

Features

•

the

PAGE 2 MARTIN MANUFACTURING (UK) PLC PAGE 7

MARTIN MANUFACTURING (UK) PLC

Remote Control Functions

•

OUTPUT LEVEL CONTROL:

Use the control to

give the output density you require.

Setting the level control to minimum will switch off the output

POWER LED: This indicates that the machine is powered and that the

remote is connected.

When starting the machine for the first time,

use the prime button as described on page 5 para 2. During normal opera-

tion, the output control should be set between 4 and 10.

TECHNO HAZE USER GUIDE

www.audiovias.com

TECHNO HAZE USER GUIDE

PAGE 6

Using The Remote Control

The Technohaze comes with a compact remote allowing the user to prime the pump

and control the output level.

MARTIN MANUFACTURING (UK) PLC

456

OUTPUT

PRIME

OUTPUT CONTROL

POWER

LED

PRIME

BUTTON

TECHNO HAZE USER GUIDE

Safety

•

Always use a JEM approved fluid, other fluids could be dangerous and could

cause damage to the machine.

Always check the voltage is correct for use with the machine, the voltage

setting is printed on the serial label.

Always read the user guide before operating the machine, smoke machines

need to be operated carefully to avoid risk.

Do not remove the cover or attempt to repair a faulty machine, an authorized

JEM dealer should be contacted in the event of a faulty machine.

Always use smoke machines in well ventilated areas, over use could affect

sufferers of asthma or other chest conditions.

Do not use the machine if there is a faulty mains lead or plug this could be

dangerous.

Do not spill fluid over the machine, if fluid is spilt clean with clean water and

contact an approved JEM dealer for advice.

Mains Lead Wiring Instructions

Brown = Live

Blue = Neutral

Green/Yelllow = Earth

Note! This Appliance must be earthed

PAGE 3

MARTIN MANUFACTURING (UK) PLC

www.audiovias.com

TECHNO HAZE USER GUIDE

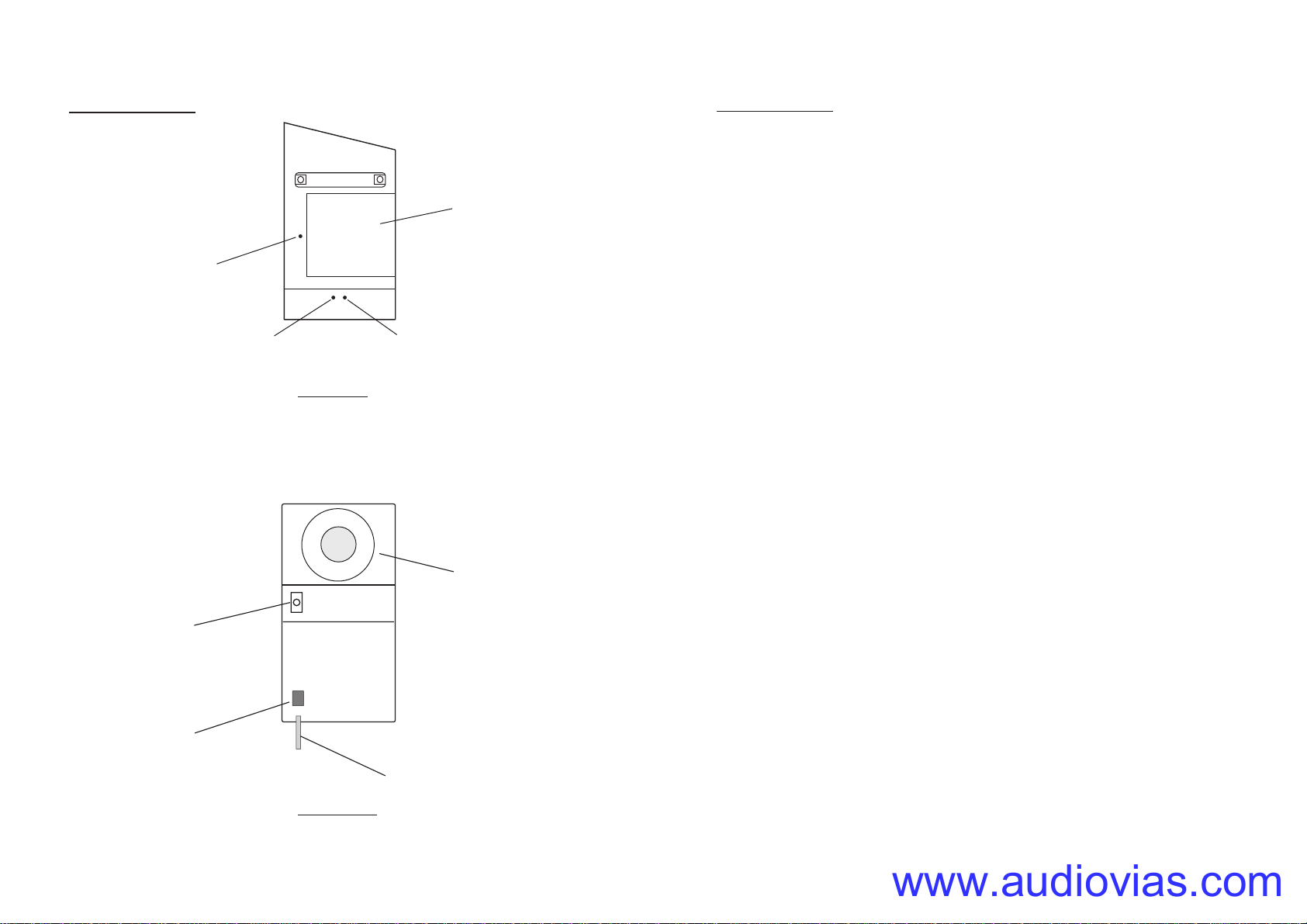

Machine Layout

PAGE 4 MARTIN MANUFACTURING (UK) PLC

FLUID OUT

LED

READY LED HEAT LED

FLUID

COMPARTMENT

FA N

REMOTE CONNECTION

MAINS SWITCH

POWER LEAD

TOP VIEW

REAR VIEW

PAGE 5

TECHNO HAZE USER GUIDE

Getting Started

•

Once you have selected the best position for the TECHNO- HAZE you can

begin to use the machine. First check the power supply you have is correct

for the machine .If it is, you can connect to the power supply and switch the

mains switch on at the rear of the machine; the machine will start to heat up

and the fan will run. It will take approximately 10 minutes for the machine to

reach working temperature. While it heats up you should check the level in

the fluid container; the container can hold up to 2.5 litres of fluid. The

machine may not heat if there is inadequate fluid in the container (the red

‘fluid out’ LED must not be on).

When you have finished using the machine you should turn the mains switch

off. If any problems occur when operating the TECHNO-HAZE please refer

to the trouble shooting guide.

When the machine has reached working temperature the green “ready” LED

will light on the top of the machine and the machine can now be operated.

Press the prime button until haze appears from the output; the pump is now

primed. This will only have to be done if the fluid lines have become empty.

The output can now be set to the desired level by turning the “output” knob.
