Jeep Compass

Vehicle identification data

1.1 CHASSIS NUMBER

The chassis number (VIN) is indicated in the front left corner of the

windscreen and can be seen from outside the car. The VIN is also

printed on the front right part of the body, on the front floor. A flap

can be opened in the carpet with the passenger seat in the most

retracted position to see the VIN. This number is also shown on the

label affixed on one of the windows, on the registration certificate

and on the ownership certificate.

Chassis number

VIN position on the right front body

IMPORTANT:

Removing or modifying the VIN number is illegal.

1. Vehicle identification data

Jeep Compass

Vehicle identification data

1.2 VEHICLE IDENTIFICATION NUMBER (VIN)

PLATE

The plate is located on the left side front door pillar and shows the

data about:

1. correct value of smoke coefficient (for diesel engines);

2. name of the manufacturer, vehicle type-approval number,

vehicle identification number, max. permitted weights;

3. engine identification, type variant version, spare part number,

colour code, additional information.

Jeep Compass

Vehicle accessibility and starting

2.1 ELECTRONIC KEY

The car is equipped with a keyless ignition system. This system

includes a key and a keyless start button.

1 - Unlocked

2 - Locked

3 - Emergency key

The key contains an emergency key housed in the rear part.

The emergency key can be used to access the car if the car battery

or key battery is flat. The emergency key can also be used to close

the glove compartment.

To extract the emergency key, make the retainer slide on the upper

part of the key with your thumb and then extract the key with your

other hand.

2. Vehicle accessibility and starting

Jeep Compass

Vehicle accessibility and starting

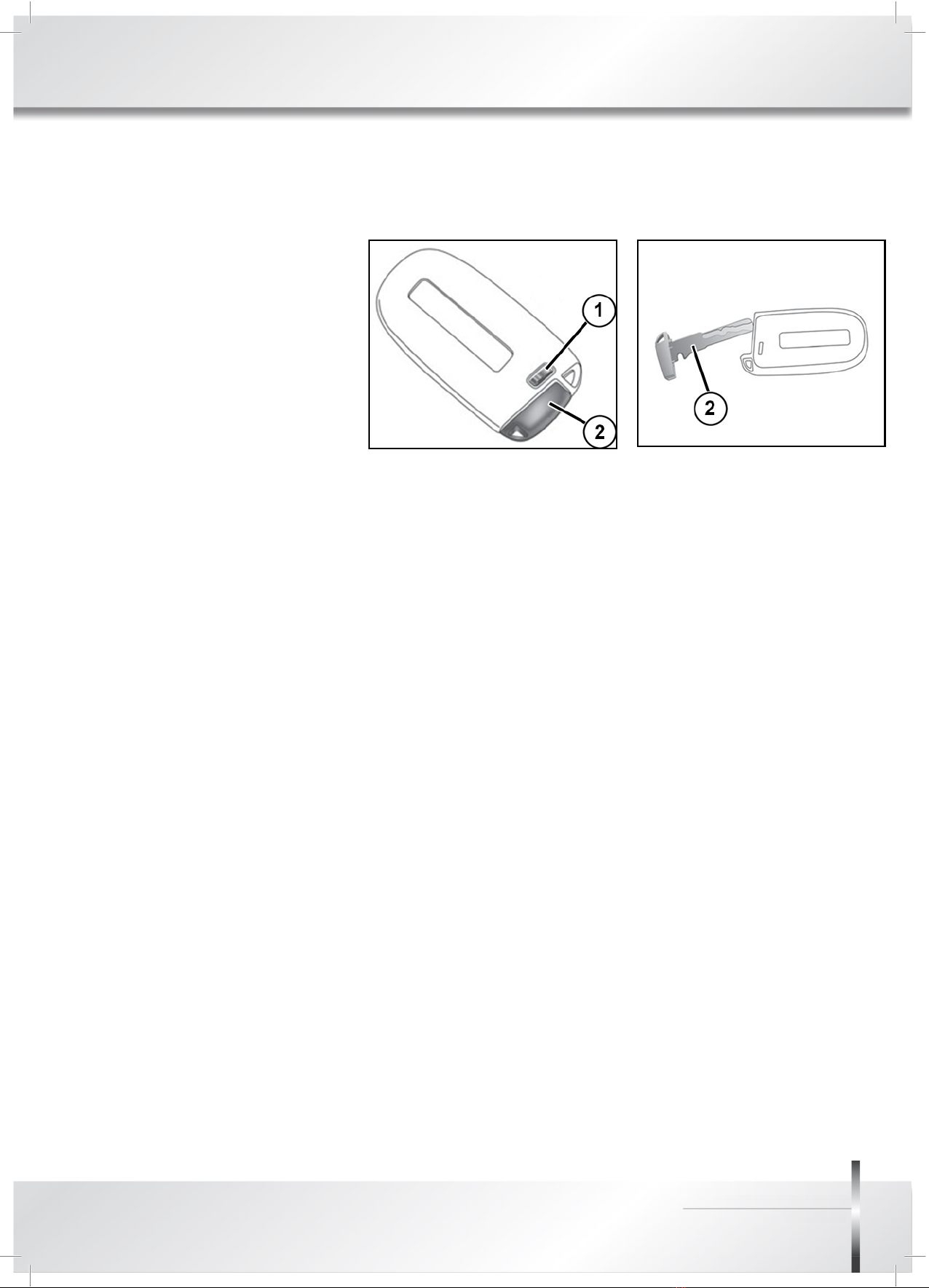

1 - Emergency key release button

2 - Emergency key

NOTE:

The emergency key can be inserted in the locks with either sides

facing upwards.

2.1.1 Unlocking the doors and the tailgate

Press and release the Unlock button on the key once only to unlock

the driver side door or twice within five seconds to unlock all doors

and the tailgate.

Jeep Compass

Vehicle accessibility and starting

2.2 IGNITION DEVICE

2.2.1 Keyless Go system – if provided

This function allows the ignition device to be operated by pressing

a single button, provided that the key is inside the passenger

compartment.

The START/STOP button has three operating modes. The three

modes are OFF, RUN and START.

NOTE:

If the ignition device status/mode does not change when the button

is pressed, the key battery could be nearly or completely flat. An

emergency procedure can be used to operate the ignition device in

this case. Rest the rounded end of the key (opposite side of the

emergency key) on the ENGINE START/STOP button and press

the actuate the ignition device.

START/STOP button

The start button may be set to the following modes:

OFF

• The engine is off.

• Some electrical functions, such as the central door locking

system, the alarm system etc. are still available.

RUN

• Driving mode.

• All electrical functions are available.

START

• Start the engine.

Jeep Compass

Vehicle accessibility and starting

NOTE:

The car will not start if the key inside the boot and the tailgate is

open.

2.2.2 Integrated / manual ignition – if provided

The car may be equipped with an integrated / manual ignition

system. It is provided with three operating positions, two permanent

positions and one toggle position with return spring. The permanent

positions are OFF and RUN.

START is a toggle position with automatic return. Once released

from the START position, the switch automatically returns to the

RUN position.

OFF

• The engine is off.

• The key can be removed from the ignition switch.

• The steering column may be locked (with the ignition key

removed).

• Some electrical functions, such as the central door locking

system, the alarm system etc. are still available.

RUN

• Driving position.

• The electrical devices are available.

START

• Start the engine.

The ignition device is provided with a safety mechanism. If the

engine does not start, the device must be returned to the STOP/

OFF position before repeating the starting procedure.

On versions with automatic transmission, the key can be extracted

only when the gear selector is in the P (park) position.

Jeep Compass

Electrical system

3.1 COMPONENTS

The main components in the electrical system are illustrated here.

1. Battery

2. Engine compartment junction unit

3. Fusebox on battery

4. Power Socket

5. Body Computer

6. Diagnosis socket

7. Luggage compartment fusebox

3. Electrical system
