Safety and operating manual
Random Orbital Sander
JCB-ROS330
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
WARNING! Read all safety
warnings and all instructions.
Failure to follow the warnings and
instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions
for future reference.
The term "power tool" in the
warnings refers to your
mains-operated (corded) power
tool or battery-operated (cordless)
power tool.
1. Work area safety
a) Keep work area clean and well
lit.
Cluttered or dark areas invite
accidents.
b) Do not operate power tools in
explosive atmospheres, such as in
the presence of flammable liquids,
gases or dust.
Power tools create
sparks which may ignite the dust
or fumes.
c) Keep children and bystanders
away while operating a power tool.
Distractions can cause you to
lose control.
2. Electrical safety
a) Power tool plugs must match
the outlet. Never modify the plug
in any way. Do not use any adapter
plugs with earthed (grounded)
power tools.
Unmodified plugs
and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with
earthed or grounded surfaces,
such as pipes, radiators, ranges
and refrigerators.
There is an
increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools
to rain or wet conditions.
Water
entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never
use the cord for carrying, pulling
or unplugging the power tool.
Keep cord away from heat, oil,
sharp edges or moving parts.
Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool
outdoors, use an extension cord
suitable for outdoor use.
Use of
a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tool in a
damp location is unavoidable, use
a residual current device (RCD)
protected supply.
Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are
doing and use common sense
when operating a power tool. Do
not use a power tool while you
are tired or under the influence
of drugs, alcohol or medication.
GENERAL POWER TOOL SAFETY WARNINGS
ORIGINAL INSTRUCTIONS
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
A moment of inattention while
operating power tools may result
in serious personal injury.
b) Use personal protective
equipment. Always wear eye
protection.
Protective equipment
such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal
injuries.
c) Prevent unintentional starting.
Ensure the switch is in the off-
position before connecting to
power source and/or battery pack,
picking up or carrying the tool.
Carrying power tools with your
finger on the switch or energising
power tools that have the switch
on invites accidents.
d) Remove any adjusting key or
wrench before turning the power
tool on.
A wrench or a key left
attached to a rotating part of the
power tool may result in personal
injury.
e) Do not overreach. Keep proper
footing and balance at all times.
This enables better control of
the power tool in unexpected
situations.
f) Dress properly. Do not wear
loose clothing or jewellery. Keep
your hair, clothing and gloves
away from moving parts.
Loose
clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these
are connected and properly used.
Use of these devices can reduce
dust-related hazards.
4. Power tool use and care
a) Do not force the power tool.
Use the correct power tool for
your application.
The correct
power tool will do the job better
and safer at the rate for which it
was designed.
b) Do not use the power tool if
the switch does not turn it on and
off.
Any power tool that cannot
be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from
the power source and/or the
battery pack from the power tool
before making any adjustments,
changing accessories, or storing
power tools.
Such preventive
safety measures reduce the
risk of starting the power tool
accidentally.
d) Store idle power tools out of
the reach of children and do not
allow persons unfamiliar with the
power tool or these instructions
to operate the power tool.
Power
tools are dangerous in the hands
of untrained users.
e) Maintain power tools. Check
for misalignment or binding of
moving parts, breakage of parts
and any other condition that may
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
affect the power tool’s operation.
If damaged, have the power
tool repaired before use.
Many
accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and
clean.
Properly maintained cutting
tools with sharp cutting edges are
less likely to bind and are easier
to control.
g) Use the power tool,
accessories and tool bits
etc. in accordance with these
instructions, taking into account
the working conditions and the
work to be performed.
Use of the
power tool for operations different
from those intended could result
in a hazardous situation.
5. Service
a) Have your power tool serviced
by a qualified repair person using
only identical replacement parts.
This will ensure that the safety of
the power tool is maintained.
ADDITIONAL SAFETY
POINTS FOR YOUR
SANDER
1. Harmful/toxic dusts will arise
from sanding e.g. lead painted
surfaces, woods and metals.
Contact with or inhalation of these
dusts can endanger the health of
operator and bystanders. Always
use eye glasses and dust mask.
2. Hearing protection should be
worn when using the sander.
3. Hold power tool by insulated
gripping surfaces, because the
belt may contact its own cord.
Cutting a "live" wire may make
exposed metal parts of the power
tool "live" and could give the
operator an electric shock.
4. Always wear safety glasses
or eye shields when using the
sander. Everyday eyeglasses have
only impact-resistant lenses; they
are not safety glasses. Following
this rule will reduce the risk of
serious personal injury.
5. Remove the plug from the
socket before carrying out
any adjustment, servicing or
maintenance.
6. Fully unwind cable drum
extensions to avoid potential
overheating.
7. When an extension cable is
required you must ensure it has
the correct ampere rating for
your power tool and is in a safe
electrical condition.
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
8. Ensure your mains supply
voltage is same as indicated on
the rating plate.
9. Your tool is double insulated
for additional protection against
a possible electrical insulation
failure within the tool.
10.Always check walls, floors and
ceilings to avoid hidden power
cables and pipes.
11.After long working periods
external metal parts and
accessories could be hot.
12.If possible, ensure the work-
piece is firmly clamped to prevent
movement.
13.Your sander is a hand held tool,
do not clamp your sander.
14.Before sanding, check the area
is free of nails, screws, etc.
15.Never stop the sander by
applying a force to the base plate.
16.Only use paper in good
condition. Do not use torn or worn
paper.
17.Do not sand material containing
asbestos due to a health risk.
18.Do not sand lead based paint
due to the risk of lead poisoning.
19.Do not eat or drink in the
working area of the sander.
20.Do not allow people to enter
the working area without wearing
a dust mask.
21.Where possible, seal off the
working area to contain the dust
for later removal.
22.Your tool is designed for dry
sanding only, not wet sanding.
23.Your tool is designed for
general purpose light polishing of
wood and metals.
24.Do not sand magnesium
material due to the risk of fire.
WARNING: Some dust
particles created by power
sanding, contain chemicals known
to cause cancer, birth defects or
other reproductive harm. Some
examples of these chemicals are:
•
Lead from lead-based paints.
•
Crystalline silica from bricks
and cement and other masonry
products.
•
Arsenic and chromium from
chemically treated lumber.
Your risk from these exposures
varies, depending upon how often
you do this type of work.
To reduce your exposure to these
chemicals:
•
Work in a well-ventilated area.
•
Work with approved safety
equipment, such as those dust
masks that are specially designed
to filter microscopic particles.
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
SYMBOLS
To reduce the risk of injury, user must read
instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
RCM marking
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
1. ON/OFF SWITCH
2. HAND GRIP AREA
3. VARIABLE SPEED CONTROL
4. CYCLONIC DUST BOX
5. DUST EXTRACTION OUTLET
6. LATCHING LEVER
7. BASE PLATE
8. SANDING SHEET (See B)
COMPONENT LIST
23
4
5
6
7
1
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
TECHNICAL DATA
Voltage 230-240V~50Hz
Power input 330W
No load speed 6000-12000/min
Base size 125mm
Orbital dia 2.5mm
Protection class /II
Machine weight 1.95kg
ACCESSORIES
Use good quality accessories marked with a well-known brand name. Choose the type
according to the work you intend to undertake. Refer to the accessory packaging for
further details. Store personnel can assist you and offer advice.
Mesh sanding sheet(80 grit) 3
Cyclonic dust box 1
Vacuum adaptor 1
Positec Australia Pty Limited
Unit 15, 23 Narabang Way, Belrose 2085 NSW Australia
www.jcb-tools.com
Customer Helpline 1300 889 028
NOTE: Before using the tool,
read the instruction book
carefully.
INTENDED USE
The machine is intended for dry
sanding of wood,plastic, metal and
filler material as well as painted
surfaces.
Machines with electronic control are
also suitable for polishing.

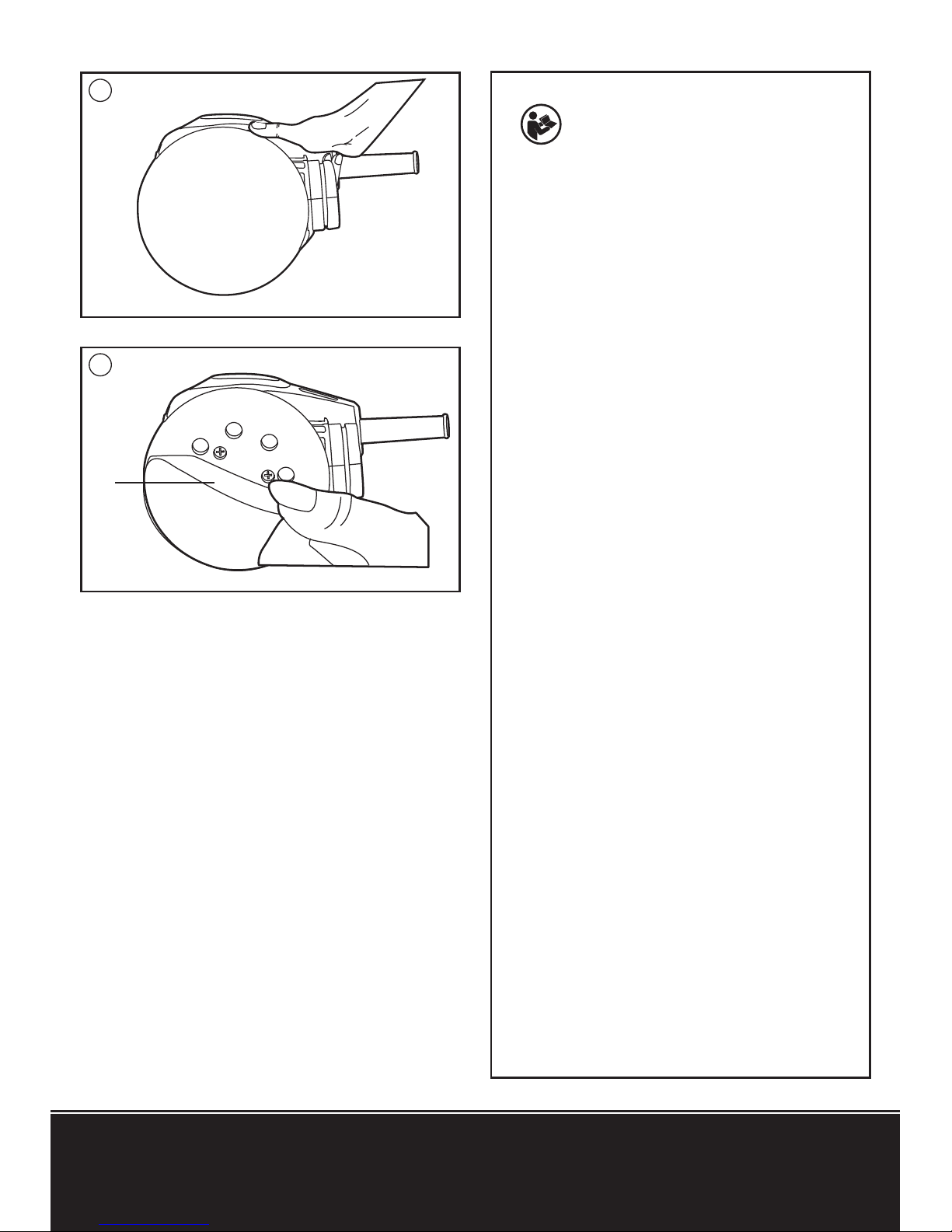

1. CHANGING HOOK & LOOP
SANDPAPER (See A, B)
The sandpaper and sanding plate
are provided with a hook and loop
attachment system to allow quick
and easy changing of the sanding
and polishing accessories. Firstly,
remove any dust or other objects
from the hook and loop on the
sanding plate and sandpaper. As
the sandpaper has dust extraction
holes you must align these with the
holes in the sanding plate, otherwise
the dust extraction will not function.
(See A)
To remove the sandpaper, lift one
corner of the paper and pull off from
the sanding plate. (See B)
OPERATING INSTRUCTIONS
A
B
8
Otros manuales para JCB-ROS330
1
Tabla de contenidos
Otros manuales de Lijadora de jcb
jcb
jcb JCB-ROS330 Manual de instalación
jcb
jcb JCB-SS240 Manual de instalación
jcb
jcb 21-RO125 Manual de usuario
jcb
jcb JCB-20OS Guía de planificación
jcb
jcb JCB-SS280 Manual de usuario
jcb
jcb JCB-RO125 Guía de planificación
jcb
jcb JCB-BS950 Manual de instalación
jcb
jcb JCB-SS360 Manual de instalación
jcb
jcb JCB-SS280 Manual de instalación
