JBL TS6000 Manual de usuario

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 6 Ohms

•Max Amp Power 200 Watts*

• Frequency Response 33Hz – 40kHz (–10dB)

42Hz – 38kHz (–3dB)

• Sensitivity 88dB (2.83V @ 1 meter)

• Crossover Frequency 600Hz, 12dB/Octave,

3.2kHz, 18dB/Octave

SYSTEM COMPONENTS:

• Cabinet TS6000 (Not for Sale)

• Grille Ass’y 364502-001

• Low-Frequency Transducer Dual 6-1/2" (165mm), shielded;

364528-002

DC Resistance 12.0 Ohms, ±10%

• Mid-Frequency Transducer 4" (101mm) Neodymium,

shielded; 364450-001

DC Resistance 4.1 Ohms, ±10%

•High-Frequency Transducer 1" (25mm) shielded; 364450-001

DC Resistance 3.4 Ohms, ±10%

• Crossover Network 013-7600-05584-E

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 6.0V Input 33Hz to 20kHz

• L.F. Aural Sweep Test 5.0V Input 33Hz to 1kHz

• M.F. Aural Sweep Test 4.0V Input 500Hz to 4kHz

• H.F. Aural Sweep Test 2.83V Input 3kHz to 10kHz

PHYSICAL SPECIFICATIONS:

• Dimensions 42" x 12-3/4" x 8-7/8"

(HxWxD) (1067mm x 324mm x 225mm)

• Dimensions (with feet pad) 43" x 12-3/4" x 8-7/8"

(H x W x D) (1092mm x 324mm x 225mm)

• Weight 56 lb/25.4kg (each)

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

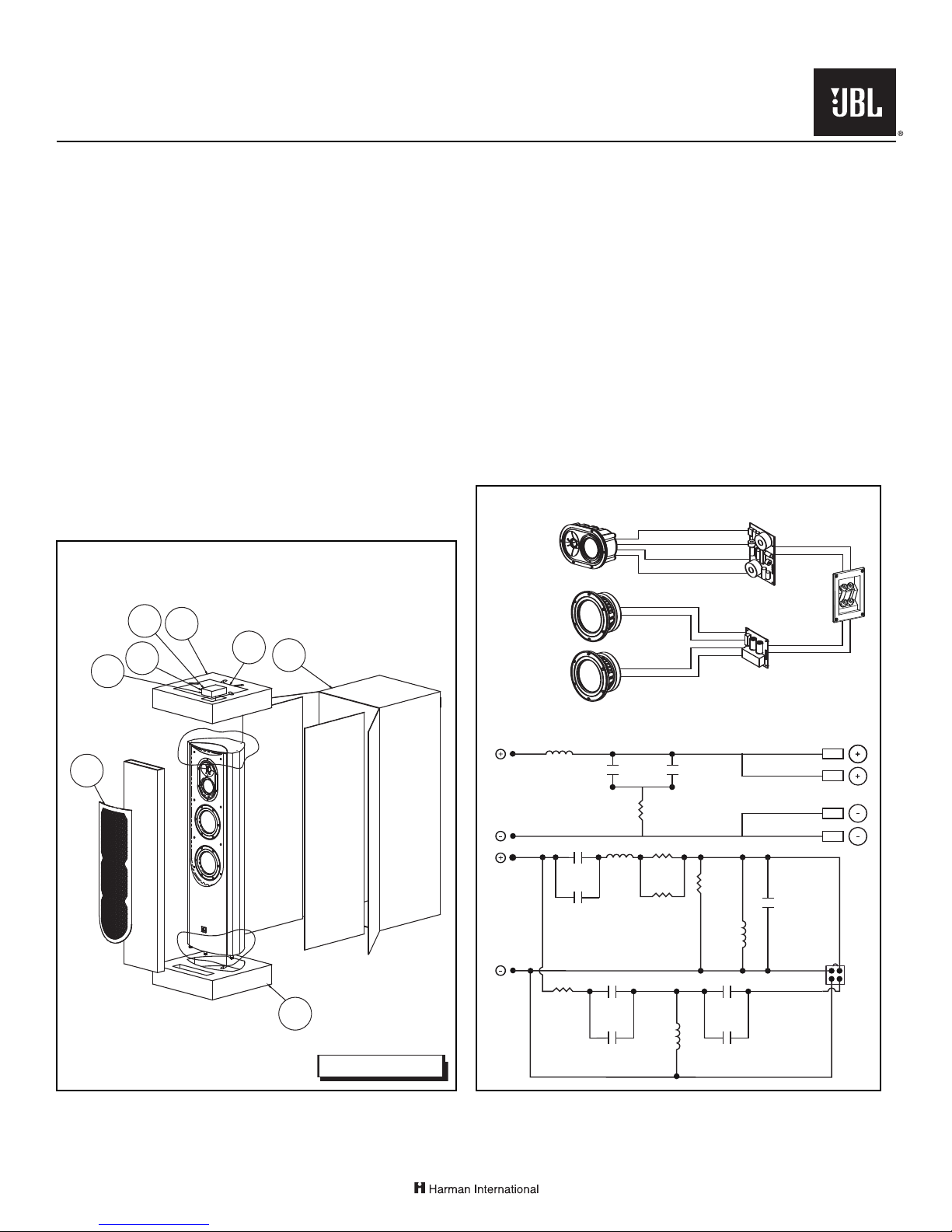

PACKAGING

WIRING DIAGRAM

TS6000 SCHEMATIC

Technical Manual

TS6000

3/09

Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329

Release Date 2008

Discontinued Date XXXX

Legend on Page 2

M.F.

L.F.

H.F.

H.F. / M.F.

INPUT

L.F. INPUT

Yellow 12"

Green/Black 9"

White/Black 11"

White 11"

Green 9"

Orange 12"

Orange/Black 12"

Yellow/Black 12"

0.14mH

3.9mF

100v

20.0mF

100v

.65mH

12mF

100v

27Ω

10W

1.5mH

8.2Ω

10W

8.2Ω

15W

0.01mF

100v

2.4mF

100v

0.01mF

100v

12mF

100v

.250

.205

1.0Ω

3.9mF

100v

51mF

100v

5.1Ω

3.5mH

LOW-FREQUENCY

TRANSDUCER 2

364528-002

LOW-FREQUENCY

TRANSDUCER 1

364528-002

HIGH/MID-

FREQUENCY

TRANSDUCER

364450-001

HF and LF

CROSSOVER NETWORKS

013-7600-05584-E

Red +

Black -

Red +

Black -

Green/Black -

Green +

White/Black -

White +

Yellow/Black -

Yellow +

Orange/Black -

Orange +

M.F.

L.F.

H.F.

H.F. / M.F.

INPUT

L.F. INPUT

Yellow 12"

Green/Black 9"

White/Black 11"

White 11"

Green 9"

Orange 12"

Orange/Black 12"

Yellow/Black 12"

0.14mH

3.9mF

100v

20.0mF

100v

.65mH

12mF

100v

27Ω

10W

1.5mH

8.2Ω

10W

8.2Ω

15W

0.01mF

100v

2.4mF

100v

0.01mF

100v

12mF

100v

.250

.205

1.0Ω

3.9mF

100v

51mF

100v

5.1Ω

3.5mH

LOW-FREQUENCY

TRANSDUCER 2

364528-002

LOW-FREQUENCY

TRANSDUCER 1

364528-002

HIGH/MID-

FREQUENCY

TRANSDUCER

364450-001

HF and LF

CROSSOVER NETWORKS

013-7600-05584-E

Red +

Black -

Red +

Black -

Green/Black -

Green +

White/Black -

White +

Yellow/Black -

Yellow +

Orange/Black -

Orange +

18 14

EXPLODED VIEW

Technical Manual

TS6000

3/09

Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329

SERVICE NOTES

Note the midrange and tweeter cannot be ordered separately; order #364450-001 Pod ass’y.

Shorting straps and binding posts from the terminal cup cannot be ordered separately; order #317-ABS-05154-0BAE terminal cup.

ITEM PART NO. DESCRIPTION QTY.

1 364528-002 61/2" Woofer 1

2 364450-001 Pod Ass’y Containing Tweeter, Midrange, Wiring, Cup, Gaskets 1

3 874-33114-16 SCR, 10-32 x 1 SCKT, CAP, HEX, BLK ZINC, WFR 12

4 013-7600-05584-E HF and LF Crossover Networks 1 set

5365021-001 Logo, JBL, AL, 16.3mm x 20mm 1

6 61860 Insert, 8-32x4mm, HXS HF MODULE 6

7364011-001 Ring, Trim, Oval, Mid/Twt Faceplate 1

8 364502-001 Front Grille 1

9 315-BMC-05190-0BBE Top Bezel 1

10 337538-001 Grille Cup, Grille 8

11 333249-001 Grille Cup, Bezel 3

12 873-33114-12 SCR, 8-32 x 3/4, SCKT, CAP, HEX, BLK ZINC HF MODULE 6

13 317-ABS-05154-0BAE Assy, Terminal Cup 1

14 882-41110-10 SCR, 6 x 5/8" PAN, PH, PB, BLK ZINC, LCS NETWORK 14

15 364505-001 Outer Carton 1

16 Visit www.jbl.com Owner’s Manual 1

17 364506-001 Top & Bottom End Pad 2

18 61861 T-nut 10-32, Woofer 12

19 373-000-05102-E Foot, Cast Base 5

20 Not for Sale Port Tube Ass’y 1

21 321-AL-05117-0BAE Spike Feet (5 pcs.) 1 set

22 804-41110-16 SCR, 10 x 1" PAN, PH, BLK ZINC, LCS FOOT 10

23 320-RUB-05160-0BAE Foot, Rubber 5

24 373-000-05101-E Coaster,Foot 5

THE TS6000 CABINET (NOT FOR SALE) DOES NOT COME APART

AND IS DEPICTED THIS WAY FOR ILLUSTRATIVE PURPOSES ONLY.
