JBL CINEMA BASE Manual de usuario

JBL CINEMATM BASE

LIGHT

GREY

Note: For complete information about using your JBL Cinema Base download the

complete Owner's Manual from www.jbl.com

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

What’s in the box

x 1

BASS

Cinema Base

Remote

Optical cable

Analog aux cable

x 1

HDMI cable

Power cable

BASS

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

2b. Cinema Base top panel

1) Power on / Stand by

2) Source selection

3) Volume +/-

4) Surround mode

5) Bluetooth source /

Pairing

2a. Remote control

Buttons and Controls

1) Power on / Stand by

2) Bluetooth

3) HDMI ARC

4) Aux-in

5) Optical

6) Audio feedback on/off

7) Mute

8) Volume +/-

9) Bass volume +/-

10) Harman Display Surround

11) Stereo

12) Harman volume

Note: Before using the remote control, remove the plastic tab protecting the battery at the

bottom of the remote control.

12 4 53

Optical audio in

Aux-in Analog

HDMI TV (ARC)

LED

Color

Source

LED behavior

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

Connections

Note: Please ensure your television features HDMI Audio Return Channel (ARC) before using the

HDMI connection. Refer to your television owner's manual to activate the feature. If you are not

getting audio while using HDMI on your television, please use an optical or analog connection instead.

Note: After you are done with your installation and source connections, please ensure the

power switch on the soundbase is on before operating the system.

HDMI TV

(ARC)

Power

Input AC

Aux-inOptical Subwoofer

(cable not

included)

Power switch

2c. Cinema Base rear panel

Remove Caps

Bluetooth pairing

JBL CINEMA BASE

LED

behavior

Pairing mode

No device connected

Device connected

Stereo / Harman Display surround

Harman Display

Surround

Stereo mode

LED

behavior

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

23" (585mm)

13.5" (342mm)

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

TV placement

Note: Maximum TV Stand Size (L x W): 23" x 13.5" (585mm x 342mm). TV stands are

recommended to ﬁt within the designated area. Cinema Base supports TVs with

weights up to 50lbs (22.6kg)

Warning Note: Please be careful while placing/moving the TV foot. It may scratch/damage the

leather casing at the top of your Cinema Base.

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

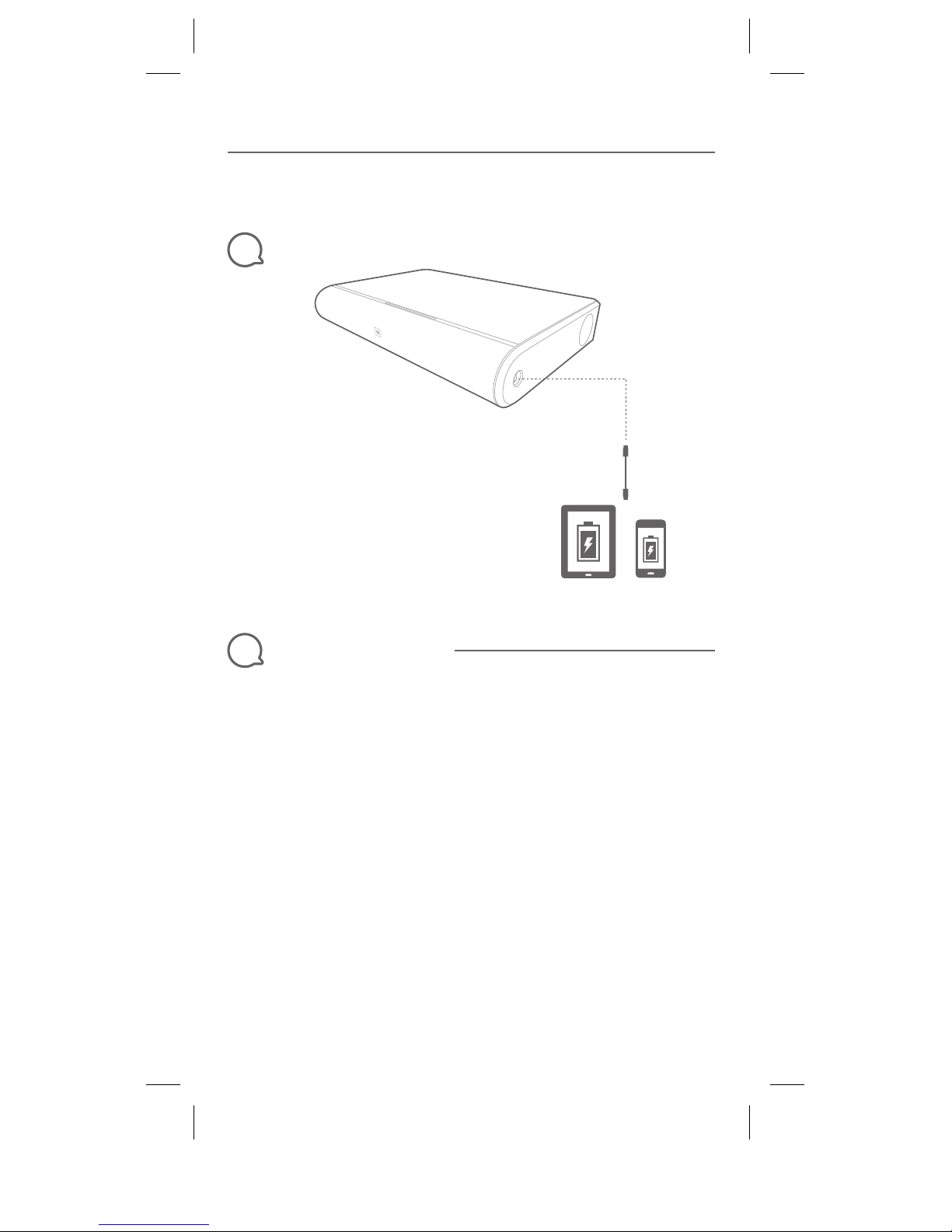

Charging external devices

The Cinema Base has the ability to learn the volume control and power infrared (IR) codes of

your IR TV remote control.

Get your Cinema Base to control TV Volume (in operational mode) using this simple

procedure:

1. Press and hold the top panel 'Surround' key until the system enters learning mode

(the LED will blink orange).

2. VOLUME + : Press 'Volume +' on the soundbar and then press 'Volume +' on the TV

remote control.

3. VOLUME − : Press 'Volume –' on the soundbar and then press 'Volume –' on the TV

remote control.

4. MUTE: Press 'Volume +' and 'Volume –' together on the soundbar and then press

'Mute' on the TV remote control.

5. POWER: Power On your soundbar by pressing the 'Power' key on the soundbar and

then pressing the 'Power' key on the TV remote control.

Note: After each TV IR code is successfully learned the blinking orange LED will turn white

for 1 second. The Cinema Base is ready to learn the next key after the white LED

disappears and the blinking orange LED restarts.

Press and hold the panel 'Surround' key again to exit learning mode (The orange LED

will stop blinking).

Remote learning feature

USB

Note: USB is designed for charging and software updates only. USB will not support

direct-connect audio streaming.

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

• Frequency response: 45Hz – 20kHz

• Maximum SPL: 100dB

• Total ampliﬁer power: 240W

• Speakers: left and right 2.5" (65mm) full range drivers and dual 3.5" (90mm) subwoofers

• Dolby

Digital Decoding

• One HDMI

output with Audio Return Channel (ARC)

• Bluetooth

connectivity

• One stereo analog-audio input

• One optical digital input

• One USB port for device charging and software update

• One subwoofer output (optional external subwoofer not included)

• Dimensions: (L x W x H): 23.6" x 15.8" x 4" (600 x 401.6 x 102mm)

• Weight: 22.3lb (10.1kg)

• Maximum TV weight: 150lbs (68kg)

• Maximum TV stand size: (L x W): 23" x 13.5" (585 x 342mm)

• Réponse en fréquences : 45 Hz – 20 kHz

• Pression sonore max. : 100 dB

• Puissance totale de l'ampliﬁcateur : 240 W

• Haut-parleurs : haut-parleurs gauches et droits pleine gamme de 65 mm (2,5") et deux

haut-parleurs de graves de 90 mm (3,5")

• Décodage Dolby

Digital

• Une sortie HDMI

avec canal de retour audio (ARC, Audio Return Channel)

• Connectivité Bluetooth

• Une entrée audio analogique stéréo

• Une entrée numérique optique

• Une prise USB pour la charge d'appareils et les mises à jour de logiciel

• Une sortie de caisson de graves (caisson de graves externe en option non inclus)

• Dimensions : (L x P x H) : 600 x 401,6 x 102 mm (23,6" x 15,8" x 4")

• Poids : 10,1 kg (22,3 lb)

• Poids maximal du téléviseur : 68 kg (150 lb)

• Dimensions max. du pied du téléviseur : (L x P) : 585 x 342 mm (23" x 13,5")

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

• Intervalo de frecuencias: 45 Hz – 20 kHz

• SPL máximo: 100 dB

• Potencia del ampliﬁcador total: 240 W

• Altavoces: Unidades de gama completa izquierda y derecha de 2,5" (65 mm) y

subwoofers duales de 3,5" (90 mm)

• Descodiﬁcación Dolby

Digital

• Una salida HDMI

con canal de retorno de audio (ARC)

• Conectividad Bluetooth

• Una entrada de audio analógica estéreo

• Un entrada óptica digital

• Un puerto USB para cargar el dispositivo y actualizar el software

• Una salida de subwoofer (subwoofer externo opcional no incluido)

• Dimensiones: (Ancho x Alto x Profundidad): 600 x 401,6 x 102 m

• Peso: 10,1 kg

• Peso máximo del televisor: 68 kg

• Tamaño máximo del soporte del televisor: (Largo x Ancho): 585 x 342 mm

• Resposta de frequência: 45 Hz a 20 kHz

• SPL máximo: 100 dB

• Potência total do ampliﬁcador: 240 W

• Alto-falantes: drivers full-range esquerdo e direito de 2,5" (65 mm) e dois subwoofers

duplos de 3,5" (90 mm)

• Dolby

Digital Decoding

• Uma saída HDMI

com Audio Return Channel (ARC)

• Conectividade Bluetooth

• Uma entrada analógica de áudio estéreo

• Uma entrada ótica digital

• Uma porta USB para carregar dispositivos e atualizar softwares

• Uma saída de subwoofer (subwoofer externo opcional não incluído)

• Dimensões: (C x L x A): 23,6" x 15,8" x 4" (600 x 401,6 x 102 mm)

• Peso: 22,3 lb (10,1 kg)

• Peso máximo da TV: 150 kg (68 kg)

• Tamanho máximo do stand da TV: (C x L): 23" x 13,5" (585 x 342 mm)

Quick Start Guide

Guide de démarrage rapide

JBL CINEMA™BASE

• Frequenzgang: 45Hz – 20kHz

• Maximaler Schalldruckpegel: 100 dB

• Verstärkerleistung: 240W

• Lautsprecher: links und rechts 65mm (2,5")-Komplettkanäle und duale 90mm

(2,5")-Subwoofer

• Dolby

Digital Decoding

• Ein HDMI

-Ausgang mit ARC (Audio Return Channel)

• Bluetooth

-Konnektivität

• Ein analoger Stereo-Audioeingang

• Ein optischer Digital-Eingang

• Ein USB-Anschluss für das Auﬂaden von Geräten und Software-Aktualisierungen

• Ein Subwoofer-Ausgang (optionaler externer Subwoofer nicht im Lieferumfang enthalten)

• Abmessungen: (L x B x T): 600 x 401,6 x 102mm

• Gewicht: 10,1 kg (22,3lb)

• Maximales TV-Gewicht: 68kg (150lbs)

• Maximale Größe des TV-Sockels: (L x B) 585 x 342mm

• Risposta in frequenza: 45Hz – 20kHz

• SPL Massimo: 100dB

• Potenza Totale Ampliﬁcatore: 240W

• Diffusori: sinistro e destro a gamma intera da 65mme doppio subwoofer da 90mm

• Decodiﬁca Dolby

Digital

• Unauscita HDMI

con Audio Return Channel (ARC)

• Connettività Bluetooth

• Un ingresso audio stereo analogico

• Un ingressodigitaleottico

• Unaporta USB per la ricarica di dispositive e aggiornamenti software

• Unauscita subwoofer output (subwoofer esternoopzionale non incluso)

• Dimensioni: (L x P x A) 600 x 401.6 x 102mm

• Peso: 10.1kg

• Massimo peso del TV weight: 68kg

• Dimensioni massime del piedistallo del TV: (L x P): 585 x 342mm
