ASSEMBLY INSTRUCTIONS
Flyby Echo screen
with clamp brackets
Page 2 of 4
Need help!
Call us on
1300 527 665
www.jasonl.com.au
Echo Plate x 1
Clamps x2
Clamps cover x2
Screws x4
A
B
C
D
COMPONENTS
D
B
C
Experienced assembly is required. User will need to drill wood screws into underside of desk. No pre-drilled holes are provided for this system.
Power Drill tool is required.2 Persons required for installation *
A
ASSEMBLY INSTRUCTIONS
Flyby Echo screen
with clamp brackets
Page 3 of 4
Need help!
Call us on
1300 527 665
www.jasonl.com.au
STEP 01
Please drill two holes using 8mm drill bit having a 32.5 mm
gap between screw holes.
Assembe Aplate with B bracket and tighten using 4 x screws provided
(D) and apply the bracket cover C
STEP 02
D
A
B
C
250 mm
322.5 mm
355 mm
ASSEMBLY INSTRUCTIONS
Flyby Echo screen
with clamp brackets
Page 4 of 4
Need help!
Call us on
1300 527 665
www.jasonl.com.au

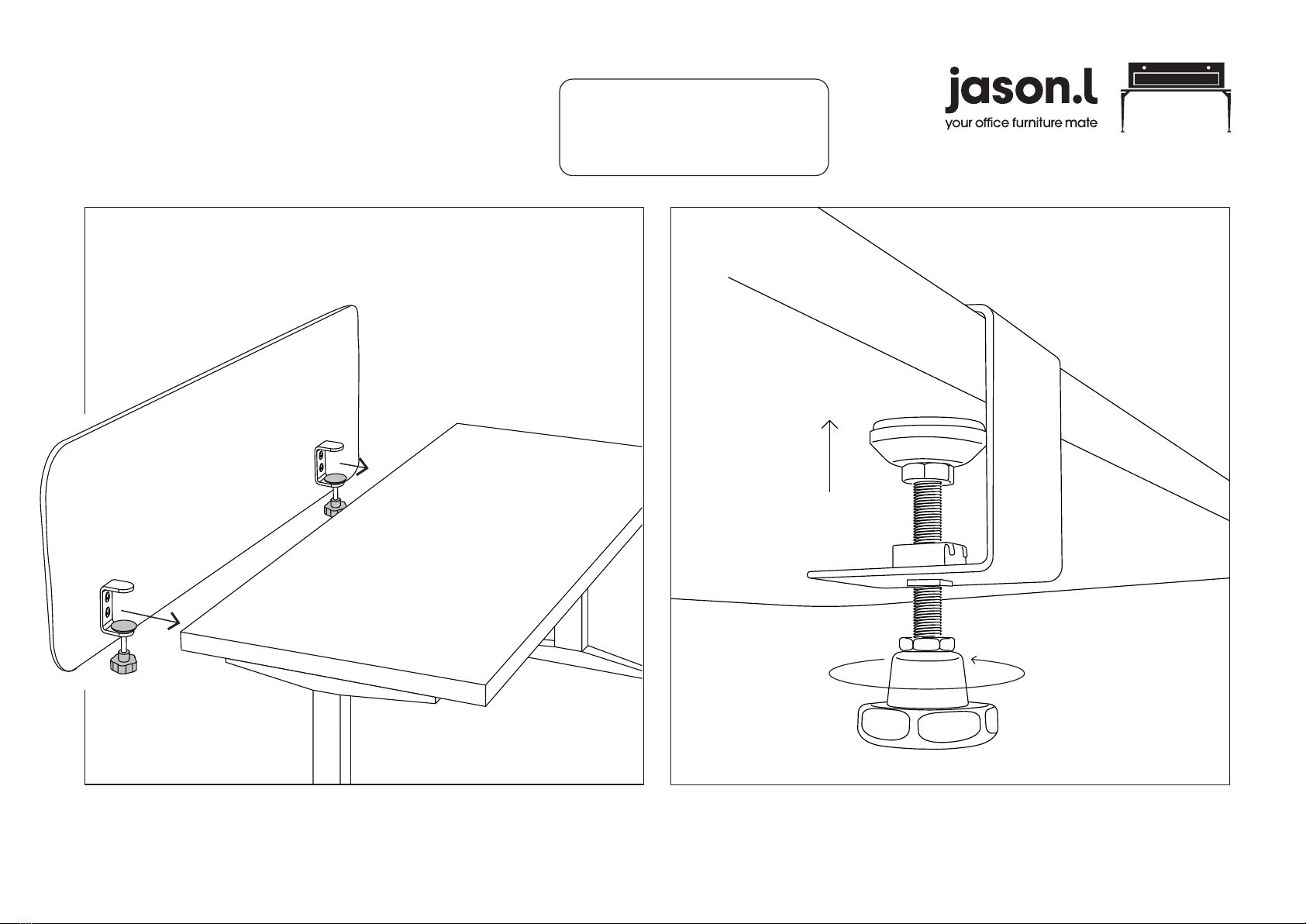

STEP 03
Please assemble Echo panel with desktop using clamp bracket Tighten the clamp brackets on the desk but please make sure it is
still a bit loose so that you are still able to move around the screen to
its final position on desk and then tighten the knob.
STEP 04
ASSEMBLY INSTRUCTIONS
Flyby Echo screen
with clamp brackets
Page 1 of 4
Need help!
Call us on
1300 527 665
www.jasonl.com.au
