Jason.L Elements Workstation 2 Person Run Manual de usuario

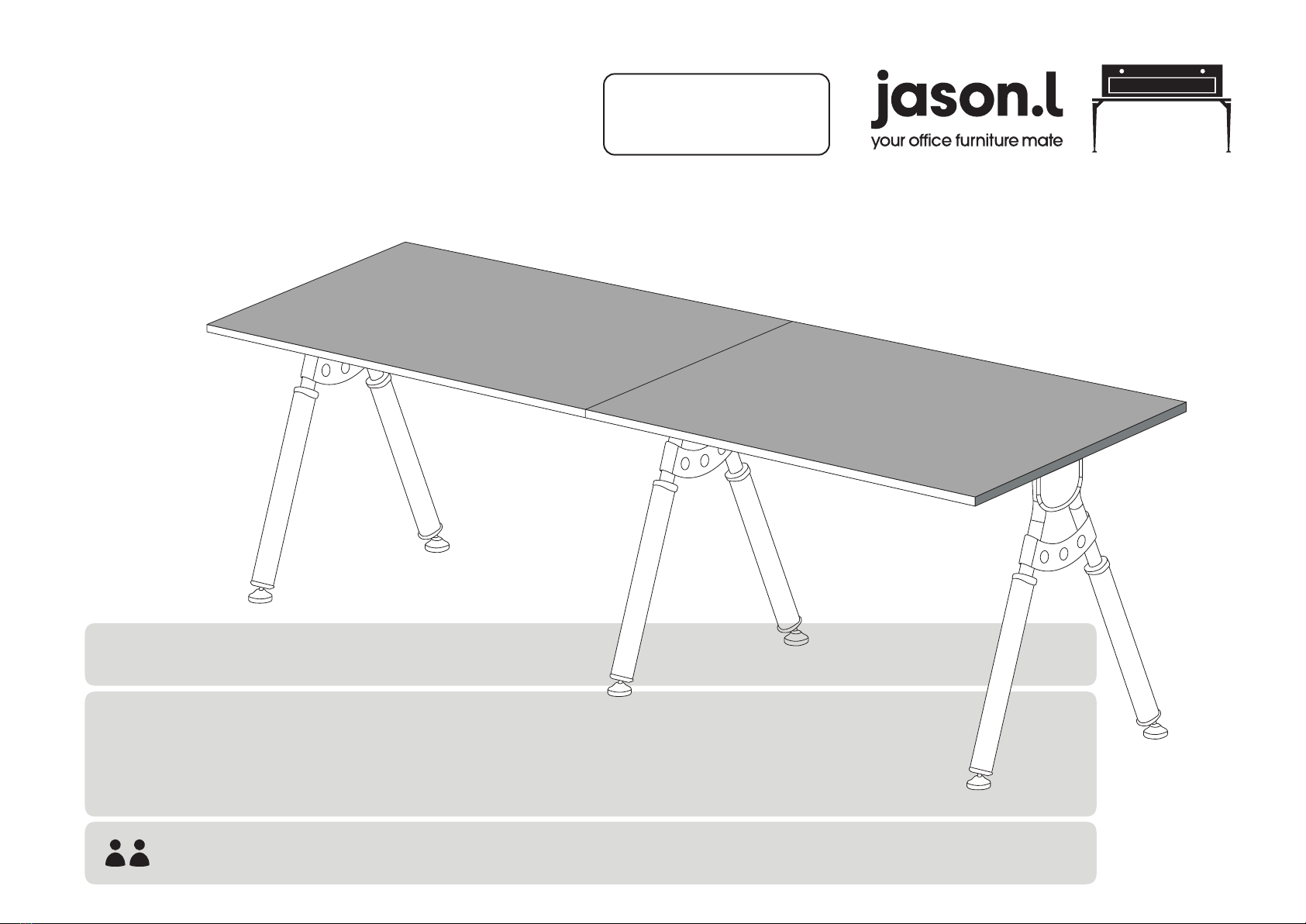

ASSEMBLY INSTRUCTIONS

Elements Workstation

2 Person Run

Size: 1600mm

Tools Required: Power screwdriver.

2 persons required for installation

Special Note: No pre-drilled holes or nut inserts are

provided. Wood screws will be required to be drilled

directly into underside of desk top.

Page 1 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Phillip Head M6*15 Wood Screw (silver) x8

Phillip Flat Head M6*20 Screw (gold) x12

COMPONENTS

SCREWS

Page 2 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements Workstation

2 Person Run

Size: 1600mm

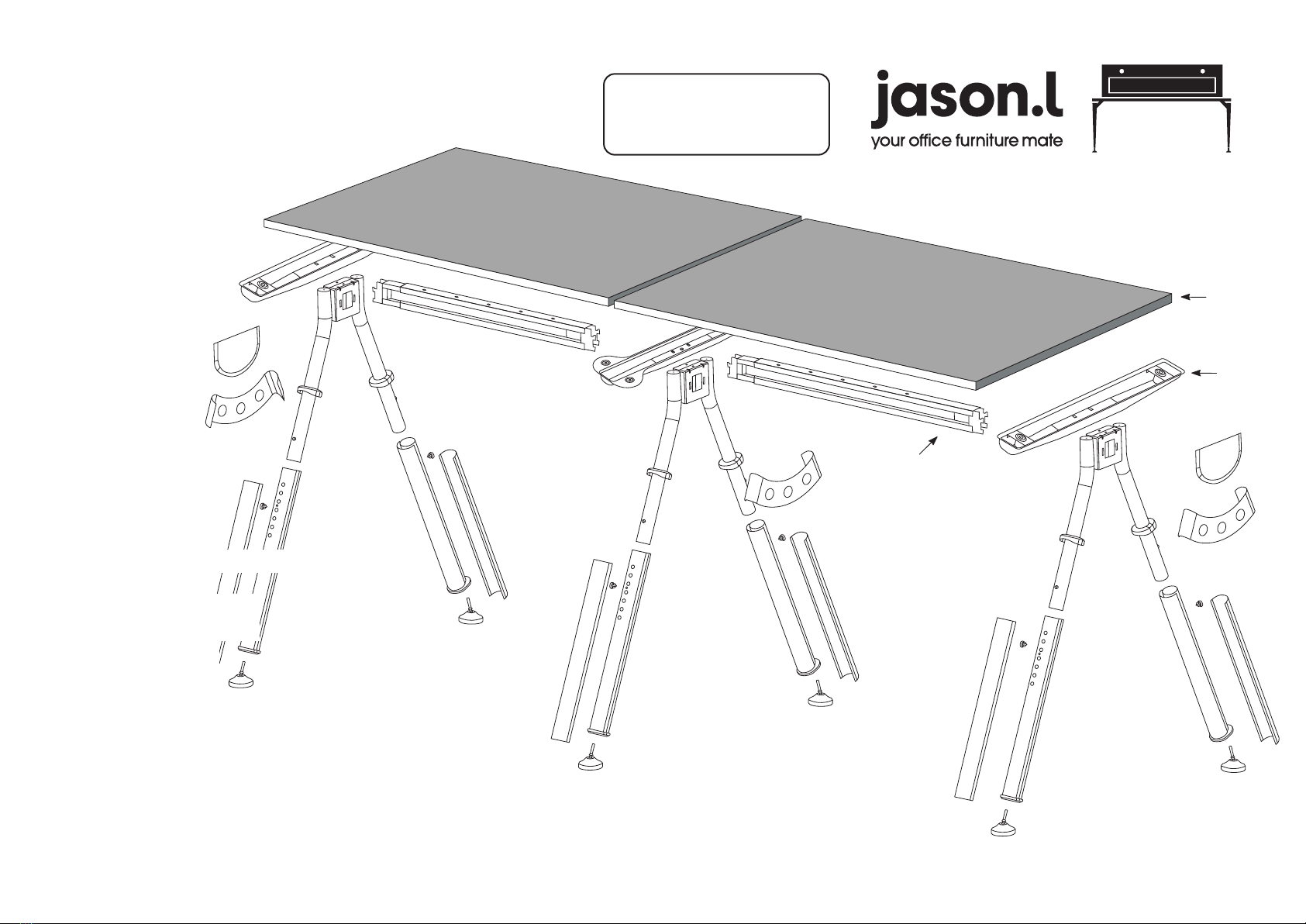

Desk top x2 (1600mm x 800mm)

Top plate x3

Leg core insert x2

Leg core return x3

Leg sleeve x6

Sleeve cover x6

Fold Scren x6

Base Foot x6

Core cover x3

Sleeve Cap x6

Extandable Beam x2

Page 3 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements Workstation

2 Person Run

Size: 1600mm

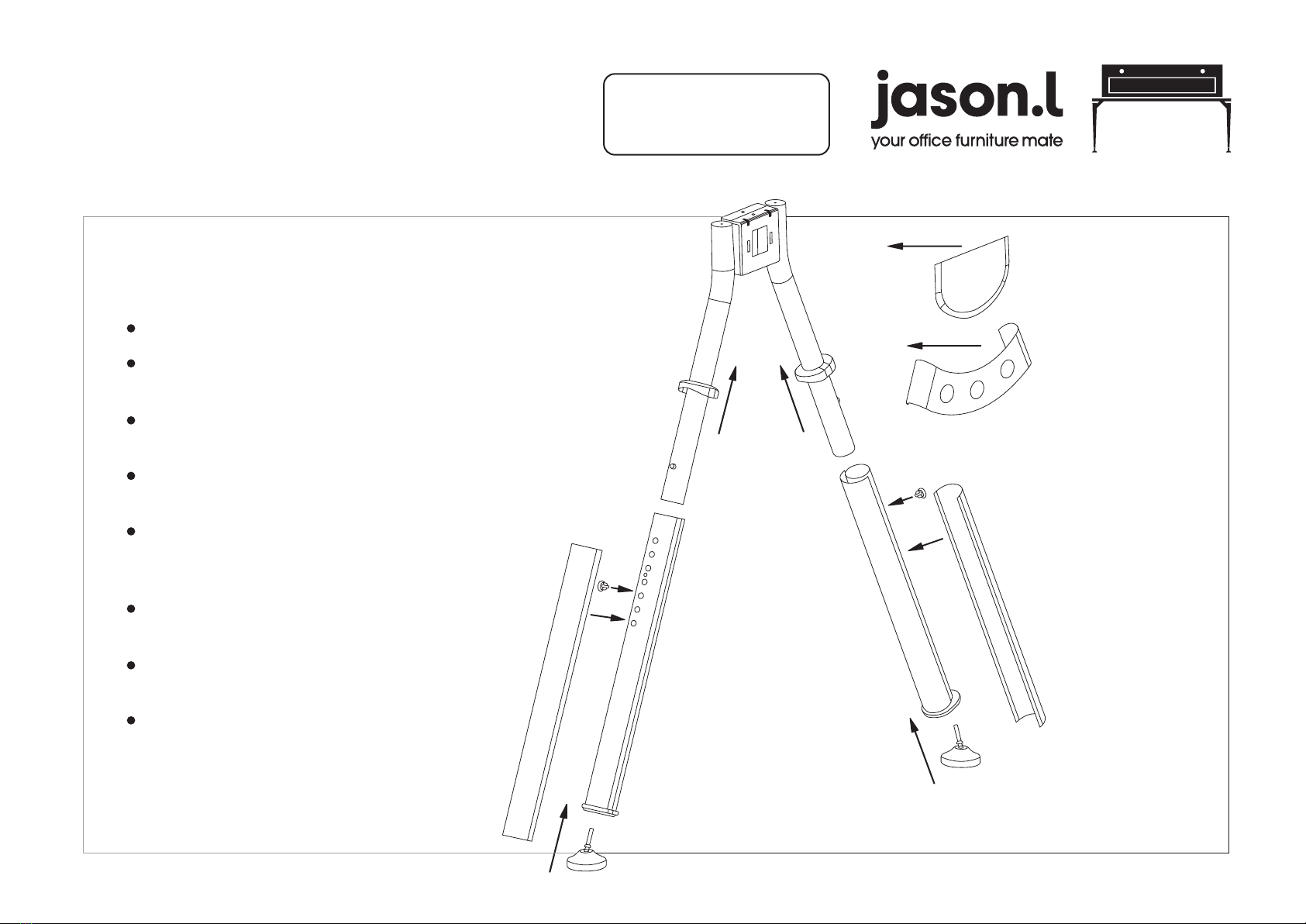

Unwrap all leg components.

Remove sleeve cap (J) and sleeve

cover (F) from all leg sleeves.

Insert base foot (H) into leg sleeve (E)

by rotating base foot (H) clockwise.

Insert sleeve cap (J) onto leg core (D)

for all legs.

Insert leg sleeve (E) onto leg core (D)

for all legs. TIP: Keep height adjustment

holes pointing outwards.

Place leg core insert (C) onto leg core

(D) for all legs.

Place core cover (I) onto leg core (D)

for all legs.

Place sleeve cover (F) over leg sleeve

(E) for all legs.

Page 4 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements Workstation

2 Person Run

Size: 1600mm

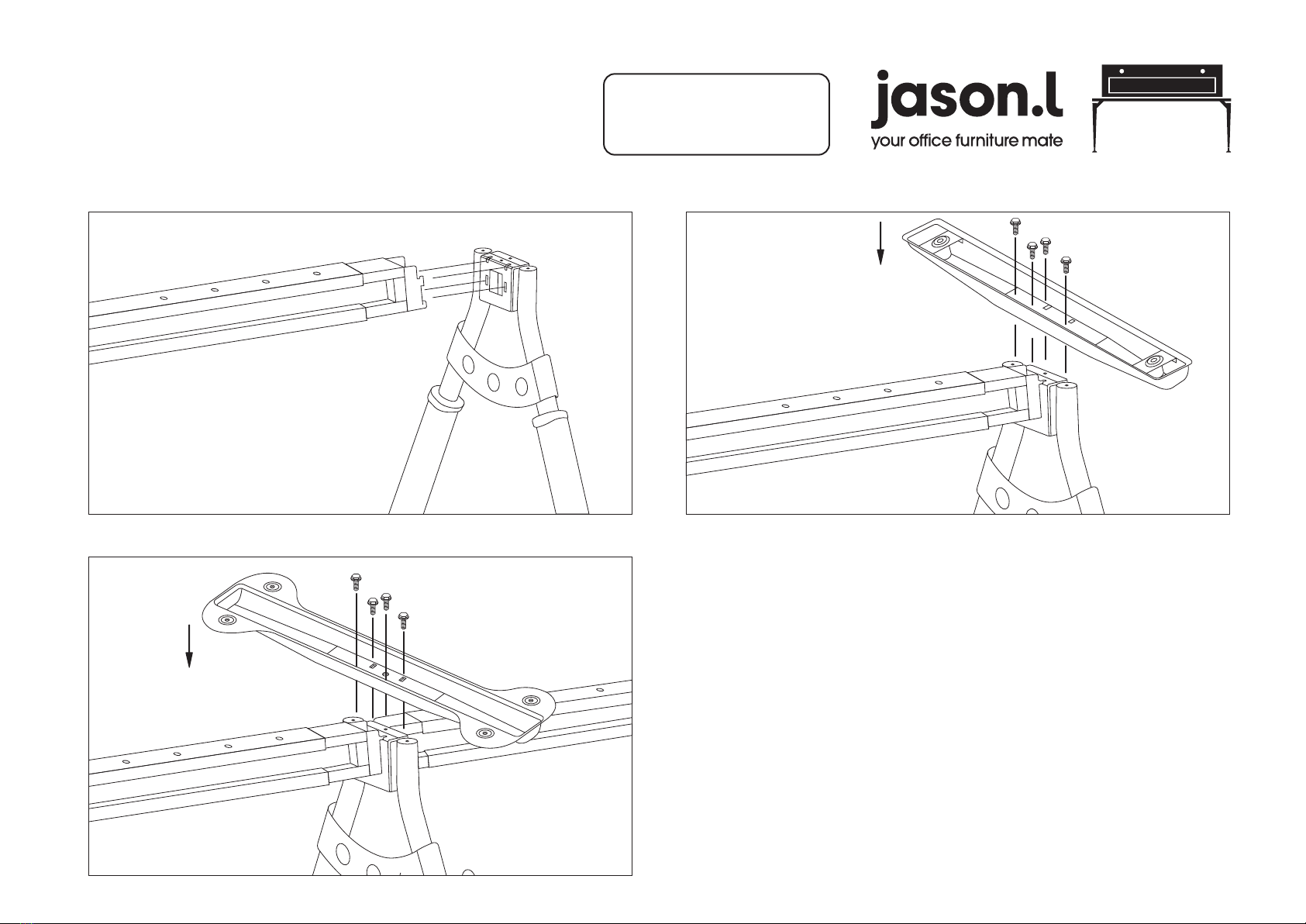

Connect extendable Beam (K) to Leg Core (D)

Tighten Top Plate (B) to middle leg core (D) by tightening Screw (M).

Tighten Top Plates (B) to outer legs core (D) by tightening Screw (M).

Page 5 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements Workstation

2 Person Run

Size: 1600mm

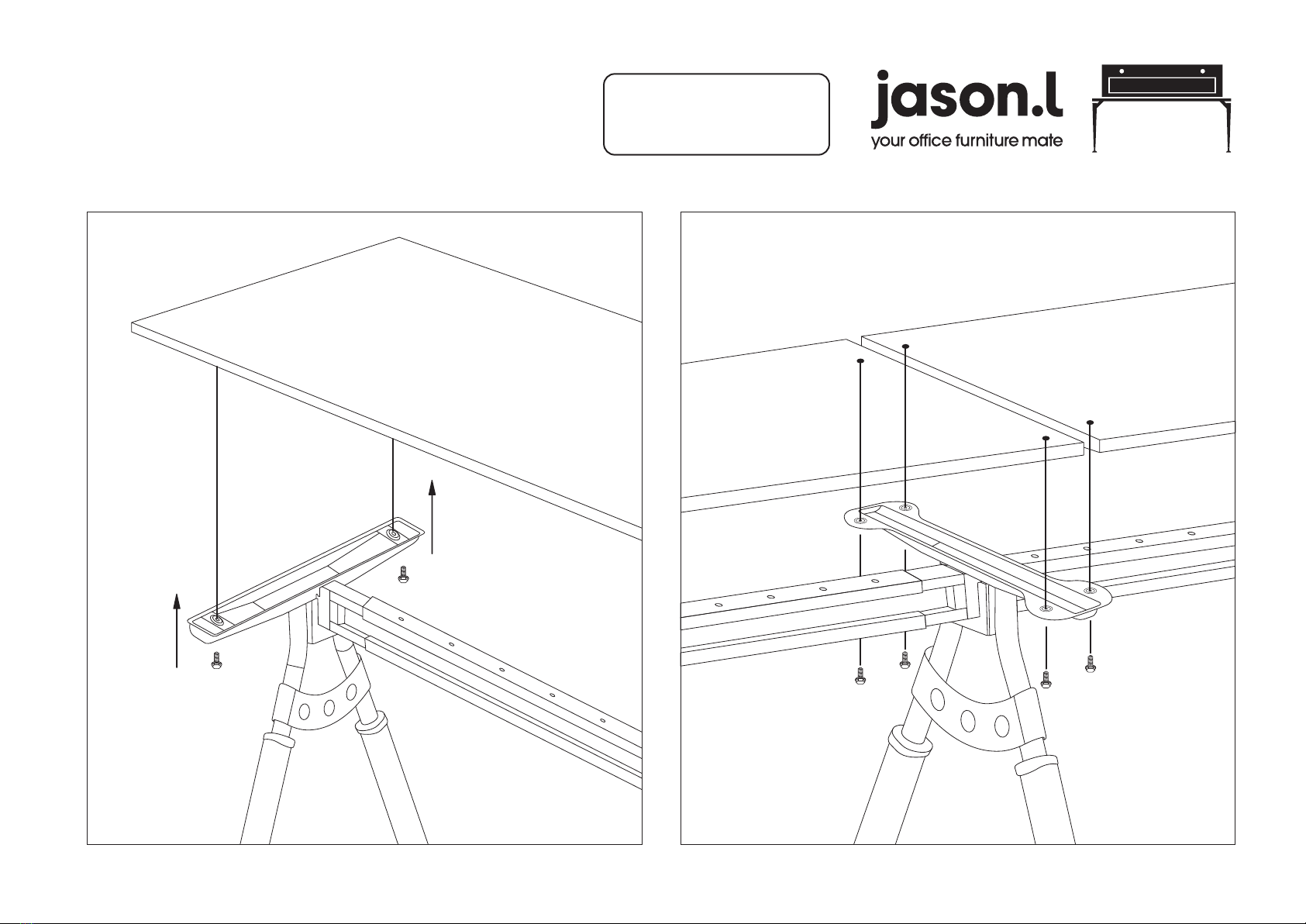

Attach outsider legs + beam to Desk Tops by tightening Scews (L).

Attach middle leg to Desk Tops by tightening Scews (L).
