Janam LPT20 Series Manual de usuario

Quick Start Guide

LPT20 Seriesmobile computer

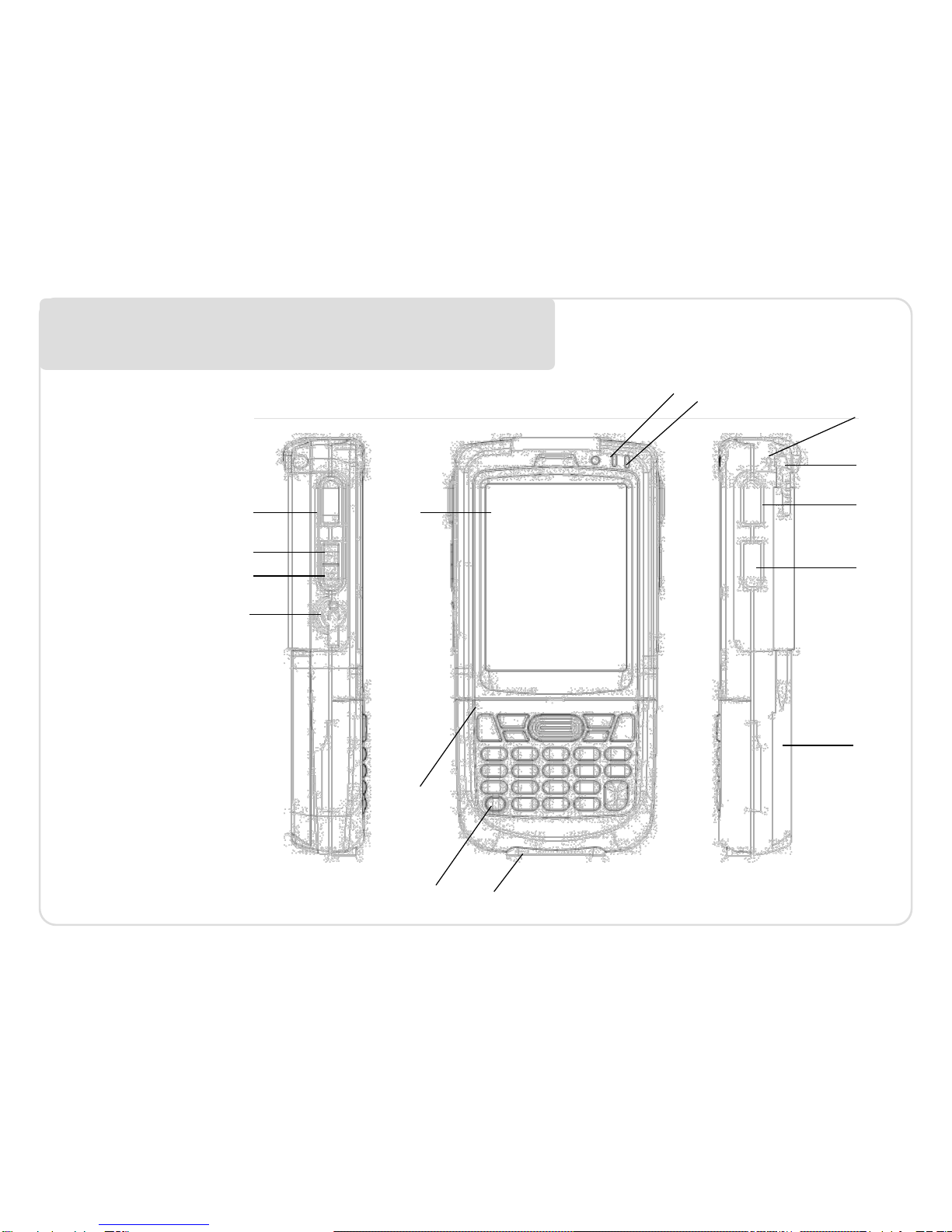

Features front and side views

1. Power button

2. Keypad

3. LCD display

4. Charging LED

5. Status LED

6. USB connector

7. Lanyard hole

8. Stylus

9. Scan / action

button

10. Action button

11. Battery cover

12. Scan / action

button

13. Up button

14. Down button

Features rear, top and bottom views

1. Data capture

window

2. Stylus

3. Speaker

4. Label recess

5. Battery cover latch

6. Battery cover

7. Handstrap clip

8. USB Connector

9. Handstrap bar

10. Reset Key

11. Battery cover

switch

Getting started installing card and battery

Installing MicroSD card

1. Remove battery if necessary

2. Insert MicroSD card into the card slot

3. Make sure the card connector (the golden contacts) should be at the front of

insert

Installing battery

–If battery cover is installed on the device,

slide the battery latch to the left.

–The battery cover will lift up slightly, grasp

the battery cover and remove it

–Insert the battery, left side (with golden

contacts) first, into the battery compartment

–Press the battery down until the battery

fully rests on the bottom of battery

compartment

–Put the battery cover back, tab first, and

press down until the latch secure the

battery cover

Removing battery

1. Slide the battery latch to the left.

2. The battery cover will lift up

slightly, grasp the battery cover

and remove it

3. Remove the battery, right side first,

from the battery compartmen

Getting started installing card and battery

Installing handstrap

1. Separate the velcro of the handstrap.

2. Feed the loose end of the extended handstrap through the handstrap clip

3. Wrap the handstrap around the clip and fasten together to close the strap

Calibrating screen

1. For turn on the device 1st time

2. Follow the instructions on the welcome utility screen

3. Tap 5 crosses as appeared on the screen to calibrate the touch screen

Getting started

Enabling WiFi

1. Tap Start Menu, then tap and hold the Settings

2. Select Network Connections

3. Tap and hold AR6K_SD1 icon, make sure it is Enable

4. Double click the Network icon on the status bar, pick the desired AP and

setup as the wireless AP properties as usual

Disabling WiFi

1. Tap Start Menu, then tap and hold the Settings

2. Select Network Connections

3. Tap and hold AR6K_SD1 icon, make sure it is Disable

Getting started Enabling & disabling WiFi

Enabling Bluetooth

1. Tap Start Menu, then tap and hold the Settings

2. Select Control Panel

3. Double click Bluetooth Device Properties icon

4. Pick the Tools menu and then select Turn on Bluetooth item

5. Select Search Device and carry out bluetooth device operations as usual

Disabling Bluetooth

1. Tap Start Menu, then tap and hold the Settings

2. Select Control Panel

3. Double click Bluetooth Device Properties icon

4. Pick the Tools menu and then select Turn off Bluetooth item

Getting started Enabling & disabling BT

Performing soft reset

1. Slide the battery latch to the left and grasp

the battery cover and remove it

2. Use a stylus to press the reset key and release

3. The device is reset

Performing hard reset

1. Slide the battery latch to the left and grasp

the battery cover and remove it

2. Press “2” (or “8” if you want to format the

NAND flash as well) on the numeric keypad

3. Keep pressing the key, use a stylus to press

the reset key and release

4. When the green LED is flashing, release key “2”

or “8”

5. Put back the battery cover and calibrate the

screen

Getting started Soft and hard reset

Reset key

Getting started Refreshing ROM

Refreshing LPT20 ROM

1. Copy NK.bin, EBOOT.nb0 and splash.bin

(optional) to the root directory of the microSD

card

2. Open the battery cover, remove the battery

3. Insert the microSD card

4. Press and hold the left and right side Scan /

Action button

5. Install the battery to the battery compartment

6. Continue to press and hold the left and right

side Scan / Action button until the Update

Screen appears

7. Once NK.bin, EBOOT.nb0 and splash.bin

(optional ) have 100% complete updated.

Remove the battery and microSD card from

the device.

8. Insert the battery to the battery compartment

again

9. Performing the hard reset with NFLASH

format

4 4
