Jabra Pro 920 Duo Manual de usuario

www.jabra.com

User Manual

Jabra PRO™ 920Jabra PRO™ 920 Duo

www.jabra.com

User Manual

ENGLISH

JABRA PROTM 920 DUO

1. WELCOME

Congratulations on purchasing your new Jabra PRO 920 Duo. We are sure you will enjoy its wide range of

features, and nd the headset comfortable to wear and easy to use.

Jabra PRO 920 Duo headset features

• Exceptional sound quality.

• Volume and mute controls.

• Intuitive headset multi-function button for easy call handling.

• LED and audio indicators.

• Advanced hearing protection with SafeTone™.

• Noise-cancelling microphone.

• Auto sleep mode for energy conservation.

Jabra PRO 920 Duo base features

• Headset recharge docking cradle.

• Visual call status indicators.

• Battery indicators.

• Voice-prompted conguration.

• Port for Jabra LINK adapter and GN1000 remote handset lifter.

ENGLISH

JABRA PROTM 920 DUO

2. PRODUCT OVERVIEW

2.1 PACKAGE CONTENTS

Power adapter

Telephone cable

Base Headset

ENGLISH

JABRA PROTM 920 DUO

2.2 HEADSET OVERVIEW

Microphone boom arm

Speaker volume down

button

Speaker volume up

button

Mute button

Mount for

wearing-style

attachments

Recharge contact

Speaker

Noise-cancelling

microphone

LED indicator

Multi-function

button

ENGLISH

JABRA PROTM 920 DUO

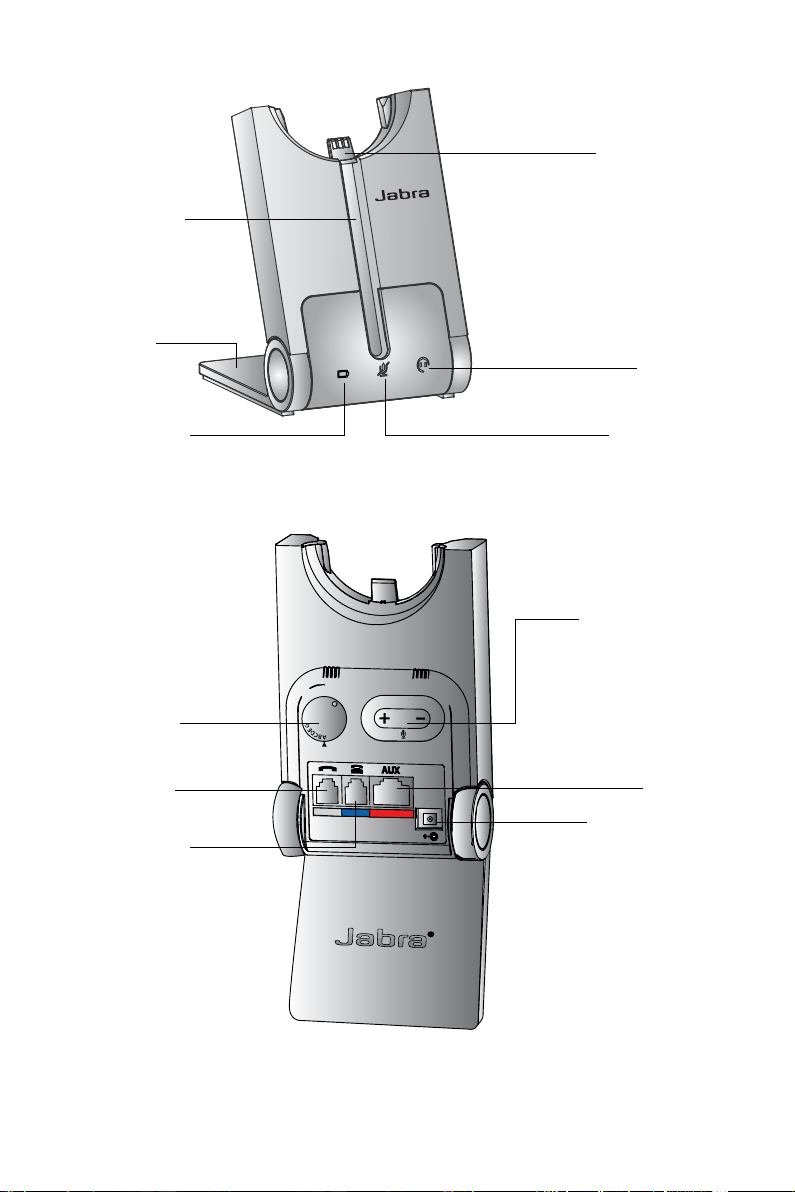

2.3 BASE OVERVIEW

Mute indicator

Audio link

indicator

Battery indicator

Headset cradle

Headset recharge

contact

Foldable

base stand

Power adapter port

Telephone port

Handset port

Clear Dial Tone

switch

AUX port

Microphone volume

controls

ENGLISH

JABRA PROTM 920 DUO

2.4 OPTIONAL ACCESSORIES

The following Jabra PRO accessories are available separately. Visit jabra.com for full accessory overview.

Replacement ear cushions Service cable

Jabra GN1000 Electronic hookswitch adapter

(actual product may vary from illustration)

ENGLISH

JABRA PROTM 920 DUO

3. CONNECTING TO A DESK PHONE

3.1 FOLDABLE BASE STAND

The Jabra PRO 920 Duo base stand can be folded into three positions: open, closed and standing position, as

illustrated.

CLICK

ENGLISH

JABRA PRO 920 DUO

ENGLISH

JABRA PRO 920 DUO

3.2 CONNECT TO DESK PHONE

OPTION 1

Desk Phone with Headset

Port

This type of desk phone has a

dedicated headset port (usually

at the back of the phone). These

phones typically have a button

on the front panel for switching

between handset and headset.

1. Plug the supplied telephone

cable into the port marked

on the base.

2. Connect the telephone

cable to the headset port

on the desk phone.

OPTION 2

Desk Phone with Jabra Link

A Jabra Link adapter enables an

incoming call to be answered

or ended by the headset multi-

function button.

Contact your local Jabra dealer

to purchase a Jabra Link

adapter for your specic desk

phone.

1. Connect the Jabra Link

adapter as shown in adapter

documentation supplied

with the Jabra Link. On

some phones the telephone

cable will also need to be

connected.

2. Call your connected desk

phone using another phone

to enable the Jabra Link

adapter. Wait 10 seconds

before answering the

phone.

Refer to Jabra Link

documentation

OPTION 3

Desk Phone with GN1000

The GN1000 remote

handset lifter manually lifts

the desk phone handset to

make or answer a call. For

mounting instructions refer to

documentation supplied with

the GN1000.

1. On the desk phone,

unplug the handset cable

from the phone body.

2. Connect the handset cable

to the port marked on

the base.

3. Plug the supplied telephone

cable into the port marked

on the base.

4. Connect the telephone

cable into the handset

port on the desk phone.

5. Connect the GN1000 cable

into the port marked

on the base.

OPTION 4

Desk Phone without

Headset Port

This desk phone does not have

a dedicated headset port.

1. On the desk phone,

unplug the handset cable

from the phone body.

2. Connect the handset cable

to the port marked on

the base.

3. Plug the supplied telephone

cable into the port marked

on the base.

4. Connect the telephone

cable into the handset

port on the desk phone.

ENGLISH

JABRA PROTM 920 DUO

3.3 CONNECT POWER SUPPLY TO BASE

1. Plug the power adapter into the port marked on the base.

2. Connect the power adapter to the mains power socket.

3.4 DOCK THE HEADSET

Dock the headset with the base

Dock the headset. When docked correctly the headset battery will begin charging, if needed. Charge for 20

minutes or until the battery indicator on the base is steady green.

ENGLISH

JABRA PROTM 920 DUO

4. CONFIGURING THE DESK PHONE AUDIO

Due to the large range of desk phone brands/models available, a clear dial tone must be set before rst-time

use of the Jabra PRO 920 Duo. Setting the clear dial tone will enable the Jabra PRO 920 Duo to function correctly

with your specic desk phone. Additionally it is also important to set the microphone volume for optimal sound

quality.

4.1 SET A CLEAR DIAL TONE

1. Put on the headset.

2. Press the headset button on the desk phone, or lift

the desk phone handset.

3. Locate the clear dial tone switch on the back of the

Jabra PRO 920 Duo base, as illustrated, and while

listening in the headset for a clear dial tone, rotate

the switch from A to G.

4. Determine the best switch position. The dial tone

should be strong, clear and undistorted.

5. When the clear dial tone is set, press the headset

button on the desk phone, or return the desk

phone handset to the receiver.

CLICK

4.2 SET THE MICROPHONE VOLUME

1. Put on the headset.

2. Get a dial tone by pressing the headset button

on the desk phone, or by lifting the desk phone

handset.

3. Make a test call. Call a friend or colleague to test

your speaking volume. Ensure the listener does not

adjust their own volume.

4. Adjust the microphone volume using the

microphone + / - volume buttons, as illustrated, if

your speaking volume is too loud or too quiet for

the listener.

5. When the microphone volume is set, end the call.

Note: To reset the microphone volume to the factory

default setting, make a call and then press and hold

both microphone + / - volume buttons until a tone is

played, and then release the volume buttons.
