Jabra GN9330e - USB - Headset Manual de usuario

GN9330e

Quick Start Guide

English Guide for basic set-up and use

中文基本安装和使用指南

Overview 概述

[1] 麦克风

[2] 话筒吊臂

[3] 扬声器

[4] 链接指示灯

[5] 使用静音开关进行音量控制

[6] 通话按钮

[7] 耳勾

[8] 机座盖子

[9] 拨号音清晰度调节开关

[10]耳麦充电工具

[11]电话线端口

[12]听筒线端口

[13] A/C电源适配器端口

[14]在线指示灯端口

[15]用于GN1000的AUX端口

[16]配对按钮

[17] 麦克风音量

[18]充电塔

[19]静音指示灯

[20]电池指示灯（4个二极管）

[21]机座通话按钮（带有指示灯）

[22] A/C电源线

[23]电话线

[24]头夹

[1] Microphone

[2] Boom arm

[3] Speaker

[4] Link indicator

[5] Volume control with mute switch

[6] Talkbutton

[7] Ear hook

[8] Base cover

[9] Clear dial tone switch

[10] Headset charge facility

[11] Telephone cord port

[12] Handset cord port

[13] A/C power adapter port

[14] Online indicator port (OLI)

[15] AUX port for GN1000

[16] Pairing button

[17] Microphone Volume

[18] Charge tower

[19] Mute indicator

[20] Battery indicator (4 diodes)

[21] Base Talkbutton (with indicator)

[22] A/C power cord

[23] Telephone cord

[24] Headband

English 中文

For detailed

information

about buttons

and functions,

please see Guide

for additional

functions.

有关按钮和功能

的详细信息，请

参阅《附加功能

的指南》的其他

功能。

2.2 2.4-2.5

2.3

2.1

1 sec )))

2.6-2.7

25 %

100 %

Setting up 安装

See Guide for

additional func-

tions for setting

up the GN1000

and an external

OLI.

请参阅《参考指

南》，附加功能的

指南GN1000

和外部OLI的

信息。

Charging

充电

Setting up

安装

[2.1]拔下听筒线。

[2.2]将听筒线插入机座。

[2.3]将机座线插入电话。

注：如果电话有单独的耳麦端口，请参阅

《附加功能的指南》，了解如何设置和使用

此端口。

连接至电源

[2.4]将电源适配器插入机座。

[2.5]将电源适配器插入电源插座。

4 电话机指示灯亮起

充电

[2.6]将耳麦放入机座中，进行充

电。所有电池指示灯二极管将亮起 

1秒钟。

[2.7]在使用耳麦之前至少将其充电

30分钟。完全充电需要3个小时。

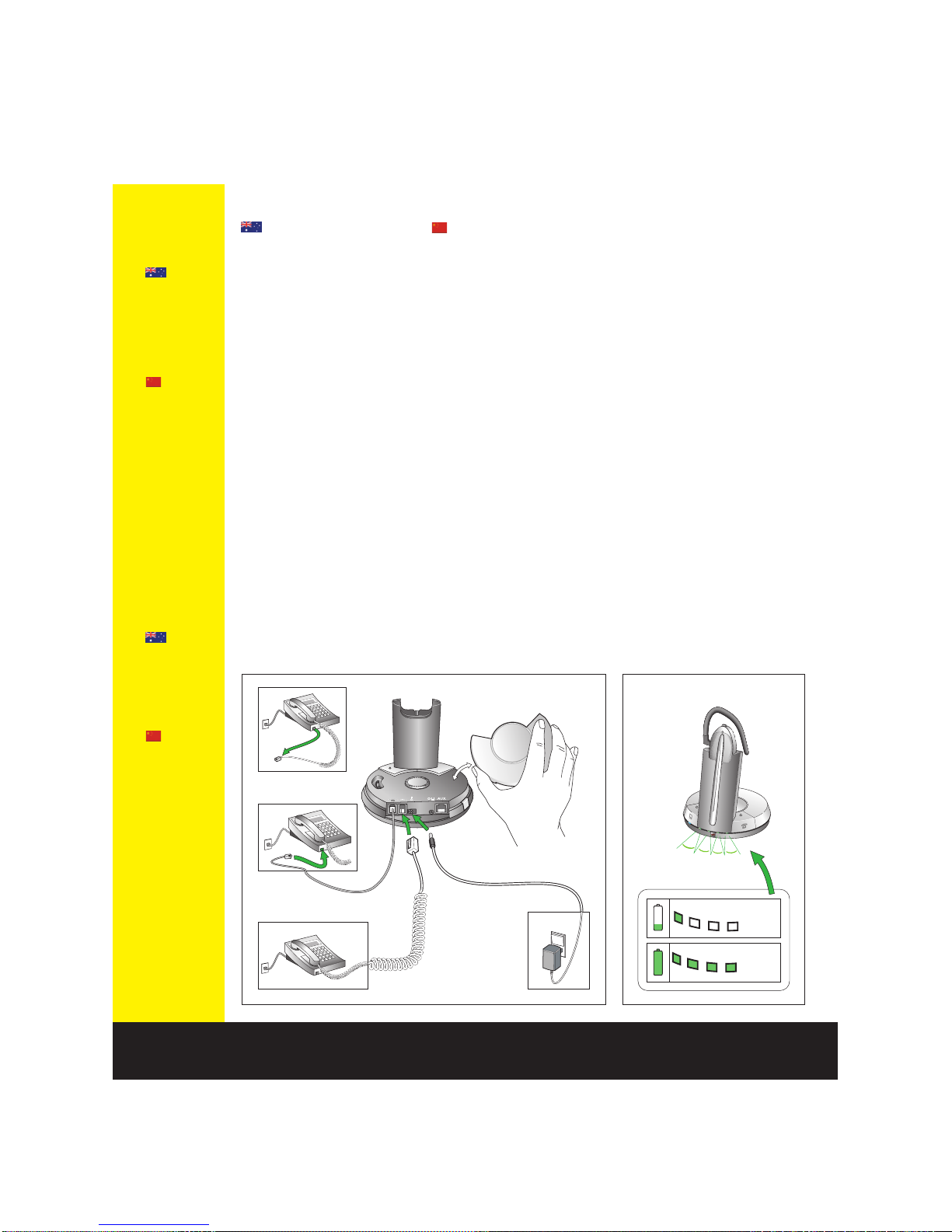

Setting up

[2.1] Unplug handset cord.

[2.2] Plug handset cord to base.

[2.3] Plug base’s cord to telephone.

Note: If your telephone has a separate

headset port, please refer to the ”Guide

for additional functions” for setting up and

using this port.

Connecting to power

[2.4] Plug power adapter into base.

[2.5] Plug power adapter into electrical

outlet.

Telephone button will light.

Charging

[2.6] Place headset in base to charge.

All Battery indicator diodes will light

for 1 sec.

[2.7] Charge headset for minimum 30

min. before use. A full charge takes

3 h.

English 中文

The number

of lit battery

indicator diodes

shows level of

charge, even

with headset

out of base.

耳麦不在机座上

时,亮起的电池

指示灯二极管的

数目也可显示充

电水平。

3.1 3.2 3.3-3.4

3.5 3.6 3.7 3.8

Optimizing 优化

Clear dial tone adjustment

拨号音清晰度调节

Microphone volume setting

传送音量设置

Adjusting speaker volume

调节扬声器音量

See www.jabra.

com for more

about clear dial

tone adjust-

ment.

请参阅www.

jabra.com，了解

关于拨号音清晰

度调节的详细

信息。

拨号音清晰度调节

[3.1]戴上耳麦。

[3.2] 拿起听筒，听耳麦中的拨号

音。

4 如果听不到拨号音或听到的拨号音

不清晰，请继续按  3.3 调节。

[3.3] 取下机座盖，并找到拨号音清

晰度调节开关。

[3.4] 将开关从7个档位(A-G)上

逐一滑过，直到拨号音清晰为止。如

果在位置A和在位置G处的拨号

音清晰度相同，则将开关置于A。

传送音量设置

要使对方清晰地听到您的声音，该

设置很关键。

[3.5]戴上耳麦。

[3.6]向测试人员拨打电话。

[3.7]调节麦克风音量调节器，

直到测试人员确认您的的音量合适

为止。

调节扬声器音量

[3.8]升/降音量开关以调节传送音

量。

4 耳麦中的声音指出音量级别。

Clear dial tone adjustment

[3.1] Put on headset.

[3.2] Lift handset and listen for dial

tone in headset.

4 If no/unclear dial tone is heard,

continue adjustment to 3.3.

[3.3] Remove base cover and locate

clear dial tone switch.

[3.4] Slide the switch (through A-G

settings) until dial tone is clear. If dial

tone is just as clear in position A as in

position G, leave switch in position A.

Microrhone volume setting

This setting is critical for your voice

to be heard clearly.

[3.5] Put on headset.

[3.6] Make a call to someone who will

act as test person.

[3.7] Adjust microphone volume until

your test person conﬁrms your voice is

at appropriate volume.

Adjusting speaker volume

[3.8] Push volume switch up/down to

adjust transmit volume.

4 Tones in headset indicate volume

level.

English 中文

4.1 4.2 4.3 4.4

4.5 4.6

Calling

Making calls

通过电话机拨打电话

Ending calls

挂断电话

拨打电话

You can also

make/end calls

remotely via

telephone using

GN1000.

See Guide for

additional

functions for

instructions.

也可以使用

GN1000通过电

话机远程拨打/挂

断电话。

请参阅《参考指

南》，附加功能的

指南。

通过电话机拨打电话

[4.1] 将耳麦从机座取下，或者按

耳麦的通话按钮（如果已经戴上耳

麦）。

[4.2]电话指示灯开始闪烁。

[4.3]拿起电话听筒并等待拨号音。

[4.4]拨打需要的电话号码。

挂断电话

[4.5]将电话听筒放回原位。

[4.6]将耳麦放回机座中或按耳机的

通话按键。

带有指示灯的基本通话按钮：通电时

指示灯亮起，耳麦中的链接激活时指

示灯闪烁。

Making calls

[4.1] Remove headset from base, or

press headset’s talk button if already

wearing headset.

[4.2] Telephone indicator will start

ﬂashing.

[4.3] Lift telephone’s handset and

wait for dial tone.

[4.4] Dial desired number.

Ending calls

[4.5] Place telephone’s handset.

[4.6] Place headset in base, or press

headset’s talk button.

Base talk button with indicator: Lit

when power is on and ﬂashing when

link in headset is activated.

English 中文

5.1 5.2

5.4

5.3

Answering calls

接听电话

Mute function

静音功能

Answering calls

5接听电话

English 中文

接听电话

[5.1]电话铃响起。

[5.2]从机座上取下耳麦，或者按耳

麦的通话按钮（如果已戴上耳麦）。

[5.3]拿起电话听筒。

4 随后电话可直接传到耳麦。

静音功能

[5.4]通过按下音量控制的静音开关

可启用/停用静音功能。

4 启用静音时，将在耳麦中听到有规

律的间隙性声音，而且机座上的静音

指示灯将亮起。

注：终止电话时，将自动停用静音功能。

Answering calls

[5.1] The telephone will ring.

[5.2] Remove headset from base, or

press headset’s Talkbutton if wearing

headset.

[5.3] Lift telephone’s handset.

4 The call will be directed to headset.

Mute function

[5.4] Mute function is activated/

deactivated by pressing the volume

control’s mute switch.

4 When mute is activated, a tone in

regular intervals is heard in headset

and mute indicator on base lights.

Note: Mute function automatically deacti-

vates when a call is terminated.

For more information and

technical speciﬁcations see

Guide for additional functions on

www.jabra.com/gn9330e/support

• Wearing styles

• Audio/visual indicators

• Remote handset lifting (RHL)

• Troubleshooting

• Installation on phones with

headset port

有关详细信息和技术规范，请参阅

www.jabra.com/gn9330e/support

上的附加功能的指南:

•佩戴方式

•音频/视频指示灯

•远程听筒提举(RHL)

•故障排除

•通过耳麦端口安装到电话上

GN Netcom Australia Pty Ltd

Unit 6, 20 Cato Street

Hawthorn East, Victoria 3123

Australia

Tel. +61 3 8823 9111

Fax. +61 3 8823 9199

help.au@jabra.com

www.jabra.com

GN Netcom Asia Ltd.

30/F, 88 Hing Fat Street

Causeway Bay

Hong Kong

Tel. +852 3550 9900

Fax. +852 3550 9933

help.hk@jabra.com

www.jabra.com

GN Netcom (Singapore) Pte Ltd.

16 Rafﬂes Quay #20-04

Hong Leong Building (S) 048581

Singapore

Tel. +65 6542 4550

Fax. +65 6542 4551

help.sg@jabra.com

www.jabra.com

GN Communications Shanghai Co., Ltd.

Suite 2403

Zhongrong Hengrui International Plaza

620 Zhangyang Road

Shanghai 200122

P.R. China

Tel. +86 21 5836 3670

Fax. +86 21 5836 3671

help.cn@jabra.com

www.jabra.com
