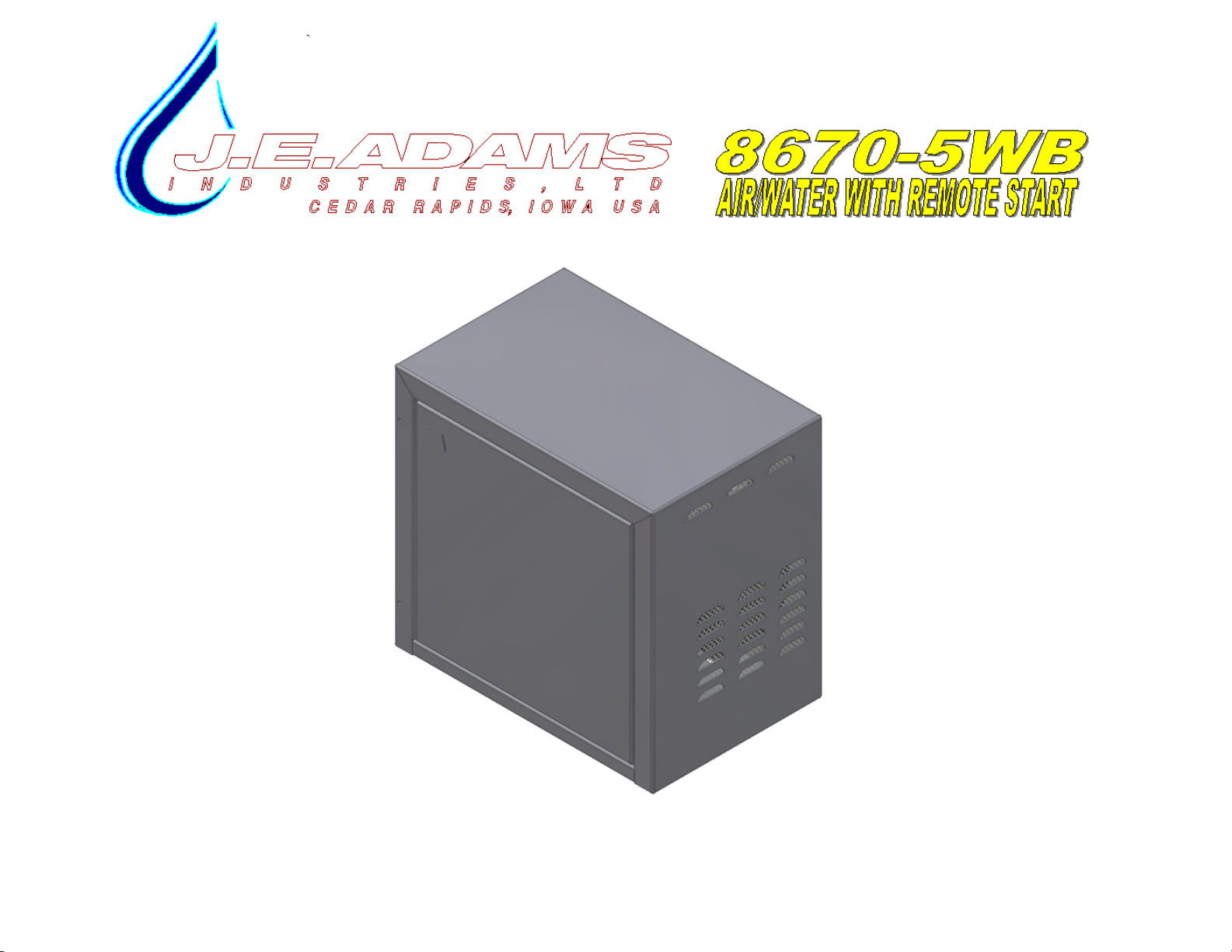

J.E. Adams 8670-5WB Manual de usuario
8670-5WB Manual – 10/2006 2
TABLE OF CONTENTS
•Product Information…………………………………… 3
•Specifications…………………………………………… 4
•Installation……………………………………………… 5-10
oRequirements…….…………………………… 5
oInstallation Directions..………………………. 6
oFigure 1: Hose Reel Base Footprint.…………. 7
oFigure 2: Mounting and Routing Detail………..8
oFigure 3: Electrical Installation Detail…………9
oFigure 4: Cabinet and Base Dimensions……….10
•Timer setup……………………………………………… 11-15
oSSAC Setup…………………………………... 11
oIDX Setup…………………………………….. 12
oInfitec Setup………………………………….. 13
oTimer Settings Chart…………………………. 14
oTypical Timer Settings………………………. . 15
•Programming the Remote Start System…………………16
•Maintenance……………………………………………... 17
•Parts Breakdown………………………………………... 18-20
o8670-5WB…………………….……………… 18
o8778A-1………………………..……………... 19
o22002-51A……………………………………. 20
•Schematics……………………………………………….. 21
oS8670-5WB………………………...…………. 21
•Troubleshooting…………………………………………. 22
8670-5WB Manual – 10/2006 3
PRODUCT INFORMATION
Please take a moment to fill out the information below in order to aid us with any future sales or service inquiries. Model
number and serial number information can be found on the serial tag located inside the control box and/or on the lower
exterior of the can. Key number can be found on the tag that comes attached to the keys. There may be more than one key
number depending on unit.
Please keep this information with your records.
MODEL#:_________________________________________
SERIAL#:_________________________________________
KEY NUMBER(S):_________________________________
DATE PURCHASED:_______________________________
DISTRIBUTOR:___________________________________
J.E. Adams Industries
1025 63rd Ave. S.W.
Cedar Rapids, IA 52404
1-800-553-8861
www.jeadams.com
8670-5WB Manual – 10/2006 4
SPECIFICATIONS
DeVILBISS COMPRESSOR
•20 AMP SERVICE REQUIRED
•120 VAC, 60Hz, 14 AMPS
•1.5 HORSEPOWER
•ONE CYLINDER
•ONE STAGE OIL-LESS
SCFM @ PSI :
6 @ 0
5 @ 20
4.1 @ 40
3.1 @ 90
2.9 @ 100
2.1 @ 125 (MAX PSI)
TEMPERATURE RANGE:
-10 DEGREES F TO 100 DEGREES F.
MOTOR:
•1.5 HP, 1725 RPM
•CAPACITOR START
•NEMA 56 FRAME
•AUTOMATIC THERMAL
OVERLOAD.
NO LUBRICATION REQUIRED ON MOTOR OR COMPRESSOR.
8670-5WB Manual – 10/2006 5
INSTALLATION REQUIREMENTS
!IMPORTANT!
TO ENSURE PROPER FUNCTIONALITY AND ADHERANCE TO BOTH LOCAL AND NATIONAL ELECTRIC
CODES, IT IS RECOMMENDED THAT SERVICE BE INSTALLED BY A LICENCED ELECTRICIAN EXPERIENCED
IN COMMERCIAL APPLICATIONS. INADEQUATE POWER AND WIRING MAY CAUSE THE UNIT TO PERFORM
ERRATICALLY, BLOW FUSES AND TIME INCORRECTLY.
GENERAL MECHANICAL:
•ALL DIMENSIONS IN DRAWINGS ARE IN INCHES.
•MOUNTING STUD SIZE 3/8” X 16 UNC X 1”.
•4” MINIMUM CONCRETE REQUIRED AROUND MOUNTING STUD.
•18” MINIMUM PAD RECOMMENDED FOR BUMPER CLEARANCE.
FOR GASOLINE DISPENSING LOCATIONS:
•A MINIMUM 18” HIGH PAD ABOVE THE DRIVEWAY.
•20 FOOT HORIZONTAL CLEARANCE FROM THE EXTERIOR ENCLOSURE OF ANY
GASOLINE DISPENSING PUMP.
ELECTRICAL SERVICE:
•Dedicated service required
o120V single phase
o20 amp service
o60Hz cycle
•Minimum service wire size:
oLess than 100ft run: 12Ga
o100ft – 200ft run: 10Ga
8670-5WB Manual – 10/2006 6
INSTALLATION
IT IS HIGHLY RECOMMENDED THAT THIS UNIT BE INSTALLED BY A LICENSED
ELECTRICIAN to ensure all local and national electrical codes are adhered to.
1. This unit is designed to be used with the J.E. Adams 6025 hose reel base.
2. Using the 6025 footprint dimensions shown in Figure 1, locate and install mounting studs.
3. Secure hose reel base to mounting studs securely. DO NOT install the cover at this time.
4. Mount cabinet to base securely as shown in Figure 2, using only the four 5/16-18 X ½” bolts.
DO NOT install the ¼-20 X ½” bolts at this time.
5. Using Figures 2 & 3, install electrical and water services to the unit and run air and water lines to
the inputs of their respective hose reels. Air line should run between the output of the unloader
valve and the input of the air reel.
6. Set timer to desired time and coin settings (pages 11-15).
7. Apply power to the unit and verify proper operation.
8. Install hose reel cover using ¼-20 X ½” bolts to secure in place as shown in Figure 2.
8670-5WB Manual – 10/2006 7
Figure 1: Installation footprint for 6025 hose reel base
8670-5WB Manual – 10/2006 8
Figure 2: Mounting and routing detail
8670-5WB Manual – 10/2006 9
Figure 3: Electrical installation detail
8670-5WB Manual – 10/2006 10
Figure 4: Cabinet and hose reel base dimensions
