Disinfectant Boost
System DBS-125
Owner's Manual
Table of Contents
10014_20220110
Disinfectant Boost System DBS-125
Owner's Manual
Safety 1
Features 2
Operation 3
Specifications 7
Customer Service 8
DBS-125_Owners_Manual_10231_20220119a
Be sure you have read all installation, operation, maintenance and safety instructions
before you install, service or begin to operate this unit.
Accidents occur every year because of careless use of industrial equipment. You can avoid hazards by
following these safety instructions, and applying some ordinary common sense when operating or servicing
this unit.
Keep in mind that full operator attention and alertness are required when operating or servicing this unit.
USE COMMON SENSE!! Most acccidents can be avoided by using common sense and concentration
on the job being done.
WARNINGS / PRECAUTIONS:
Please check all hose clamp connections to make sure clamps and ttings are tight. Even though all ttings
are factory tightened and checked, clamps may have settled into the hose material during transportation and
may require an additional tightening before the rst start-up of the unit. Periodic checking should also be
considered as preventative measures for the safety of the operators.
IMPORTANT!!!
PLEASE FOLLOW ALL LOCAL AND STATE LAWS
IN REGARDS TO SAFETY OF HANDLING AND
TRANSPORTING NaOCl. PLEASE USE NECESSARY
PPE WHEN HANDLING NaOCl OR USING THIS
DISINFECTANT BOOST SYSTEM. REFER TO THE
PROPER MATERIAL SAFETY DATA SHEETS FOR
ADDITIONAL PRECAUTIONS AND
SAFETY MEASURES.
Safety
DBS-125
10232_20220119 DBS-125_Owners_Manual_10231_20220119a - 1
The Ixom Watercare, Inc. Disinfection Boosting System, DBS-125, is specically designed to pump
the full range of concentrations of Sodium Hypochlorite. The design enables this system to be por-
table, operated by a wide range of portable air compressors, and allows the user to dose, rinse and
air purge at multiple locations with a single unit.
COMPACT, CONTAINED, AND PORTABLE DESIGN
User friendly design featuring a disinfectant holding tank and fresh water rinse tank. Secondary self
containment is integrated into the frame structural design. The unit is portable and easily ts in small
to full sized pick-up boxes.
SELF-PRIMING CONFIGURATION
Pump location allows ooded suction from both disinfectant and rinse water holding reservoirs. Pump
is located inside containment enclosure for minimized user exposure and safe operation.
CORROSION RESISTANT COMPONENTS
All wetted material components are of chemical compatibility with Sodium Hypochlorite. Stainless
steel hardware and containment on non-wetted parts are utilized for atmospheric corrosion
resistance.
FLOW AND LIQUID LEVEL INDICATION
Visible liquid level of chemical holding tank, with level indicators precise to fractions of a gallon.
Disinfectant Water
Air
THREE STAGE CHEMICAL BOOSTING SYSTEM
Easily dose disinfectant with the high performance Air-Operated
Double Diaphragm (AODD) pump discharging at a rate of 0.5gpm
to 4.0gpm at heads up to 125psi or +200 ft. Easy liquid selection
valve operation to switch from pumping chemical to pumping rinse
water. Three-way main control valve allows user to switch from
pumping disinfectant to pumping rinse water and to purge injec-
tion lines dry using the same air compressor operating the AODD
pump.
Frequent boosting with small doses of chlorine
is far less costly than having a major problem
occur in a tank. This portable disinfectant
boosting unit allows you to dose smaller
amounts of chlorine more frequently allowing
your tanks to be maintained within your desired
chlorine residual levels. With frequent monitoring
and this portable boosting unit you can give your
customers quality water they deserve.
BENEFITS
Features
DBS-125
10233_20220119 DBS-125_Owners_Manual_10231_20220119a - 2
P-Style G-Style
A-Style
S-Style Automotive
Style
Type M
T-Style
The DBS-125 is designed to operate with an air compressor capable of producing 4cfm at 60psi. An
air compressor is required to operate this system and is not included with the purchase of this product.
Connecting the DBS-125 to your potable water tank:
Be sure to check and secure all connections before starting the disinfectant boost unit. This unit
comes equipped with a 30 ft discharge hose to connect the disinfectant boost unit to the injection port
of your potable water tank. The injection hose is equipped with Banjo® quick-connect ttings to easily
adapt to the disinfectant boost unit and to SolarBee circulation equipment chemical injection lines.
Locate the discharge port on the side of the control panel of the disinfectant boost unit. Remove the
protective dust cap and set aside. Connect the mating end of the 30 ft discharge hose to the discharge
port engaging both cam levers to make a secure connection.
Connect the opposite end of the 30 ft discharge hose to your potable water tanks injection port, also
engaging both cam levers of the quick connect ttings for a secure connection. Open any valves in
line with the injection port of the potable water tank, if applicable.
Connecting the air compressor to operate the DBS-125:
Before connecting the air supply to the disinfectant boost unit, please be sure that the main control
valve is turned to the “OFF” position.
Once the main control valve is turned to the “OFF” position, the air supply can now be connected to
the “Compressor Quick Connect” tting (Milton Type M). There are different styles of air ttings, so
you may be required to change out this tting if it is not compatible with your type of air compressor
quick coupler. Air supply quick connection ttings can be purchase at most automotive or hardware
stores. This tting can easily be changed out to accommodate your air compressor.
Once the air supply is connected to the disinfectant boost unit, adjust the air pressure using the
“Pressure regulator”. Set the air pressure to 75psi. Never allow air pressure to exceed 125psi.
This may damage certain components of the disinfectant boost system.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Operation
DBS-125
10234_20220119 DBS-125_Owners_Manual_10231_20220119a - 3
Selecting the desired liquid for discharge:
Now that you have all connections made to safely dose your
potable water tank, you will have to select which holding tank to
pump from depending on the desired liquid you would like to pump.
Using the below diagram, turn only the corresponding valve to the
open position to pump your desired liquid.
The “DISINFECTANT” valve will allow dosing from the 20
gallon storage tank as labeled on the disinfectant boost units tank
cover. The “RINSE WATER” valve will allow dosing from the 5 gallon
storage tank as labeled on the disinfectant boost units tank cover.
To start dosing your tank, rst make note of the liquid level
“site tube” gauge on the side of the “DISINFECTANT” 20
gallon holding tank. Turn the “DISINFECTANT” valve to the OPEN
position.
Dosing your potable water tank:
Turn the main control valve to the “PUMP” position. This will allow air to ow from the air compressor
to the AODD pump to start pumping from the selected holding tank. Use the “Flow Regulator” needle
valve to adjust the rate of which you would like to dose. Dosing should occur between 0.5gpm and
no greater than 4.0gpm.
Knowing the amount of disinfectant you would like to boost, use the site tube gauge to dose the
desired amount of disinfectant. Turn the main control valve to the “OFF” position once you have
dosed the desired amount of disinfectant. CLOSE the “Disinfectant Valve” and OPEN the “RINSE
WATER” valve. Turn the main control valve back to the “PUMP ON” position to pump a small amount
of rinse water, approximately 1 gallon, from the 5 gallon holding tank. The rinse water will push the
remaining disinfectant through the injection line at the desired injection rate between 0.5gpm and no
greater than 4.0gpm.
DISINFECTANT
WATER
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Operation
DBS-125
10234_20220119 DBS-125_Owners_Manual_10231_20220119a - 4
WATER
WATER
WATER
15 seconds
Note: The pump may utter briey after each
purge cycle as the pump is self priming. This
is a normal occurrence.
3 - 5 seconds
3 - 5 seconds
Purging the injection lines:
Now that the desired amount of disinfectant is completely injected, slowly turn the main control valve
to the “PURGE” position. This will use the air from the air compressor to purge the injection line free
of the remaining water and residual disinfectant in the injection line. Turn the main control valve to
the “OFF” position after approx. 3 to 5 seconds of purging.
Flushing the injection lines:
In order to keep your injection lines free from disinfectant scaling, it is necessary to ush the lines
clean of any disinfectant residual. With the “Rinse Water Valve” in the OPEN position, repeat the
dosing instructions by turning the main control valve to the “PUMP” position. Dose only a small
amount of rinse water, approximately 0.125 gallons, from the 5 gallon holding tank.
Once a small amount of rinse water is pumped into the injection lines, turn the main control valve to
the “PURGE” position for approximately 3 to 5 seconds. This will push the rinse water quickly thru the
injection lines washing the line of the remaining disinfectant residual. Repeat these ushing steps 3
to 4 times, pumping approximately 0.125 gallons of rinse water and purging for 3 to 5 seconds.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Operation
DBS-125
10234_20220119 DBS-125_Owners_Manual_10231_20220119a - 5
Once you feel the injection lines are thoroughly rinsed, complete
a nal purge cycle. Purge the injection lines a nal time for
approximately 15 seconds. This will remove most of the
moisture from the injection lines to prevent damage to the
injection lines due to freezing or scaling.
You have now successfully dosed your potable water tank using the Ixom Watercare, Inc. DSB-125
system. Make sure the main control valve and both liquid selection valves are all turned to the “OFF”
or “Closed” positions before disconnecting the 30 ft discharge line from the potable water tank or from
the disinfectant boost unit.
Once the disinfectant boost unit is turned “OFF”, you may turn off and disconnect the air compressor
from the unit.

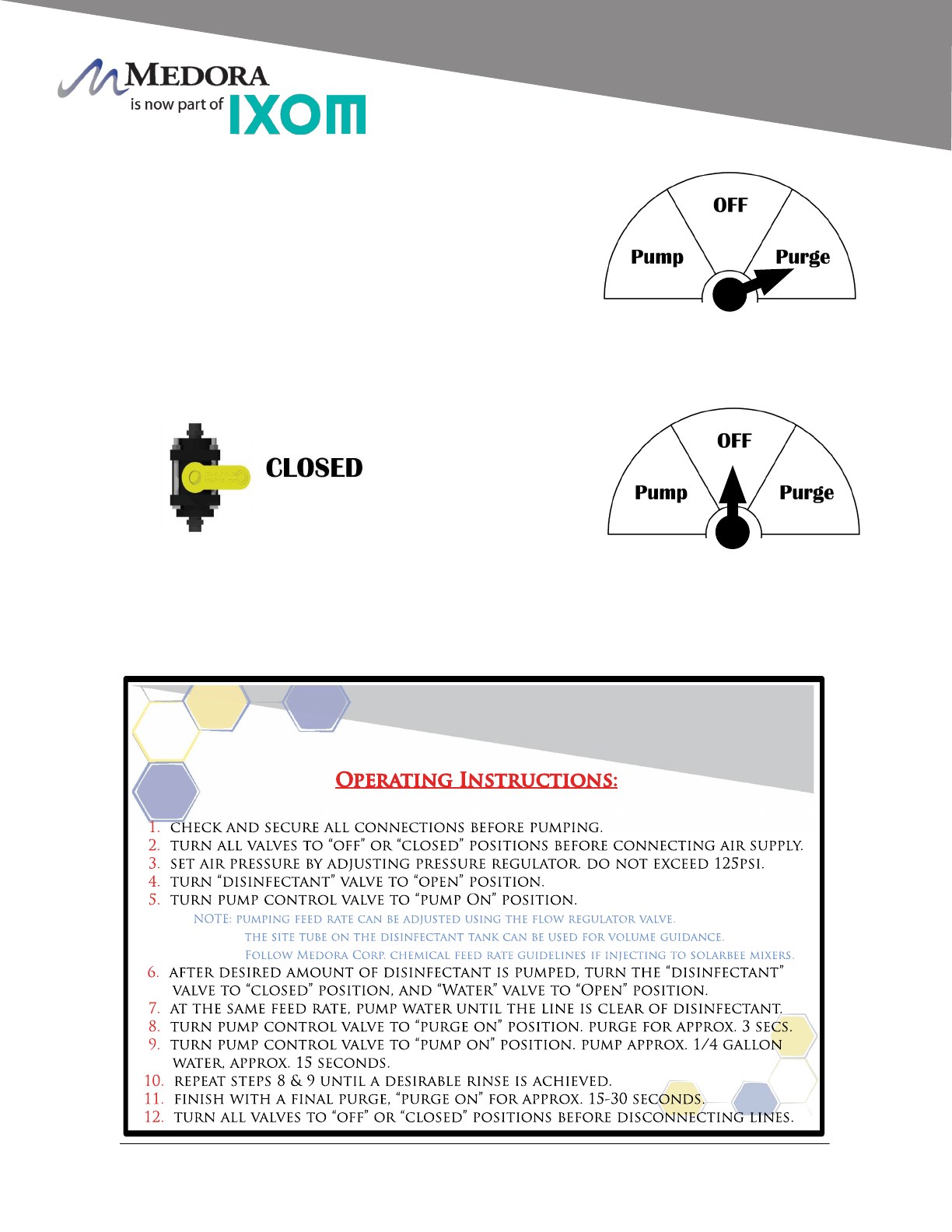

The below basic operating instructions decal is located below the control panel of the product for your
convenience.
15 seconds
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Operation
DBS-125
10234_20220119 DBS-125_Owners_Manual_10231_20220119a - 6
Technology
Description: Safe, durable chemical transfer system to boost disinfectant in potable water reservoirs.
AODD Pump: Air Operated Double-Diaphragm pump. Capacity of 0 to 4 GPM discharge. Displacement
per stroke of 0.1 gallons. Heads up to 125 psi or 288 ft of water.
Air
Compressor:
(not included)
Portable (ie. gas engine) oil-less air compressor required to operate system. Air compressor
not included. 4cfm at 60psi required. Compressor should be capable of 125 psi if desired to
run the pump at maximum pressure rating.
Skid/Base: 316 stainless steel construction. Provides secondary containment.
Chemical
Hose:
30 feet of 3/8" exible Teon chemical hose jacketed with stainless steel braid sheathing.
250 psi max pressure.
Chemical
Compatibility
Constructed of Polypropylene, CPVP, Teon, and Viton. All materials compatible with 12.5%
sodium hypochlorite, maximum temperature of 100°F and 30% calcium hypochlorite (liquid
form only).
Holding Tank: 20 gallon capacity disinfectant holding tank, and 5 gallon capacity rinse water tank. High
density linear polyethylene (HDLPE) material construction.
Dimensions 20”W x 24”H x 56”L, 150 lbs (dry weight), 350 lbs (full capacity wet weight)
Warranty: Limited 1 year parts and labor warranty.
Identify all possible hazards. Determine what safeguards are needed and implement them. Only you, the user,
understand your product and system characteristics fully. The ultimate responsibility for safety is with you.
Your safety ultimately rests in your hands. Do your part and you will enjoy safe, trouble free operation for
years to come.
IXOM WATERCARE, INC.’S LIMITED REPLACEMENT WARRANTY:
All new and factory-refurbished Ixom Watercare, Inc. equipment is warranted to be free of defective parts, materials,
and workmanship for a period of 1 years from the date of installation or delivery. This warranty is valid only for use
of the Ixom Watercare, Inc. equipment in accordance with the owner’s manual and any initial and ongoing factory
recommendations. This warranty is limited to the repair or replacement of defective components only except for the
rst 1 years the warranty includes both parts and labor. In lieu of sending a factory service crew to the site for minor
repairs, the seller may choose to send the needed parts to the owner postage paid and pay the owner a reasonable labor
allowance to install the parts. There are no other warranties of any type, express or implied, and there is no liability for
consequential damages of any type.
Terms applicable to all equipment. This Limited Replacement Warranty is subject to the terms of Ixom’s General Terms
and Conditions of Sale. In the event of any inconsistency between the terms of this Limited Replacement Warranty and
Ixom’s General Terms and Conditions of Sale, the terms of this Limited Replacement Warranty shall prevail to the extent
of that inconsistency.
Patent Pending Subject to change without notice.
Summary Specifications
DBS-125
10235_20220119 DBS-125_Owners_Manual_10231_20220119a - 7
ABOUT IXOM
Ixom combines innovative water quality solutions with top notch manufacturing and nationwide
in-eld service capabilities to create trusted, full circle support our Customers depend on.
We design and manufacture many trusted brands including GridBee®, SolarBee®, MIEX®, and
ResidualHQ© for use across the water quality spectrum. This includes solutions for Water Treatment,
Distribution Treatment, Wastewater Treatment and Lakes & Source Water Reservoirs.
Ixom has thousands of installations and is an industry-leader solving water quality problems across
the United States, Canada and the world.
Contact us today to discuss your water quality and service needs.
EVERYONE DESERVES GREAT CUSTOMER SUPPORT
Ixom Watercare earns customer trust with unparalleled service
start to nish. Every department in Ixom is dedicated to the
support of our Customers and the improvement of water quality.
Complete life cycle support is much, much more than a returned
phone call or an email. It centers around direct access and
communication to those who can help when help is needed from
the beginning of a project throughout the life of the equipment.
Nationwide Installation & ServiceNationwide Installation & Service
©2022 Ixom Watercare
ixomwatercare.comixomwatercare.com
866-437-8076 • [email protected]866-437-8076 • [email protected]
DBS-125_Owners_Manual_10231_20220119a - 8
Tabla de contenidos
Otros manuales de Sistema de filtración de agua de IXOM
