IWave I.MX 8M Plus SMARC Manual de usuario

iW-RainboW-G40D

Quick Start Guide

i.MX 8M Plus SMARC

Development Platform

Disclaimer

iWave Systems reserves the right to change details in this publication

including but not limited to any product specification without notice.

No warranty of accuracy is given concerning the contents of the

information contained in this publication. To the extent permitted by law

no liability (including liability to any person by reason of negligence) will be

accepted by iWave Systems, its subsidiaries or employees for any direct

or indirect loss or damage caused by omissions from or inaccuracies in

this document.

Trademarks

Certification

iWave Systems Technologies Pvt. Ltd. is an ISO 9001:2015 Certified

Company.

All registered trademarks, product names mentioned in this publication

are the property of their respective owners and used for identification

purposes only.

Introduction

Quick Start Guide (QSG)

This Quick Start Guide (QSG) is designed for users to quickly understand

the iW-RainboW-G40D-i.MX 8M Plus SMARC Development Board and

start the evaluation. It provides the instructions for setting-up the

Development Board from the packed box.

Development Platform Description

gi.MX 8M Plus Processor Configuration

= i.MX 8M Plus Quad : 4xCortex-A53,1xCortex-M7, GPU, VPU, NPU & ISP

= i.MX 8M Plus QuadLite : 4xCortex-A53, 1xCortex-M7 & GPU

= i.MX 8M Plus Dual : 2xCortex-A53, 1xCortex-M7, GPU, VPU, NPU & ISP

The iW-RainboW-G40D i.MX 8M Plus SMARC SOM Development platform

incorporates with NXP's i.MX 8M Plus Application Processor based SMARC

SOM and Carrier board with all necessary interface connectors for

developing an embedded application based on NXP's i.MX 8M Plus

Application Processor.

g2GB LPDDR4 memory (Expandable up to 8GB)

Some Key Features of the Board Include:

gDual Gigabit Ethernet (One with TSN support)

gIEEE 802.11a/b/g/n/ac Wi-Fi & BT 5.0

gSMARC v2.1.1 Standard

g16GB eMMC Flash (Expandable up to 128GB)

gGNSS Receiver Support (Optional)

Quick Start Guide

iW-RainboW-G28D

iW-RaniboW-G28D

iW-RainboW-G28DiW-RainboW-G28D

iW-RainboW-G40D

This Development Platform is ESD sensitive.

Handle this product only in accordance with

the installation instructions given in the

manual. Therefore ESD precautions should be

taken care during transport and handling. User

must use a ESD ground strap or other

grounded source before unpacking or

handling the hardware. This Development

Platform is not water proof. Water damage is

not covered under the warranty.

ESD Protection

Do not assemble or use this Development Platform before reading the

installation procedure.

Safety

iW-RainboW-G40D-i.MX 8M Plus SMARC

Development Board is designed by using RoHS

and REACH compliant components and

manufactured on lead free production

process.

Environmental Compliance

Check the local regulations for disposal of

electronic products before disposing.

Product Disposal

Remove the Development board from box and place above the ESD

free area. Use anti-static pad/mat with proper grounding to place the

Development Platform. Also make sure that,below Deliverables are

received without any physical damage.

USB OTG Cable

Development Board

Step 1 - Unpacking

Quick Start Guide

iW-RainboW-G28D

iW-RaniboW-G28D

iW-RainboW-G28DiW-RainboW-G28D

12V,2A Power Supply

QSG

WIFI & BT Antenna

Quick Start Steps

Quick Start GuideQuick Start GuideQuick Start Guide

SMARC SOM

TOP View

BOTTOM View

1 2

1. SMARC Edge

2. LPDDR4

3. Fan Header

4. GNSS Receiver*

5.GNSS Antenna Conn.

6. Wi-Fi & BT Module

7.Wi-Fi & BT Antenna Conn.

8. i.MX 8M Plus SoC

9. JTAG Header*

10.Debugg header*

11.Camera Conn.*

12.eMMC

iW-RainboW-G28D

*Optional

Quick View

iW-RainboW-G40D

11 12

Bottom View

* Not supported.

Quick View

Quick Start Guide

28 29 31 32 33

38 37

1.Power IN Jack

2.USB Debug Conn.

3.USB OTG Conn.

4.USB Type C Conn.

5.USB 3.0 Conn.

6.SMARC MXM Conn.

7.USB 2.0 Conn.

8.Ethernet Jack

9.Cap. Touch Conn.

10.MIPI DSIO Conn.

11.UART Header

12.Backlight Conn.

13.CAN0 Conn.

14.CAN1 Conn.

15.A&V Expansion Conn.

16.PCIe Selection Switch

17.Reset IN Button

18.Power Button

19.PCIe x4 Conn.

20.Mini PCIe Slot

21.SIM Slot

22.Recovery Button

23.Dipslay Port*

24.Audio IN Conn.

25.Audio OUT Conn.

26.HDMI Connector

27.2-Lane MIPI CSI Conn.

28.4-Lane MIPI CSI Conn.*

29.Expansion Conn. 1

30.SOM Expansion Conn.*

31.Expansion Conn. 2

32.Boot Mode Switch

33.Configuration Switch

34.ON/OFF Switch

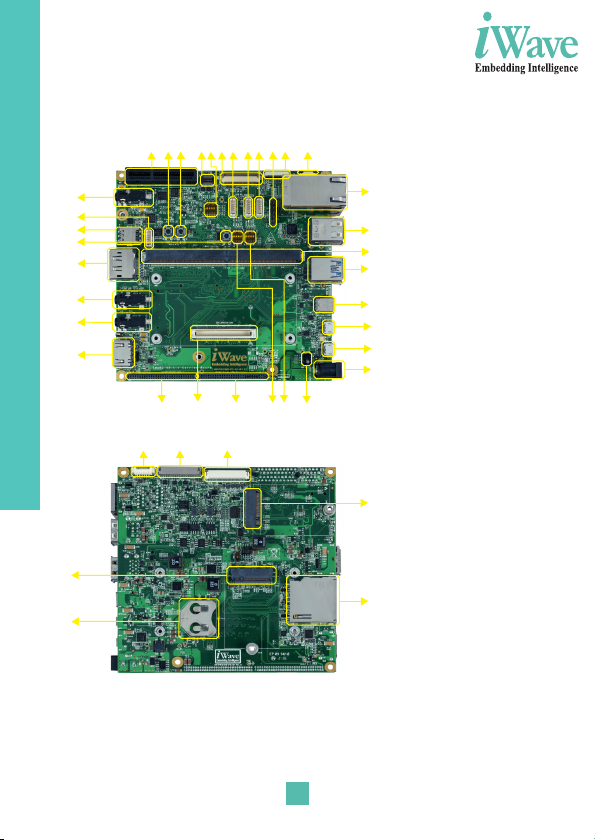

Quick Start Guide

iW-RainboW-G40D

iW-RainboW-G27D

Quick View

30 32 33 34

Top View

Bottom View

37.LVDS1/MIPI DSI*.

38.LVDS0 Conn*.

39.USB Conn.

40 M.2 SATA Conn.

41.RTC Battery Holder

38 37

1.Power IN Jack

2.USB Debug Conn.

3.USB OTG Conn.

4.USB Type C Conn.

5.USB 3.0 Conn.

6.SMARC MXM Conn.

7.USB 2.0 Conn.

8.Ethernet Jack

9.Cap. Touch onn.

10.MIPI DSIO onn.

11.UART Header

12.Backlight Conn.

13.CAN0 Conn.

14.CAN1 Conn.

15.Camera Conn.

16.PCIe Selection Switch

17.OV5640 Camera Conn.

18.Reset IN Button

19.Power Button

20.PCIe x4 Conn.

21.Audio In/out Jack*

22.RS232 Conn.

23.SIM Slot

24.Recovery Button

25.Display Port*

26.Audio IN Conn.

27.Audio OUT Conn.

28.HDMI Connector

29.Carrier Exp. Conn.1

30.SOM Expansion Conn

31.Carrier Exp. Conn.2

32.Boot Mode Switch

33.Configuration Switch

34.ON/OFF Switch

35.Standard SD Slot

36.M.2 PCIE Conn.

* Optional.

Quick Start Guide

iW-RainboW-G28D

Step 2 - Read FTP Contents

Contact For FTP Link : [email protected]/[email protected]

Before moving to next step, one must go through all the documents

including Hardware User Guides and get familiar about iW-RainboW-

G40D i.MX 8M Plus SOM & Development Platform.

Source code can be customized according to user’s wish and

corresponding binaries can be generated. Once the binaries are

generated, user can download the binaries in to the Development

platform using programming tool.

Heatsink-Datasheet

SOM

iW-RainboW-G40D

Software

Hardware

Datasheet-UserGuides

PCB-CAD Files

QuickStartGuide

DevKit-HardwareUserGuide

Mechanical Files

DevKit

Doument

Tool

Binaries

Heatspreader-Datasheet

DevKit-HardwareUserGuide

SOM-HardwareUserGuide

iW-RainboW-G40D

Binaries

Documents

Software UserGuide

Source code (opt.)

Tool

Release Notes

Step 3- Setting-Up

On Board Switch Setting

Make sure On-Board Switch (SW5) set properly as shown in below

image for booting from eMMC.

Sw5- Boot Selection Switch

SW5

(1 0 0 0)

Note :

0 - OFF

1 - ON

Note : Refer the Hardware User Guide for detailed information of

each switch.

Quick Start Guide

Install the driver for Debug Port in Host PC/Laptop using the below link.

https://ftdichip.com/drivers/vcp-drivers/

Connect Type-A end of USB cable to PC and Micro-B end of USB cable to

Development Platform's Debug USB Micro-AB Connector (J24) as shown

below.

iW-RainboW-G28D

Debug Port Setting

Setup the Debug Terminal parameters.

Baud Rate : 115200

Data bits : 8

Parity : None

Stop Bits : 1

Flow Control : None

iW-RainboW-G40D
