Ives Offset Top Pivot 7215/15F Manual de usuario

7212, 7215/15F, 7222, 7226/26F, and 7227/27F

3/4” Offset Top Pivot

Improper pivot set installation can lead to personal injury or property damage. Follow

all instructions carefully. For questions contactTechnical Support at 1-888-371-7331.

CAUTION

1. Prepare and mortise top of door and head jamb to receive pivot set. Determine pivot location

using dimensions on reverse side. The pivots are non-handed.To determine hand of door

and proper pivot position, see diagrams above.

2. Locate, drill, and tap 1/4-20 mounting holes for metal door or metal frame. Locate and drill

pilot holes for #14 wood screws for wood door or wood frame. Install pivot leafs with 1/4-20 x 3/4”

FHMS or #14 FHWS screws provided.

3. Loosen set screw in pin leaf with 3/32” Allen wrench provided and remove pivot pin.

4. Use 5/32” Allen wrench to remove pivot cap from door leaf, allowing for pivot pin re-insertion.

5. With door in open position (about 90° to jamb), carefully fit door onto bottom pivot at a slight

angle.Tip door into vertical position, aligning top pivot leafs in door and jamb. With pivot

leafs aligned, insert pivot pin into pivot set. Vertically align groove in pivot pin with set

screw in pivot leaf. Tighten set screw securely with 3/32” Allen wrench. Re-install pivot cap.

6. To remove door from jamb: Remove pivot cap. Thread a 1/4-20 machine screw into end of

pivot pin. Pull pivot pin out of pivots. Door can now be removed from opening.

Right hand

installation

Lefthand

installation

Pin leaf

Bearing

leaf

Pivot

pin Pivot cap

5/32” Allen wrench

Bearing leaf

Set screw

3/32” Allen wrench

Pin leaf

1/4-20 tapped hole for

pin removal (both ends)

Installation Instructions

26672 Rev. 4

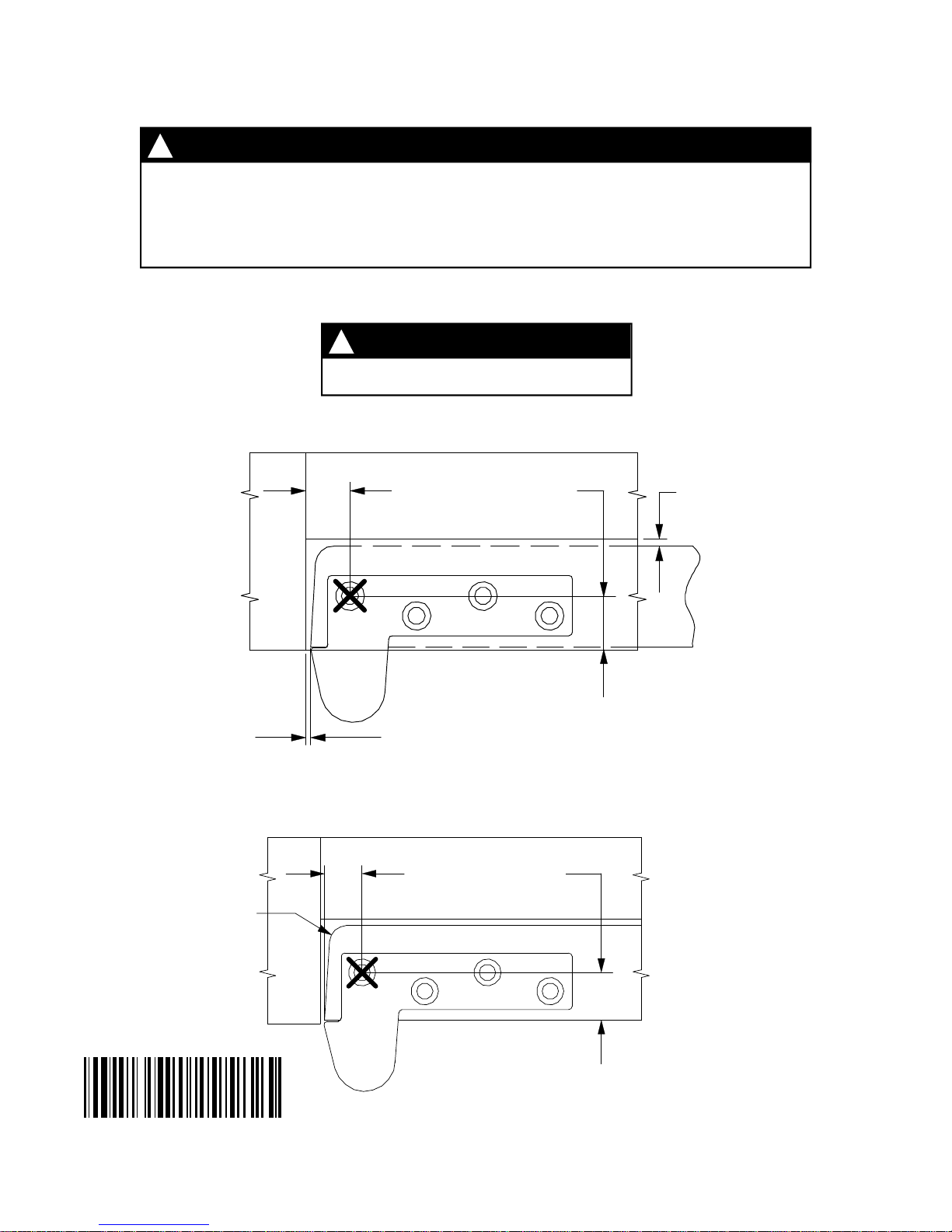

It is very important for installer to verify that center line of top pivot point lines up

with center line of bottom pivot point before final installation. Heel edge of door

must be beveled 1/8” in 2” as shown below. The bottom pivot set should be

mounted first in most installations.

NOTE

Mortise depth for pivot leafs is 1/4”.

NOTE

These dimensions apply to industry standard

1-3/4”doorina1-15/16”rabbetedframe.For

other frame conditions, locate frame leaf of

pivot identical to door leaf as shown below.

3/4”

19 mm 15/16”

24 mm 1/8”

3 mm

typ

1/16”

2 mm

typ

Frame Leaf

7/8”

22 mm

11/16”

17 mm

Door Leaf

Bevel heel edge of

door 1/8” in 2” with

3/16” rad, typ

26672-00
