1. Safety Precautions
WARNING:Safety Instructions
Do not place the monitor in rain,humid environment or open the monitor case to avoid
any shock, electrical hazards,and/or mechanical hazards.
Operation
• Keep the monitor out of direct sunlight and away from stoves or any other heat
source.
• Keep the monitor out of water source.
• Remove any object that could fall into ventilation holes or prevent proper
cooling of the monitor’s electronics.
• Do not block the ventilation holes.
• Do not knock or drop the monitor during operation or transportation.
• To clean your screen, slightly dampen a soft, clean cloth with water, If possible,
use a special screen-cleaning tissue or solution. Do not use benzene, thinner,
ammonia, abrasive cleaners, or compressed air.
• Use a slightly dampened, warm cloth to clean the frame. Avoid using detergent
of any kind as some detergents might leave a milky film on the plastics.
• Unplug the monitor if you are not going to use it for an extended period of time.
• To avoid the risk of shock or permanent damage to the set, do not expose the
monitor to dust, rain, water, or excessive moisture environment. If your monitor
gets wet, wipe it with dry cloth as soon as possible.
Caring For Your Monitor
Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
CAUTION
2. Maintenance Guidelines
Eng-2
ITMC32V241FHD User Manual
Table Of Contents
1. Safety Precautions
2. Maintenance Guidelines
3. Box Contents
4. Product Overview
5. Stand lnstallation
6. Mount Installation
7. Connectivity Options
8. Basic Operation
9. Indicator Light
10. OSD
11. ECO Modes and Gameplus Switching
12. Technical Specifications
For mor e inf orma tio n ple ase visit o ur web site o r wr ite u s an e mail:
http s://www. itekevo. com
info@it ekevo.com
3.
Box Contents
Power Cable x 1 User Manual x 1
DP Cable x 1
Stand Base x 1Monitor x 1 Stand Bracket x 1
Screw Bolts
PM4*12 x 4
(for Stand lnstallation)
Screw Bolts
PM4*16 x 4
(for Wall Mounting)
Screw Bolts
KM4*12 x3
(for Stand lnstallation)
VESA Connector Up x 1 VESA Connector Down x 1
Eng-3
4.1–Monitor Buttons
1 M Menu Button
2
3
Down Button
: Press to display the OSD menu or enter sub-menus.
: Press to move down in the menus.
: Press to move up in the menus.
: Press to exit.
: Press to turn the monitor on/off.
Up Button
4 E Exit Button
5 Power Button
6 LED Indicator : Changes colour according to status.

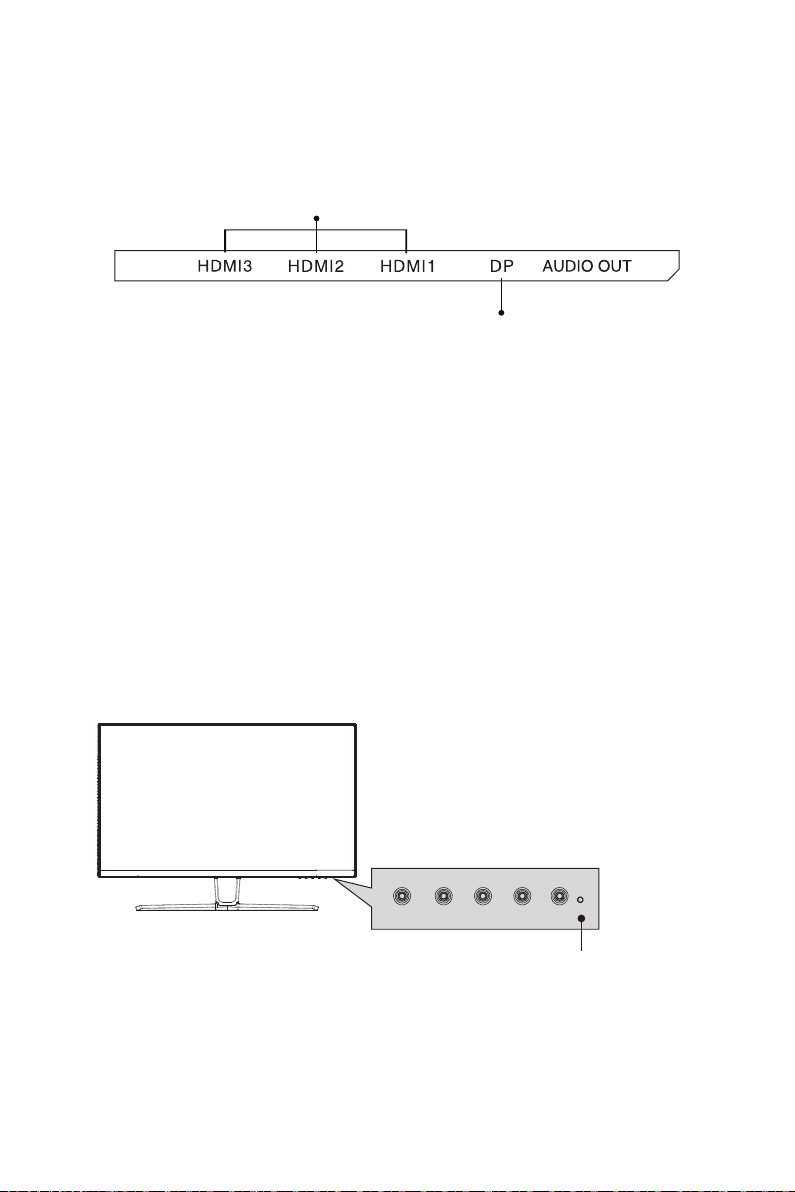

4.2– Monintor Ports
4.
Product
Overview
Power Connector: Insert the power cable to supply power to the monitor.
HDMI Connectors: Insert one end of the HDMl cable into the computer's
HDMl output and connect the other end to the monitor's HDMI port.
DP Connector: lnsert one end of the DP cable into the computer's DP
output andconnect the other end to the monitor's DP port.
Audio Output: Insert the audio cable for output of audio signals.
1. Open the package, take out the product out with the protective foam still attached
and gently lay it flat on a desk or table. Remove the extra parts and the foam
covering the back of the monitor. Then press the button to remove the stand plate.
2. Use a screwdriver (not included) and three PM4*12 screws to fix the base to the
stem, and then use two KM4*12 screws to fix the bracket plate to the stem.
3. Use the base bracket assembly assembled in step 2 to align the machine slot and
buckle down. (note: press and hold the quick release button with your fingers to
take out the base bracket assembly)
Make sure the monitor is laid on a flat surface before removing the stand.
Eng-4
5.
Stand Installation
This monitor only includes screws which may be used when attaching the monitor to
a VESA 75*75mm type mount. No VESA mount or mounting accessory is included.
1. Open the package, take out the product with foam still attached, and gently place it
on a desktop or table. Remove the extra parts and the foam covering the back of the
monitor. Press the release button to remove the stand plate. lf the monitor was
already attached to the stand, remove the stand.
2. Remove the original screws ( ) from the opening in the back of the monitor. Then
use the 4pcs PM4*16 screws to attach the adapters inside the opening.
3. Your monitor is now ready to be attached to a wall-mounting bracket. To avoid
damage, please do not pinch the screen during bracket installation.
●Do not discard the original screws.
●Use only the 4pcs PM4*16 screws ( ) provided. You MUST follow the instructions
below for secure installation.
Eng-5
6.
Mount Installation
7.2- Connecting Your Earphones
Plug in your earphones to receive audio signals from your monitor.
Exposure to loud audio for prolonged periods of time may permanently
damage your hearing.
Earphones (not included)
Power Cable
Connect the included power cable to the power connector, and then plug the other
end into an wall outlet.
7.1- Connecting the Power Cable
Eng-6
7. Connectivity Options
7.3- HDMI Connectivity
7.4- DP Connectivity
For the monitor to receive DP signals from the computer, use the DP cable to
connect the monitor tothe computer.
For the monitor to receive HDMl signals from the computer, use the HDMI cable to
connect the monitor to the computer.
HDMI Cable (not included)
DP Cable (included)
Eng-7
Adaptive-Sync
This feature is off by default. To activate, you must have hardware with Adaptive-Sync capa-
bility, a DP or HDMI cable, and the latest graphic drivers. After connecting your computer and
monitor with a DP or HDMI cable, you may receive a prompt to enable the feature on your
computer. If you do not, you may need to enable the function in your graphics card menu.
See your graphics card manufacturer’s documentation for instructions.
1. Insert one end of the DP cable into your PC's graphics card. A HDMl cable may
also be used.
2. Connect the other end of the cable to the corresponding connector on your monitor.
3. Connect the power cable to your monitor then connect the other end to your power
source. It is recommended that you use a surge protector with adequate voltage if
a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn on the monitor.
Eng-8
8. Basic Operation
9. Indicator Light
Connettore DP
Connettore HDMI
lndicator Light
Solid blue light indicates power is on and the monitor is operating normally.Flashing blue light-
indicates no video source, no horizontal or vertical signal has been detectde or voltage is low.
Please ensure your computer is on and all video cables are fully inserted and/or connected.
