ISDT Q8 Manual de usuario
Q8
500W SMART CHARGER
Instruction Manual
Never use the charger without supervision, please stop using the charger and
refer to the manual for reasons if any functional abnormity.
Keep the charger away from dust, humidity, rain and high temperature,
as well as avoid direct exposure to the sunlight and intense vibration.
Place the charger on a heat-resisting, non-flammable and insulating surface.
Do not use it on the car’s seats, carpet or other similar places. Keep
inflammable and explosive objects away from operation areas of the charger.
Read the instruction manual carefully to be familiar with the features of the
charger, and set proper charging parameters before operating. Setting the
parameters incorrectly will result in damage to the product, personal property
and cause serious injury as well.
Warnings and Safety Tips
•
•
•
•
For your safety and a better user experience, please read this manual
and follow the instruction before using the new charger.
Please visit: www.isdt.co for more details on the functions of this smart charger,
as well as purchase various accessories.
Functions of products will be kept on upgrading, the manual in your hand
may be different from the actual operation, please refer to the actual functions.
Thanks for purchasing the ISDT Q8 Smart Charger.
Dimension：80×80×33mm Weight：170g

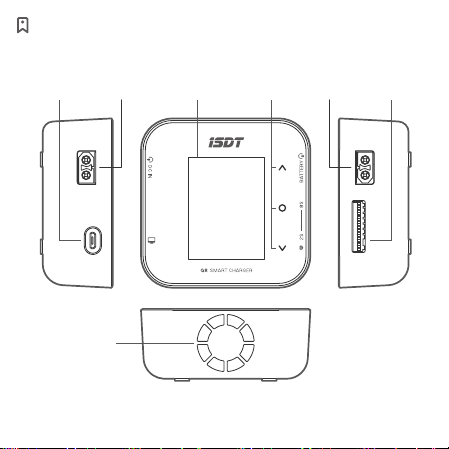

Port / Buttons
Power
input
Display
Screen
Touch
board
USB
connection
Power
output
Balance
port
Fan Vent
Max. input current：20A
Input voltage：DC 10~34V
Output voltage：DC 1~34V
Balance current：1.5A/Cell Max
Abnormal voltage alarm：Support
Supported battery types and cell count：
LiFe,LiIon,LiPo 1~8S ; LiHv 1~7S ; Pb 1~12S ; NiMH/Cd 1~16S
Product Specifications
Charging current：0.1~20A
Discharging current：0.1~1.5A
Max. charging power：500W
Max. discharging power：15W
Preset Battery Type of Charger and Task Parameters
Rated voltage
Full charge voltage
Storage voltage
Discharge voltage
Preset voltage
Balance charge
Unbalanced charge
Supported cell count
Max. charging current
NiCd/MH Pb LiFe Lilon LiPo LiHv
3.60V
4.10V
3.70V
3.20V
2.90V
1~8S
8.0A
3.20V
3.65V
3.30V
2.90V
2.60V
1~8S
8.0A
3.70V
4.20V
3.80V
3.30V
3.00V
1~8S
8.0A
3.80V
4.35V
3.85V
3.40V
3.10V
1~7S
8.0A
1.20V
1.40V
1.10V
0.90V
1~16S
8.0A
2.00V
2.46V
1.90V
1.80V
1~12S
8.0A
Make sure to know the maximum charging current of the battery before
charging, never use excessive current to charge to damage your battery,
which will result in over heat even explosion during the charging process.
The charging and discharging capacity of battery is usually marked with
C value. Multiplying the charging C value and battery capacity equals to the
maximum charging current supported by the battery. For example, for a 1000
mAh battery with a charging capacity of 5C, the maximum charging current
would be 1000×5=5000mA; therefore, the maximum charging current is 5A.
For a lithium battery, if it is impossible to confirm the supported charging
C value, please set the charging current below 1C, for the sake of its (lithium
battery) safety.
The reference relation between C value and charging time:
charging time ≥60 minutes/ charging C value (e.g. it needs around 60~70
minutes to complete charging with 1C). Due to differences in battery
conversion efficiency, the time to complete the charging might be extended.
How to Confirm Charging Current
Power on Q8 smart charger, connect the battery, and short touch
the middle key of the touch board to enter the task setting menu as follows:
Operating the Charger
Charge
Balancing port is strongly recommended when charging lipo battery, which
can make sure to monitor voltage on each cell battery and balance it when
charging. Warning beeper will yell before start charging lipo if in non-balance
mode(no connecting with balance port).
Current setting range: 0.1~20A
The battery type, cell count and charging current are auto set accordingly
when connecting with BattGo battery.
Discharge
Current setting range: 0.1~1.5A
The battery type, cell count and discharging current are auto set accordingly
when connecting with BattGo battery.
Storage
Current setting range: 0.1~20A
The battery type, cell count and storage current are auto set accordingly
when connecting with BattGo battery.
DC Power supply
The charger can be used as a DC power supply when choosing this function,
with adjustable voltage 2~30V, and current 0.5~10A.
The battery type, parameter and current are not optional in this task.
Destroy
Connect the battery to be scrapped, and select the scrap function in task
options, which capable to discharge the battery to 0V.
Current setting range: 0.1~1.5A
The battery type and cell count are are auto set accordingly when
connecting with BattGo battery.
Task
Battery
Battery and
cell count
Current
Charge/Discharge/Storage/DC power supply/Destroy
LiHv、LiPo、LiIon、LiFe、Pb、NiMh/Cd
LiFe,LiIon,LiPo（1~8S），LiHv (1~7S),
Pb（1~12S），NiMH/Cd（1~16S）
0.1~20A

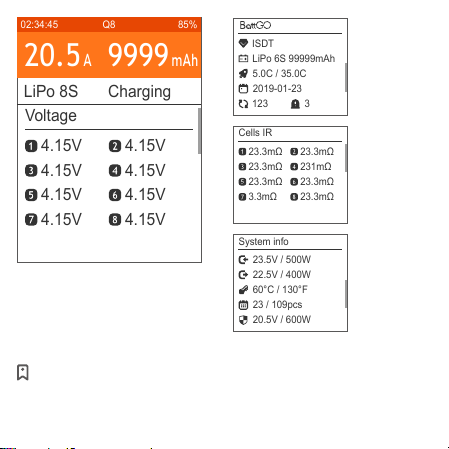

Charging Screen
Touching the touch board to shift the charging information, as cell voltage,
cell internal resistance, BattGo information, working parameter.
The cell voltage and internal resistance only on display in balancing
charging mode. The BattGo information will display only when
connected to the BattGo battery, and the cell voltage is able to display
without connected to the balance port.
Under the standby interface,
long touch the touch board to enter the system setting menu:
System Setting Menu
BattGo
information
working
parameter
Cell voltage
cell
internal
resistance
02:34:45
LiPo 8S
9999
mAh
20.5
A
Charging
4.15V
4.15V
4.15V
4.15V
4.15V
4.15V
4.15V
4.15V
Voltage
Q8
85%
23.3mΩ
23.3mΩ
23.3mΩ
3.3mΩ
23.3mΩ
231mΩ
23.3mΩ
23.3mΩ
Cells IR
23.5V / 500W
22.5V / 400W
60°C / 130°F
23 / 109pcs
System info
20.5V / 600W
ISDT
LiPo 6S 99999mAh
5.0C / 35.0C
2019-01-23
123
3
Min. input voltage protection 10~30V: all tasks in operation will be stopped
at once and hint warning of low voltage, when the input voltage is lower than
the input voltage as set up. It will protect the battery from being discharged
when using battery pack as power supply.
Max. input power setting 30~550W: if the input power is smaller than the max
working power(550W), please set up the parameter as the actual output power
as max input, to protect the input power and enable the charger to work stable.
Buzzer volume: The operation sound will be shielded when the volume is off,
except the warning error beep.
Self-test: Enter system setting. select self-test task
Calibration: the input voltage, output voltage and balance voltage of
the charger can be calibrated with this task.
*All product photos, statements and literature are for reference only. For up-to-date information,
please visit our official web www.isdt.co
ISDT reserves the right of final explanation and revision for the terms.
GJSF!IB[ BSE"
XBSOJOH"!
NEVER USE CHARGER UNSUPERVISED
• Never attempt to charge primary (non-rechargeable) batteries.
• Batteries pose a severe risk of fire if not properly handled.
• Read entire operation manual before using charger.
• This unit may emit heat during use.
• Only operate this device in a cool ventilated area away from flammable objects.
• Failure to observe safety procedures may cause damages to property or injury.
