IPC CT70 Series Manual de usuario

This guide is intended for quick consultation only and does not replace the user and maintenance manual.

Before using the machine, read the user and maintenance manual contained in the machine’s packaging thoroughly and strictly follow all the

instructions.

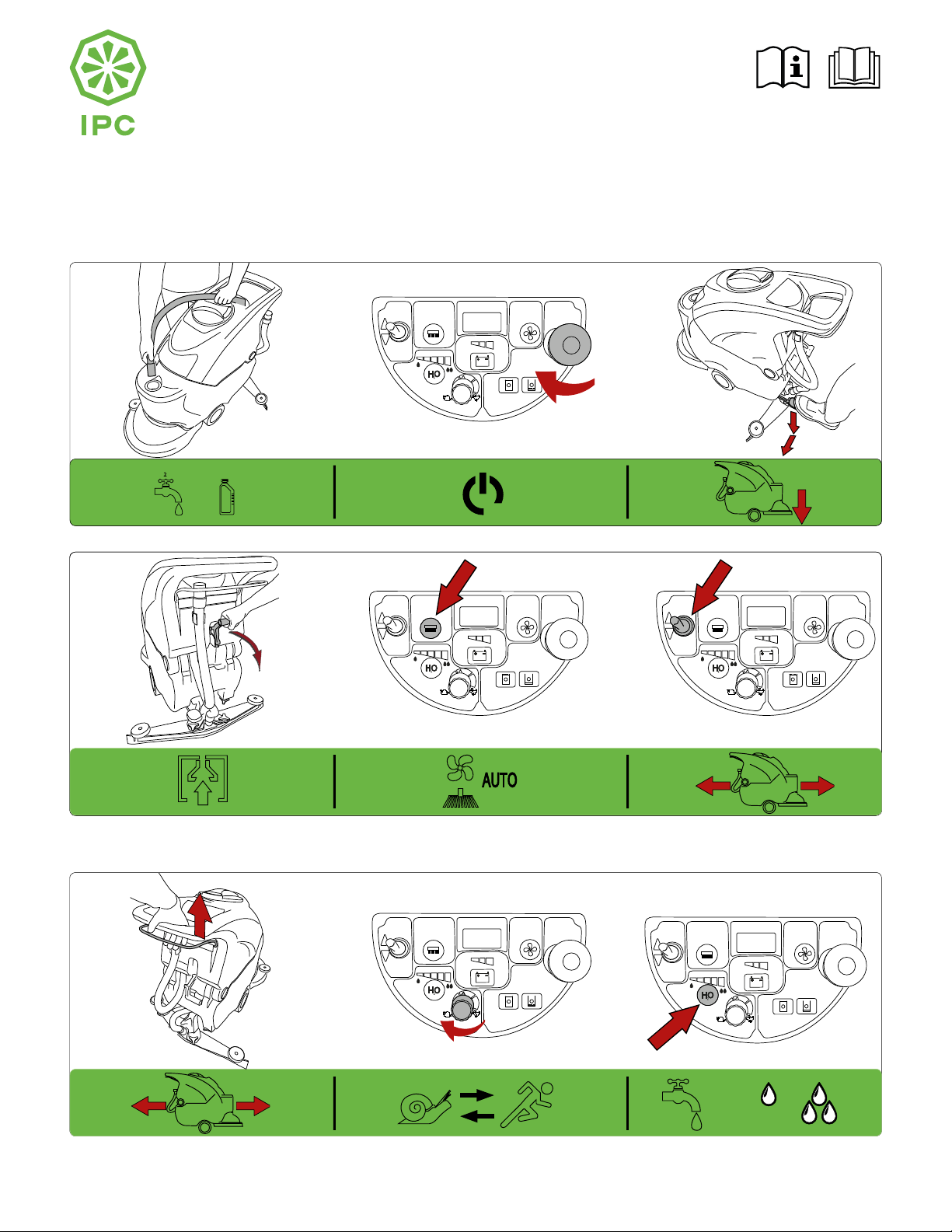

PREPARATION & OPERATION

CT40-55-70 BT Quick guide

1

5

2 3

4

7 8

6

9

PLDC02179

ON

CHEM

H O

+

REPLACING THE SQUEEGEE BLADES

ATTACHING/REMOVING THE BRUSHES

Open the clip (Ref. 1).

Remove the two blade retainers (Ref. 2) by pushing them outwards then extracting them.

Remove the blade.

screws on the body of the squeegee.

Reposition the two blade pressing devices by centering the wider part of the slots on the squeegee body fastening pins, then push the blade pressing

devices inwards.

Close the hook again.

Replace the squeegee on its support, following the instructions described previously.

Removing the brush: raise the machine head by pushing the head lift pedal down and then to the right and operate the brush/drive lever repeatedly. After operating the lever a few times, the brush

is released and falls to the ground.

DAILY MAINTENANCE

Clean the dirty

water tank. undamaged and clean.

Check that the

is clean.

Check that the brush

is clean. Replace if

necessary.

Check that the

squeegee is clean

and the blades are not

worn.

PLDC02179

BATTERY CHARGER ON BOARD BATTERY CHARGER STAND ALONE
