Iomega USB 2.0 Manual de usuario

Iomega CD-RW USB 2.0 Drive User's Manual

Welcome to the Iomega CD-RW USB 2.0 Drive. This drive uses the latest USB 2.0 technology to achieve the following speeds:

l24X CD-R Write Speed

l40X Read Speed on CD Formats

l10X CD-RW Write Speed

l32X Speed on Digital Audio Extraction (DAE)

USB 2.0 technology is capable of running at speeds up to 40 times faster than the standard USB 1.1 technology. Connect the Iomega CD-RW USB drive to a USB 2.0 port to

achieve the USB 2.0 speed. Connected to a standard USB 1.1 port, the drive runs at the standard USB 1.1 speed.

The Iomega CD-RW USB drive is capable of reading and writing many types of CDs, such as audio CDs, CD-ROMs, CD-Rs, and CD-RWs. The Iomega CD-RW drive can:

lPlay/Read most types of CD media.

lWrite CD-R discs.

lWrite and Rewrite CD-RW discs.

System Requirements

Your system must meet the following minimum requirements to support the Iomega®CD-RW USB 2.0 drive.

lUSB 2.0 Hi-Speed PCI card installed in your computer

lRecommended RAM requirements for your operating system (see your OS manual for details)

lCD-ROM drive or 740 MB hard drive space to copy CDs

lCD-ROM drive for software installation

lMicrosoft®Internet Explorer 5.0 or higher or Netscape®Navigator®6.1 or higher (to view user's manual)

lThe following amount of hard drive space for Iomega software:

lPentium®166 or higher with built-in USB controller (some USB controllers or motherboards might not support all types of USB devices)

lMicrosoft®Windows®98, 98SE, 2000, Me, NT or XP

lSound Blaster®compatible sound card for audio playback

Upgrading from Windows 98 to Windows Me/2000/XP

If a previous version of Iomega CD-RW software is installed on your system, remove it before installing Windows Me/2000/XP. Use Add/Remove Programs in Control Panel,

uninstall all the Iomega CD-RW software, then restart Windows. Install Windows Me/2000/XP according to the instructions included with the Windows Me/2000/XP package. Install

the Iomega CD-RW software included with your Iomega drive after the Windows Me/2000/XP installation is complete. See Installing Iomega CD-RW Software for help installing the

Iomega software.

Getting Started

IMPORTANT: To operate the Iomega®CD-RW drive at USB 2.0 speeds, you will need to purchase and install a USB 2.0 adapter card.

Before installing or using your Iomega CD-RW drive, read and follow the USB guidelines to ensure reliable performance from your USB drive.

Here's how to get started using your Iomega CD-RW drive:

1. Unpack the Iomega CD-RW drive and accessories.

Software Size

Iomega HotBurn 10 MB

MusicMatch®Jukebox

Plus 30 MB

ActiveShare®40 MB

Iomega Solutions CD, Quick

Install booklet, and Blank CD-R

disc

USB

Cable

Audio Cable

External

Power

Supply

2. Install the Iomega CD-RW software.

NOTE: Installing the Iomega CD-RW software installs the drivers needed on your computer to support the Iomega CD-RW drive. If the necessary drivers are not installed,

the Iomega CD-RW drive might not be recognized or might not work correctly.

3. Connect your Iomega CD-RW drive.

Installing Iomega®CD-RW Software

Installing the Iomega software installs the drivers and tools you need on your computer to support your Iomega CD-RW drive. See Selecting and Using Discs for information about

the additional software applications included on the Iomega software CD.

NOTE: You must connect the Iomega CD-RW drive to a USB 2.0 adapter card and install the correct drivers before the CD-RW drive will run at USB 2.0 speeds. Check with the

manufacturer of your USB 2.0 adapter card to find the correct drivers for your operating system. The Iomega CD-RW USB drive will run at USB 1.1 speed when connected to a

USB 1.1 connector.

1. Start your PC and wait for Windows to finish loading.

NOTE: If Windows is already running, close any open applications before proceeding.

2. Insert the Solutions CD (label-side up) into the CD-ROM drive.

The software setup program should start automatically. If the Iomega software setup program does not start automatically:

a. Open My Computer or Windows Explorer.

b. Double-click the CD-ROM drive letter (usually D:, E:, or F:).

Iomega CD-RW Drive

c. Double-click Iomega_CD-RW.

3. Select Install CD-Ware Software to install the required software for the Iomega CD-RW USB drive.

4. Follow the instructions on the screen to install the software.

5. Connect your Iomega CD-RW drive.

Connecting the Iomega®CD-RW Drive

1. If you have not already installed the Iomega CD-RW software, install it now.

NOTE: You must connect the Iomega CD-RW drive to a USB 2.0 adapter card and install the correct drivers before the CD-RW drive will run at USB 2.0 speeds. Check with

the manufacturer of your USB 2.0 adapter card to find the correct drivers for your operating system. The Iomega CD-RW USB drive will run at USB 1.1 speed when

connected to a USB 1.1 connector.

2. Connect the power supply to your Iomega CD-RW drive and then plug it into an outlet. The green power light on the front of the drive should flash momentarily when you

plug in the power supply.

3. Connect the Iomega CD-RW USB cable that came with your drive to the Iomega CD-RW drive. Squeeze the side buttons to attach the connector or remove it from the drive.

4. Connect the other end of the USB cable to the external USB 2.0 port on the back of your computer. The USB 2.0 PCI card external connectors might not be marked. If you

do not have a USB 2.0 adapter card, connect the drive to a standard USB connection. However, this reduces the speed of the drive.

Congratulations!

lFor information on operating your new Iomega CD-RW drive, refer to Using Your Iomega CD-RW drive.

lFor information on creating different types of CDs, refer to Selecting and Using Discs.

lIf you encounter problems installing or using the Iomega CD-RW drive, refer to the Troubleshooting section.

USB Guidelines

USB (Universal Serial Bus) is an interface designed to make it easy to connect mice, keyboards, joysticks, printers, digital cameras, and other devices to your computer. Because

its ease of use, USB is also used to connect high speed storage devices, such as the Iomega CD-RW USB drive.

The Iomega CD-RW USB 2.0 Drive uses the latest USB technology, USB 2.0. This technology is approximately forty times faster than the previous USB 1.1 technology.

Follow these guidelines to ensure optimal and reliable performance of your Iomega CD-RW USB drive and other USB devices.

You can...

lYou can use your Iomega CD-RW USB drive on a Windows PC with built-in USB running Windows 98/Me/2000/XP. (Some USB controllers or motherboards might not

support all types of USB devices.)

lYou can connect or disconnect the Iomega CD-RW drive while the computer is on.

lYou can optimize the Iomega CD-RW drive's performance by disconnecting other USB devices when using the Iomega CD-RW drive. The performance of all USB devices

decreases as additional USB devices are connected.

lYou can ensure maximum performance by connecting your Iomega CD-RW drive directly to your computer, instead of a hub.

lYou can avoid some system lockups by waiting at least 30 seconds after connecting or disconnecting any USB device to use the Iomega CD-RW drive. (This allows the

system to re-enumerate the USB bus.) Do not connect, disconnect, or use any other USB device during this time.

CAUTION: After disconnecting a USB device, always wait at least 30 seconds before reconnecting, using, or disconnecting another USB device. Your system might lock up

if it doesn't have a chance to re-enumerate the USB bus.

Do not...

lDo not connect or disconnect any USB device while the Iomega CD-RW drive is transferring information. Data loss will result!

NOTE: If the activity light is flashing, the Iomega CD-RW drive is transferring information. Wait to connect or disconnect any USB device until the activity light goes out and

stays out.

lDo not use any USB cable with your Iomega CD-RW drive other than the cable that came with the drive. Never use USB extension cables with your Iomega CD-RW USB

drive. Data loss might result.

lDo not disconnect your Iomega CD-RW drive or unplug power to the drive while a CD is inserted.

lDo not connect more than two Iomega CD-RW USB drives to a single computer.

lDo not transport the Iomega CD-RW USB drive with a disk inserted—You could damage the drive or the disk.

CAUTION! USB devices (including controller chips, hubs, cables, cards, mice, joysticks, and peripherals) that do not comply with the USB specification might cause system

lockups or possible data loss. If you are not sure that a USB device complies with the latest USB specification, contact the manufacturer of the device.

Using the Iomega

RW USB Drive

About the Iomega CD-RW Drive

Performance

CD drive performance is measured by how quickly the drive can copy a 74-minute audio CD. A standard 1x CD recorder can record an entire 74-minute audio CD (650 MB) in 74

minutes.

* Assuming that the CD-RW media is preformatted.

Drive connectors

The connectors on the back of the drive are listed below.

Disc Type Speed Description

CD-R

Write once 24x Your Iomega CD-RW drive can record a full CD 24

times faster than a standard 1x CD recorder; or in

about 3 minutes.

CD-RW

Rewritable 10x Your Iomega CD-RW drive can create a full

rewritable CD 10 times faster than a standard 1x

CD recorder; or in about 8 minutes*.

Read 40x Your Iomega CD-RW drive can read data from a

CD-ROM 40 times faster than a standard 1x CD-

ROM.

Connector Function

Power

Connector Use the provided power supply cable to connect to

the drive and then to a wall outlet.

USB 2.0 port Use the provided USB cable to connect the drive to

a USB 2.0 port or to a standard USB port on your

computer.

3. Factory Test

Port Do not connect anything into this port.

Drive Controls and Indicators

The Iomega CD-

RW drive has controls and jacks on the front and back panel of the drive that are labeled with various indicators. The following section describes these controls and

indicators.

1. The View Window lets you view the CD.

2. The Write status LED (left) flashes red if the drive is reading from or writing to a disc.

3. The Power LED (right) will be green if the drive is receiving power.

4. The Eject Button opens the Iomega CD-RW drive to insert or remove a disc.

5. The Emergency Eject Hole opens the Iomega CD-RW drive to remove a disc during a power failure.

6. The Volume Control raises and lowers the volume output.

7. The Audio Jack enables you to use the provided audio cable to connect to an audio port on your computer and listen to audio CDs.

Iomega CD-RW USB Drive Power

When you shut down your system, you can disconnect power to the Iomega CD-RW drive; however, it will not harm the drive to leave it powered up. Disconnecting the power

supply from the drive is an easy way to power down the Iomega CD-RW drive.

If you disconnect power from the drive, but leave the power supply plugged in, the power drawn is less than 2 Watts. To power down completely, plug the power supply into your

computer's power strip and use the switch on the power strip to power down both the computer and your Iomega CD-RW drive.

Identifying the Drive Letter Assigned to your Iomega CD-RW Drive (PC Only)

If you have more than one CD drive connected to your computer, you might not know which drive letter is assigned to your Iomega CD-RW drive.

To find the drive letter for your Iomega CD-RW drive, double-click the

My Computer

icon on your desktop. Right-click the

CD Drive

icon and select

Eject

from the menu. The tray

of the selected CD drive will open.

Inserting or Ejecting a CD

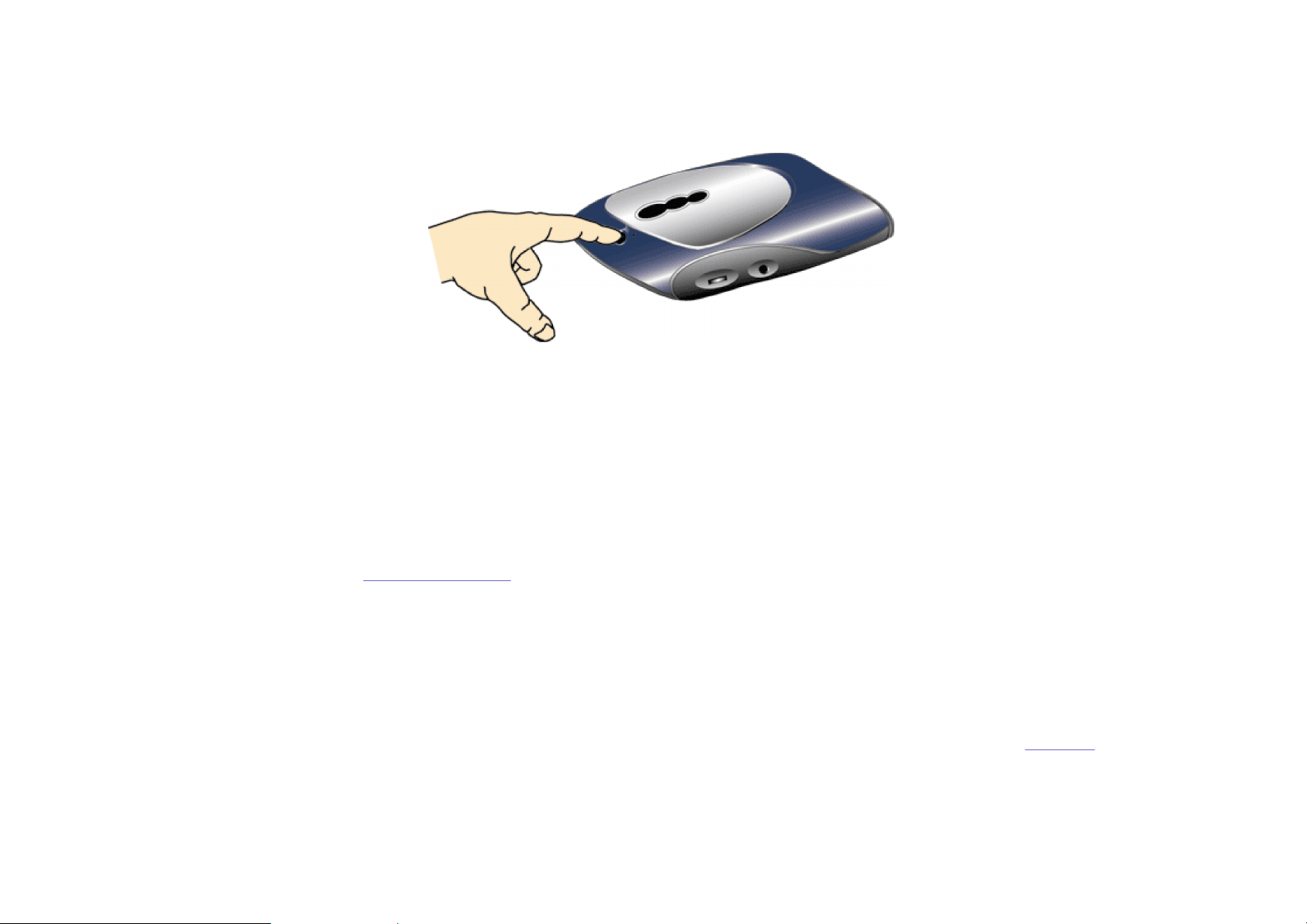

Press the eject button on the Iomega CD-RW drive to insert or remove discs. When you insert a CD into the Iomega CD-RW drive, the red activity light flashes.

Ejecting a Disc in Case of Power Loss

The Iomega CD-RW drive must be receiving power for normal disc insertion and removal. However, if you need to eject a disc during a power failure, use the following steps:

CAUTION! Never remove a disc manually while the power supply is connected to the Iomega CD-RW drive.

1. Turn off your computer and Iomega CD-RW drive.

2. Disconnect the power to the Iomega CD-RW drive.

3. Insert a straightened paper clip into the emergency eject hole to eject the CD.

Disconnecting Your Iomega CD-RW Drive

Always close any open files and remove the CD before disconnecting the Iomega CD-RW drive. Disconnect the cable first, then remove the cable from the drive.

Using the Drive as an Audio CD Player

NOTE: The following instructions enable you to listen to audio CDs through your computer speakers. You can also connect headphones to the audio jack on the side of the CD-

drive. Plug in headphones only while listening to audio CDs.

Connecting the Audio Cable:

1. To avoid damage to your computer and Iomega CD-RW drive, turn off the power to both your computer and the Iomega CD-RW drive.

Print this User's Manual as a reference before shutting down your computer.
