User Manual

Product Story

The InWin 905 joins the 9-series lineup of elegant

aluminium and tempered glass cases. It can support up

to an E-ATX motherboard despite being an ATX model.

Its stylish design can support multiple liquid cooling

options for optimal cooling performance

* Our products comply with RoHS regulation.

* Specications may vary based on different regions.

* Extra fee for optional parts.

Specications

Model 905

Part Number IW-905-SILADD

IW-905-SILOLED

Colors Silver (Addressable RGB)

Silver (OLED)

Case Type Mid Tower

Materials Aluminium, Tempered Glass, SECC

M/B Compatibility 12” x 13” E-ATX, ATX, Micro-ATX, Mini-ITX

Expansion Slots PCI-E x 7

Maximum Compatibility VGA Card Length: 330mm

CPU Heatsink Height: 160mm

Front Ports

USB 3.1 Gen 2 Type-C x 1

USB 3.0 x 2

HD Audio

LED Lighting Control Switch or OLED Screen

Internal Drive Bays 1 x 3.5"

2 x 2.5" (2 pre-installed, max. up to 4)

Thermal Solution

Compatibility

1 x 120mm Rear Fan / 120mm Radiator

2 x 120mm Front Fan / 240mm Radiator

2 or 3 x 120mm Bottom Fan /240 or 360mm Radiator

Power Supply

Compatibility

PSII: ATX12V

- Length up to 230mm

Product Dimensions

(H x W x D)

502 x 215 x 508mm

19.7" x 8.4" x 20"

Package Dimensions

(H x W x D)

337 x 611 x 592mm

13.2" x 24" x 23.3"

Net Weight 11.98kg / 26.4lb

Gross Weight 14.26kg / 31.44lb

Package Contents

1. 905 Chassis

2. QR Code Card

3. Accessories Bag

a. Motherboard Stand-os x7

c. Hexagon Head Screws x18

e. 3.5” HDD Screws x6

g. 3-PIN ADD Header x1

b. Motherboard Stand-o Socket x1

d. 2.5" SSD Screws x18

f. PSU Screws x6

i. Cable Ties x10

h.Water-Cooling System Washers x24

j. Graphics Card Holder x1

Package Contents

1Power Button 5USB 3.1 Gen 2 Type-C Port

2HDD Indicator 6LED Mode/OLED Screen

Control Button

3USB 3.0 Ports 7Fan Dust Filter

4Audio Ports

(Earphone and Microphone) 8Tempered Glass Side Panel

Case Structure

6

1

42

3

5

8

7

92.5” Drive Bay 11 Power Supply Mounting Area

10 3.5”/ 2.5” Drive Bay 12 Shock-Proof Stand

9

10

11

12

Case Structure

13 Motherboard Mounting Area 16 Front Fan/ Radiator Mounting Area

14 PCI-E Expansion Slots 17 Rear Fan/ Radiator Mounting Area

15 Extra PCI-E Supporting Mounting Hole 18 Bottom Fan/ Radiator Mounting Area

18

17

15

16

13

14

Case Structure

* Please follow the related chapters to assemble.

* Please use original provided accessories to avoid damage to the product.

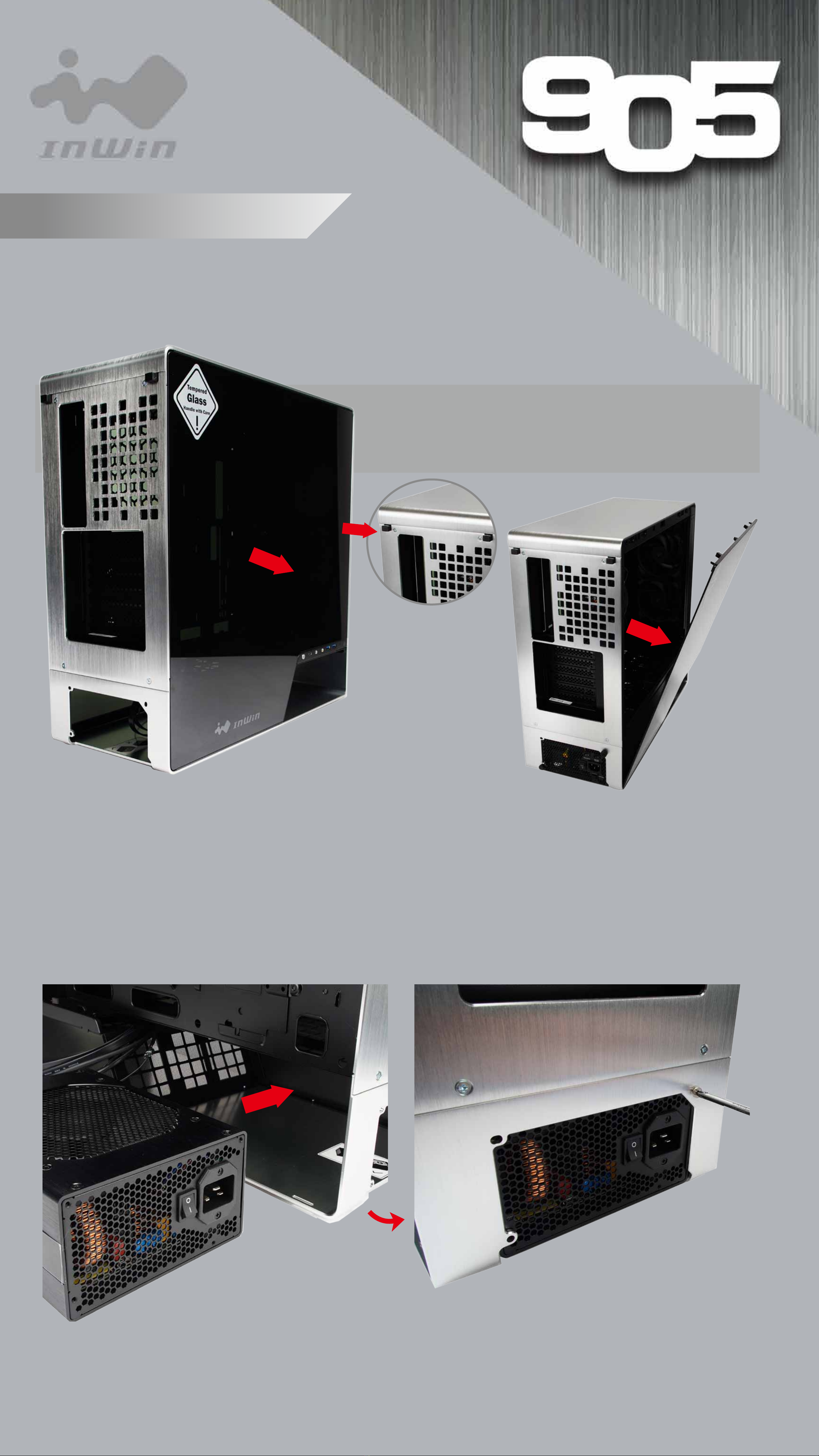

1. Opening the Chassis

To remove the tempered glass side panel, simply

press the quick-release buttons at the rear of the

chassis.

2. Power Supply Installation

Parts Required: PSU Screws

Please remember to check the size of your power supply. It must be mounted at the bottom of the

chassis.

Installation Guide

3. Motherboard Installation

Parts Required: Motherboard Stand-offs,

Motherboard Stand-off Socket, Hexagon Head

Screws

4. Expansion Card Installation

Parts Required: Hexagon Head Screws, Graphics Card Holder

After the user installs the graphics card, use the graphics card holder to support it.

Installation Guide
