REMOTE CONTROLLER

MODELS:

LV5MLI32-12

LV5MCI32-12WiFiR

LV5MCI32-18WiFiR

LV5MDI32-12WiFiR

LV5MDI32-18WiFiR

U5MRSL32(2)-18

U5MRSL32(3)-27

U5MRSL32(4)-36

U5MRSL32(5)-42

All manuals and user guides at all-guides.com

all-guides.com

CONTENTS

Remote controller Specications....................................................................................... 3

Operation buttons............................................................................................................... 4

Indicators on LCD................................................................................................................. 7

How to use the buttons....................................................................................................... 8

Auto operation..................................................................................................................... 8

Cooling/Heating/Fan operation ......................................................................................... 8

Dehumidifying operation.................................................................................................... 9

Adjusting air ow direction ................................................................................................ 9

Timer operation ................................................................................................................. 10

Handling the remote controller ....................................................................................... 14

NOTE:

• Buttons design is based on typical model and might be slightly dierent from the

actual one you purchased, the actual shape shall prevail.

• All the functions described are accomplished by the unit. If the unit has no this feature,

there is no corresponding operation happened when press the relative button on the

remote controller.

• When there are wide dierences between “Remote controller Illustration” and “ USER’S

MANUAL” on function description, the description of “USER’S MANUAL” shall prevail.

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED FOLLO W ME

TURBO SELF CLEAN

ON/OFF

SHOR T

CUT

TIMER

TIME R

OFF

Remote Controller Specications

Model RG57A3/BGEF,RG57A2/BGEF,RG57B/BGE,RG57D/BGE

Rated Voltage 3.0V(Dry batteries R03/LR03X2)

Signal Receiving Range 8m

Environment -5°C~60°C

SLEEP

FRESH

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED FOLLO W ME

TURB O SELF CLEAN

ON/OFF

SHOR T

CUT

TIME R

TIMER

OFF

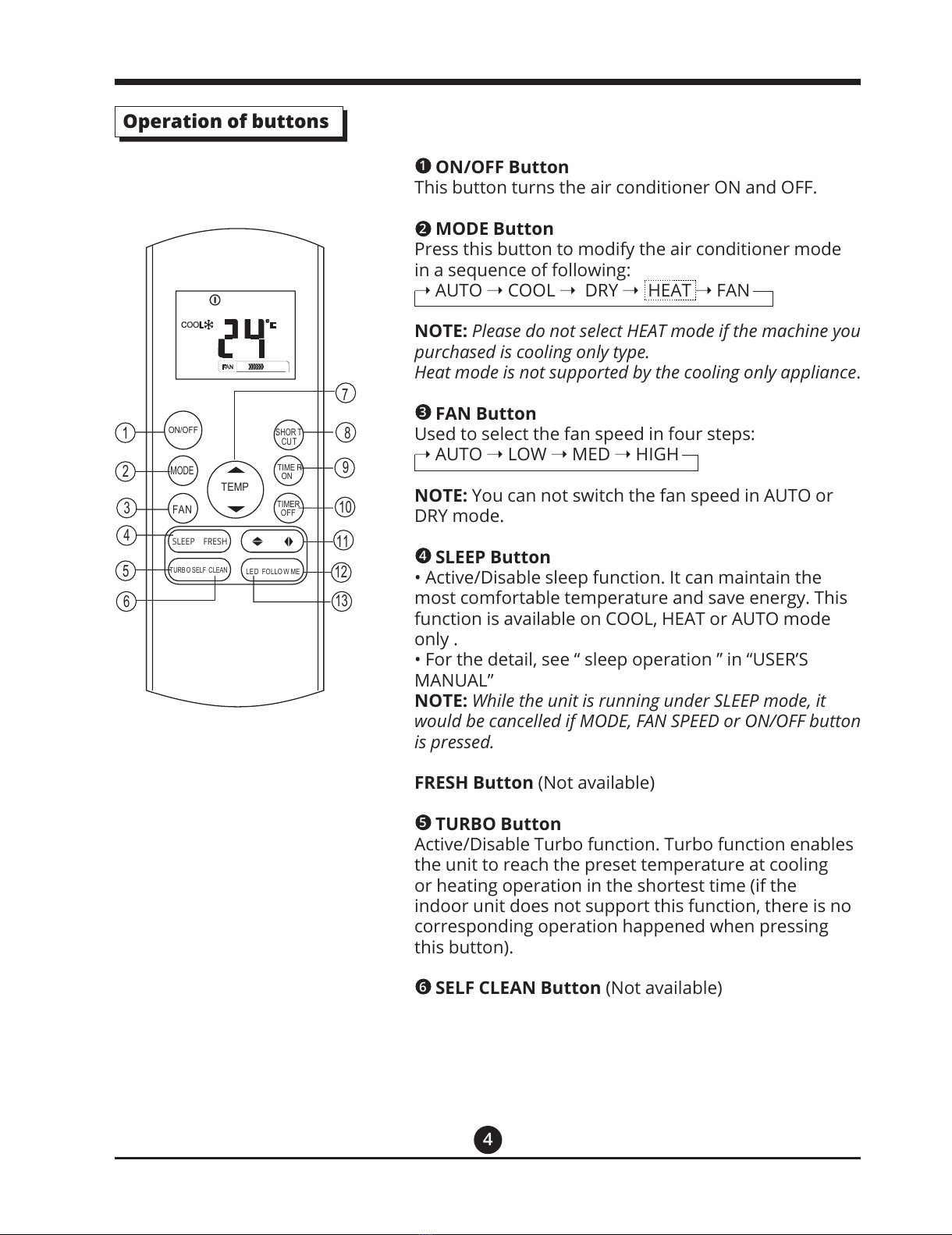

Operation of buttons

1ON/OFF Button

This button turns the air conditioner ON and OFF.

2MODE Button

Press this button to modify the air conditioner mode

in a sequence of following:

➝ AUTO ➝ COOL ➝ DRY ➝ HEAT ➝ FAN

NOTE: Please do not select HEAT mode if the machine you

purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

3FAN Button

Used to select the fan speed in four steps:

➝ AUTO ➝ LOW ➝ MED ➝ HIGH

NOTE: You can not switch the fan speed in AUTO or

DRY mode.

4SLEEP Button

• Active/Disable sleep function. It can maintain the

most comfortable temperature and save energy. This

function is available on COOL, HEAT or AUTO mode

only .

• For the detail, see “ sleep operation ” in “USER’S

MANUAL”

NOTE: While the unit is running under SLEEP mode, it

would be cancelled if MODE, FAN SPEED or ON/OFF button

is pressed.

FRESH Button (Not available)

5TURBO Button

Active/Disable Turbo function. Turbo function enables

the unit to reach the preset temperature at cooling

or heating operation in the shortest time (if the

indoor unit does not support this function, there is no

corresponding operation happened when pressing

this button).

6SELF CLEAN Button (Not available)

SLEEP

FRESH

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED FOLLO W ME

TURB O SELF CLEAN

ON/OFF

SHOR T

CUT

TIME R

TIMER

OFF

Operation of buttons

7UP Button(

)

Push this button to increase the indoor temperature

setting in 1°C increments to 30°C.

DOWN Button(

)

Push this button to decrease the indoor temperature

setting in 1°C increments to 17°C.

NOTE: Temperature contol is not available in Fan mode.

8SHORTCUT Button

• Used to restore the current settings or resume

previous settings.

• On the rst time connecting to the power, if push

the SHORTCUT button, the unit will operate on AUTO

mode, 26°C, and fan speed is Auto.

• Push this button when remote controller is on,

the system will automatically revert back to the

previous settings including operating mode, setting

temperature, fan speed level and sleep feature(if

activated).

• If pushing more than 2 seconds, the system will

automatically restore the current operation settings

including operating mode, setting temperature, fan

speed level and sleep feature (if activated ).

9TIMER ON Button

Press this button to initiate the auto-on time

sequence. Each press will increase the auto-timed

setting in 30 minutes increments. When the setting

time displays 10.0, each press will increase the auto-

timed setting 60 minutes increments.

To cancel the auto-timed program, simply adjust the

auto-on time to 0.0.

10 TIMER OFF Button

Press this button to initiate the auto-o time

sequence. Each press will increase the auto -timed

setting in 30 minutes increments.

When the setting time displays 10.0, each press

will increase the auto-timed setting 60 minutes

increments. To cancel the auto- timed program, simply

adjust the auto-o time to 0.0

SLEEP

FRESH

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED FOLLO W ME

TURB O SELF CLEAN

ON/OFF

SHOR T

CUT

TIME R

TIMER

OFF

11 Swing

Button

Used to stop or start horizontal louver movement or

set the desired up/down air ow direction. The louver

changes 6 degree in angle for each press. If keep

pushing more than 2 seconds, the louver will swing up

and down automatically.

Swing

Button

It is not available for these series.

12 FOLLOW ME Button

(This feature is not available for Floor Standing Units)

Push this button to initiate the Follow Me feature, the

remote display is actual temperature at its location.

The remote control will send this signal to the air

conditioner every 3 minutes interval until press the

Follow Me button again. The air conditioner will cancel

the Follow Me feature automatically if it does not

receive the signal during any 7 minutes interval.

13 LED Button

Disable/Active indoor screen Display. When pushing

the button, the indoor screen display is cleared, press

it again to light the display.

Operation of buttons

SLEEP

FRESH

All manuals and user guides at all-guides.com

all-guides.com

AUTO

HEAT FAN

COOL DRY

Displayed when data transmitted.

Displayed when remote controller is ON.

Battery display (low battery detection)

Not available for this unit

Displayed when TIMER ON time is set.

Displayed when TIMER OFF time is set.

Show set temperature or room temperature, or

time under TIMER setting.

Displayed in Sleep Mode operation.

Indicated that the air conditioner is operating in

Follow me mode

Not available for this unit

Low speed

Medium speed

High speed

Auto fan speed

Information are displayed

when the remote controller is

powered up.

Indicators on LCD

Mode display

Fan speed indication

Note:

All indicators shown in the gure are for the purpose of

clear presentation. But during the actual operation only

the relative functional signs are shown on the display

window.

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED

FOLLOW ME

TURB O SELF CLEAN

ON/OF F

SHOR T

CUT

TIMER

OFF

MODE

FAN

TEMP

LED

FOLLOW ME

TURB O SELF CLEAN

ON/OF F

SHOR T

CUT

TIMER

OFF

Auto operation

Ensure the unit is plugged in and power is available.

The OPERATION indicator on the display panel of the

indoor unit starts ashing.

1. Press the MODE button to select Auto.

2. Press the UP/DOWN button to set the desired

temperature. The temperature can be set within a

range of 17°C~ 30°C in 1 °C increments.

3. Press the ON/OFFbutton to start the air conditioner.

NOTE

1. In the Auto mode, the air conditioner can logically

choose the mode of Cooling, Fan, and Heating by

sensing the dierence between the actual ambient

room temperature and the setting temperature on the

remote controller.

2. In the Auto mode, you can not switch the fan speed. It

has already been automatically controlled.

3. If the Auto mode is not comfortable for you , the

desired mode can be selected manually.

Cooling /Heatinq/Fan operation

Ensure the unit is plugged in and power is available.

1. Press the MODE button to select COOL,

HEAT(cooling & heating models only) or FAN mode.

2. Press the UP/DOWN buttons to set the desired

temperature. The temperature can be set within a

range of 17°C~ 30°C in 1 °C increments.

3. Press the FAN button to select the fan speed in four

steps-Auto, Low, Med,or High.

4. Press the ON/OFF button to start the air

conditioner.

NOTE

In the FAN mode, the setting temperature is not displayed

in the remote controller and you are not able to control

the room temperature either. In this case, only step 1, 3

and 4 may be performed.

How to use the buttons

SLEEP

FRESH

SLEEP

FRESH

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED

FOLLOW ME

TURB O SELF CLEAN

ON/OF F

SHOR T

CUT

TIMER

OFF

Dehumidifyinq operation

Ensure the unit is plugged in and power is available.

The OPERATION indicator on the display panel of the

indoor unit starts ashing.

1. Press the MODE button to select DRY mode.

2. Press the UP/DOWN buttons to set the desired

temperature. The temperature can be set within a

range of 17°C~ 30°C in 1°C increments.

3. Press the ON/OFF button to start the air

conditioner.

NOTE

In the Dehumidifying mode, you can not switch the fan

speed. It has already been automatically controlled.

Adjusting air ow direction

(available only for Floor/Ceiling units)

Use the SWING

button to adjust the desired airow

direction.

Up/Down direction can be adjusted with the

button

on the remote controller. Each time when you press

the button, the louver moves an angle of 6 degree. If

pressing more than 2 seconds, the louver will swing up

and down automatically.

NOTE

When the louver swing or move to a position which would

aect the cooling or heating eect of the air conditioner, it

would automatically change the swing/moving direction.

How to use the buttons

SLEEP

FRESH

All manuals and user guides at all-guides.com

MODE

FAN

TEMP

LED FOLLOW ME

TURB O SELF CLEAN

ON/OF F

SHOR T

CUT

TIMER

OFF

Timer operation

Press the TIMER ON button can set the auto-on

time of the unit. Press the TIMER OFF button

can set the auto-o time of the unit.

To set the Auto-on time.

1. Press the TIMER ON button. The remote controller

shows TIMER ON, the last Auto-on setting time and

the signal “H” will be shown on the LCD display area.

Now it is ready to reset the Auto-on time to START

the operation.

2. Push the TIMER ON button again to set desired

Auto-on time. Each time you press the button, the

time increases by half an hour between 0 and 10

hours and by one hour between 10 and 24 hours.

3. After setting the TIMER ON ,there will be a one

second delay before the remote controller transmits

the signal to the air conditioner. Then, after

approximately another 2 seconds, the signal “h” will

disappear and the set temperature will re-appear on

the LCD display window.

To set the Auto-o time.

1. Press the TIMER OFF button. The remote controller

shows TIMER OFF, the last Auto-o setting time and

the signal “H” will be shown on the LCD display area.

Now it is ready to reset the Auto-o time to stop the

operation.

2. Push the TIMER OFF button again to set desired

Auto-o time. Each time you press the button, the

time increases by half an hour between 0 and 10

hours and by one hour between 10 and 24 hours.

3. After setting the TIMER OFF ,there will be a one

second delay before the remote controller transmits

the signal to the air conditioner. Then, after

approximately another 2 seconds, the signal “H “ will

disappear and the set temperature will re-appear on

the LCD display window.

SLEEP

FRESH

All manuals and user guides at all-guides.com
