Invacare Comet Guía

Version: 2010/08/20a EN

Spare Parts Catalogue

TABLE OF CONTENTS

Information

User Manuals Comet ...................................................

Colours . . . ............................................................

ccessory Compatibilit

.................................................

Chassis

Front Frame 4-Wheeler ..................................................

Front Shroud 4-Wheeler .................................................

Front Frame 3-Wheeler ..................................................

Front Shroud 3-Wheeler .................................................

Rear Shroud ...........................................................

Rear Frame ...........................................................

Seat

Seat & Seatoptions . ....................................................

Front / Rear Wheel

Frontwheel 3-Wheeler ...................................................

Frontwheels 4-Wheeler ..................................................

Propulsion

Rear Wheels & Propulsion 10/15 km/h .....................................

Brakes

Brakes 3 Wheeler . . ....................................................

Brakes 4 Wheeler . . ....................................................

Steering

Steering . . ............................................................

Steering Details ........................................................

Cable and Charger

Cable & Charger . . . ....................................................

Safety Options

Warning Triangle . . . ....................................................

Other Options & Accessories

ccesories ............................................................

ccessory Compatibilit

.................................................

5..................

6..................

7..................

8..................

9..................

10.................

11.................

12.................

13.................

14.................

15.................

16.................

17.................

18.................

19.................

20.................

21.................

22.................

23.................

24.................

7..................

Invacare® Comet | Information

User Manuals Comet

Version: 2010/08/20a EN

Pos. Part number Description Valid from →until Qty

CZ 1514593 User Manual Comet Czech 1

DA 1514594 User Manual Comet Danish 1

DE 1514596 User Manual Comet German 1

EN 1514597 User Manual Comet English 1

ES 1514598 User Manual Comet Spanish 1

ET 1514599 User Manual Comet Estonian 1

FR 1514600 User Manual Comet French 1

IT 1514601 User Manual Comet Italian 1

LT 1514602 User Manual Comet Lithuanian 1

NL 1514603 User Manual Comet Dutch 1

NO 1514604 User Manual Comet Norwegian 1

PL 1514605 User Manual Comet Polish 1

PT 1514606 User Manual Comet Portuguese 1

SK 1514607 User Manual Comet Slovenian 1

SV 1514608 User Manual Comet Swedish 1

FI 1527700 User Manual Comet Finsk 1

5 / 26

Invacare® Comet | Information

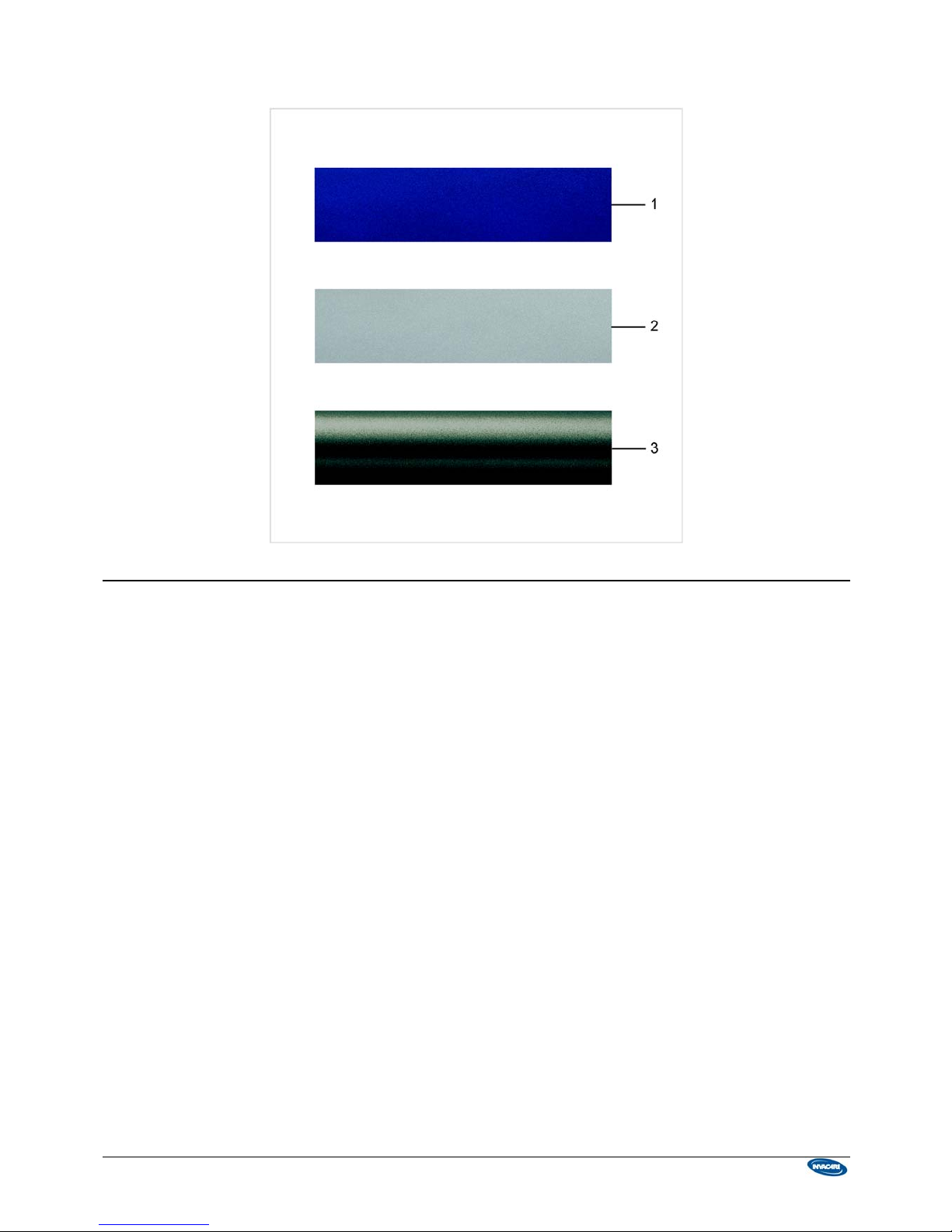

Colours

Version: 2010/08/20a EN

Pos. Part number Description Valid from →until Qty

1 SP1523462 Tuch Up Paint Onyx Blue 1

2 SP1523450 Tuch Up Paint Moonstone Silver 1

3 SP1537798 Tuch Up Paint Slate Grey 1

6 / 26

Invacare® Comet | Information

Accessory Compatibility

Version: 2010/08/20a EN

Pos. Part number Description Valid from →until Qty

-- - 1

7 / 26

Invacare® Comet | Chassis

Front Frame 4-Wheeler

Version: 2010/08/20a EN

Pos. Part number Description Valid from →until Qty

2 SP1521755 Pad, Leg Shield 1

3 SP1521756 Pad Front RH/LH 1

4 SP1505476 Push Rivet 1

5 SP1505479 Tree Rivet (6 Pieces) 1

6 SP1521758 Band, Battery Comp. 1

7 SP1517317 Controller Rhino 110A 1

7 1492574 CONTROLLER ELECTRONIC RHINO 160 11/2005-> (Comet HD) 1

8 SP1505487 Bearing 1

9 SP1521760 Front 1

10 SP1521761 Wire Harness →20080818 1

10 SP1527400 Wire Harness 20080819 →20090524 1

10 SP1532911 Wire Harness 20090525 →1

8 / 26

Invacare® Comet | Chassis

Front Shroud 4-Wheele

Version: 2010/08/20a EN

Pos. Part number Description Valid from →until Qty

1 SP1521732 Front Shroud, silver 1

1 SP1521733 Front Shroud, blue 1

1 SP1537792 Front Shroud, slate grey 1

2 SP1517733 Turn Signal LH 1

3 SP1517734 Turn Signal RH 1

4 SP1517878 Head Light, cmpl. →20080818 1

4 SP1527473 Head Light, cmpl. 20080819 →1

5 SP1521762 Cover Bumper Front 1

6 SP1521761 Wire Harness →20080818 1

6 SP1527400 Wire Harness 20080819 →20090524 1

6 SP1532911 Wire Harness 20090525 →1

7 SP1521735 Moulding LH 1

8 SP1521734 Moulding RH 1

9 SP1521754 Moulding 1

10 SP1517331 Reflector 1

11 SP1522030 Bulb Turn Signal 24V/10W 1

12 SP1522029 Bulb Head Light 24V/21W →20080818 1

12 SP1527474 Bulb Head Light 12V/15W 20080819 →1

13 SP1521836 Speed Limit Switch 6 km/h 1

13 SP1522027 Speed Limit Switch 12/15 km/h 1

9 / 26

Invacare® Comet | Chassis

Front Frame 3-Wheeler

Version: 2010/08/20a EN

Pos. Part number Description Valid from →until Qty

2 SP1521765 Pad, Leg Shield 1

3 SP1505476 Push Rivet 1

4 SP1521758 Band, Battery Comp. 1

5 SP1517317 Controller Rhino 110A 1

6 SP1505487 Bearing 1

7 SP1521729 Frame 3-Wheeler 1

8 SP1521761 Wire Harness →20080818 1

8 SP1527400 Wire Harness 20080819 →20090524 1

8 SP1532911 Wire Harness 20090525 →1

11 SP1536164 Trigger limit switch 1

10 / 26
