Basic Installation instructions for the EncoreCX

This is a basic installation sheet for the EncoreCX.

Detailed installation instructions are supplied in the Installation Manual that is on the CD supplied

with the phone system.

Step 1

Find a suitable location

The equipment is intended for installation in a residential or office-type environment. It needs to be

mounted at a convenient working height on a dry, flat wall. The normal height is five feet from the

floor to the bottom of the case.

Do not place the Common Control Unit (CCU) where it will be subjected to excessive levels of

heat, dust, or high humidity. Locating the equipment near sources of electromagnetic radiation, such

as heavy electrical switchgear, elevator machinery, or electric arc welders, should be avoided.

Allow at least six inches of free space all around the CCU for ventilation.

The CCU needs to be located within six feet of an isolated, dedicated power supply outlet. The

CCU must not share the same circuit with any other electrical appliance.

Step 2

Mount the wall bracket(s)

Use the wall bracket as a template to mark the screw holes for the first bracket. If a unit with

expansion modules (Extension or Internet Router) is to be installed, install the second bracket.

Allow the clearances shown below so that the unit can be expanded even if you are only installing

one bracket now.

Page 2

Step 3

Mount the CCU on the first bracket

The CCU is mounted on the bracket by sliding it on from the left-hand side. There are two marks on

the right-hand side of the CCU. Line these up with the inside edge of the last flange on the bracket

and slide the CCU to the right. When you slide the CCU fully to the right it is automatically locked

in place.

To remove the CCU, depress the lock located on the left-hand side of the wall bracket and slide the

CCU to the left.

Step 4

Install the backplane and secure it to the wall bracket

If the unit is equipped with expansion modules (Extension or Internet Router) the expansion

backplane must be installed on the second wall bracket and secured to it with the mounting screw

provided. Remove the fourth and fifth covers to locate the mounting screw hole.

IMPORTANT: The backplane must be secured to the wall bracket using the mounting screw

to ensure it is securely locked in place and does not move when modules are being installed.

Lock

Mounting screw

hole

EncoreCX Basic Installation instructions

Page 3

Step 5

Install any additional modules on the Backplane

The Extension and Internet Router Modules are supplied in two parts: the Main Distribution Frame

(MDF) and the Module itself.

Install the MDF on the backplane; lock it by pushing the locking bar up as shown and then insert the

module. Note: If installing CO Module(s) in the Extension Module perform step 6B before inserting

the Extension Module.

Push the Locking bar UP to lock the MDF in place

Module MDF

Push bar

Page 4

Step 6

Install the CO modules and the Voice module

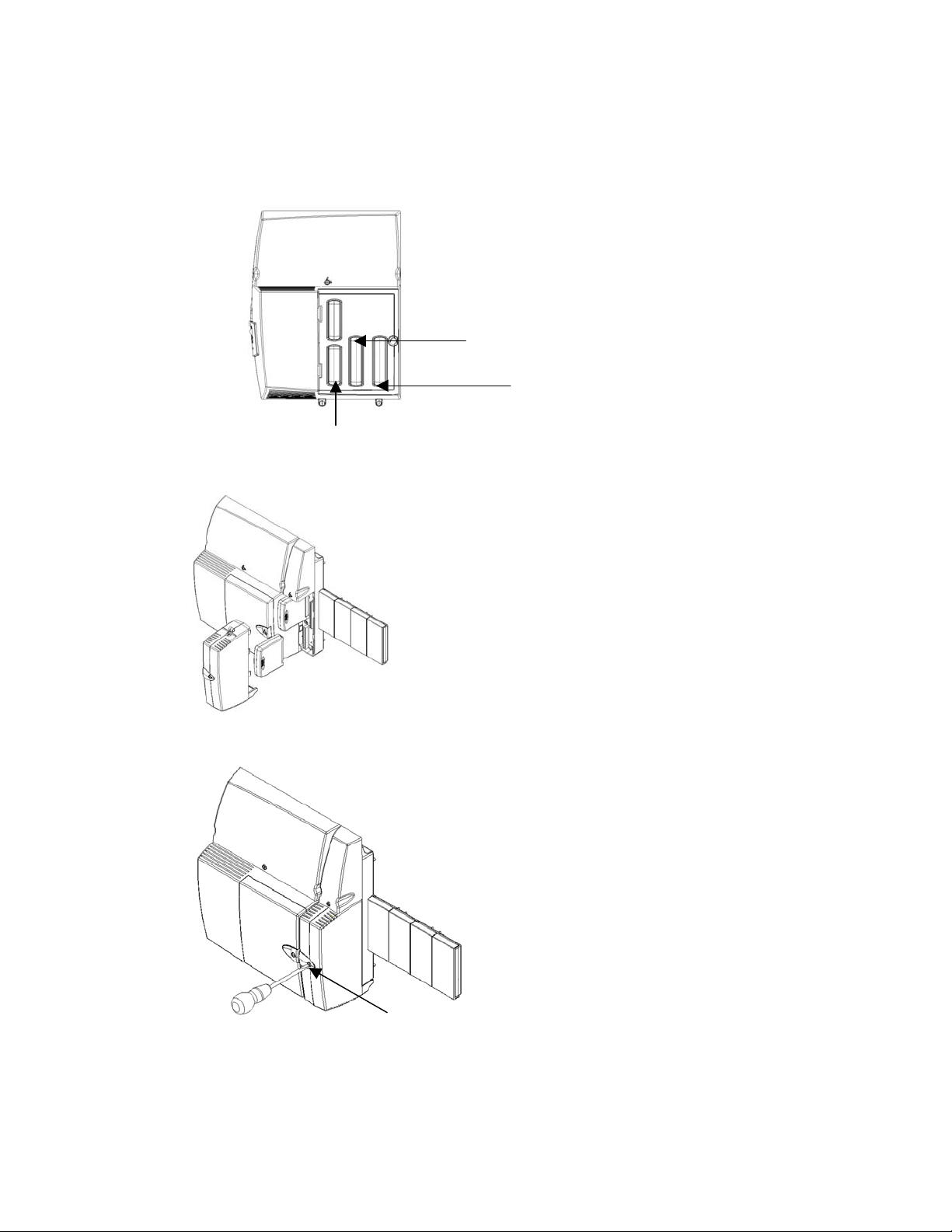

6A: Installing modules in the CCU

6B: Installing CO Modules in the Extension module

NOTE: Ensure all the locking screws are locked after the modules are installed.

Issue 1, October 2003

LAKE Part No.2739.05500

CO Module 1

CO Lines 1 and 2

CO Module 2

CO Lines 3 and 4

Voice Module

Locking screws
