Intermec PM43 Manual de usuario
Full Roll Rewinder
PM43
Installation Instructions
ii PM43 Full Roll Rewinder Installation Instructions
Intermec Technologies Corporation
Worldwide Headquarters
6001 36th Ave.W.
Everett, WA 98203
U.S.A.
www.intermec.com
The information contained herein is provided solely for the purpose of allowing
customers to operate and service Intermec-manufactured equipment and is not to be
released, reproduced, or used for any other purpose without written permission of
Intermec Technologies Corporation.
Information and specifications contained in this document are subject to change
without prior notice and do not represent a commitment on the part of Intermec
Technologies Corporation.
© 2012 by Intermec Technologies Corporation. All rights reserved.
The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook,
CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, INCA
(under license), i-gistics, Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN,
Picolink, Ready-to-Work, RoutePower, Sabre, ScanPlus, ShopScan, Smart Mobile
Computing, SmartSystems, TE 2000, Trakker Antares, and Vista Powered are either
trademarks or registered trademarks of Intermec Technologies Corporation.
There are U.S. and foreign patents as well as U.S. and foreign patents pending.
PM43 Full Roll Rewinder Installation Instructions 3
Install the Full Roll Rewinder
Use these instructions to install the full roll rewinder on the
Intermec PM43 printer.
You will need these tools to install the full roll rewinder:
•#T20 Torx screwdriver
•Small wrench.
The full roll rewinder must only be installed by an
authorized service technician.
Follow standard ESD guidelines to avoid damaging the
equipment you are servicing.
Before you begin, turn off the printer and disconnect the
power cord and communication cables.
4 PM43 Full Roll Rewinder Installation Instructions
To remove the media cover
1Open the media cover.
2Use the small wrench to loosen the nut that secures the
media cover latches in place.
3Slide the latches counterclockwise into the open position.
4Lower the media cover and lift it off the hinges.
The electronic compartment contains wires and
components with dangerous voltage (up to 380 V). Make
sure that the printer is switched off and the power cord is
disconnected before the cover is removed.
PM43 Full Roll Rewinder Installation Instructions 5
5Put the media cover aside on a soft cloth to avoid scratches.
To remove the electronics cover
1Use a T20 Torx screwdriver to remove the two screws that
secure the electronics cover to the inside of the printer base.
2Use a T20 Torx screwdriver to remove the two screws located
on the outside of the electronics cover.
3Remove the electronics cover, and put the cover aside on a
soft cloth to avoid scratches.
6 PM43 Full Roll Rewinder Installation Instructions

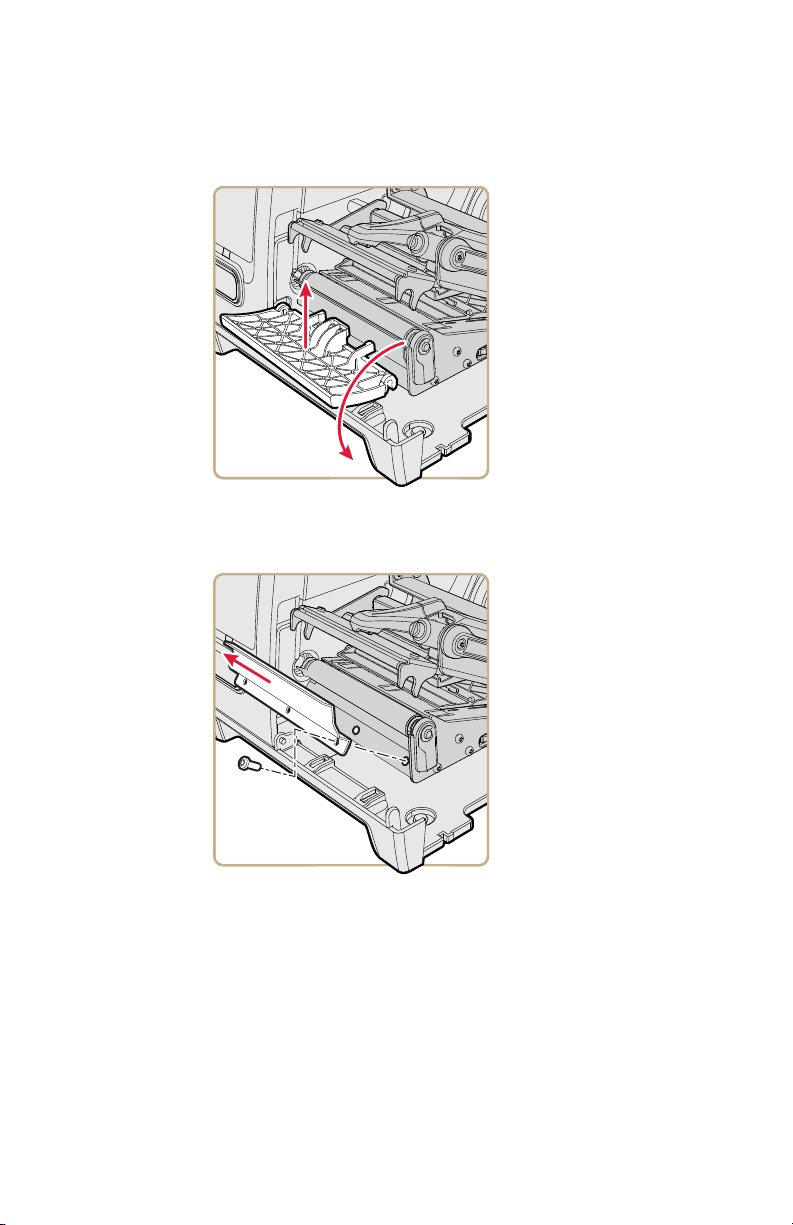

To install the full roll rewinder
1Open the media access door and pull up on the ends of the
door until it snaps off of the printer base.
2Remove the three screws that connect the tear bar to the
printer and remove it.
(x3)
PM43 Full Roll Rewinder Installation Instructions 7
3Remove the five screws that attach the printer spine to the
base.
Remove One Screw from the Media Side of Base
Remove Four Screws from the Electronics Side of Base
4Lift the spine away from the printer base.
(x2)
(x2)
8 PM43 Full Roll Rewinder Installation Instructions
5Attach the spine to the full roll rewinder with the five screws
removed in Step 3.
Attach the Spine with One Screw on the Media Side
Attach the Spine with Four Screws on the Electronics Side
(x2)
(x2)
PM43 Full Roll Rewinder Installation Instructions 9
6Connect the grounding strap to the printer spine with one of
the screws. Make sure the M4 serrated washer is located
between the extrusion from the base and the grounding
strap.
7Feed the full roll rewinder cable through the cable clip and
then insert it into the RWNDR connector on the main logic
board.
8Replace the electronics cover.
10 PM43 Full Roll Rewinder Installation Instructions
9Attach the batch plate with the three screws you removed
from the tear bar in Step 2.
10 Replace the media cover.
11 Open the full roll rewinder door and move the media roll
guide out to the edge of the base.
(x3)
