Intermec PEN*KEY 6400 Manual

PA/PT Mobile Printers August 14, 2001

PX400 Cable_TableII.doc Page 1 of 2

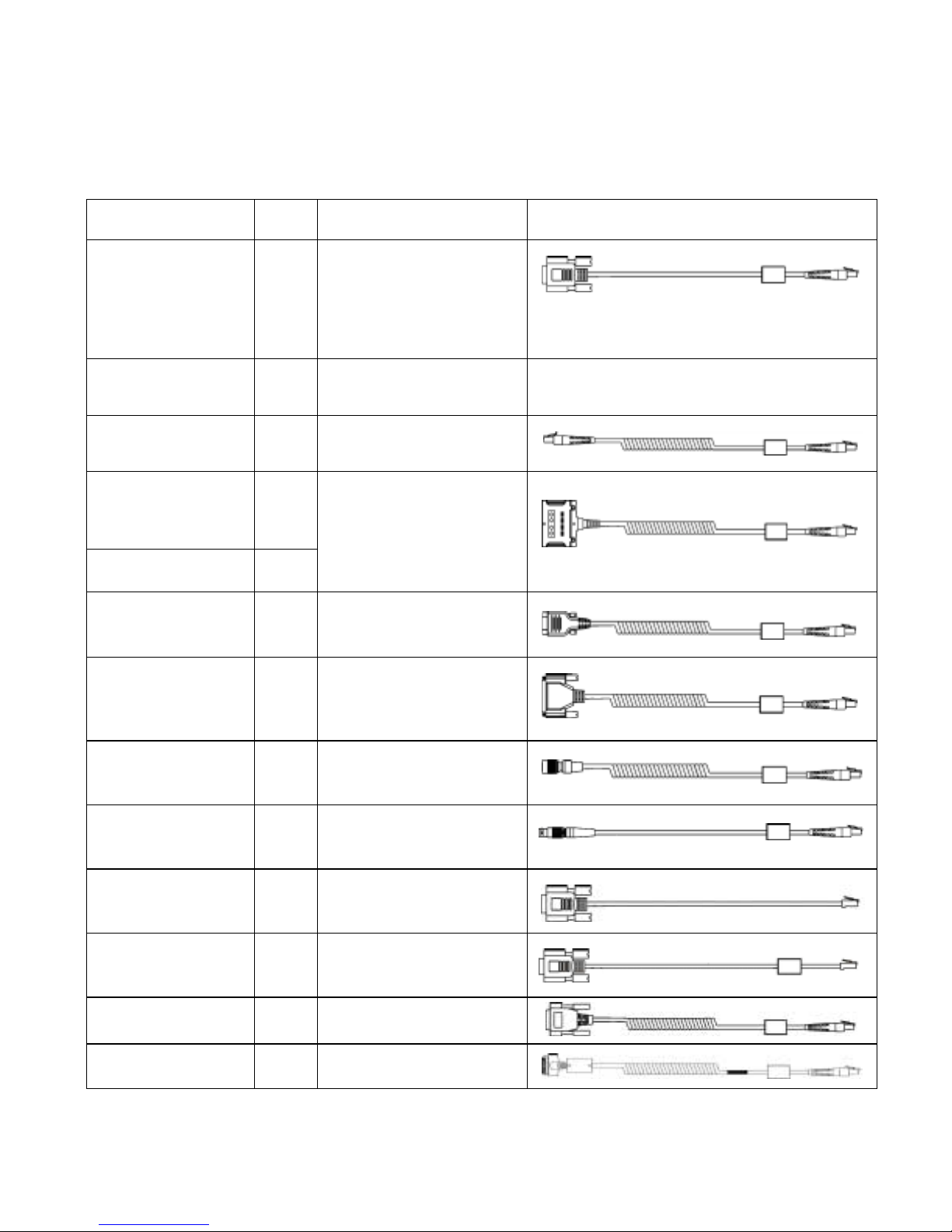

CABLING OPTIONS

Numerous cabling options enable ZebraPortable Line



printers to connect to a variety of popular hand-held

terminals. The following table depicts the Zebra cable for specific portable terminals:

CABLE

DESCRIPTION P/N# TERMINAL

MODELS CABLE

DIAGRAMS

RJ-45 to DB9 (Shielded)

Null Modem Cable 562014 Intermec



: TrakkerAntares

T2425, Janus2020

LXE



:1380, 1390, 1590,

MX1, MX3

Norand



:6400

This cable also works with most PC’s

RJ-45 to MOD10

(Shielded) Cable TBD LXE



:2325

Percon



: Falcon 310, 315, 320,

325

RJ-45 to MOD10

(Shielded) Cable 52502 Symbol



: PDT3100, PDT3110,

PDT3140, PDT3200, PDT3300,

PDT3500, PDT6100, PDT 6140

RJ-45 to PIM Optical

LPT (Shielded) Cable 52532 Symbol



: LRT3800, LDT3805,

PDT6800, PDT 6840

Correct cable depends on software

settings. Contact your software

RJ-45 to PIM Optical

COM (Shielded) Cable 52704 integrator to recommend appropriate

cable.

RJ-45 to DB-15 Micro

D-Shell (Shielded) Cable 562015 Telxon



:PTC960L,

PTC960LE, PTC960RL,

PTC960SL, PTC960M

RJ-45 to DB-25 Shielded

Null Modem Cable 52545 Telxon



:PTC510, PTC610,

PTC701, PTC710, PTC730,

PTC860, PTC860ES, PTC1134,

PTC2134

RJ-45 to 6 Pin Circular

Connector with Locking

End Cap (Shielded) Cable 52572 Norand



:RT1700, with

HR10A connector

RJ-45 to 6 Position

Circular DIN (Shielded)

Cable 52568 LXE



: 2280, 1280

RJ-45 to DB-9

Development (Not-

Shielded) Cable 562006 Connects to existing null

modem cable of installed

printers or PDT to PC cable.

RJ-45 to DB-9

Development (Shielded)

Cable 562011 Connects to existing null

modem cable of installed

printers or PDT to PC cable.

RJ-45 to DA15P with

Ferrite 52686 

RJ-45 to Hotsync 10P

(Shielded) Cable 52663 Symbol



:SPT1500

Palm



: Palm III

PA/PT Mobile Printers August 14, 2001

PX400 Cable_TableII.doc Page 2 of 2

RJ-45 to Fischer 16 Pin 52705 Symbol



:VRC6940

RJ-45 to Clip On 52712 Symbol



:SPT1700

RJ-45 to RJ-11 52674

RJ-45 to Unterminated 562013

RJ-45 to DB28F 52690

All names and products mentioned are the trademarks or registered trademarks of their respective organizations.

NOTE: Strict emissions standards are required in many countries and in certain non-industrial applications in the

United States. For FCC Class B and CISPR 22B compliance, specify shielded cables only.

For detailed, step-by-step instructions on handshaking between a Zebra Portable Printer and specific

hand-held data terminals, contact your Zebra sales representative or visit the zebra web-site at

www.zebra.com
