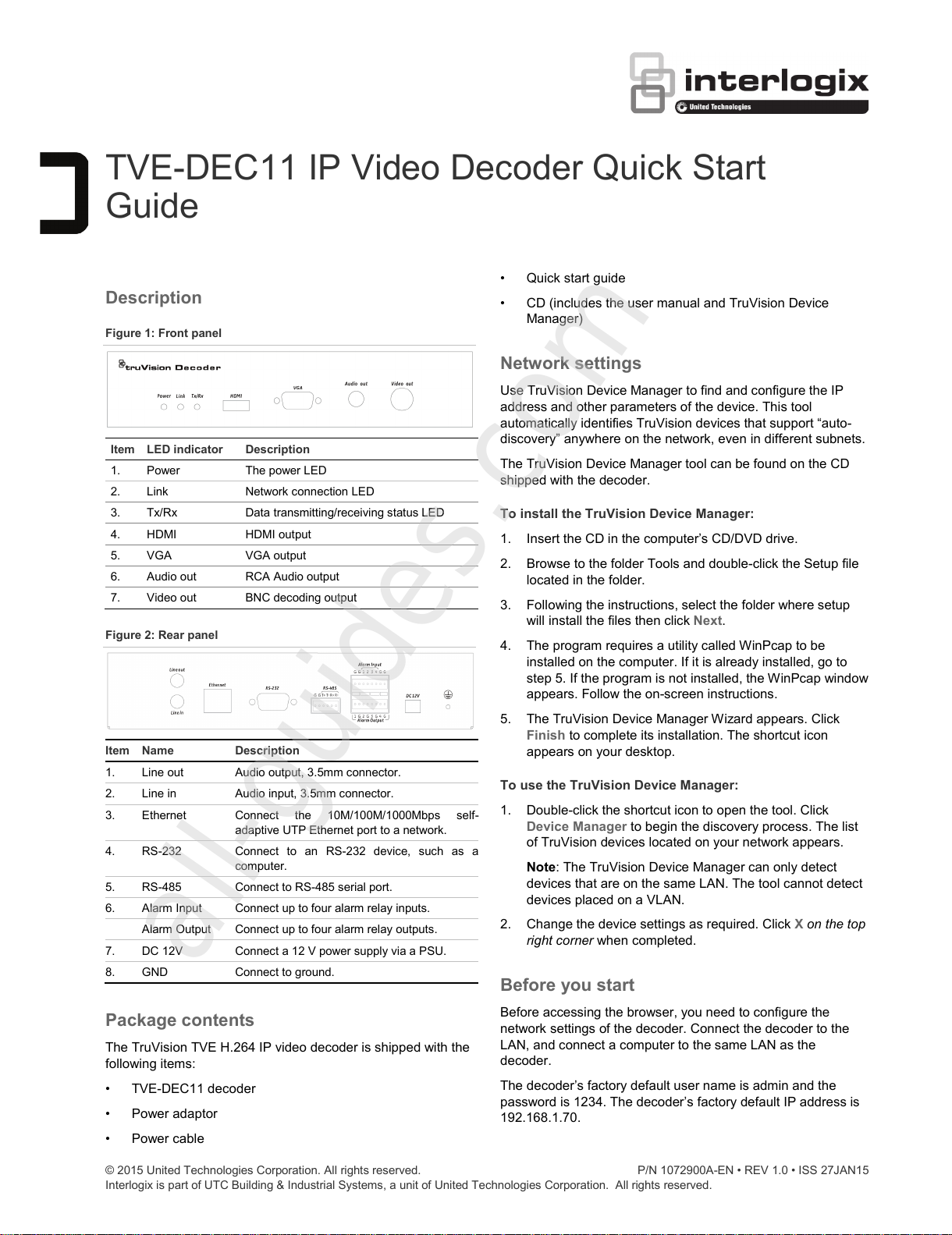

TVE-DEC11 IP Video Decoder Quick Start

Guide

Description

Figure 1: Front panel

Item

LED indicator

Description

ower The power LED

Link

Network connection LED

Tx/Rx

Data transmitting/receiving status LED

HDMI

HDMI output

VGA

VGA output

Audio out

RCA Audio output

Video out

BNC decoding output

Figure 2: Rear panel

Item

Name Description

Line out Audio output, 3.5mm connector.

Line in Audio input, 3.5mm connector.

Ethernet Connect the 10M/100M/1000Mbps self

adaptive UTP Ethernet port to a network.

RS-232 Connect to an RS-

232 device, such as a

computer.

RS-485 Connect to RS-485 serial port.

Alarm Input Connect up to four alarm relay inputs.

Alarm Output Connect up to four alarm relay outputs.

DC 12V Connect a 12 V power supply via a PSU.

GND Connect to ground.

Package contents

The TruVision TVE H.264 IP video decoder is shipped with the

following items:

•TVE-DEC11 decoder

•Power adaptor

•Power cable

•Quick start guide

•CD (includes the user manual and TruVision Device

Manager)

Network settings

Use TruVision Device Manager to find and configure the IP

address and other parameters of the device. This tool

automatically identifies TruVision devices that support “auto-

discovery” anywhere on the network, even in different subnets.

The TruVision Device Manager tool can be found on the CD

shipped with the decoder.

To install the TruVision Device Manager:

1. Insert the CD in the computer’s CD/DVD drive.

2. Browse to the folder Tools and double-click the Setup file

located in the folder.

3. Following the instructions, select the folder where setup

will install the files then click Next.

4. The program requires a utility called WinPcap to be

installed on the computer. If it is already installed, go to

step 5. If the program is not installed, the WinPcap window

appears. Follow the on-screen instructions.

5. The TruVision Device Manager Wizard appears. Click

Finish to complete its installation. The shortcut icon

appears on your desktop.

To use the TruVision Device Manager:

1. Double-click the shortcut icon to open the tool. Click

Device Manager to begin the discovery process. The list

of TruVision devices located on your network appears.

Note: The TruVision Device Manager can only detect

devices that are on the same LAN. The tool cannot detect

devices placed on a VLAN.

2. Change the device settings as required. Click Xon the top

right corner when completed.

Before you start

Before accessing the browser, you need to configure the

network settings of the decoder. Connect the decoder to the

LAN, and connect a computer to the same LAN as the

decoder.

The decoder’s factory default user name is admin and the

password is 1234. The decoder’s factory default IP address is

192.168.1.70.

All manuals and user guides at all-guides.com

all-guides.com

2 P/N 1072900A-EN • REV 1.0 • ISS 27JAN15

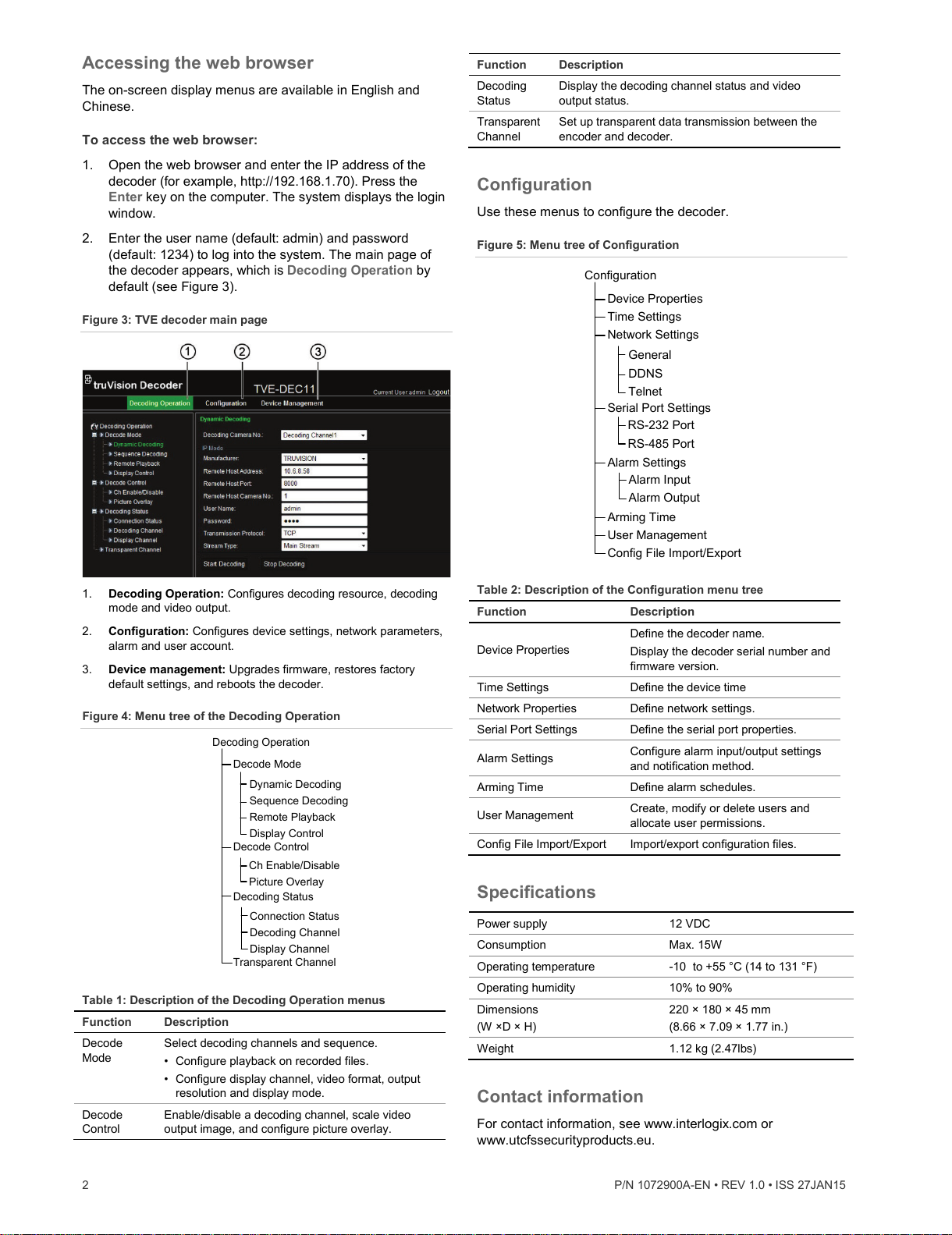

Accessing the web browser

The on-screen display menus are available in English and

Chinese.

To access the web browser:

1. Open the web browser and enter the IP address of the

decoder (for example, http://192.168.1.70). Press the

Enter key on the computer. The system displays the login

window.

2. Enter the user name (default: admin) and password

(default: 1234) to log into the system. The main page of

the decoder appears, which is Decoding Operation by

default (see Figure 3).

Figure 3: TVE decoder main page

1. Decoding Operation: Configures decoding resource, decoding

mode and video output.

2. Configuration: Configures device settings, network parameters,

alarm and user account.

3. Device management: Upgrades firmware, restores factory

default settings, and reboots the decoder.

Figure 4: Menu tree of the Decoding Operation

Decoding Operation

Decode Mode

Decode Control

Decoding Status

Transparent Channel

Connection Status

Decoding Channel

Display Channel

Ch Enable/Disable

Picture Overlay

Dynamic Decoding

Sequence Decoding

Remote Playback

Display Control

Table 1: Description of the Decoding Operation menus

Function Description

Decode

Mode

Select decoding channels and sequence.

• Configure playback on recorded files.

• Configure display channel, video format, output

resolution and display mode.

Decode

Control

Enable/disable a decoding channel, scale video

output image, and configure picture overlay.

Function Description

Decoding

Status

Display the decoding channel status and video

output status.

Transparent

Channel

Set up transparent data transmission between the

encoder and decoder.

Configuration

Use these menus to configure the decoder.

Figure 5: Menu tree of Configuration

Configuration

Device Properties

Time Settings

Network Settings

Serial Port Settings

Alarm Settings

Arming Time

User Management

Config File Import/Export

RS-232 Port

RS-485 Port

Alarm Input

Alarm Output

General

DDNS

Telnet

Table 2: Description of the Configuration menu tree

Function Description

Device Properties

Define the decoder name.

Display the decoder serial number and

firmware version.

Time Settings Define the device time

Network Properties Define network settings.

Serial Port Settings Define the serial port properties.

Alarm Settings Configure alarm input/output settings

and notification method.

Arming Time Define alarm schedules.

User Management Create, modifyor delete users and

allocate user permissions.

Config File Import/Export Import/export configuration files.

Specifications

Power supply 12 VDC

Consumption Max. 15W

Operating temperature -10 to +55 °C (14 to 131 °F)

Operating humidity 10% to 90%

Dimensions

(W ×D × H)

220 × 180 × 45 mm

(8.66 ×7.09 ×1.77 in.)

Weight 1.12 kg (2.47lbs)

Contact information

For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.
