USER’S GUIDE

User’s Guide

Version 2.0

ePad and VersaPad are trademarks, and Interlink Electronics and the six dot logo are registered trademarks of Interlink

Electronics, Inc. All other trademarks are the property of their respective owners.

ePad and VersaPad are protected by one or more of the following patents: 4,489,302; 4,314,277; 4,739,299; 5,292,837 and

other US and foreign patents pending.

ePadUser’sGuide

P/N 90-07361 Rev. B

USER’S GUIDE

Table of Contents

1. Introduction ............................................................... 1

About ePad .................................................................. 1

About ePad Software................................................... 1

Included in the Box..................................................... 1

2. ePadInstallation ........................................................ 2

System Reqirements .................................................... 2

Getting Used to Signing on the ePad .......................... 3

3. Troubleshooting ........................................................ 4

AppendixA,Miscellaneous ...................................... 5

Specifications .............................................................. 5

Technical Support ....................................................... 6

Warranty ...................................................................... 6

ePad Software License Agreement

Thislegaldocumentisanagreementbetweenyouastheend-user(hereinafter,the“Licensee”)andInterlink

Electronics,Inc.(“Licensor”).BYUSINGTHEePadSOFTWARE(the“Software”),YOUAREAGREEING

TOBECOMEBOUNDBYTHETERMSOFTHISAGREEMENT.THISAGREEMENTCONSTITUTES

THECOMPLETEAGREEMENTBETWEENLICENSEEANDLICENSOR.GrantofLicense:Inconsider-

ationofpaymentmade,LicensorgrantstoLicensee,anon-exclusiverighttouseanddisplaythiscopyofthe

Softwareon asinglecomputer(i.e.,withasingle centralprocessingunit)at asinglelocation.Ifthesingle

computeronwhichLicenseeusestheSoftwareisusedbymorethanoneperson,theLicensecoversalluserson

thatsinglecomputer,butdoesnotcovermulti-userornetworkedsystems thatmaybeusedbymorethanone

personatatime.Licensorreservesall rightsnotexpresslygrantedtoLicensee.OwnershipofSoftware:Asthe

Licensee,youownthemagneticorotherphysicalmediaonwhichtheSoftwareisoriginallyorsubsequently

recordedorfixed,butLicensorretainstheownershipoftheSoftwarerecordedontheoriginaldiskcopyandall

subsequentcopiesoftheSoftware,regardlessoftheformormediainoronwhichtheoriginalandothercopies

mayexist.CopyRestrictions:TheSoftwareandtheaccompanyingwrittenmaterialsarecopyrighted.Unautho-

rizedcopyingoftheSoftwareisexpresslyforbidden.Subjecttotheserestrictions,Licenseemaymakeonecopy

oftheSoftware,solelyforback-uporarchivalpurposes.UseRestrictions:AstheLicensee,youmayphysically

un-installtheSoftwarefromonecomputerandinstallitonanother,providedthattheSoftwareisusedonlyon

onecomputer byonepersonatatime.Licensee maynotdistributecopies oftheSoftwareortheaccompanying

writtenmaterialstoothers.Licenseemaynotmodify,adapt,translateorcreatederivativeworksbasedonthe

writtenmaterialswithoutpriorwrittenconsentoftheLicensor.Transfer:AnytransfereeoftheSoftwareshallbe

boundbythetermsandconditionsofthisagreement.Termination:ThisLicensewillterminateautomatically

withoutnoticefromtheLicensorifLicenseefailstocomplywithanyprovisionsofthisLicense.Upontermina-

tion,Licenseemustdestroythewrittenmaterialsanddestroyand/ordelete fromLicensee’scomputerallcopies

oftheSoftware,includingmodifiedcopies,ifany.Warranty:ThedisklicenseereceivedcontainingtheSoftware

wasnotpreparedbyLicensor,andLicensorassumesnoliabilitywhatsoeverregardingitscondition.Licensor

doeswarrantthattheSoftwarecontainedon thediskisfreefrommaterialerrors.If anyerrorisdiscoveredinthe

ProgrammingCode containedonthe disk,Licensormay, atit’sdiscretion,correcttheCodeandmay,upon

notice,provideLicensee with a disk containing thecorrectedProgram,freeofcharge.EXCEPTFOR THE

ABOVE,LICENSORGRANTSNOWARRANTIES,EXPRESSORIMPLIED,BYSTATUTEOROTHER-

WISE,REGARDINGTHESOFTWARE,THEDISKORRELATEDMATERIALS,THEIRFITNESSFOR

ANYOTHER PURPOSE,THEIRQUALITY,THEIR MERCHANTABILITYOROTHERWISE.IN NO

EVENTSHALLLICENSORBELIABLEFORANYSPECIAL,CONSEQUENTIALOROTHERDAM-

AGES. Intheeventofadisputeconcerningthisagreement,theprevailingpartyshallbeentitledtorecover,in

additiontoallotherdamages,reasonableattorneyfees,costsandexpenses. GoverningLaw:ThisAgreementis

governedbythe internal laws of the StateofCalifornia.

FCC Certification

ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesiredoperation.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaCLASSBdigitaldevice,pursuant

toPart15ofFCCRules. Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful

interferencewhentheequipmentisoperatedinaresidentialinstallation. Thisequipmentgenerates,uses,and

canradiateradiofrequencyenergyandifnotinstalledandusedinaccordancewiththeinstructionguide,may

causeharmfulinterferencetoradiocommunications. However,thereisnoguaranteethatthisradio

interferencewillnotoccurinaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferenceto

radioortelevisionreception,whichcanbe determinedbyturningtheequipmentonandoff,theuseris

encouragedtotrytocorrecttheinterferencebyoneor moreofthe followingmeasures:

•Re-orientor relocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

•Consultthedealeroranexperiencedradio-TVtechnicianforhelp.

Notice:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe

user’sauthoritytooperatetheequipment.Thisproductisequippedwithshieldedcable. Extensioncables,ifused,

mustbeshieldedinordertocomplywiththeemissionlimits.

USER’S GUIDE

ePad is a pen input device that captures handwritten

signatures for use in PC applications. Designed to mimic

the natural feel of signing on paper, ePad can be used on

the desktop, yet it’s small and light enough to take on the

road. Forms requiring signature approvals can now be

completed and stored electronically. For secure transac-

tions, the details of a signature can be analyzed to confirm

the identity of a computer user. With ePad, it’s easy to add

signatures to electronic documents, anytime, anywhere!

ePad software for Windows®includes:

•ePad driver

•Wintab™ compatibility

ePad includes:

•ePad and stylus

•ePad software on CD-ROM

•User’s Guide

About ePad

Introduction1

About ePad

Software

Included

in the Box

SIGNING

AREA

STYLUS

HOLDER

6-FOOT

SERIAL CABLE

6-FOOT

SERIAL OR

USB CABLE

•IBM-compatible PC running Windows

•Available 9-pin serial port or USB port

•Mouse or other pointing device

1. Turn off computer

2. Plug ePad into a serial port

3. Turn on your computer and allow Windows operating

system to boot up

4. Insert the CD-ROM into the CD-ROM drive

5. For Windows 95, 98, ME, and 2000

A. The Plug & Play Hardware Wizard should

indicate on the screen that a new hardware is found

and it will guide you through the installation process

B. If the Plug & Play Hardware Wizard does not

come up, you can always run setup.exe from the CD

instead.

6. For Windows NT 4.0

A. Run setup.exe from Windows NT40 directory of

the CD and follow the instructions on the screen

B. Note: You should have ADMIN privileges to

install new hardware on your Windows NT computer

1. Turn off computer

2. Plug ePad into a USB port

3. Turn on your computer and allow Windows operating

system to boot up

4. Insert the CD ROM into the CD ROM drive

5. Let the Plug & Play hardware Wizard install the

default HID drivers.

6. Run Setup.exe from the USB directory to install the

USB ePad driver.

System

Requirements

ePad Installation2

CD ROM

Software Drivers

Installation for

Serial Device

CD ROM

Software Drivers

Installation for

USB Device

USER’S GUIDE

Getting Used

to Signing on

the ePad

If you have not previously used an electronic pen, it is

worth spending a little time becoming familiar with its

use. Practice using the pen as a drawing tool; for example,

try using the Paint Program found under Accessories in

the Windows Start Menu (Click Start, select Program

Files, Accessories, and then Paint). This will help you to

make your signature on the ePad more like your pen-on-

paper signature.

TIP: The biggest difference between signing documents

electronically on your new ePad versus on paper

is the absence of ink coming out of the pen. To

make the transition simple, take advantage of the

“line” that is drawn on the ePad specifically as a

guideline for signing your documents. You may

also find it helpful to look at the movements of the

pen on the ePad, rather than watching the screen

as you sign.

Troubleshooting

Having Trouble?

Try the following tips to get your ePad up and running:

•For the serial ePad, make sure you are running

Windows 95, 98, NT, 2000, or ME.

For the USB ePad, make sure you are running

Windows 98, 2000 or ME.

•Try restarting Windows. Windows can be very

sensitive to its treatment of memory and resources.

Often restarting and/or powering the computer off and

back on will clear up problems.

•Check your connections - make sure ePad is securely

connected to the serial port or USB port.

•After installation, check to see if the ePad driver is

loaded and functioning. Start/Settings/Control Panels/

System. Open the Mouse setting, and look at the ePad

listing.

•Ensure that a mouse is installed (either attached

externally or as an internal device, such as a touchpad

or pointing stick on a laptop). ePad is not designed to

function as the “primary” mouse.

•For the serial ePad, if you have infrared devices on

your computer (sometimes found on laptops), disable

them prior to installation. You can enable these

infrared devices after ePad is successfully installed.

•For the serial ePad, if you have other serial devices

installed, try disabling them prior to the ePad

installation process. You can enable these serial

devices after ePad is successfully installed.

USER’S GUIDE

Specifications

Model: VP9124,VP9134,VP9010

Touchpad Technology: VersaPad™Semiconductive

Compatibility: ePad Hardware only: DOS, Windows

3.x, 95, 98, NT, 2000, ME; with WinTab

driver installed: Windows 95, 98, NT,

2000, ME for serial ePad; Windows 98,

2000, ME for USB ePad

Actuator Type: Optimized for: Ordinary stylus. Also

works with: Finger, gloved hand, ball

point pen over paper

OperationModes: Absolute (pen input) and Relative

(mouse pointing)

Software Included: VP9124 and VP9010 models: WinTab

driver for Windows 95, 98, NT, 2000

andME; VP9134 model: WinTabdriver

for Windows 98, 2000 and ME

Report Rate: 100reportspersecond

Resolution (by mode): Absolute:300countsperinch

Relative:150countsperinch

Levels of Z-pressure: 128

Hardware Interface: Serial for VP9124, VP9010; USB for

VP134

Power: Self powered from standard RS-232

(serial) port or USB port

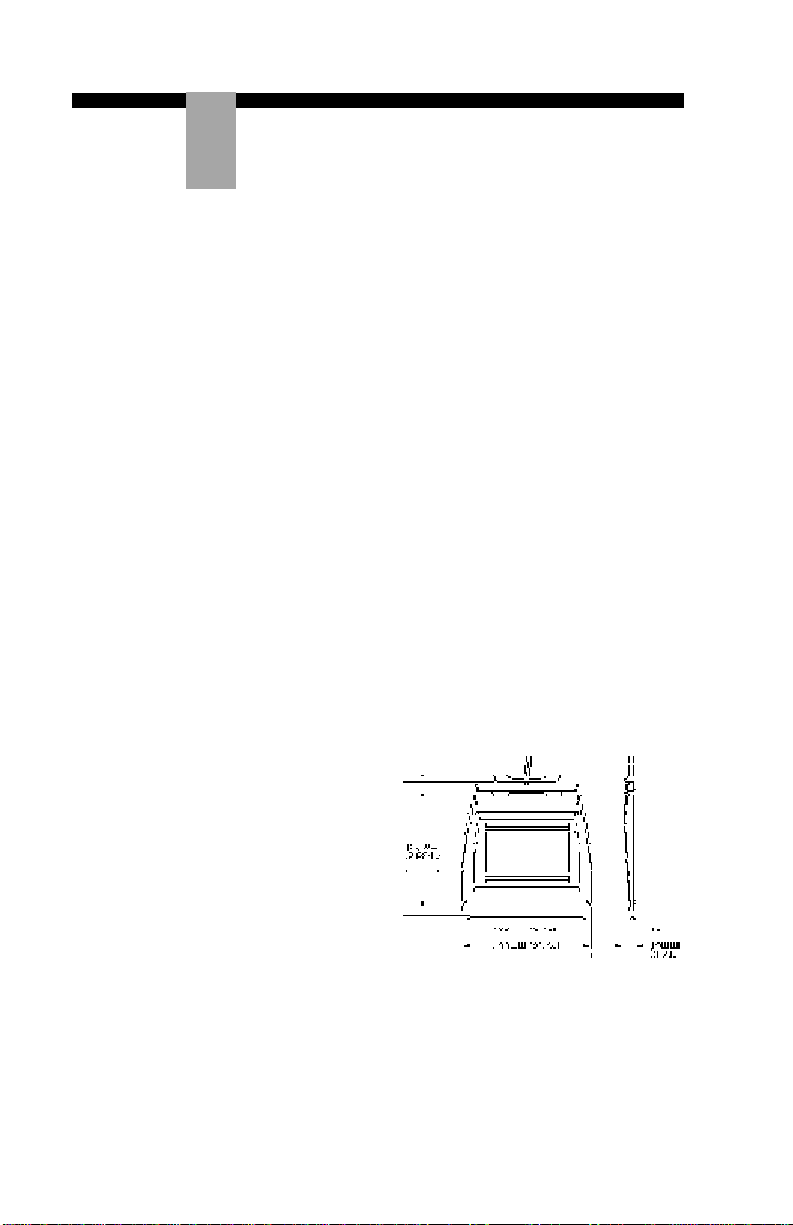

Dimensions:

Signing area: 91mm (3.59") x 53mm (2.09")

Weight: 263g (0.58 lb.)

Temperature: Operating: 0°C to +45°C

(32° to 113°F)

Storage: -40°C to +70°C

(-40°F to 158°F)

Humidity (in storage): 10-95% RH, non-condensing

Miscellaneous

Appendix

If you have any difficulties installing or using your ePad,

please re-check the section of this User’s Guide that relates

to your problem. If you are still unable to solve the

problem, please call our Product Support team for

assistance.

Note: Please see below for technical support for PenOp

Personal software.

ProductSupport

(800) 340-1331

Hours: 8 am to 5 pm, PST

Tel: (805) 484-1331

Fax: (805) 484-5997

Email: [email protected]

Please have ready the following information:

•Date and place of purchase

•Brand and model of computer (e.g., Compaq

Prosignia 330, 500 MHz, Pentium III)

•Software you use with this product

1. What product is covered by this warranty? Thefollowingproduct(“the

Product”) is covered by this warranty: ePad.

2. Whatdoesthiswarrantycover? Interlink Electronics, Inc. (“Interlink”)

warrantstotheoriginalend-userpurchaseroftheProduct(“you”)thatthe

Product will be free from defects in materials or work-manship under normal use

andserviceduringthewarrantyperioddescribedinParagraphs3and4.

3. Whendoesyourwarrantybegin? The warranty will begin on the day you

purchasetheProduct. Datedproofofpurchaseisnecessarytoaccompanythe

Productreturnedfor warranty serviceconsideration.Validproofofpurchase

mustidentifythe point of purchase, dateofpurchase,andproductmodelortrade

name. Ordinarily,yoursales receipt or invoice willsuffice.

4. How long does the coverage last? ThewarrantyfortheProductasfollows:

LIMITED ONE YEAR PARTS AND LABOR

5.Whatwill Interlink do iftheproductbecomes defective in materialsor

workmanship during the warranty period? If the Product covered under this

warrantybecomesdefective in materialsorworkmanshipduringtheapplicable

warrantyperiod,INTERLINKwill,atitsoption,eitherrepairthedefective

Productwithoutchargeforpartsandlabor,orprovideareplacementinexchange

forthedefectiveProduct. INTERLINKreservestherighttoprovide,atno

additionalcost, a morecurrent or upgraded modelfor replacement, ifavailable.

6. What is not covered by this warranty? (a) This warranty does not extend to:

(i)Productswhichhavebeensubjectedtomisuse,accident,physicaldamage,

improperinstallation,abnormaloperationorhandling,neglect,inundationorfire,

or;(ii)Productswhichhavebeendamagedduetorepair,alteration ormodifica-

tionbyanyoneotherthananauthorizedrepresentativeofINTERLINK,or;(iii)

Defectscausedbycomponents,parts,oraccessoriesnotcompatiblewiththe

warranted Product, or; (iv)Productswhosewarranty/qualitystickers, product

serialnumberplatesor electronic serial numbers have beenremoved, alteredor

renderedillegible,or; (v) Accessory items. (b) ANYOTHERWARRANTIES,

Technical Support

Warranty

Tabla de contenidos

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario

Interlink electronics ePad Manual de usuario

Manuales populares de Panel táctil de otras marcas
