Inter-Track IT-B240 Manual de usuario

IT-B240 INTER-TRACK

Luxury Magnetic

Exercise Bike

To ensure your safe, reliable and comfortable use of this exercise

bike, please read the following important matters and all operation

instructions before use.

This ﬁtness bike is a ﬁxed ﬁtness equipment and is an aerobic training equipment for improving

cardiovascular function.

The exercise bike should be placed on the ﬂat ground when in use.

Before use, please check that all bolts, andother parts are properly installed andlocked.

Please wear appropriate clothes, shoes and socks, please do not wear a dress or too long blouse, so

as that itdoesn't hook on the exercise bike.

The activity space of this machine should be larger than 120*100*200 cm.

Children should be supervised to ensure that they do not play with utensils.

This appliance is not intended for use by persons (including children) who are physically weak, slow in

response or have mental disorders, unless it is safely used under the guidance or with the help of a

person responsible for their safety.

The maximum weight of the user of the machine shall not exceed 130Kg.

The braking device of the machine is magnetic resistance type.

10.

The machine meets the requirements of EN957-5HC class.

Warning: Violation of the above safety regulations will result in personal and equipment injuries.

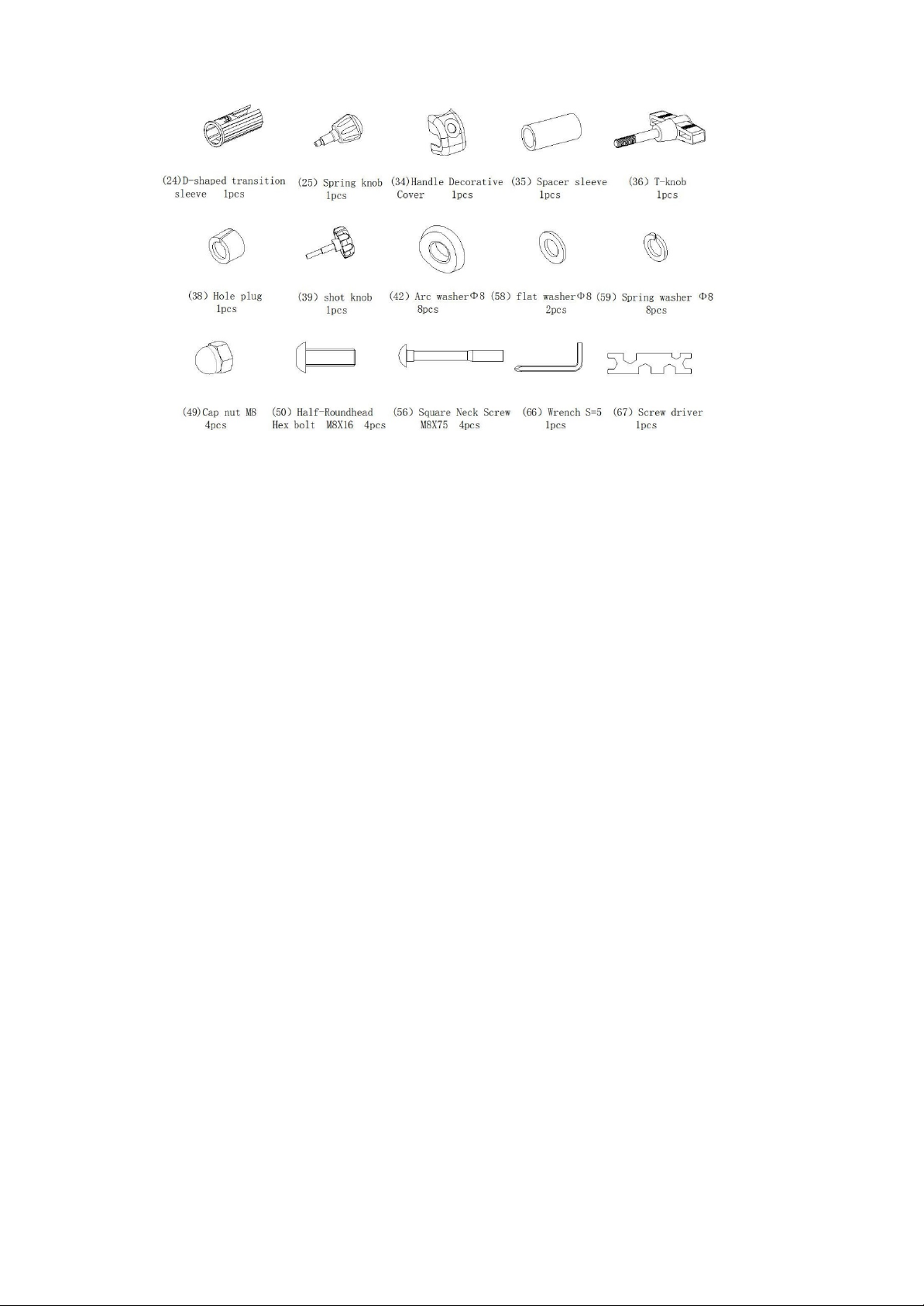

Tools and accessories

(24) D-shaped transition 1pc

(25) Spring knob 1pc

(34) Handle Decorative 1pc

(35) Spacer sleeve 1pc

(36) T-knob 1pc

(38) Hole plug 1pc

(39) Shot knob 1pc

(42) Аrс wаѕhеrФ8 8pcs

(58) Flаt wаѕhеrФ8 2pcs

(59) Ѕрrіng wаѕhеr Ф8 8pcs

(49) Cap nut M8 4pcs

(50) Half-Roundhead Hex bolt M8X16 4pcs

(56) Square Neck Screw M8X75 4pcs

(66) Wrench S=5 1pc

(67) Screw driver 1pc

Part list

NO.

Description

Qty

NO.

Description

Qty

Rear foot tube

Spacer sleeve

Front foot-cover

T-knob

Rear foot cover

Crank Decorative Cover

Main frame

Hole plug

Front foot tube

Shot knob

Back foot tube

Seat cushion adjustable bracket

Handlebar support

Square cap

Hand bar

ARC w asher

Ф25 Ball plug

Pull Rod

Handrail bushing

Adjusting yoke

Meter

Adjust slice

Pulse sensor

Flat Washer Ф6

Front plastic cover

Spring w asher Ф6

Seat cushion tube cover

Lock Nut M6

Seat bracket

Lock Nut M8

Meter w ire lower

Half-Roundhead Hex bolt M8X16

Meter w ire upper

Half-Roundhead Hex bolt M8X20

Heart rate w ire

Cross Recessed Pan Head screw M5X35

Seat cushion

Cross head Pan Head Tapping screw ST4X8

Right cover

Cross head Pan Head Tapping screw ST4.2X16

Left cover

Cross head Pan Head Tapping screw ST4.2X20

Crank

Square Neck Screw M8X75

Belt w heel

Lock Nut

D-shaped transition sleeve

Flat Washer Ф8

Spring knob

Spring w asher Ф8

Bearing set

Flat Washer Ф5

Pressing w heel bracket

Lock Nut M8

Pressing belt w heel

Lock Nut M10

4V Belt

Half-Roundhead hex bolt M6X12

Fly wheel

Cross Recessed Pan Head Screw M5X12

8-section tension control

Pedal Belt

Resistance cable

Wrench S=5

Pedal(Left & Right)

Screw driver

Handle Decorative Cover

23 Belt w heel

57 Lock Nut

24 D-shaped transition sleeve

58 Flat Washer Ф8

25 Spring knob

59 Spring w asher Ф8 11

26 Bearing set

60 Flat Washer Ф5

27 Pressing w heel bracket

61 Lock Nut M8

28 Pressing belt w heel

62 Lock Nut M10

29 4V Belt

63 Half-Roundhead hex bolt M6X12

30 Fly wheel

64 Cross Recessed Pan Head Screw M5X12

31 8-section tension control

65 Pedal Belt

32 Resistance cable

66 Wrench S=5

33 Pedal(Left & Right)

67 Screw driver

34 Handle Decorative Cover

All pipe plugs have been installed.

1. With 2 sets Square Neck Screw(No. 56), Arc

Washer (No.42), Spring washer (No. 59) & Lock

Nut (No.49) attach front foot tube (No. 5) on main

Frame (No.4).

2. With 2sets Square Neck Screw(No. 56), Arc

Washer (No.42), Spring washer (No.59) &Lock Nut

(No.49) attach Rear foot tube(No. 1 )on Main

frame (No.4).

3. A. Connect the Meter wire (No.16&.17) of the upper and lower sections of the electronic table connection, and then

connect the terminal of the lower end of the 8-section spinner body (No.31) firmly with the resistance cable

(No.32).

(Note: first of all the output adjustment knob to the "+" direction to the end (at this time the output of the spinner

terminal extension to the longest), according to the figure of the joint terminal sleeve in the output adjustment wire

connection hook, pull up the output adjustment of the upper end stuck into the box slot. If the upper end of the

output fine adjustment body line cannot just be stuck into the adjustment box slot, please turn the lower end of the

adjustment box nut to the appropriate position, so that the output fine adjustment body line at the top of the clip

just stuck into the adjustment box slot. (See Figure 3-A, B and C)

B: Hand over Handlebar support (No.7) set into the Main frame (No.4) to take over by 4 sets of Half-Roundhead Hex

Bolt (No.50), Spring washer(No.59) and ARC washer (No.42) will hand over Handlebar support (No.7) connected to

the frame (No.4) tighten. (See Figure3-D)

4. A. Insert the heart Pulsesensor (No.12) through the side hole on

the Handlebar support (No.7) and through the upper end; Then cover

the heart rate line (No. 18) with the threading hole plug (No.38), plug

the hole on the Handlebar support (No.7), and then cover the hand

handle bar (No.8) in the clamping tube hoop on the Handlebar

support (No.7), as shown in the figure, then cover the handle decorative

cover (No.34) and the spacer sleeve (No.35), and lock itwith the T-knob

(No.36).

B. Connect the electronic meter (No.11) and heart rate wire (No.16) to the

corresponding connector of the electronic meter, and then put the extra wire

plug into the Handlebar support (No.7); Then the convexity of the electronic

watch is set to the welding seam of the forehand connector, the upper end of

the electronic watch is fixed to the Handlebar support (No.7), and is fixed with

the Cross Recessed Pan Head Screw (No.64).

Note: the clamping teeth on the hand bar (No.8) must be consistent with

the clamping groove of the tube hoop of the Handlebar support (No.7).

5. With 3 sets of Locknut (No.61), Spring Washer (No.59) & flat washer

(No.58) install the seat cushion (No.19) on the seat cushion adjustable

bracket (No.40).

6. A.Then insert the seat bracket (No.15) into the D-shaped transition sleeve (1No.24),

insert the seat bracket (No.15) into the seat support pipe of the Main frame (No.4),

and align the upper end rotary hand seat hole of the seat support pipe of the Main

frame (No.4) with a certain hole on the seat bracket (No. 15); Then insert the Spring knob (No.25) into the hole and

tighten. (See Figure 6)

B.Put seat cushion adjustable bracket (No. 40) on the upper end of the seat bracket

(No.15) according to the direction Shown in the figure.After adjusting a certain position,

tighten the seat cushion with shot knob (No.39).

REMARK:

1. To adjust the position of the Seat bracket (No.15), the Spring knob (No.25) should

be unscrewed. After adjusting the Seat bracket (No.15) to the appropriate position,

then tighten the spring knob (No.25).

2. To adjust the positions of the seat cushion (No. 19), just unscrew the seat

cushion to adjust the shot knob (No.39). After adjusting the Seat bracket (No.15) to

the appropriate position, tighten the shot knob (No.39)

3. lf the cushion is found to be skewed, loosen the fixing nut at the lower end of the

cushion, adjust the cushion to the correct position, and then lock it tightly.

7.Fasten the Belt (No. 65) on the Pedal (No.33) first,

then mount them on the crank (No.22). (see figure 8)

Note: left (L), right (R) are indicated on the foot pedal

shaft.

When stamping quickly in one direction, do not

immediately kick in the other to avoid injury.

Load adjustment: resistance ﬁne tuning knob, clockwise rotation, resistance increase, according to your own

needs to adjust the level of resistance.

Adjusting the height of the seat: loosen and pull back the hand screw on the seat cushion cannula, lift or lower the seat

cushion tube to an appropriate position according to the needs of the wearer. Then, the hand screw will be

automatically inserted into the seat cushion tube hole to tighten the hand screw.

When riding a bike, sit on the cushion, fasten the pedal strap and hold the handle with both hands. The upper body can

freely change its position

FUNCTION KEYS/MANUAL MODE:

1. MODE: Push down for selecting functions. If the MODE button is held down for a long time, all

values will return to 0 except the ODO.

2. SET: To set the values of time, distance,pulse and calories when not in scan mode.

3. RESET: Push down for resetting time, distance & calories, the current data change to 0.

WINDOW DISPLAY

•TIME: Displays the elapsed using time (0:00-99:59 MIN).

•SPEED: The speed range is 0.0-999.9KM/H (or Mile/H).

•DISTANCE: Displays the total distance traveled (0.0-9999KM or MILES).

•CALORIES: Displays total calories burned (0.0-9999 CAL).

•PULSE (if have): Displays your pulse data when hands are placed on the sensors (40-240BPM).

I. Installation method

Remove the battery door on the back shell of the meter and install two new 1.5V AA batteries in the

positive and negative directions of the battery box (for battery products not installed).

Fix the instrument on the pipe in front of the ﬁtness equipment with screws.

Connect the sensor wire plug with the outlet connector on the back of the instrument or insert the

signal input jack on the back of the instrument.

Quick step on the fitness equipment and the displayed speed changes indicate that the installation

is qualiﬁed; otherwise, check whether the magnet seat and the sensor are installed correctly and

whether the sensor wire plug and the lead wire of the watch head are connected reliably.
