Intensity MDV-D28Q4/N1-D Manual de usuario

www.intensity.com.mx MAN-S-4WC-1112

Four-Way Cassette

MDV-D28Q4/N1-D, MDV-D36Q4/N1-D, MDV-D45Q4/N1-D, MDV-D56Q4/N1-D,

MDV-D71Q4/N1-D, MDV-D80Q4/N1-D, MDV-D90Q4/N1-D, MDV-D100Q4/N1-D,

MDV-D112Q4/N1-D, MDV-D140Q4/N1-D

SERVICEMANUAL

9,600 Btus/hr, 12,300 Btus/hr, 15,400 Btus/hr

19,100 Btus/hr, 24,200 Btus/hr, 27,300 Btus/hr,

30,700 Btus/hr, 34,100 Btus/hr, 38,200 Btus/hr,

47,800 Btus/hr

MAN-S-4WC-1112 Four-way Cassette Type

Four-way Cassette Type

1. Features ........................................................................................... 3

2. Specifications .................................................................................. 6

3. Dimensions ...................................................................................... 9

4. Service Space ..................................................................................10

5. Piping Diagram ................................................................................11

6. Wiring Diagram ................................................................................12

7. Capacity Tables ...............................................................................13

8. Electric Characteristics ..................................................................20

9. Sound Levels ...................................................................................21

10. Accessories ...................................................................................23

1. Features

(1) Low operation noise

—Streamline plate ensures quietness

—Creates natural and comfortable environment

(2) Efficient cooling——Equal, fast and widerange cooling

(3) Excellent performance. Higher heat-exchanging efficiency and lower noise.

The optimal evaporator & sufficient airflow volume guarantees the excellent capacity

(4) The adoption of the most advanced 3- Dimensional Screw fan

—Reduces the air resistance passing through

—Smoothes the air flow

—Makes air speed distribution tothe heat exchange uniform

(5) Adding digital tube displaying on the display board. LED can display the Error Code to make the

malfunction checking easier.

(6) Fresh air makes life healthier and more comfortable.

(7) Drainage pump can take up the condenser water to 29-17/32in(750mm).

(8) Ultra-thin machine body to easy installation and maintenance:

9600Btu/h~27300Btu/h(2.8Kw~8.0Kw):9-1/16(230mm),

30700Btu/h~47800But/h(9.0Kw~14Kw):11-13/16(300mm).

29-17/32in

(750mm)

MAN-S-4WC-1112 Four-way Cassette Type

(9)Different color panels for choose: White、Gray、Blue、Black

(White) Standard (Black) Optional (Gray) Optional (Blue) Optional

*The optional can be customized if it is more than 500 units.

(10) Swing angle of louver

1) Add one more swing motor, one motor driving two louvers. Controlling the interspace of each part,

minimizing the angle loss.

2) The swing angle of the first louver are 40~42 degrees and the second louver are 37~38 degrees. New

evaporator and inner configuration designed can acquire high heat-exchanger effect.

(11) More strengthening rib design around the panel, preventing the distortion for the panel.

(12) New outlet frame design to make the phenomena of coagulation great improvement: prevent the

condensing water from damaging the air guide strip.

(13) Adding rib on the panel of fan outlet, which can avoid the air outlet direct flow to people.

(14) 4 speeds available, optional super high fan speed design suitable for the large building over 3m

high.

(15) Reserve spaces for air side-outlet, it is available to connect duct pipe hence Air supplying from the

four sides to nearby small room.

9-1/16(230mm)

MAN-S-4WC-1112 Four-way Cassette Type

(16)Optimal design, smaller Control Box, Space saving and convenient for wiring,

Using fire resistance galvanized steel for E-box material. Metal box make the control part more stable and

prevent damaging.

MAN-S-4WC-1112 Four-way Cassette Type

2. Specifications

Model

MDV-D28Q4/N1-D

MDV-D36Q4/N1-D

MDV-D45Q4/N1-D

Power supply

V-Ph-Hz

220-240V, 1Ph, 60Hz

Cooling

Capacity

2.8

3.6

4.5

Btu/h

9600

12300

15400

Input

Rated current

0.4

Heating

Capacity

3.2

4.0

5.0

Btu/h

10900

13600

17100

Input

Rated current

0.4

Indoor fan motor

Model

YDK60-6F-4

Type

AC motor

Brand

Welling

Input

80.3

95.1

Capacitor

2.5

3.5

Speed (hi/mid/lo)

r/min

558/497/431

637/656/487

Indoor coil

Number of rows

Tube pitch(a)x row pitch(b)

in(mm)

13/16 x 17/32(21 x 13.37)

Fin spacing

in(mm)

1/16(1.5)

Fin type

Hydrophilic Aluminum

Tube outside dia. and type

in(mm)

1/4(Ф6.35),Innergroove Tube

Coil length x height x width

in(mm)

75-63/64 x 6-5/8 x 17/32(1930x168x13.37)

77-13/64 x 6-5/8 x 1-1/16

(1961x168x26.74)

Number of circuits

Indoor air flow (H/M/L)

m3/h

847/766/640

864/755/658

CFM

514/454/384

526/463/390

Indoor noise level (Hi/Mid/Lo)

dB(A)

42/38/35

Indoor unit

Dimension (WxHxD)

in(mm)

33-1/16 x 9-1/16 x 33-1/16(840x230x840)

Packing (WxHxD)

in(mm)

37-19/32 X 9-23/32 X 37-19/32(955X247X955)

Net/Gross weight

lbs(kg)

53 /61.7(24/28)

57.3 /66.2(26/30)

Panel

Dimension (WxHxD)

in(mm)

37-13/32 x1-13/16 x37-13/32 (950x46x950)

Packing (WxHxD)

in(mm)

39-3/8 x 2-23/32 x 39-3/8 (1000x60x1000)

Net/Gross weight

lbs(kg)

13.2/17.6(6/8)

Refrigerant type

R410A

Throttle

Electric expansive valve

Design pressure

MPa

4.4/2.6

Refrigerant piping

Liquid side

in(mm)

1/4(Ф6.35)

Gas side

in(mm)

1/2(Ф12.7)

Connecting wiring

Power wiring

Nb×mm2

3×2.5(L≤20m)；3×3.5(L≤50m)

Signal wiring

Nb×mm2

3×0.75

Drainage water pipe dia.

IDФ28.5 ODФ32

Controller

Wireless remote controller(RM05/BG(T)E-A) (Standard)

Operation temp

℉(℃)

Cooling：62.6~89.6℉ (17～32℃)；Heating:50~82.4℉(10～28℃)

Notes:

1. Nominal cooling capacities are based on the following conditions: return air temp.: 80.6℉(27℃)DB,66.2℉(19℃)WB,and

outdoor temp.: 95℉(35℃)DB,equivalent ref. piping: 26.25ft(8m) (horizontal)

2. Nominal heating capacities are based on the following conditions: return air temp.: 68℉(20℃)DB, outdoor temp.: 44.6℉

(7℃)DB,42.8℉(6℃)WB, and equivalent ref. Piping: 26.25ft(8m)(horizontal)

MAN-S-4WC-1112 Four-way Cassette Type

Model

MDV-D56Q4/N1-D

MDV-D71Q4/N1-D

MDV-D80Q4/N1-D

Power supply

V- Ph-Hz

220-240V, 1Ph, 60Hz

Cooling

Capacity

5.6

7.1

8.0

Btu/h

19100

24200

27300

Input

Rated current

0.4

0.5

1Heating

Capacity

6.3

8.0

9.0

Btu/h

21500

27300

30700

Input

Rated current

0.4

0.5

Indoor fan motor

Model

YDK60-6F-4

YDK80-6F-1

Type

AC motor

Brand

Welling

Input

95.1

113.3

Capacitor

3.5

Speed (hi/mid/lo)

r/min

637/656/487

781/670/526

Indoor coil

Number of rows

Tube pitch(a)x row pitch(b)

in(mm)

13/16 x 17/32(21 x 13.37)

Fin spacing

in(mm)

1/16(1.5)

Fin type

Hydrophilic Aluminum

Tube outside dia. and type

in(mm)

1/4(Ф6.35),Innergroove Tube

Coil length x height x width

in(mm)

77-13/64 x 6-5/8 x 1-1/16(1961x168x26.74)

Number of circuits

Indoor air flow (H/M/L)

m3/h

864/755/658

1157/955/749

1236/973/729

CFM

526/463/390

681/562/441

727/573/429

Indoor noise level (Hi/Mid/Lo)

dB(A)

42/38/35

45/42/39

Indoor unit

Dimension (WxHxD)

in(mm)

33-1/16 x 9-1/16 x 33-1/16(840x230x840)

Packing (WxHxD)

in(mm)

37-19/32 X 9-23/32 X 37-19/32(955X247X955)

Net/Gross weight

lbs(kg)

57.3 /66.2(26/30)

Panel

Dimension (WxHxD)

in(mm)

37-13/32 x1-13/16 x37-13/32 (950x46x950)

Packing (WxHxD)

in(mm)

39-3/8 x 2-23/32 x 39-3/8 (1000x60x1000)

Net/Gross weight

lbs(kg)

13.2/17.6(6/8)

Refrigerant type

R410A

Throttle

Electric expansive valve

Design pressure

MPa

4.4/2.6

Refrigerant piping

Liquid side

in(mm)

3/8(Ф9.53)

Gas side

in(mm)

5/8(Ф15.9)

Connecting wiring

Power wiring

Nb×mm2

3×2.5(L≤20m)；3×3.5(L≤50m)

Signal wiring

Nb×mm2

3×0.75

Drainage water pipe dia.

Ф32

Controller

Wireless remote controller (RM05/BG(T)E-A) (Standard)

Operation temp

℉(℃)

Cooling：62.6~89.6℉ (17～32℃)；Heating:50~82.4℉(10～28℃)

Notes:

1. Nominal cooling capacities are based on the following conditions: return air temp.: 80.6℉(27℃)DB,66.2℉(19℃)WB,and

outdoor temp.: 95℉(35℃)DB, equivalent ref. piping: 26.25ft(8m) (horizontal)

2. Nominal heating capacities are based on the following conditions: return air temp.: 68℉(20℃)DB, outdoor temp.: 44.6℉

(7℃)DB,42.8℉(6℃)WB, and equivalent ref. Piping: 26.25ft(8m)(horizontal)

MAN-S-4WC-1112 Four-way Cassette Type

Model

MDV-D90Q4/N1-D

MDV-D100Q4/N1-D

MDV-D112Q4/N1-D

MDV-D140Q4/N1-D

Power supply

V- Ph-Hz

220-240V, 1Ph, 60Hz

Cooling

Capacity

9.0

10.0

11.2

14.0

Btu/h

30700

34100

38200

47800

Input

173

186

Rated current

0.7

0.8

Heating

Capacity

10.0

11.0

12.5

15.0

Btu/h

34100

37500

42700

51200

Input

173

186

Rated current

0.7

0.8

Indoor fan motor

Model

YDK90-6F

YDK100-6P

Type

AC motor

Brand

Welling

Input

182

218

Capacitor

3.5

Speed (hi/mid/lo)

r/min

750/610/500

750/605/510

Indoor coil

Number of rows

Tube pitch(a)x row pitch(b)

in(mm)

13/16 x 17/32(21 x 13.37)

Fin spacing

in(mm)

1/16(1.5)

Fin type

Hydrophilic Aluminum

Tube outside dia. and type

in(mm)

1/4(Ф6.35), Innergroove Tube

Coil length x height x width

in(mm)

76-31/32 x 9-29-32 x 1-1/16(1955x252x26.74)

Number of circuits

Indoor air flow (H/M/L)

m3/h

1590/1300/1090

1678/1358/1115

CFM

936/765/642

988/799/656

Indoor noise level (Hi/Mid/Lo)

dB(A)

48/45/43

50/47/44

Indoor unit

Dimension (WxHxD)

in(mm)

33-1/16 x 1-13/16 x 33-1/16(840x300x840)

Packing (WxHxD)

in(mm)

37-19/32 X12-15/32 X 37-19/32(955X317X955)

Net/Gross weight

lbs(kg)

70.6/81.6(32/37)

Panel

Dimension (WxHxD)

in(mm)

37-13/32 x1-13/16 x37-13/32 (950x46x950)

Packing (WxHxD)

in(mm)

39-3/8 x 2-23/32 x 39-3/8 (1000x60x1000)

Net/Gross weight

lbs(kg)

13.2/17.6(6/8)

Refrigerant type

R410A

Throttle

Electronical expansive valve

Design pressure

MPa

4.4/2.6

Refrigerant piping

Liquid side

in(mm)

3/8(Ф9.53)

Gas side

in(mm)

5/8(Ф15.9)

Connecting wiring

Power wiring

Nb×mm2

3×2.5(L≤20m)；3×3.5(L≤50m)

Signal wiring

Nb×mm2

3×0.75

Drainage water pipe dia.

Ф32

Controller

Wireless remote controller (RM05/BG(T)E-A) (Standard)

Operation temp

℉(℃)

Cooling：62.6~89.6℉ (17～32℃)；Heating:50~82.4℉(10～28℃)

Notes:

1. Nominal cooling capacities are based on the following conditions: return air temp.: 80.6℉(27℃)DB,66.2℉(19℃)WB,and

outdoor temp.: 95℉(35℃)DB, equivalent ref. piping: 26.25ft(8m) (horizontal)

2. Nominal heating capacities are based on the following conditions: return air temp.: 68℉(20℃)DB, outdoor temp.: 44.6℉

(7℃)DB,42.8℉(6℃)WB, and equivalent ref. Piping: 26.25ft(8m)(horizontal)

MAN-S-4WC-1112 Four-way Cassette Type

3. Dimensions

Unit:in(mm)

The connective pipe

of restricted assembly

(accessories)

Φ75New air

supply orifice

Drain pipe outter diameter

2-5/32

(55)

37-13/32(950)

30-23/32(780)

37-13/32(950)

26-25/32(680)

4-1/8

(105)

33-1/16(840)

35-19/32(904)

2-3/4(70)

Refrigerant pipe orifice(Liquid side C)

Refrigerant pipe orifice(Air side D)

Indoor unit model

in(mm)

MDV-D28Q4/N1-D～ MDV-D45Q4/N1-D

9-1/16(230)

6-11/16(170)

1/4(Ф6.35)

1/2(Ф12.7)

MDV-D56Q4/N1-D～ MDV-D80Q4/N1-D

9-1/16(230)

6-11/16(170)

3/8(Ф9.53)

5/8(Ф15.9)

MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D

11-13/16(300)

7-15/32(190)

3/8(Ф9.53)

5/8(Ф15.9)

MAN-S-4WC-1112 Four-way Cassette Type

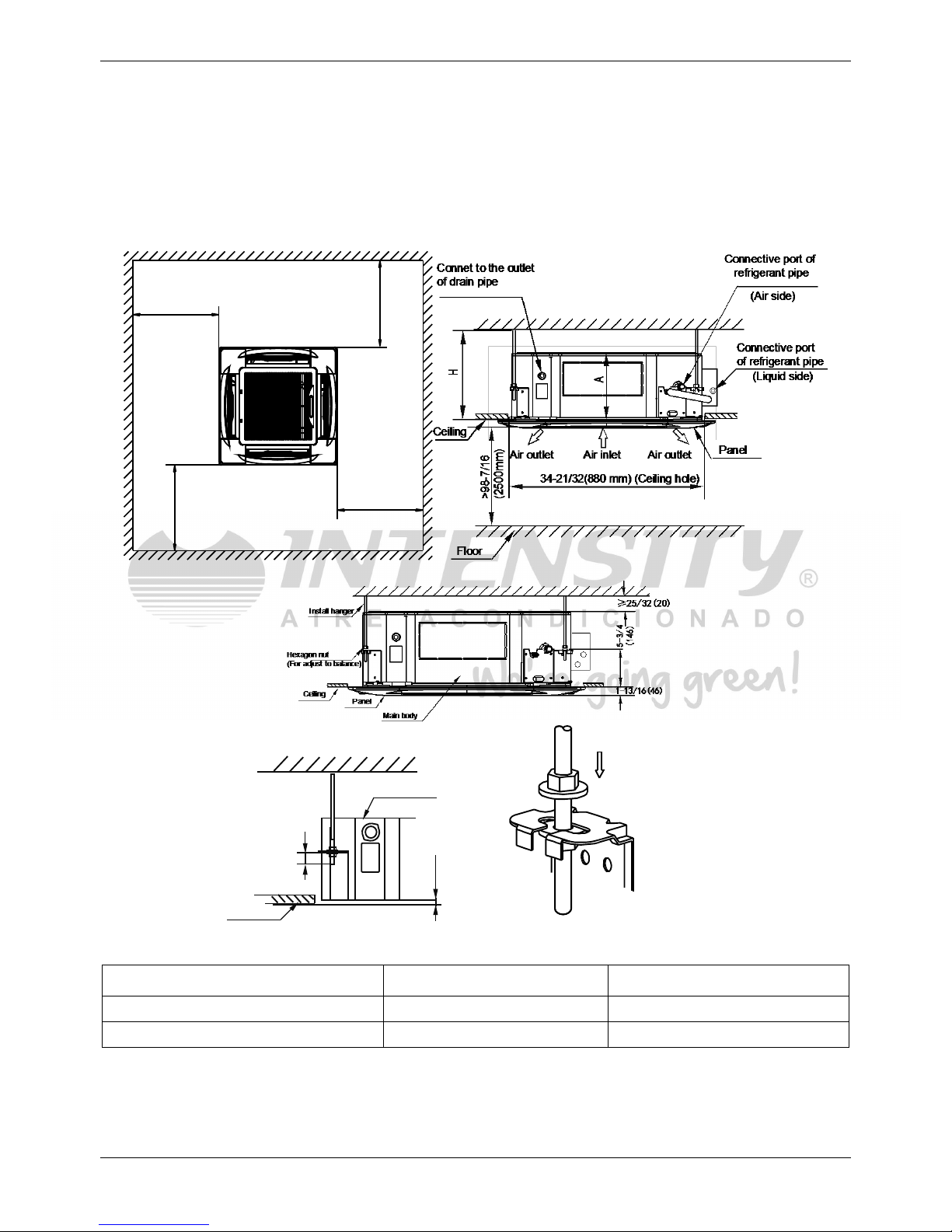

4. Service Space

1) There is enough room for installation and maintenance.

2) The ceiling is horizontal, and its structure can endure the weight of the indoor unit.

3) The outlet and the inlet are not impeded, and the influence of external air is the least.

4) The air flow can reach throughout the room.

5) The connecting pipe and drainpipe could be extracted out easily.

6) There is no direct radiation from heaters.

>39-3/8

(1000mm)

>39-3/8

(1000mm)

>39-3/8

(1000mm)

>39-3/8

(1000mm)

13/32～15/32

(10～12mm)

Main body of the unit

Ceiling

Unit: in(mm)

Indoor unit

in(mm)

MDV-D28Q4/N1-D～ MDV-D80Q4/N1-D

9-1/16(230)

≥10-1/4(260)

MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D

11-13/16(300)

≥13(330)

MAN-S-4WC-1112 Four-way Cassette Type

Otros manuales para MDV-D28Q4/N1-D

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de intensity

intensity

intensity BlackSeries DIVERSE MDVC-V28W/DHN1(At) Manual de usuario

intensity

intensity IDCE090KF-5 Manual de usuario

intensity

intensity IDCES180KF-5 Manual de usuario

intensity

intensity Black Series Manual de usuario

intensity

intensity MDV-D22G/N1-S Manual de usuario

intensity

intensity MINI VRF MDV-V105W/DVN1 Manual de usuario

intensity

intensity IPCC090KF-5 Instrucciones de funcionamiento

intensity

intensity IHWH-04KF-3 Manual de usuario

intensity

intensity IDUFCI12KC-3 Manual de usuario

intensity

intensity IDCC090KF-5 Manual de usuario

intensity

intensity IC4H-06KF-3 Manual de usuario

intensity

intensity MDV-V105W/DMN1 Manual de usuario

intensity

intensity IC4H-06KF-3 Manual de usuario

intensity

intensity MDV-D71T1/VN1-B Manual de usuario

intensity

intensity IDUFCI60KC-3 Manual de usuario

intensity

intensity MDV-D28Q4/N1-D Manual de usuario

intensity

intensity IC4H-04KF-3 Instrucciones de funcionamiento

intensity

intensity MKA-V1500F Manual de usuario

intensity

intensity MDVS-252(8)W/DDN1 Manual de usuario

intensity

intensity MDV-D28Q4/N1-D Manual de usuario

intensity

intensity IDUFCI18KC-3 Manual de usuario

intensity

intensity MDV-D36DL/VN1-C Manual de usuario

intensity

intensity BlackSeries MDVC-V28W/DHN1 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
