LEDA Video Door System
2-wire Series
Installation and User Manual
Digital 3.5 inch Monitor
TALK MENU MONITOR
1. Monitor Parts and Functions
2. Monitor Mounting
1. Use the screws to fix the Mounting Bracket on the wall
2. Hang the Monitor on the Mounting Bracket firmly
145~160 cm
Microphone
LCD Screen
LED Indicator
CALL Button
MONITOR Button
Direction Button
UNLOCK Button
TALK Button
MENU Button
Speaker
Mounting Hook
Connection Port
P
eripheral devices
DIP Switches
1 2 3 4 5 6
ON
TALK MENU MONITOR
-1-
3. Connection of Peripheral Devices
Door bell call button
SW+
SW-
EXT-RING
GND
VIDEO
External Ringer
- +
12Vdc 300mA
SW+
SW-
EXT-RING
GND
VIDEO
Television
video cable
SW+
SW-
EXT-RING
GND
VIDEO
Additional Door Bell can be connected according
the diagram below. There will be no video on the
monitor when this door bell used
3.2 Additional Ringer
Additional Ringer can be connected according the
diagram below. One ringer per video monitor. Locate a
ringer in a position where you are unlikely to hear the
ringing of the monitors like a garage, shed, garden or
porch
3.3 Connection To a TV
Each monitor can be connected to a TV with antenna
cable according the diagram below. The core of antenna
cable must be connected to the Video and the shield to
the GND. When the door station rings you don’t have to
walk to the monitor to see the visitor. Instead you can
watch the AV channel on the TV and see who is calling
3.1 Additional Doorbell
-2-
4. Cable Specification
Cable type
2 * 1.5 mm2
2 * 1.0 mm2
2 * 0.75 mm2
Max. distance(meters)
300
200
150
This system transmits video and audio through the power cable. It utilises a No-polarity connection.
Recommended cabling: Unscreened twisted pair multicore flex, speaker cable or CAT5/CAT6
5. Answering a Door Call
1. When the door station is rung, the Monitor comes
on with video
2. To start a conversation, press the TALK Button on
monitor. When you are finished, press the TALK
button again.The screen turns off automatically after 40
seconds
3. During talking state, Press UNLOCK Button
to open the door for the visitor
6. Basic Connection
door
station
BUS(IM) BUS(DS)
PC6
AC~
Doorbell
Button
Switch
1 2 3 4 5 6
ON DIP
TALK MENU MONITOR
-3-
7.2 User Setup and Restore to a Default
Select on main menu page to enter setup page,and then use / Button to move up / down to
select the User Setup, then press MENU Button to enter
the User Setup mode.You can adjust the ring tone, ring volume and restore to default
7. Setup Instructions
Intercom Call >
Inner Call >
Call Guard Unit >
Language >
User Setup >
About >
Exit
User Setup
Ring Tune
Ring Volume
Restore
Exit
User Setup
Ring Tune
Ring Volume
Restore
7.1 Language
Select Language on setup page, then press MENU button to enter the language page, and then use /
Button to move up / down to select the language you want. There are eight languages to choose from
When Monitor is in standby mode, press Menu button and
use to navigate between pages
-4-
8. Monitor ParametersSettings
Language >
User Setup >
About >

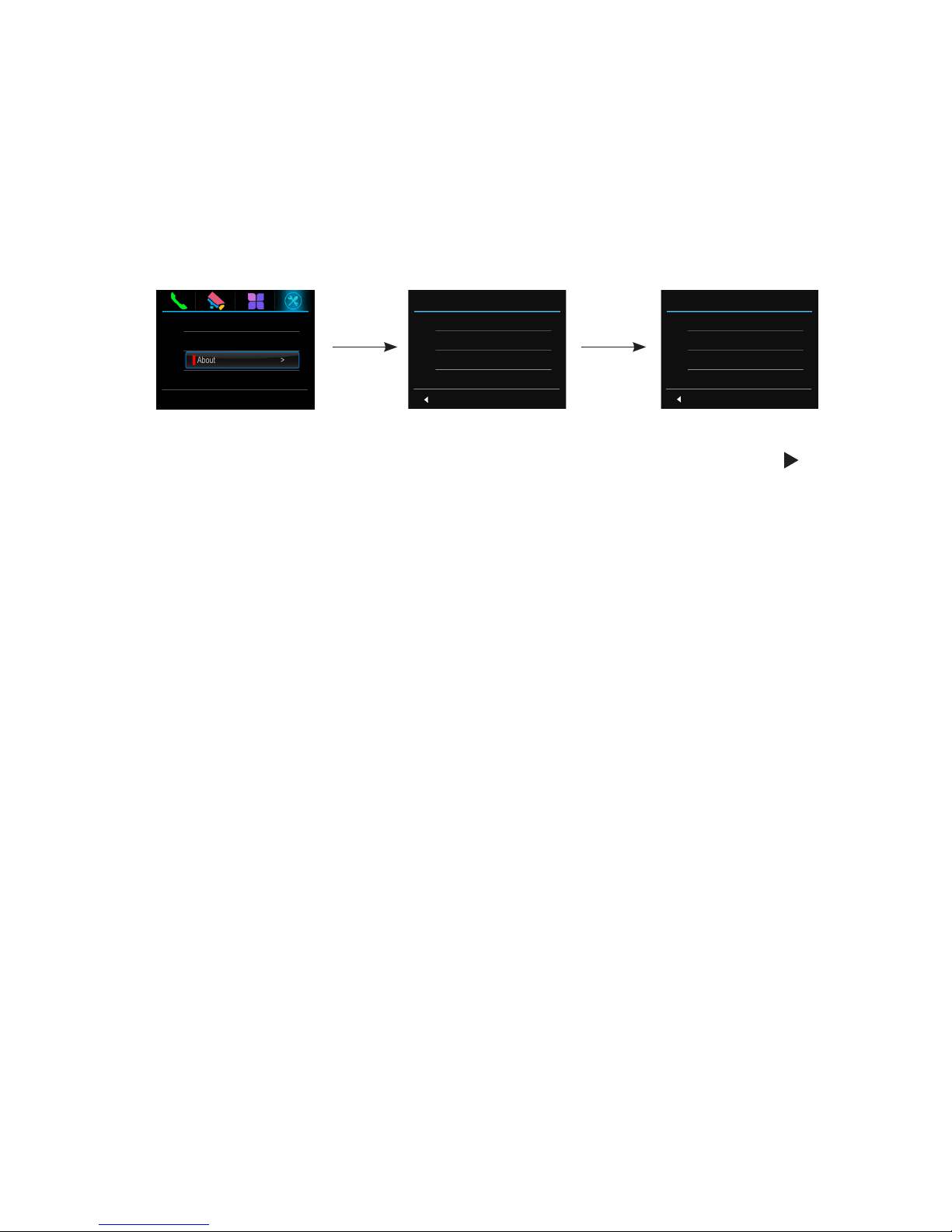

1.Select About and
press MENU Button to
confirm
2.Press UNLOCK button
and hold for 3seconds
3.Use / Button to increase
/ decrease the value; use
Button to select last/next digit.
Press MENU Button to confirm
Exit
About
H/W : a1.2
S/W : V01.01.01
Address :
00.00 Video STD :
AUTO
Exit
Installer Setup
[ 0000 ]
Master monitor - code 8000
Slave 1 - code 8001
Slave 2- code 8002
Slave 3- code 8003
Guard Monitor- code 8004, cancel Guard Monitor - code 8005
Power saving mode On - code 8006; Power saving mode Off - 8007 (default)
Unlocking mode for Power-on-to-Open locks - code 8010 (default)
Unlocking Mode for Power-off-to-Open locks - code 8011
One lock mode - 8014 (default)
Two locks mode - 8015
Unlocking time 1-9s - 8021-8029
-5-
How to enter parameter settings:
This is the page where the following Codes can be programmed
To activate second lock operation, input code 8015
To return to default (one lock operation), input code 8014
Electric Lock Release
If system connected to a lock, you can open the lock by touching UNLOCK Button
Default lock mode for Power-On-To-Open lock, code 8010
Change lock mode for Power-Off-To-Open lock by inputting code 8011
Remember to set unlocking time by inputting codes 8021-8029 for times 1-9 seconds
accordingly
Operating One/Two Locks
DS-1 00:15

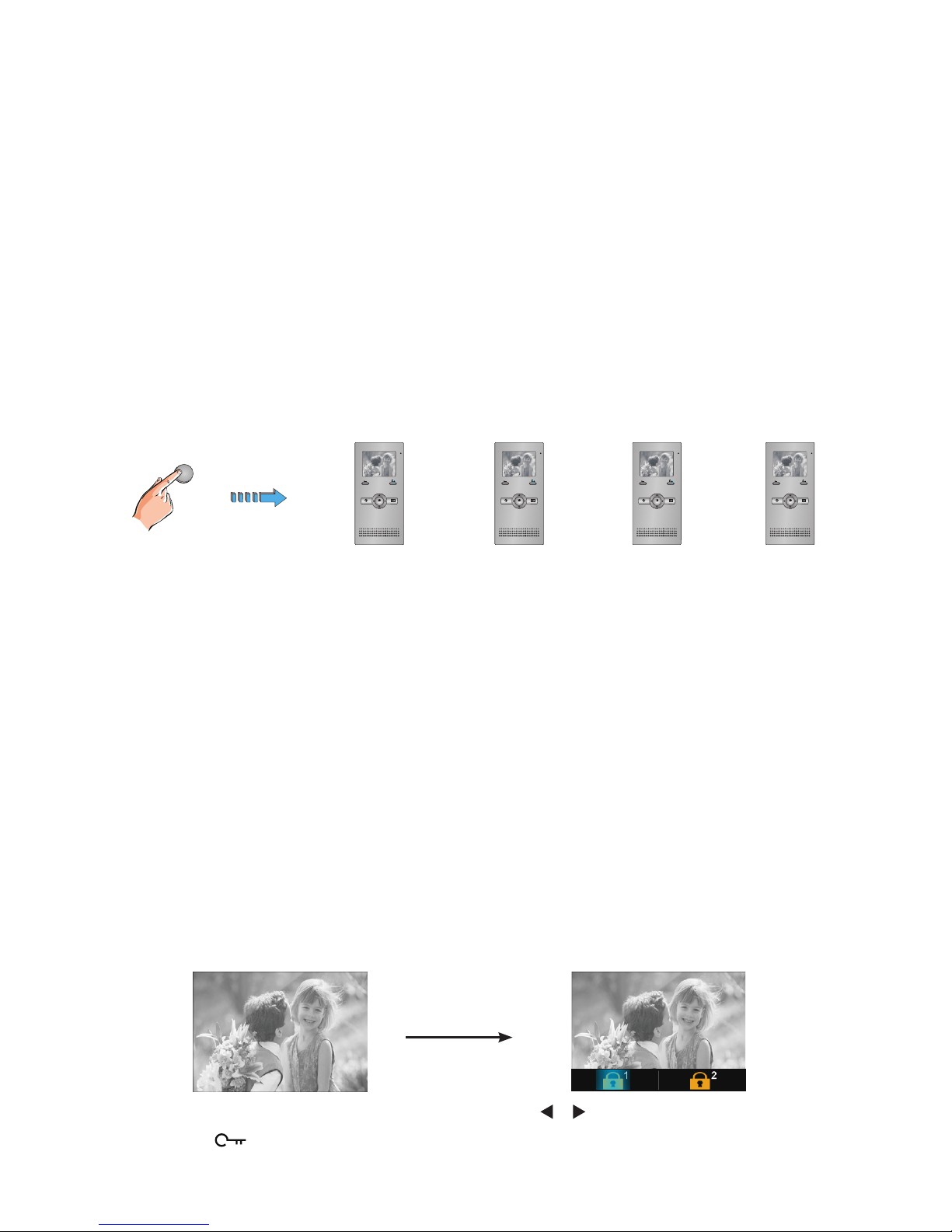

1.During talking or monitoring
press UNLOCK button
DS-1 00:15
2.Use / button to select the lock you want, and press
MENU button to release the corresponding lock
All monitors ring with video- power saving mode is turned Off
TALK MENU MONITOR TALK MENU MONITOR TALK MENU MONITOR TALK MENU MONITOR
Power Saving Mode On/Off
By default the system is set to power saving mode, where only the first monitor
with User Code 0 comes On with video when door staition called. All the other
monitors will ring but without video. Video is transferred to the monitor which
answers the call. To switch power saving mode off: (so all monitors rings with
video) input code 8006 on all monitors (except the first one)
-6-
ON(1)
=
OFF(0)
=
ON
ON
ON 1 2 3 4 5 6
DIP state User Code DIP state User Code DIP state User Code
1 2 3 4 5 6
ON
Code=1
1 2 3 4 5 6
ON
Code=12
1 2 3 4 5 6
ON
Code=23
1 2 3 4 5 6
ON
Code=2
1 2 3 4 5 6
ON
Code=13
1 2 3 4 5 6
ON
Code=24
1 2 3 4 5 6
ON
Code=3
1 2 3 4 5 6
ON
Code=14
1 2 3 4 5 6
ON
Code=25
1 2 3 4 5 6
ON
Code=4
1 2 3 4 5 6
ON
Code=15
1 2 3 4 5 6
ON
Code=26
1 2 3 4 5 6
ON
Code=5
1 2 3 4 5 6
ON
Code=16
1 2 3 4 5 6
ON
Code=27
1 2 3 4 5 6
ON
Code=6
1 2 3 4 5 6
ON
Code=17
1 2 3 4 5 6
ON
Code=28
1 2 3 4 5 6
ON
Code=7
1 2 3 4 5 6
ON
Code=18
1 2 3 4 5 6
ON
Code=29
1 2 3 4 5 6
ON
Code=8
1 2 3 4 5 6
ON
Code=19
1 2 3 4 5 6
ON
Code=30
1 2 3 4 5 6
ON
Code=9
1 2 3 4 5 6
ON
Code=20
1 2 3 4 5 6
ON
Code=31
1 2 3 4 5 6
ON
Code=10
1 2 3 4 5 6
ON
Code=21
1 2 3 4 5 6
ON
Code=32
1 2 3 4 5 6
ON
Code=11
1 2 3 4 5 6
ON
Code=22
End of line settingswith DIP 6
DIP state Setting DIP state Setting
1 2 3 4 5 6
ON
Monitor not at
the end of the
line
1 2 3 4 5 6
ON
Monitor at
the end of
the line
-7-
User Code/Address Setup via DIP Switches
In Apartment Systems, every apartment must have a unique User Code
In House systems, programming via DIP switches should be used when the
intercom call function is chosen as default
•DIP switches 1-6 settings for up to 32 User codes in the Tables below
•DIP 6 determines the end of line. It must be set ON if the Monitor is at the end of
the line
10. Manual Monitoring Function
Monitor >
Monitor Doors >
Monitor Cameras >
Monitor Time >
-8-
Such adjustments can be made in Manual monitoring state.
Press MONITOR button and then MENU button. Navigate to the Sceen,
Brightness and Talk Volume and set desired values. Press MONITOR button to
save new settings. Press MENU button to exit
DS-1 00:15
Brightness 5
When the monitor is in standby mode, press
MENU Button to enter main menu page. Use /
button to move left/right to select the , then use
the / Button to move up/down, press MENU
Button to select
9. Image and Volume Adjustments
1. Monitor: manual monitoring of door station number 1
2. Monitor Doors: if multiple door stations are installed, you can choose
specific door station for manual monitoring. Up to 4 Door Station can be
connected and monitored
3. Monitor Cameras: if system has CCTV cameras connected with SCU
CCTV Interface, they can be selected for viewing manually. Up to 4 CCTV
cameras can be connected with 2 x SCU CCTV Interfaces
4. Monitor Time: Set monitoring time: how long monitor will stay On.
Maximum 10 min
11. Intercom Function
When multiple monitors are installed, Intercom function between
all monitors in the system becomes available.
There are 3 Intercom functions to choose from:
Intercom Call >
Inner Call >
Call Guard Unit >
Intercom Call
[01] Mr A
[02] Mr B
[03] Mr C
[04] Mr D
Exit Dial
1. Intercom Call: Allows to call one specific monitor at the
time in House system or to call other
apartments in Apartments system. All monitors should be
programmed with unique User codes/ Addresses with
DIP switches. See‘User Codes Tables’on page
2. Inner Call: All Monitors in the House system will ring at the same time. When one of the
Monitors answers the call, all other monitors will stop ringing. In Apartments system
can be used if multiple monitors has been installed in one of the apartments. All monitors
should be programmed with same User code. In addition one monitor should be programmed as
Master and other as slaves
3. Call Guard unit: Applicable only for Apartments system if there is a concierge which has a Monitor.
Apartment can call the concierge or concierge can call any apartment in the system
How to set the monitor as a Guard Monitor
-9-
Code 8004 is used to set the monitor as a guard unit monitor
Code 8005 is used to cancel this function
