Intel® Server System R1000EP Family

Quick Installation User's Guide

* 3.5" hard drive bay system as shown

(This page is intentionally left blank.)

Table of Contents

General Installation Process ........................................................................................................ 2

Reference ............................................................................................................................................ 11

System Overview .............................................................................................................................. 1

Preparing the System ...................................................................................................... 2

Remove the Top Cover .................................................................................................... 2

Remove the Air Duct ........................................................................................................ 2

Remove Processor Heatsink(s) ................................................................................... 2

Install the Processor(s) .................................................................................................. 3

Install Processor Heatsink(s) ....................................................................................... 4

Install Memory Modules .................................................................................................. 4

Install Hard Drives .............................................................................................................. 5

Install Optical Drive ............................................................................................................ 7

Install the Air Duct ............................................................................................................. 7

Remove Add-in Card Riser Assembly ...................................................................... 7

Install Add-in Card(s) ......................................................................................................... 7

Install Add-in Card Riser Assembly ........................................................................... 8

Install Rack Handles .......................................................................................................... 8

Install Intel® I/O Expansion Module (optional) ..................................................... 8

Install Intel® RAID C600 Upgrade Key (optional) ............................................... 8

Install Intel® RAID Smart Battery (optional) ......................................................... 8

Replace Power Supply Module (optional) .............................................................. 9

Install Bezel (optional) ...................................................................................................... 9

Install the Top Cover ........................................................................................................... 9

Finishing Up ............................................................................................................................. 9

Software ............................................................................................................................... 10

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product to be

performed only by

qualified service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and

configuration guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of

time. Doing so may affect long term reliability of the system.

• The CPU-1 processor + CPU heatsink must be installed first. The CPU-2 heatsink must be installed at all times,

with or without a processor installed.

• Memory Slot population requirements:

NOTE: Specified memory slots either can be populated with a DIMM or supplied DIMM Blank. Memory population

rules apply when installing DIMMs.

▪ DIMM Population Rules on CPU-1

Install DIMMs in order; Channels A, B, and C. Start with 1st DIMM slot (blue) on each channel, then slot 2.

▪ DIMM Population Rules on CPU-2

Install DIMMs in order; Channels D, E, and F. Start with 1st DIMM slot (blue) on each channel, then slot 2.

• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied

drive blank.

• The air duct must be installed at all times.

• The system top-cover must be installed at all times.

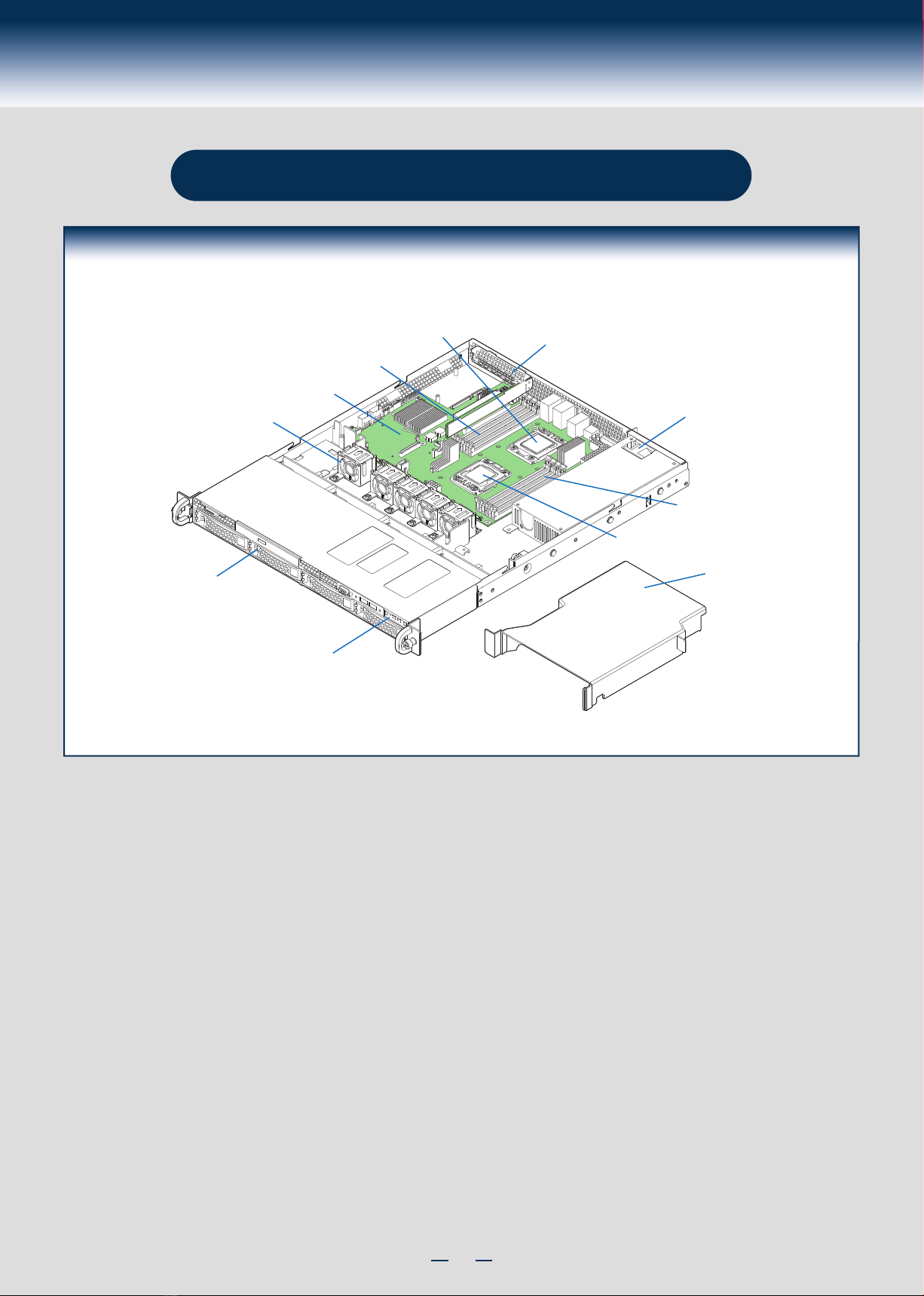

System Overview

Hot Swap

Hard Drive Bays

CPU2

CPU1

Air Duct

Front Control Panel

PCI Riser

Power Supply

Server Board

System Fans

CPU2

Memory Slots

CPU1

Memory Slots

System Features and Components

* 3.5" Hard Drive Bay system as shown

Intel® Server System R1000EP Family

Useful Information:

• The SCU1 (4-7) port requires an Intel® RAID C600 Upgrade Key installed to be functional.

General Installation Process

The installation instructions in this section are for common components of Intel® Server System

R1000EP family.

Minimum Hardware Requirements

•Memory Type:

Minimum of one 512MB DDR3 800/1066/1333 MHz UDIMM or one 1GB

DDR3 800/1066/1333 MHz RDIMM.

•Processor:

Intel® Xeon® processor E5-2400 product family.

•Hard Disk Drives: SATA

For a complete list of compatible processors, heatsinks, and memory, see

http://www.intel.com/support.

To avoid integration difﬁculties and possible board damage, your system must

meet the following minimum requirements:

Preparing the System

Observe normal ESD (Electrostatic Discharge)

procedures.

Place your Intel®Server System on a ﬂat anti-static

surface to perform the following integration procedures.

Observe ESD procedures before reaching inside to make

server board connections or install components.

Remove the Top Cover

Remove the four screws.

Slide cover back and lift upward.

IMPORTANT!

Before proceeding

further, check your

Intel®Server System

for disconnected or

loose cables and

components that

may have occurred

during shipping.

Remove the Air Duct

Remove the air duct by

lifting straight up.

Remove Processor Heatsink(s)

The heatsink is attached to the server board/processor socket with captive fasteners.

Lift the heatsink straight up.

CAUTION: The heatsink has thermal interface material (TIM) on the bottom

side of it. Use caution so that you do not damage the thermal interface

material. Use gloves to avoid sharp edges.

Using a #2 Phillips* screwdriver, loosen the four screws located on the

heatsink corners in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by

giving it two rotations and stop. (IMPORTANT: Do not fully loosen.)

Proceed to screw 2 and loosen it by giving it two rotations and stop.

Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each screw two rotations each time

until all screws are loosened.

TIM

Chassis Front

General Installation Process

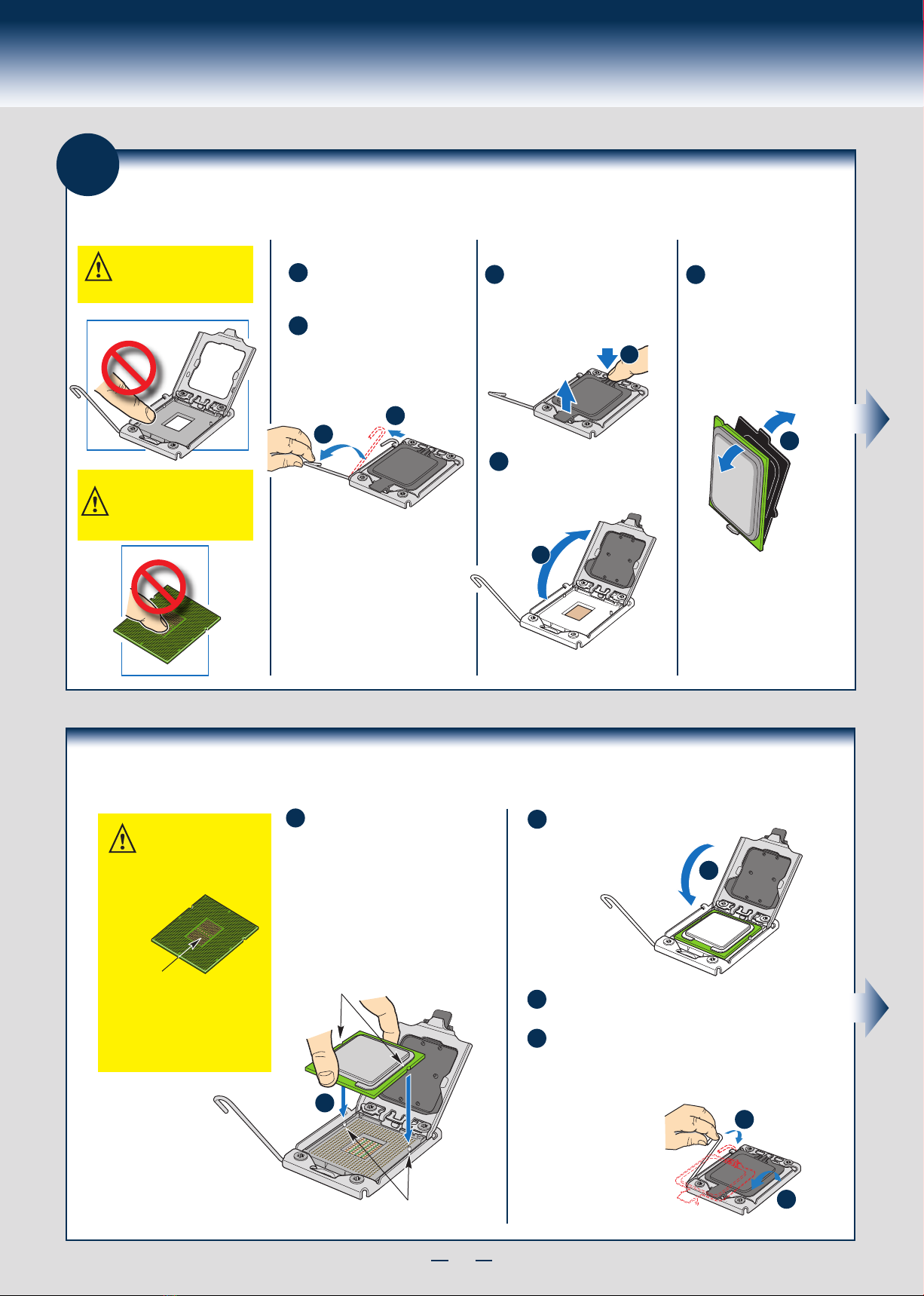

5Install the Processor(s)

Cautions:

1. When opening a socket,

DO NOT TOUCH the

golden socket wires.

A. Open the

Socket Lever

Rotate the lever open

all the way.

B. Open the

Load Plate

Open the load plate

as shown.

Push the lever handle

down and away from the

socket to release it.

Push the rear tab with your

ﬁnger tip to bring the front

end of the load plate

up slightly.

Remove the Processor

Protective Cover

2. When unpacking a

processor, hold only by the

edges to avoid touching the

golden contact wires.

Take the processor

out of the box and

remove the protective

shipping cover.

Install the Processor(s) ... continued

E. Close Load Plate and Socket Lever

Close the socket lever and ensure that

the load plate tab engages under the

socket lever when fully closed.

With your ﬁnger, push down on the

load plate as shown.

D. Install the Processor

CAUTION: The bottom

side of the processor has

components that may damage

the socket wires if installed

improperly.

DO NOT DROP processor

into the socket!

Processor must align

correctly with the socket

opening before installation.

Components

Orient the processor with the

socket so that the orientation

notches onthe processor align

with the two orientation posts

on the socket.

Install the processor as shown.

Orientation Posts

Orientation Notches

Close the load plate all

the way as shown.

General Installation Process

7Install Memory Modules

DDR3 DIMM Memory Identiﬁcation:

Other

Memory

DDR3

CAUTION: Observe normal ESD (ElectroStatic

Discharge) procedures to avoid possible damage to

system components.

DIMM notch and socket bump must align as shown below.

6Install Processor Heatsink(s)

NOTE: Heatsink styles may vary.

Remove the protective ﬁlm on the TIM if present.

CAUTION: The heatsink has thermal interface

material (TIM) on the bottom side of it. Use caution so

that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

BAlign heatsink ﬁns to the front and back of

the chassis for correct airﬂow.

Airﬂow goes from front-to-back of chassis.

Each heatsink has four captive fasteners and

should be tightened in a diagonal manner using

the following procedure:

Using a #2 Phillips* screwdriver,

start with screw 1 and engage screw

threads by giving it two rotations

and stop. (Do not fully tighten.)

Proceed to screw 2 and engage screw

threads by giving it two rotations and

stop. Similarly, engage screws 3 and 4.

Repeat steps Cand Dby giving each

screw two rotations each time until

each screw is lightly tightened up to

a maximum of 8 inch-lbs torque.

AIRFLOW

Chassis Front

TIM

CAUTION:

Do not

over-tighten

fasteners.

DIMM_C2

DIMM_C1

DIMM_B1

DIMM_A1

DIMM_D1

DIMM_E1

DIMM_F1

DIMM_F2

CPU 2 Socket

CPU 1 Socket

Install Memory Modules ... Continued

Memory Conﬁgurations and Population Order:

Intel® Server Board S2400EP

For best performance, a minimum of four DIMMs per CPU is recommended, populated in the blue slot of each memory channel.

In a single-processor conﬁguration, always populate A1 DIMM ﬁrst.

In a dual-processor conﬁguration, always populate A1 DIMM ﬁrst for CPU 1 and D1 DIMM ﬁrst for CPU2.

NOTE: For additional memory conﬁgurations, see the Service Guide on the Intel®Server Deployment & Management DVD that accompanied your Intel®

Server System, or go to http://www.intel.com/support.

Memory sizing and conﬁguration is supported only for qualiﬁed DIMMs approved by Intel. For a list of supported memory, go to

http://serverconﬁgurator.intel.com.

General Installation Process

Install Memory Modules ... Continued

To Install DIMMs:

Open both DIMM socket levers.

Note location of alignment notch.

CAUTION: Avoid touching contacts

when handling or installing DIMMs.

IMPORTANT! Visually check that each latch is fully closed and correctly engaged with

each DIMM edge slot.

Push down ﬁrmly on the DIMM until it snaps into place and both levers close.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

2.5" HDD

8Install

Hard Drives

2.5" Hard Drive Carrier (For system with 2.5" hard drive bay only)

Hard Drive Numbering Diagram

Drive 0 Primary

8 x 2.5" hard drive bay as shown

Remove the drive carrier by pressing the

green

latch

to unlock.

Pull out the black lever and slide the carrier out.

Remove the four screws securing the plastic drive blank

from the 2.5" HDD carrier.

Disengage the plastic drive blank from the HDD carrier.

Remove the plastic drive blank from the 2.5" HDD carrier.

Install the hard disk drive using the four screws as shown. Make Sure

the connector end of the drive matches the backplane connector.

With the lever open, insert the hard disk drive assembly into the chassis,

then push in the lever to lock it into place.

CAUTION: If you don't install

all drives, empty drive bays

must be occupied by carriers

with plastic drive blank

provided to maintain proper

system cooling.

General Installation Process

2.5" HDD

Install

Hard Drives ... Continued

3.5" Hard Drive Carrier (For system with 3.5" hard drive bay only)

Hard Drive Numbering Diagram

Drive 0 Primary

Remove the drive carrier by pressing the green button and opening

the lever.

Slide the carrier out.

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

Remove the four screws securing the HDD interface bracket and remove

the HDD interface bracket.

Install 2.5" Hard Drive as option:

3.5´´ HDD

Install the hard disk drive using the same four screws as shown. Make

sure the connector end of the drive matches the backplane connector.

With the lever open, insert the hard disk drive assembly into the chassis.

Push in the lever to lock it into place.

4 x 3.5’’ hard drive bay as shown

CAUTION: If you don't install

all drives, empty drive bays

must be occupied by carriers

with plastic drive blank

provided to maintain proper

system cooling.

d1 d4

d2 d3

Install the HDD interface bracket

from top. Secure the bracket with

three screws as shown.

Slide the 2.5" HDD into the

bracket to align the screw holes

with the right and left rail.

Break off the tab on the

HDD interface bracket.

Secure the hard disk drive using

the four screws for 2.5" HDD.

Bottom

View

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

0 1 2 3

Otros manuales para R1000EP series

Tabla de contenidos

Otros manuales de Servidor de Intel

Intel

Intel R1000SPO series Manual de usuario

Intel

Intel SR1530CLR - Server System - 0 MB RAM Manual de usuario

Intel

Intel A1U2ULCP Guía de configuración

Intel

Intel MFSYS25V2 Manual de usuario

Intel

Intel MFSYS25V2 Manual de usuario

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel ISP2150 2U Manual de usuario

Intel

Intel SR870BH2 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel SR1520ML - Server System - 0 MB RAM Manual de usuario

Intel

Intel JBOD 2000 Family Manual de usuario

Intel

Intel ISP4400 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel R2000SC Manual de usuario

Intel

Intel SBXD132 - Server Compute Blade Manual de usuario

Intel

Intel SBX82 - Server Compute Blade Manual de usuario

Intel

Intel SPSH4 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel E80367-001 Manual del propietario

Intel

Intel SE7501BR2 - Server Board Motherboard Guía de configuración rápida

Intel

Intel SRPL8 Manual de usuario

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Manual de usuario

Intel

Intel NSW1U - IP Network Server Guía de referencia

Intel

Intel SR1435VP2 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel MFSYS25V2 Manual de usuario

Intel

Intel TIGH2U - Carrier Grade Server Instrucciones de funcionamiento y seguridad

Intel

Intel P4308CP4MHEN Manual de usuario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
