Intel P4000RP Manual de usuario

Thank you for buying an Intel® Server System. The following information will help you

assemble your Intel®Server System and install components.

If you are not familiar with ESD [Electrostatic Discharge] procedures used during

system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/p/en_US/support.

Intel® Server System P4000RP Family

Quick Installation User's Guide

G85600-002

(This page is intentionally left blank.)

Table of Contents

General Installation Process ........................................................................................................ 3

System Overview .............................................................................................................................. 1

Preparing the System ....................................................................................................... 3

Remove the Side Cover ................................................................................................... 3

Install the Processor ....................................................................................................... 3

Install Active Heat Sink .................................................................................................... 4

Install DIMM Memory Modules ..................................................................................... 5

Install Tool-less CD-ROM or DVD-ROM Drive ........................................................ 6

Install Hard Drive ................................................................................................................. 6

Install PCI-e Card Assembly ........................................................................................... 7

Install Intel® Remote Management Module 4 NIC (optional) ....................... 7

Install RMM4 EMI Cover (optional) ............................................................................. 8

Install Alternate Serial Port (optional) ..................................................................... 8

Install Intel® RAID Smart Battery (optional) ...................................................... 9

Install Second Power Supply Module (optional) .............................................. 9

Install Side Cover .................................................................................................................. 9

Finishing Up ............................................................................................................................. 9

Install Software ................................................................................................................. 10

HDD Cage Cable Connection ...................................................................................... 11

Front Panel Controls and Indicators ...................................................................... 12

Cable Routing Diagram .................................................................................................. 12

Reference ............................................................................................................................................ 11

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Installation and service

of this product to be

performed only by

qualified service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Warning Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Flat Blade

screwdriver

Intel®is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and configuration

guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time. Doing so

may affect long term reliability of the system.

•DIMM Population on CPU: Install DIMMs in order; Channels A, and B. Start with 1st DIMM slot (blue) on each

channel.

•All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied drive blank.

•In single power supply configurations, the second power supply bay must have the supplied filler blank installed at all times.

• The system top-cover must be installed at all times.

System Overview

Intel® Server System P4308RPLSHDR

System Features and Components

460W Hot Swap Power Supply (Two)

I/O Ports

A Kensington* Cable Lock Mounting Hole

PCI Add-in Board Slot Covers

AC Input Power Connector (Two)

Alternate Serial Port Knockout

RMM4 Knockout

Padlock Loop

Alternate RMM4 Knockout

Active Heatsink

5.25" Peripheral Bays

Front Control Panel

8 x 3.5" Hot-swap HDD Cage

System Fan

Server Board

System Overview

0123

4567

Hot Swap Hard Drive

Bay Options and

HDD Numbering

8 x 3.5" Hot-Swap Drive Cage

General Installation Process

The installation instructions in this section are for general components of Intel® Server System

P4000RP family.

Minimum Hardware Requirements

■ Processor

■ Heat Sink

■ Memory

■ Hard Disk Drives

■ Power

To avoid integration difficulties and possible damage to your system,

make sure you have components from each category below.

Preparing the System

Observe normal ESD (Electrostatic Discharge) procedures.

Place your Intel®Server System on a flat anti-static

surface to perform the following integration procedures.

Observe ESD procedures before reaching inside to make

server board connections or install components.

Remove the Side Cover

Remove the screws.

NOTE:

A non-skid surface or a stop behind the chassis may be needed to prevent the

chassis from sliding on your work surface.

Slide the side cover back and lift the cover outward to remove it.

3Install the Processor

Cautions:

When removing the protective

cover, DO NOT TOUCH the

gold socket pins.

When unpacking a processor,

hold by the edges only to avoid

touching the gold contact pins.

To avoid damage, DO NOT

DROP the cover onto the

socket pins or components.

A. Open the Socket Lever

Push the lever

handle

down

and away

from the socket

to release it.

Rotate the lever

open all the way.

B. Open the Load Plate

C. Unpack the Processor

Open the load

plate as shown.

Carefully remove

protective cover

as shown.

Save the

protective

cover.

General Installation Process

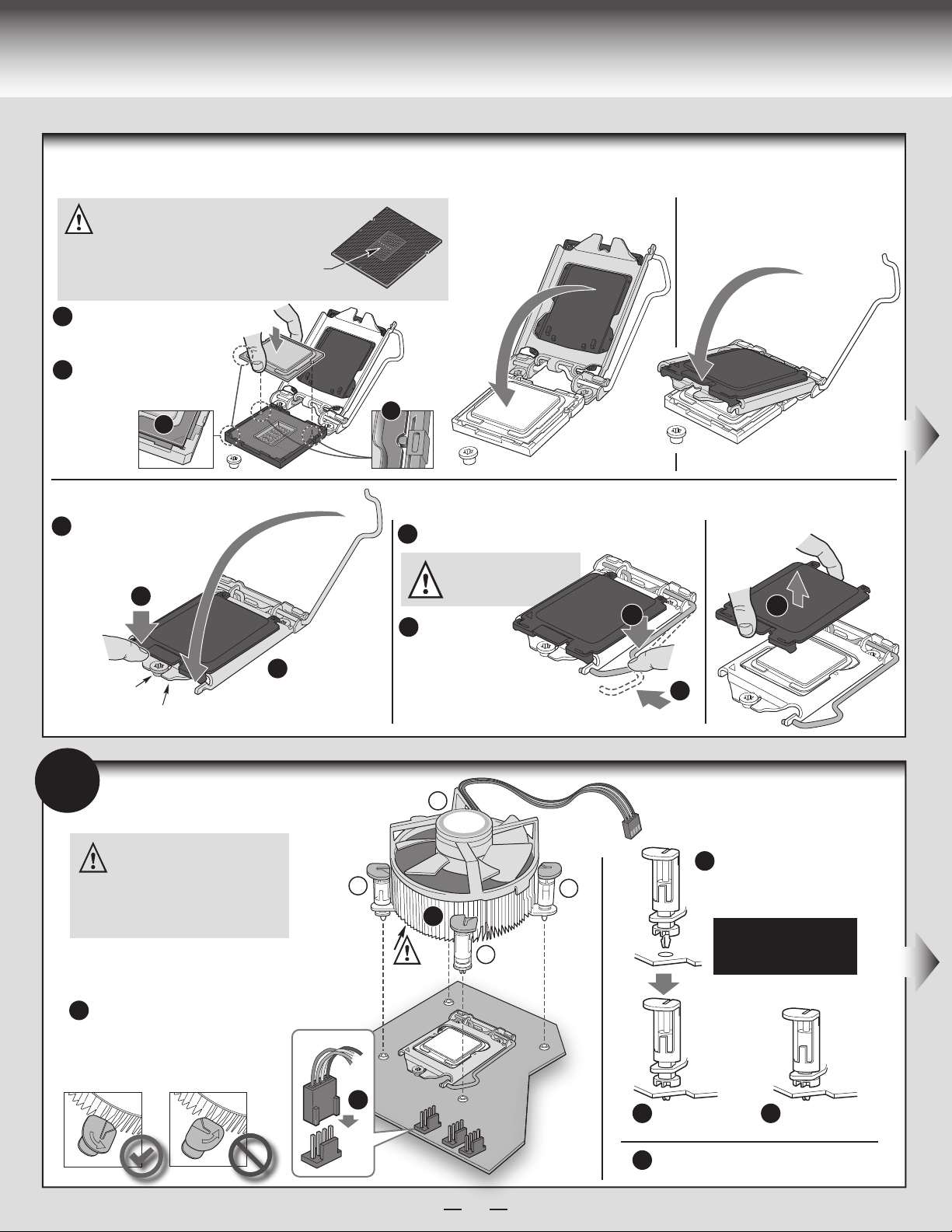

Install the Processor ... continued

Components

CAUTION: The underside of the processor has components

that may damage the socket wires if installed improperly.

Processor must align correctly with the socket opening

before installation.

DO NOT DROP processor into socket!

Orient the processor with the socket

so that the processor cutouts match

the two socket pins.

Note location of gold key at

corner of processor.

Install the Processor

Carefully lower the load plate

over the processor.

E. Close the Load Plate

Carefully lower the load plate

over the processor.

Make sure the front edge

of the load plate slides

under the shoulder screw

as the lever is lowered.

Close the load

plate locking

lever.

Load Plate

Front Edge

Shoulder

Screw

F. Engage the Load Plate

Push down on the locking lever.

Slide the tip of

the lever under

the notch in the

load plate. Make sure the

lever is securely latched.

CAUTION: DO NOT damage the

server board with the tip of the

locking lever.

Save the

protective

cover.

Remove the Cover

Carefully lift the cover straight up

as shown.

G. Latch the Locking Lever

4Install Active Heat Sink

Align heat sink with holes

in board and lower assembly

to board. Snaps go through

holes in server board.

Press downward

on top of cap.

Plug the fan cable into the CPU fan header.

Fastener snaps

into final position.

Repeat B-D for each

fastener in the numerical

order shown at left.

Make sure the screwdriver slot at

the top of each fastener is rotated

perpendicular to the blades of

the heat sink as shown.

Use the following procedure to install an

active heat sink to your server board:

CAUTION: The heat sink has

thermal interface material (TIM) on

the underside of it. Use caution so

that you do not damage the thermal

interface material. Use gloves to

avoid sharp edges.

Note: Heatsink

styles may vary

TIM

General Installation Process

Other

Memory

DDR3

5Install DIMM Memory Modules To Install DIMMs:

DDR3L DIMM Memory Identiﬁcation:

Open both DIMM socket levers.

Note location of alignment notch.

DIMM

notch and

socket

bump must

align as

shown.

This server board supports up to 4 DDR3L 1333/1600 ECC UDIMM.

Non-ECC memory is NOT supported by this server board.

CAUTION: Observe normal ESD (ElectroStatic Discharge) procedures

to avoid possible damage to system components.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

Push down firmly on the DIMM until it snaps into place and both levers close.

IMPORTANT! Visually check that each latch is fully closed

and correctly engaged with each DIMM edge slot.

CAUTION: Avoid touching contacts when handling or installing DIMMs.

Install DIMM Memory Modules... Continued

Intel®Server Board S1200V3RPL

Note: For additional memory conﬁgurations, see the Service Guide on the

Intel®Server Deployment & Management DVD that accompanied

your Intel®Server System, or go to:

http://www.intel.com/p/en_US/support/ (post-production)

Memory sizing and conﬁguration is supported only for qualiﬁed DIMMs approved by

Intel®. For a list of supported memory, go to:

http://serverconfigurator.intel.com/sct_app.aspx (post-production)

For the best performance, a minimum of two DIMMs is recommended, populated

in the blue slot of each memory channel.

DIMM_A2

DIMM_A1

DIMM_B2

DIMM_B1

CPU Socket

General Installation Process

3.5" Hot-Swap Hard Drive Carrier

Open the Hot-swap door and

remove the drive carrier by

pressing the green button and

opening the lever.

Slide the carrier out.

Remove the four screws securing the

HDD interface bracket and remove the

HDD interface bracket.

Install the hard disk drive using the same four

screws as shown. Make sure the connector

end of the drive matches the backplane

connector.

CAUTION: If you don’t install all drives,

empty drive bays must be occupied by

carriers with plastic drive blank

provided to maintain proper system cooling.

With the lever open, insert the

hard disk drive assembly into the

cage opening and push until the

locking lever engaged.

Push in the lever to lock it into

place, then close the door.

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

3.5´´ HDD

7Install Hard Drive

6Install Tool-less CD-ROM or DVD-ROM Drive

Attach slides to the DVD or CD-ROM drive

by pressing the slides firmly into the side

dimples on the DVD or CD-ROM drive.

Get the slides from the

chassis side.

Insert the drive/slide assembly

into the device bay until the

slides lock into place.

Press the release latch and use

the finger holes to Pull out the

EMI shield.

Finger Holes

Tabla de contenidos

Otros manuales de Servidor de Intel

Intel

Intel S5500BC Guía

Intel

Intel SR1630GP - Server System - 0 MB RAM Manual de usuario

Intel

Intel A2400SATAKIT2 Manual de usuario

Intel

Intel SR870BH2 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel SRPM8 Manual de usuario

Intel

Intel SR2612UR - Server System - 0 MB RAM Manual del propietario

Intel

Intel R1000SP Manual de usuario

Intel

Intel AXX6DRV3GEXP Manual de usuario

Intel

Intel TSRMT2 Manual de usuario

Intel

Intel TIGH2U - Carrier Grade Server Instrucciones de funcionamiento y seguridad

Intel

Intel R2000WT Guía de configuración rápida

Intel

Intel SPSH4 - Server Platform - 0 MB RAM Guía de configuración

Intel

Intel SC450NX - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel P4304SC2SFEN Manual de usuario

Intel

Intel MFSYS25 - AXXPSU 1000W Power Supply Module Manual de usuario

Intel

Intel SBX44 - Server Compute Blade Manual de usuario

Intel

Intel SR1670HV - Server System - 0 MB RAM Manual de usuario

Intel

Intel SR9000MK4U - Server System - 0 MB RAM Guía del usuario

Intel

Intel SC5650BCDP Guía de configuración

Intel

Intel SC5300 Manual de usuario

Intel

Intel H2312JFJR Manual de usuario

Intel

Intel M50FCP2UR Manual de usuario

Intel

Intel P4304BT series Manual de usuario

Intel

Intel SBCE Manual de usuario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
