Intel®Server Board S3000PT
Spares/Parts List and Configuration
Guide – for Production Products
A reference guide to assist customers in ordering the Intel® Server Board S3000PT
~Subject to Change without Notice~
Rev 1.1 – Production Version
December, 2006
INTEL©
2
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR
INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products
are not intended for use in medical, life saving, life sustaining applications.
Intel may make changes to specifications6 and product descriptions at any time, without notice.
Intel server boards, server chassis, and processors may contain design defects or errors known as errata,
which may cause the product to deviate from published specifications. Current characterized errata are
available upon request.
Intel, Intel Xeon, Pentium, and the Intel logo are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2006,Intel Corporation
INTEL©
3
A. Product Description
S3000PT Board Description
The Intel® Server Board S3000PT is available in three SKUs. All SKUs are identical with the exception of the
power connector.
BPTVBB features an 18-pin vertical power connector that allows short depth chassis configurations. This is an
OEM 10-pack product.
BPTHBB features a flanged horizontal power connector that enables blind mating of the board into a corresponding
power plug and keeps the power cord out of the airflow. This is an OEM 10-pack product.
S3000PTH is simply the horizontal SKU board in a convenient 4-pack.
Note: None of the SKUs come with software, cables, I/O shields or any accessories. They are dependent on the
specific implementation and the chassis vendor will typically provide the I/O shield, risers, and cables that are unique
to that design.
Listed below are the common features for both the BPTVBB, BPTHBB, and S3000PTH SKUs
•New 6x13” form factor that enables 2 servers per 1U chassis.
•Intel® 3000 Chipset with up to 1066MHz system bus
•Support for DDR2 memory (533/667, un-buffered ECC or non-ECC)
•Support for the Intel® Core™2 Extreme Quad Core Processor, Dual-Core Intel® Xeon® processor 3000
Sequence, Intel® Pentium® D processor, Intel® Pentium® 4 processor, and Intel® Celeron® processor in the
LGA-775 socket
•Dual integrated Intel® Gigabit Ethernet Controllers
oIntel® 82573E and Intel® 82573V Ethernet Controllers. The 82573E support Intel® Active Management
Technology for basic out of band management capabilities
•Integrated 2-port 3.0Gbps SATA – with support for RAID levels 0, 1
•Small form factor 18 pin power connector (horizontal or vertical orientation depending on SKU)
B. S3000PT – Production Order Codes
S3000PT Board SKUs
Product Code MM# UPC Description Qty
Per
BPTHBB 888000 00735858189941
OEM 10-pack of Intel® Server Board S3000PT
(HORIZONTAL POWER CONNECTOR) 4 DDR2
DIMMS, two SATA Ports, 6’ x 13” form factor. RoHS
10
INTEL©
4
Compliant and Pb-free 2nd level interconnect.
BPTVBB 888001 00735858189958
OEM 10-pack of Intel® Server Board
S3000PT (VERTICAL POWER
CONNECTOR) 4 DDR2 DIMMS, two SATA
Ports, 6’ x 13” form factor. RoHS Compliant
and Pb-free 2nd level interconnect.
10
S3000PTH 888003 00735858189965
Boxed 4-pack of Intel® Server Board S3000PT
(HORIZ. PWR CONN) 4 DDR2 DIMMS, Two
SATA Ports, 6’ x 13” form factor. RoHS Compliant
and Pb-free 2nd level interconnect.
4
C. Chassis – Production Order Codes
Server Chassis Ordering Information
There are no Intel chassis available for this product. Customers may develop their own chassis or use
one of the reference chassis identified in the Reference Chassis List in the Compatibility section of the
product support page at http://support.intel.com/
D. Third Party Reference Chassis and Accessory Resources
Vendor Part
Number Description and URL Contact Phone #
Evercase* R913-PTS 1U rack-mount chassis with support for two Intel®
S3000PT Server Boards, two fixed SATA HDD’s
(one per board), and two dedicated high efficiency
power supplies (one per board).
http://www.evercase.com
Mark Lin (408) 894-9003 x110
Avnet AVDPT100
1U short depth rack-mount chassis with support for
two Intel® S3000PT Server Boards, two fixed SATA
HDD’s (one per board), and one high efficiency
power supply.
http://www.avnet.com
Derek
Dezso (480) 794-8722
INTEL©
5

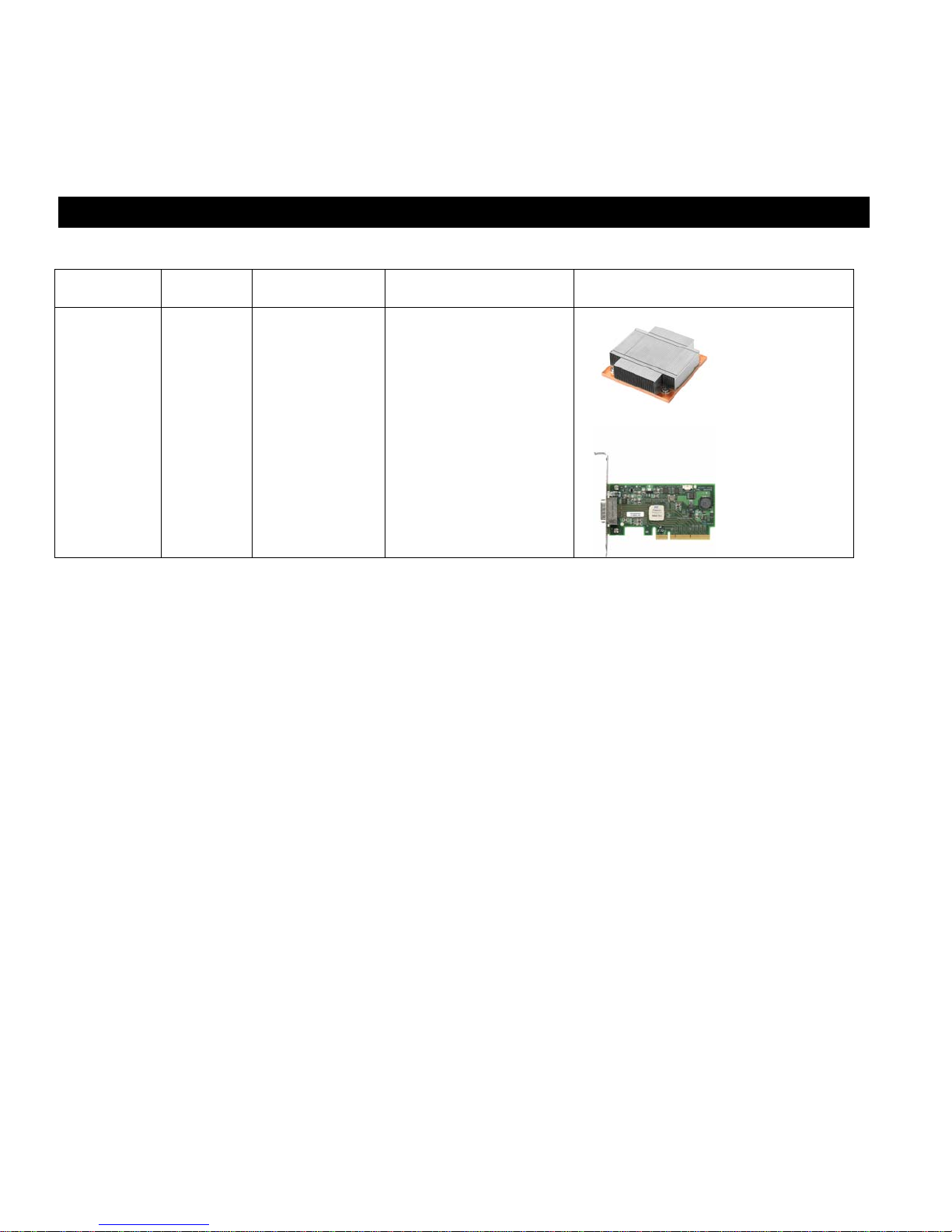

E. Intel Accessories and Spares – Order Codes
Optional Accessories for S3000PT board
Product
Code MM# UPC Description Picture Min. Order Qty.
AXXUPHS 886893 00735858191258 Intel 1U passive heatsink (light
weight with embedded heat
pipe)
10
AXXIBDDRPT 888413 00735858192156
Infiniband DDR HCA card,
20Gb/s, PCI Express x8 for
Intel Server Board S3000PT
1
Note: The AXXUPHS has been mechanically validated for use with the S3000PT board with direct chassis attach
implementations.. However, each customer will have a unique chassis implementation and it will be up to each customer to
test and validate their system at the appropriate shock and vibration levels that they feel are necessary for their specific
application.
End of Configuration Guide
