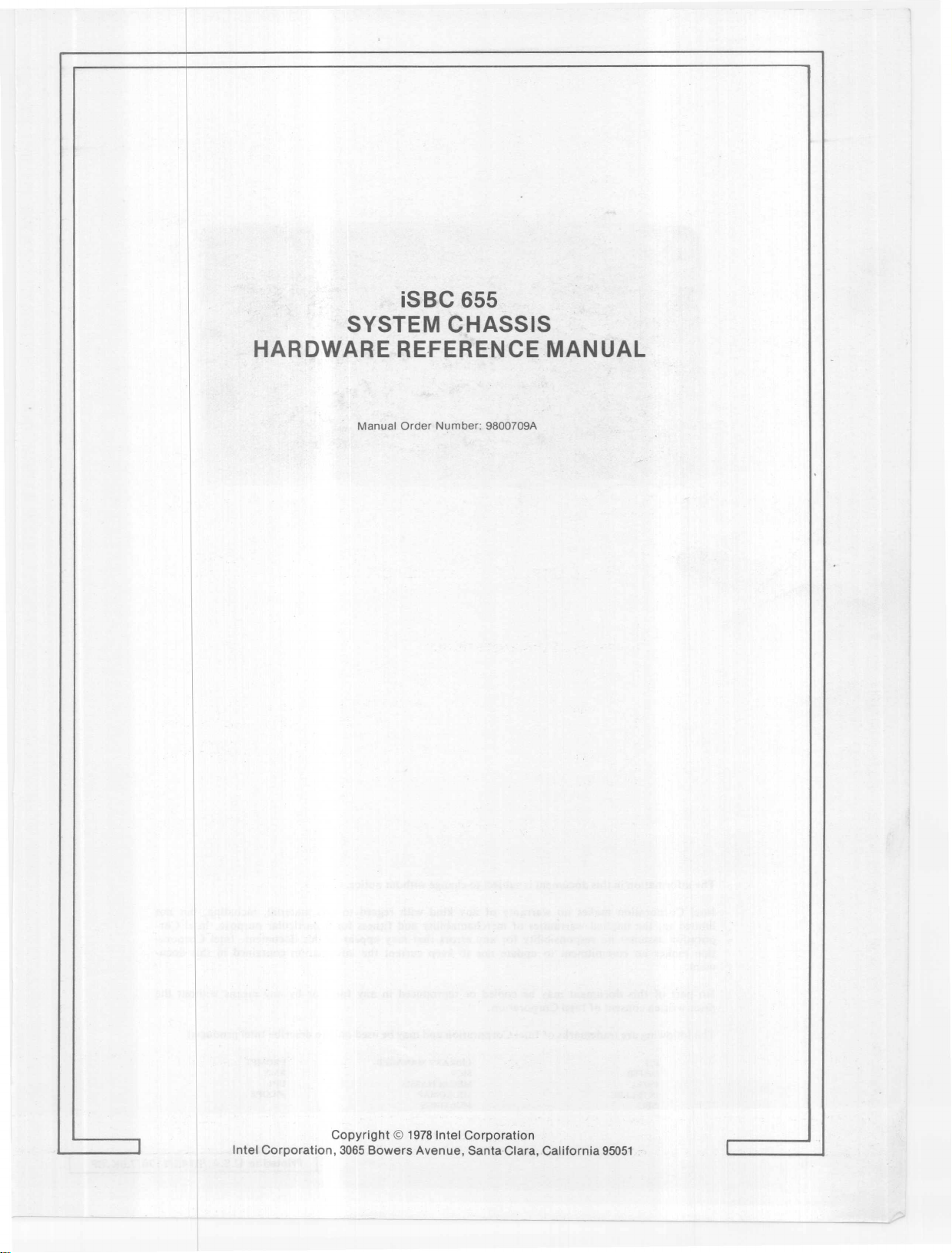

iSBC 655

SYSTEM CHASSIS

HARDWARE REFERENCE MANUAL

ManualOrder Number:9800709A

Intel Corporation,3065 Bowers Avenue,Santa Clara,California 95051

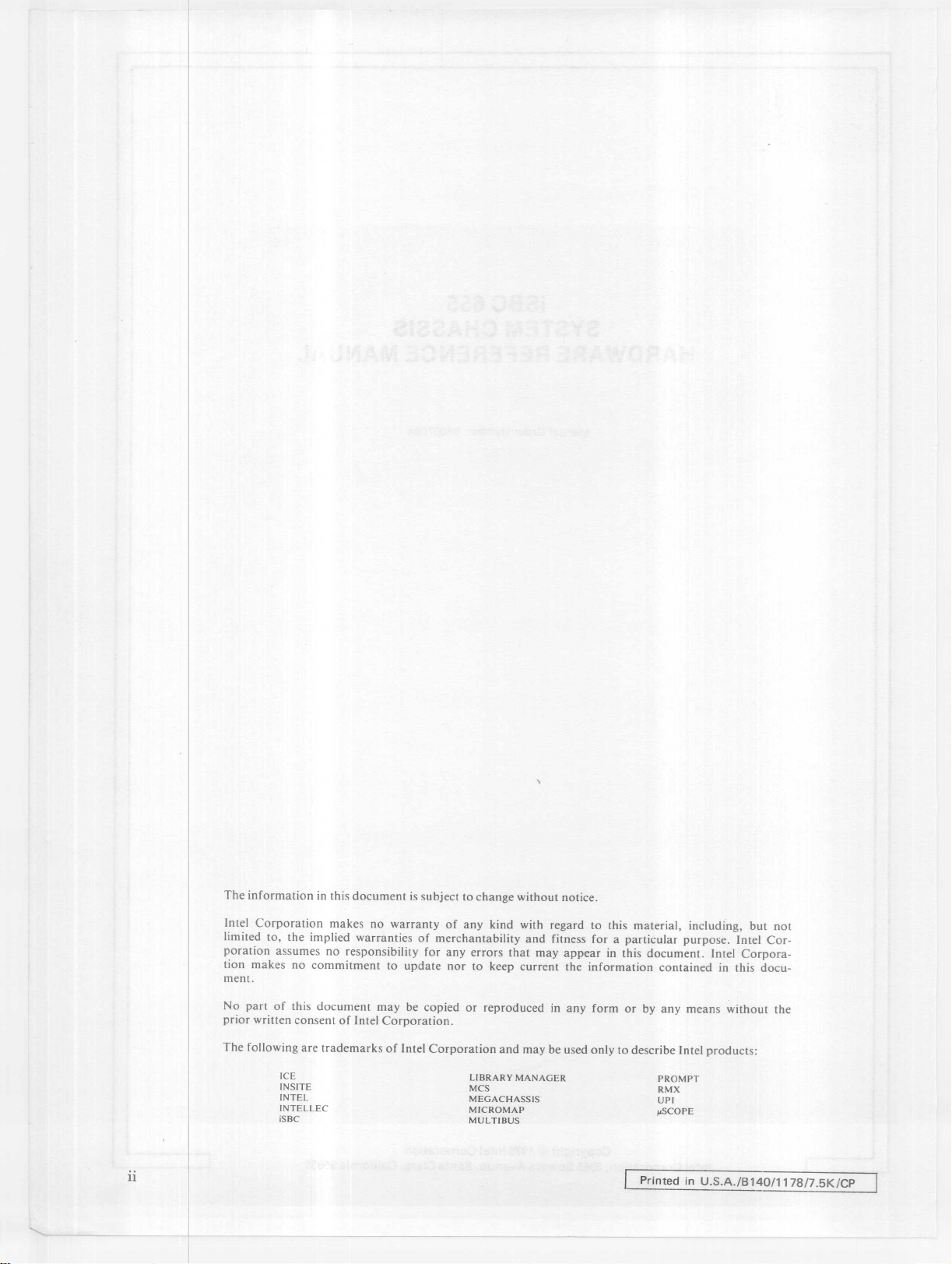

Intel Corporation makes no warranty of any kind with regard to this material, including, but not

limited to, the implied warranties of merchantability and fitness for a particular purpose. IntelCor-

porationassumesnoresponsibility for any errors that may appear in this document.Intel Corpora-

tion makes nocommitment to update nor to keep current the information containedin this docu-

ment.

No part of this document may be copied or reproduced in any form or by anymeans without the

prior written consent of Intel Corporation.

ICE

INSITE

INTEL

INTELLEC

iSBC

LIBRARY MANAGER

MCS

MEGACHASSIS

MICROMAP

MUL TIBUS

PROMPT

RMX

UPI

~SCOPE

This manual provides general information,installation instructions,principles

of op ration, and service information for theiSBC655 System Chassis. Additional

infor ation is available in thefollowing documents:

• Int l iSBC

635

Power SupplyHardwareReference Manual,

Order No. 9800298.

• Int l iSBC 604/614 Cardcage HardwareReference Manual,

Order No. 9800708.

CONTENTS

CHAPTER 1

~~:~~~~:~~'J~~'~~~~?~"""'".~~~~

Chassis DescriptiOn. . . . . .. . . . . .. . . .. . . . ...... . ... 1-1

Documentation Sup lied 1-2

Equipment .Supplie.1 1-2

UserSupphed EqUl ment 1-2

Specifications 1-2

CHAPTER 2

PREPARATIO FOR USE

Introduction 2-1

Unpacking and Ins ection 2-1

InstallationconSidlations2-1

Power Requireme ts 2-1

Cooling Requirem nts2-1

Rack Mounting .. 2-1

PhysicalDGnension 2-3

Multibus DescriPtiol' .. . . . . .. . . . ............. ... 2-3

Multibus Priority 2-3

Multibus and Auxili y Connectors2-3

CHAPTER 3

PRINCIPLES OF OPERATION PAGE

Introduction 3-1

Functional Description. . .. . ...................... 3-1

Front Panel Switches and Indicators 3-1

Line Voltage Select Switch and Line Fuse 3-1

Fans 3-1

iSBC 604 Cardcage and Backplane 3-1

iSBC 635 Power Supply. .. . . . . .. . . .. .. . . . . .. . .. 3-2

Power Fail Status. . . . ...... . .. .......... . . ... 3-2

Output Voltage Adjustments 3-2

CHAPTER 4

SERVICE INFORMATION

Introduction 4-1

Service and Repair Assistance 4-1

Removal and Replacement 4-1

Power Supply RemovaL 4-1

Cardcage/Backplane Removal 4-2

Indicator Lamp Replacement. ..... .. .. .. . . . . . .. 4-2

Service Diagrams 4-2

Replacement Parts Listing 4-2

TABLE TITLE PAGE

1-1.Specificatio s 1-2

2-1.Multibus Connector Pin Assignment 2-4

2-2. P2 Connectc r Pin Assignment. . . . .. .. . .. 2-5

TABLE TITLE PAGE

2-3. Compatible Bus Connectors 2-6

4-1.Replacement Parts Listing 4-2

4-2.Manufacturer's Codes 4-3

ILLUSTRATIONS

FIGURE

~TITLE

PAGE

1-1.iSBC 655 S ternChassis 1-1

2-1.iSBC 655 Diensions 2-2

2-2. Serial Prioriy........................... 2-3

2-3. Parallel Priority. . . . ...... .. . . .. . . . . .. . .. 2-4

4-1.Main Frame Assembly (Sheet 1 of2) 4-5

4-1.Main Frame Assembly (Sheet2 of2) 4-7

4-2. Wmng

Dia

4-9

FIGURE TITLE PAGE

4-3. Sub Panel Assembly 4-11

4-4. Display Board Assembly 4-13

4-5.Display Board Schematic 4-15

4-6.Cardcage Assembly 4-17

4-7.Backplane Schematic 4-19

4-8.AC Power Harness ................. . . .. 4-21

4-9.Outline Dimensions 4-23

CHAPTER 1

GENERAL INFORMATION

The iSBC

655

Syste Chassis (figure

1-1)

is packaged

as a completelyasse bled microcomputer chassis.It

consists of a po er supply, a four slot card-

cage/backplane, du I fans, anda frontpanel.This

chapter providesaleneral descriptionof the chassis

in addition to a spec fications table.

1-2. CHASSIS DESCRIPTION

The iSBC

655

System Chassisis designedto be rack

mounted, using RItTMA compatible components.

The 19 inch front J1lanelhas the following switches

and indicators:aporer ON/OFF indicator switch; a

RESET switch; an NTERRUPT switch;a RUN in-

dicator; and a HA T indicator. The rear panel is

easily removed for q ick access to the cardcage.

The two cooling fans are located on the left side of

the chassis, one directed toward thepowersupply

and the other directed toward the cardcage. These

fans supply adequate ventilation to keep the fully

loaded chassiswithin temperaturetolerance «55°C).

The chassisutilizesthe iSBC604 Cardcage-

Backplane for housing a maximum of four Intel

iSBC compatible boards. The backplanemay be ex-

tended to additional external cardcages or monitored

through a Multibus plug located on thebackplane.

Output power isfurnished bythemodular iSBC

635

Power Supply. The supplyismounted directly

behind the front panel and iseasily removed or

calibrated.Accepting either

100,115, 215,

230

Vac, the supply provides fully regulatedand pro-

tected

+12,+5,-12

and

-5

volt outputs.A power

line monitor signal is also provided for use with

power-down subroutines.

The fopowing Hardware Reference Manuals are sup-

plied ~ith the iSBC 655 System Chassis:

iSIC

655

System Chassis HardwareReference

nual Order Number 9800709.

604/614

Cardcage HardwareReference

~Inual Order Number 9800708.

3 ISfC

635

Power SupplyHardware Reference

Minual Order Number 9800298.

A ChafiS wiring diagram, front panel logicdiagram,

and re lacement parts listing are located inChapter 4

of this manual.Similar diagrams and parts listings

pertaiing to the power supply and cardcage are_

locatein the Service Informationchapters of the

other anuals.

Thef lowing equipment is suppliedwith the iSBC

655 Sytern Chassis: front panelwith switches and in-

dicators, two fans, power supply, cardcage-

backplane, fuse, line filter,115 Vacpower cord, and

one 25 inch RS232 I/O cable.

All rack mounting hardware isuser supplied.

Chapter 2describes proceduresfor mountingand

lists recommended parts.If the chassisisoptioned

for 230volt operation,thepower cordis not sup-

plied. Any I/Ocables, with the exception of the

RS232 cable described in section 1-4, arealso user

furnished. The hardware referencemanual for each

iSBCboard will provide a table of compatible I/O

connectors recommended byIntel (not all boardsre-

quire I/Ocables, however).

Specifications of the iSBC655 SystemChassis are

listed in table 1-1.

PHY SICAL CHARACTERISTICS

eight

48.3 em(19 in.) at front panel

43.2 em (17 in.)behind front panel

ELEfTRICAL CHARACTERISTICS

Ir put Frequency

Output Current Over-Voltage

Voltage Current

(Max)

Limit

(Max)

Protection

+12 2.0 amp 2.4amp + 14 to + 16 volts

+ 5 14.0 amp 16.8amp + 5.8 to + 6.6 volts

- 5 0.9amp 1.1amp -5.8 to -6.6 volts

-12 0.8amp 1.0amp -14 to -16 volts

Lire Regulation

Load Regulation

Operating Tempelature

Non-operating Te~perature
