CONVENIENCE STROLLER

Operating Instructions

Important: Read and follow these Safety Rules and Assembly Instructions before operating stroller. If you

have any questions concerning the safe use of this product, contact InSTEP, LLC at 1-800-242-6110, M-F,

8:00 a.m. – 5:00 p.m. CST or visit our web site at www.instep.net or email us at info@instep.net before using.

Safety Rules:

WARNING: Failure to follow these warnings and assembly instructions could result in

serious injury or death.

WARNING: Immediately discard any plastic wrapping.

WARNING: Never allow children to fold, assemble or disassemble the stroller.

WARNING: Maximum weight capacity for the Single stroller is 40 lbs. or 18.2 kg.

WARNING: Never place child in stroller on their back with their head forward and feet rearward.

WARNING: Avoid serious injury from falling or sliding out. Always use seatbelt.

WARNING: Never leave child unattended.

WARNING: Never use this stroller with roller skates or in-line skates.

WARNING: Never allow stroller to be used as a toy or allow children to give rides to others.

WARNING: Never use stroller if it becomes damaged.

WARNING: Always be aware of traffic around you when walking.

WARNING: Always engage brakes when you stop or when you let go of handle.

WARNING: Accessories or parcels placed in or on the stroller may cause it to become unstable.

WARNING: Maximum weight for objects in bottom basket is 5 lbs. or 2.2 kg. Excessive weight may

cause a hazardous, unstable condition.

WARNING: Child may slip into leg openings and strangle. Never use in a reclined carriage position

unless T-shield/waist strap placement has been re-adjusted.

IMPORTANT

We appreciate your purchase of one of our many fine products. We are sure that you will be satisfied with

your selection. Great care and effort has been taken, however occasionally problems may occur. PLEASE DO

NOT RETURN PRODUCT TO THE STORE. To ensure prompt and correct handling of problems, or to answer

questions, please contact us at either our Toll-Free Customer Service Number or Email us at our number list-

ed below. Service will be quicker if you have your model number (found on the product and box) along with

this instruction sheet ready when calling. If you have any questions concerning the safe use of this product,

please contact us 1-800-242-6110 press “1” for customer service and then “2” to speak to a representative or

Email us at info@instep.net or visit our web site at www.instep.net.

For Model CS300 Only

Tires are shipped deflated, DO NOT OVERINFLATE. Please inflate slowly, with short bursts, to 20-25 PSI

maximum. 25 PSI will provide a comfortable ride for your child.

Parts List

BC1

Description Qty.

Frame Assembly 1

Front Wheel Assembly (Dual wheels) 2

Rear Wheel 2

Rear Axle Assembly 1

Description Qty.

Rear Wheel Kit consists of:

Rear hub/brake cog 2

Rear axle retaining clip 2

Rear axle cap 2

Rear wheel hub cap 2

Stroller Assembly Instructions

Step 1. Unfold Stroller

Release storage latch located on side of stroller (Figure A).

Grasp frame as shown and open until side latches engage

(Figure B).

Step 2. Front Wheel Assembly

Turn stroller on its side. Slide the front wheel assembly onto

one of the front legs. Push until the wheel assembly locks into

place. Repeat for other side (Figure C1). Pull firmly on each

wheel assembly to ensure that they are securely attached.

Note: to remove front wheels, press the tab located beneath

wheel assembly (Figure C2).

Storage Latch

Side Latch

Front Leg

Swivel Lock

Wheel

Release

Tab

Front Dual Wheel

E2 F1

F2 F3

Step 3. Rear Wheel

Assembly

Turn stroller onto its front

as shown (Figure D).

Slide the rear axle

assembly onto frame

as shown (Figure E1).

Note: to remove rear axle

assembly push up the

plastic baffles while

pushing in the silver

release button pull

off the axle assembly

(Figure E2). Place rear

brake cog on the rear

wheel – turn the cog so

the grooves line up with

the ribs on the wheel

sprocket, then push the

adapter on. Slide the

wheel with brake cog

onto the axle (Figure F1).

Place the wide end of the

retaining clip onto the

grooved end of the axle,

then press to snap into

place (Figure F2). Posi-

tion the axle cap over

retaining clip and then

press to snap into place

(Figure F3). Place the

hubcaps on the wheels –

align the hubcap tabs

with the holes in the

center of the wheel,

then press into place

(Figure F4). Repeat for

other side.

Rear Axle

Assembly

Rear Axle

Assembly

Release

Buttons

Both Sides

Rear Axle

Assembly

Release

Button

Retainer

Clip

Retainer

Clip

Axle Cap

Hub Cap

Use Instructions

WARNING: Always remove child from stroller before folding.

To fold stroller:

Step 1. Retract canopy and fully recline seat before folding

(Figure H). (See “To adjust 3-position recline seat”)

Step 2. Push in side buttons and lift slightly upon side handles

as shown, stroller will automatically begin to fold (Figure I).

Step 3. Continue folding by pushing frame together until

storage latch engages (Figure J).

To unfold stroller:

Release storage latch located on side of stroller, continue

unfolding until side latches engage (See Figure J).

To engage rear brakes: Step lightly on the center brake

bar to engage brakes. To disengage, lift up on brake bar

(Figure K).

Step 4. Mount child

napper bar

Position bar as shown

with tabs on the bottom.

(Figure G1) Push in until

tabs lock in place.To

remove napper bar,

push up on bottom tabs

and pull off napper bar

(Figure G2).

Step 5. Adjust Canopy

Push or pull canopy too the desired position.

Napper Bar

Release Tab

Linked

Rear Brake

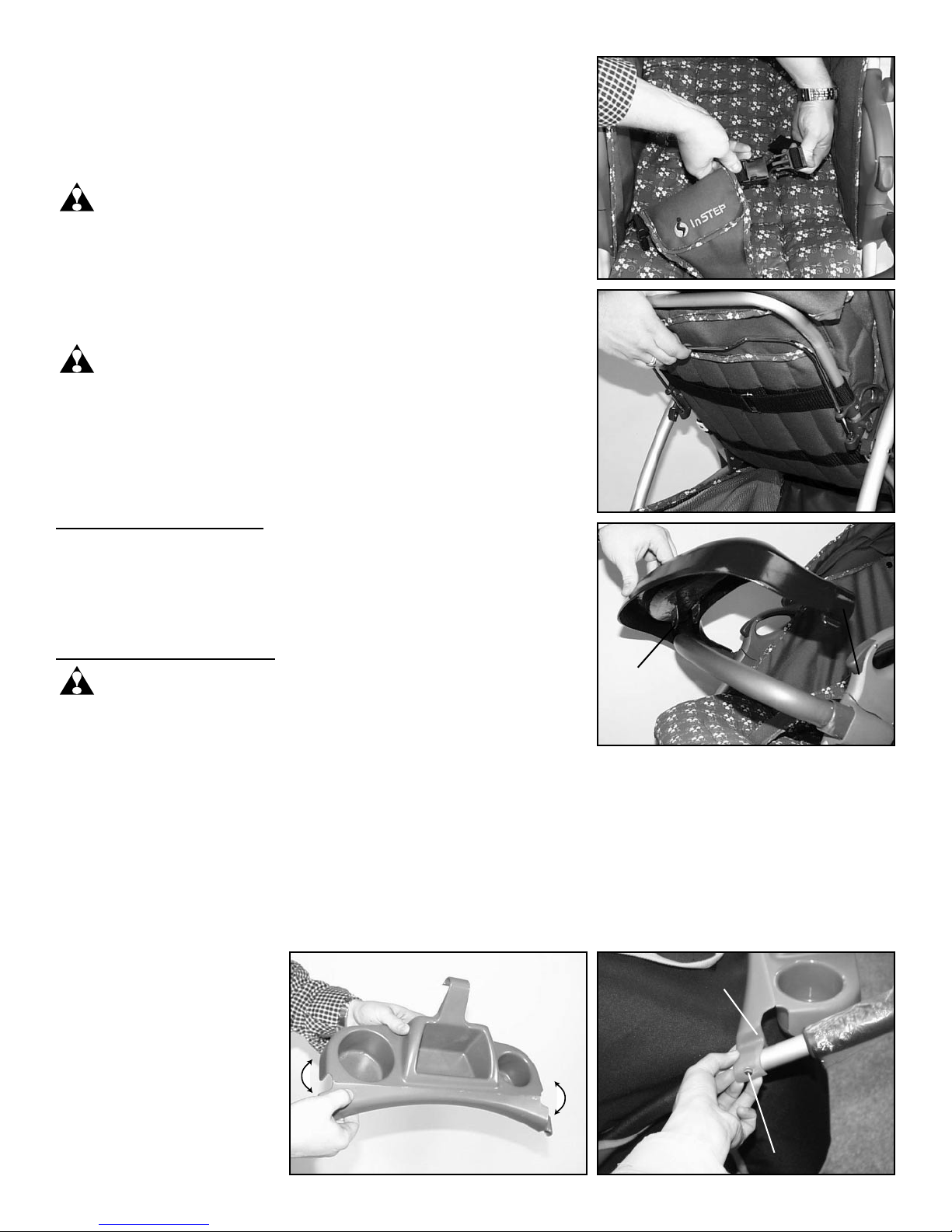

To place child in stroller:

Always engage rear brakes so stroller is steady. Lift canopy

from both sides and rotate back. Place child in stroller with

the T-shield between the child’s legs. Fasten the waist buckle.

Adjust belt so that it fits snugly around the child’s waist

(Figure L). (Note: To release, squeeze sides of buckle)

WARNING: Avoid serious injury from falling or sliding

out. Always use seatbelt.

To adjust 3-position recline seat:

To fully recline seat, pull up on the recline bar as shown.

(Figure M) To position seat upright, push back of seat until

side tabs fall into side notches.

WARNING: Child may slip into leg openings and

strangle. Never use in a reclined carriage position unless

T-shield /waist strap have been readjusted to the seats

new position.

For Models CS150T, CS200 and CS300

Child’s Convenience Tray

The napper bar must be used when using the child’s tray.

Step 1. Snap the child’s tray onto both side latches as

shown (Figure N).

Parent’s Convenience Tray

WARNING: To avoid burns, never put hot liquids

in the parent tray. To prevent tipping over do not place

more than 3 lb. or 1.4 kg on parent tray.

Phillips screw driver is required for installation.

Step 1. Fold the tray several times in the hinge area to break

in the hinge (Figure O1).

Step 2. Align the holes on the tray with knob on frame and

snap tray into place over knob. Repeat for other side

(Figure O2).

O2O1

Tray

Centering

Supports Side

Clamp

Flex

Hinge

Parent Tray

Knob

1-800-242-6110

8am-5pm CST, Monday-Friday, or MAIL to:

2425 Enterprise Drive, Suite #900

Mendota Heights, MN 55120

Tel: 1-800-242-6110

or visit our web site at www.instep.net

email: info@instep.net

WARNING:

If you have any questions concerning the safe use of this product,

please contact InSTEP LLC before using:

Care and Maintenance

Check fasteners

After one hour of use, check all fasteners to make sure they are secure. Adjust if necessary.

Periodically check the stroller to ensure that it is in good operating condition.

To clean seat and canopy:

If light cleaning is required, use a soft cloth with warm water and mild soap then air dry. Do not put

into washing machine. Do not put in dryer. DO NOT BLEACH.

To clean frame:

Wipe using a soft cloth with warm water and mild soap. Air dry. DO NOT USE polish or abrasives.
