Inspired TEC ION STAT+ Manual de usuario

Inspired TEC

ION STAT+

AIR & SURFACE PURIFICATION

2 Year Manufacturer’s Warranty

More Information Inside

Owner’s Manual

About Inspired TEC Ion Stat+

This unit is designed to be permanently mounted to a wall to help reduce odors

and create a fresh, clean environment. Inspired TEC Ion Stat+ is perfect for use in

large rooms, small ofces, or similar spaces without ductwork that already provides

air purication up to 750 sq.ft.

Inspired TEC Ion Stat+ utilizes Photocatalytic Oxidation (PCO) technology that

generates advanced oxidation products (AOPs), primarily consisting of hydro-

peroxides, or safe, vaporized hydrogen peroxide. The Photocatalytic Oxidation

purication process uses ultraviolet energy to activate a multi-metal catalyst, which

converts water vapor into oxidizers, including peroxide and hydroxyls. In addition

to the PCO process, Bipolar Ionization and the unique ODOGard® treated lter are

used to assist in neutralizing pollutants and odors.

Table of Contents

Specications ....................................................3

Warnings ........................................................3

Unit Diagrams ....................................................4

Installation .......................................................5

Cleaning the Unit ..................................................6

Filter Replacement ................................................6

PCO Cell Replacement .............................................7

BPI Module Replacement ...........................................8

Replacement Part Numbers .........................................9

Cell Disposal .....................................................9

Troubleshooting ..................................................10

Warranty Information .............................................. 11

Read all instructions carefully in user manual before operating air purier.

Specications

Models .................................. iTEC-ION-STAT+-O3 - 1X5849

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iTEC-ION-STAT+-NO3 (No Ozone) - 1X5850

Dimensions ................11.92” H (303mm) x 9.72” W (247mm) x 3.64” D (93mm)

Weight ..................................................3.3 lb (1.5kg)

Supply ............................................120/240VAC / 17W

Operation.............................................. 24VDC / .67A

Effective Area*...........................................Up to 750 ft2

Warranty ...................................................2 Years

*Depending on variables such as the severity and frequency of pollution, ow of air in the environment,

humidity, and temperature.

Warnings

Please read and follow all warnings and cautions before installing and using

your unit.

Use this unit only in a manner intended by the manufacturer.

If you have questions, contact the manufacturer.

Never insert hands into the unit’s fan motor while it is plugged in or running.

Avoid looking directly at the UV lamps in the PCO Cell.

Follow all installation instructions.

Before servicing or cleaning the unit, unplug from its power source.

Replace lter every 3-4 months to avoid damaging your unit.

Unit Diagrams

Unit Front

Unit Rear

Unit Cover

Air Outlet

DC Power Jack

DC Power Plug

Unit Bottom Unit Internals

Air Intake

ODOGard®

MERV Filter

PCO Cell

Power Compartment

Bipolar Ionization

Module

Mounting Bracket

Installation

STEP 1

STEP 2

STEP 3

1. Determine location for desired

placement of unit close enough to

a power outlet to allow the included

120/240 VAC to 24 VDC power

adapter to be plugged in. Typically,

the angled grille should be pointed

upward and mounted as high on the

wall as practical, within 18 inches of

the ceiling if possible.

2. Plug the power adapter’s elbow style

DC connector into the unit’s rear

power outlet

3. Attach Inspired TEC Ion Stat+ to

the wall location with included

screws utilizing the mounting

bracket anges.

4. Make proper electrical connection of

24VDC power adapter to outlet.

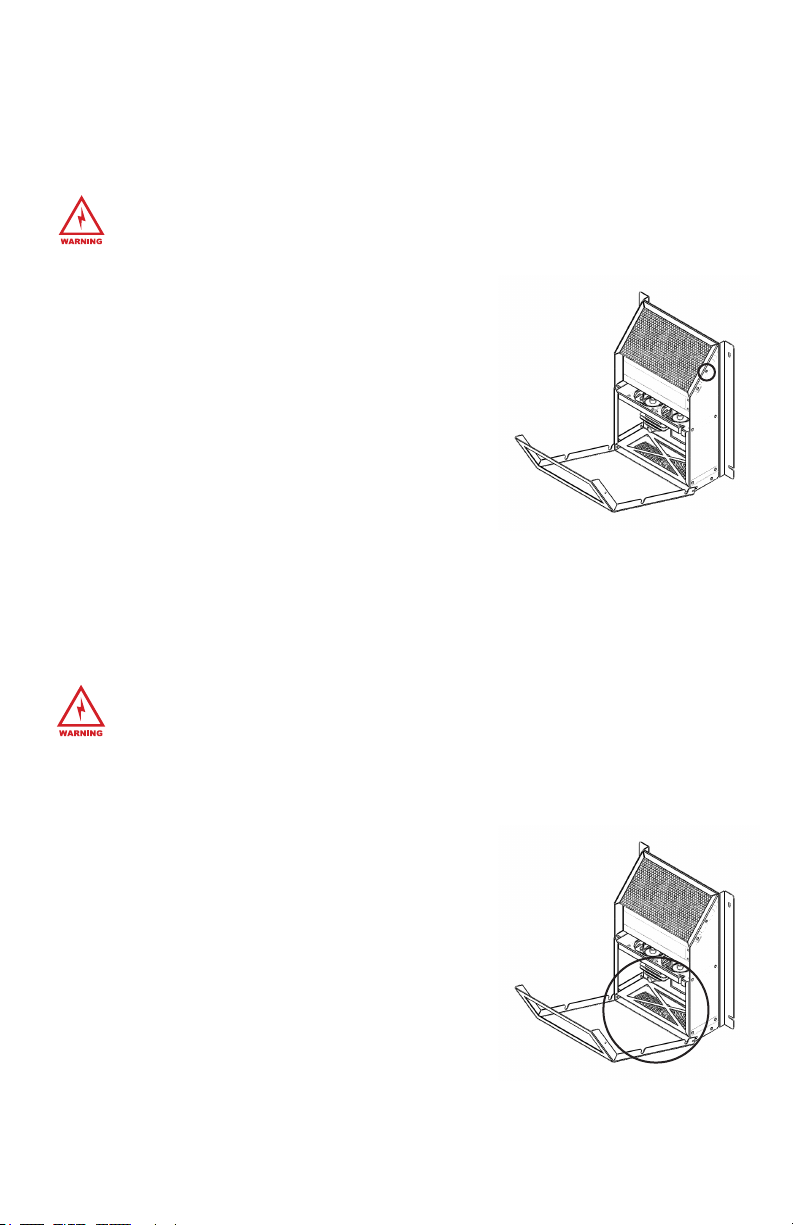

Cleaning the Unit

ODOGard® Filter Replacement

1. Disconnect unit from power source.

2. Remove the Cover’s two screws along the top edge

with a #1 Phillips-Head screw driver.

3. Tilt the Cover away from the top of the unit.

4. Wipe everything down with a damp cloth.

5. Close and secure the Cover of the unit.

6. Reconnect unit to power source.

1. Disconnect unit from power source.

2. Remove the Cover’s two screws along the top edge with a

#1 Phillips-Head screw driver.

3. Tilt the Cover away from the top of the unit.

4. Replace the used Filter at the bottom

with the red side out.

5. Close and secure the Cover of the unit.

6. Reconnect unit to power source.

WARNING: Make sure to disconnect the unit from its power source before any

maintenance or cleaning is done.

WARNING: Make sure to disconnect the unit from its power source before

any maintenance or cleaning is done.

NOTE: We recommend replacing the Filter every 3-4 months or when noticeably contaminated.

See Page 9 for Replacement Part Numbers.

The unit will need to be cleaned inside from time to time. Be sure to use extreme caution when

doing this in order to avoid any damage to the unit or harm to yourself.

PCO Cell Replacement

1. Disconnect unit from power source.

2. Remove the Cover’s two screws along the top

edge with a #1 Phillips-Head screw driver.

3. Tilt the Cover away from the top of the unit.

4. Remove the Black Grille by sliding it out.

5. Locate the PCO Cell and gently remove it from

the case.

6. Disconnect the power to your old PCO Cell and

replace it with your new PCO Cell. Ensure plug is

fully seated in the connection and the wire is fully

seated into the grommet/bulkhead.

7. Place the PCO Cell in place in the unit with the

warning label visible, making sure air can ow

through the cell.

8. Replace the Black Grille.

9. Close and secure the Cover of the unit.

10. Reconnect unit to power source.

WARNING: Make sure to disconnect the unit from its power source before

any maintenance or cleaning is done.

WARNING: Please do not throw a used PCO Cell in the garbage. See CELL

DISPOSAL (PG. 9) for disposal instructions

Your PCO Cell should be replaced every year.

See Page 9 for Replacement Part Numbers.

STEP

2-3, 9

STEP 6

STEP 5&7

BPI Module Replacement

WARNING: Make sure to disconnect the unit from its power source before

any maintenance or cleaning is done.

Your BPI Module should be replaced every year.

See Page 9 for Replacement Part Numbers.

1. Disconnect unit from power source.

2. Remove the Cover’s two screws along the top edge

with a #1 Phillips-Head screw driver.

3. Tilt the Cover away from the top of the unit.

4. Remove the Black Grille by sliding it out.

5. Disconnect BPI Module’s black and white wires from

lever connectors (orange/clear).

6. Remove screws securing the BPI Module to the unit

and remove Module.

7. Install new BPI Module, securing it to the unit with

screws.

8. Cut black and white wires to length that will reach

the lever connectors, leaving sufcient length to

strip back insulation from end of wires ½”.

9. Connect black and white wires from BPI Module to the lever connectors. Make

sure the connections are black to black and white to white.

10. Replace the Black Grille.

11. Close and secure the Cover of the Unit.

12. Reconnect unit to power source.

Cell Disposal (Hg - LAMP CONTAINS MERCURY)

Please do not throw a used PCO Cell in the garbage. The special UVC bulb used

in the unit contains a very small amount of mercury. Manage in accordance with

disposal laws.

(Visit www.lamprecycle.org for proper instructions.)

Dispose of the spent PCO Cell and UV Lamp at your local recycling center or by

local regulations.

Replacements Part Numbers

Please reference these part name and numbers when contacting your dealer or

Inspired TEC for replacement parts.

Inspired TEC Ion Stat+ Replacement PCO Cell ................................. 1X3200

Inspired TEC Ion Stat+ (No Ozone) Replacement PCO Cell ........................1X5115

Inspired TEC Ion Stat+ Replacement ODOGard® Filter (Both Models) - 6 Pack ......... 1X5838

Inspired TEC Ion Stat+ Replacement BPI Module (Both Models) ...................... 1X5787

Troubleshooting

PCO Cell Doesn’t Turn On

• Check for secure electrical connections

• Check the Line Fuse

• Fan needs replaced (Contact your dealer or visit our website,

inspiredtecllc.com, to contact us directly.)

• Check for secure electrical connections

• Check the Line Fuse

• Try another PCO Cell

• Ballast needs replaced (Contact your dealer or visit our website,

inspiredtecllc.com, to contact us directly.)

Fan Doesn’t Turn On
