USER GUIDE

Armband Radio

NS-R5111

Before using your new product, please read these instructions to prevent any damage.

NS-R5111_14-0824_MAN_V3_ENG.fm Page 1 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

NS-R5111 Arm Band Radio

Welcome

Congratulations on your purchase of a high-quality

Insignia product. Your NS-R5111 arm band radio

represents the state of the art in design and reliable,

trouble-free performance.

Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . . 2

Using your arm band radio . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . . . . . . . . . .11

Troubleshooting. . . . . . . . . . . . . . . . . . . .11

Legal notices . . . . . . . . . . . . . . . . . . . . .13

ONE-YEAR LIMITED WARRANTY - INSIGNIA.15

Features

The NS-R5111 Arm Band Radio features:

• AM/FM digital radio

• Stereo or Mono listening modes

• Easy preset digital tuning and up to 10 FM and

10 AM memory presets

• Wearable oval design for arm band and

belt-holder use

• Stereo headphones

NS-R5111_14-0824_MAN_V3_ENG.fm Page 2 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

Package contents:

• Arm band radio

• Headphones

• AAA batteries (2)

•Beltclip

• User Manual

NS-R5111_14-0824_MAN_V3_ENG.fm Page 3 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

Using your arm band radio

Controls

NS-R5111_14-0824_MAN_V3_ENG.fm Page 4 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

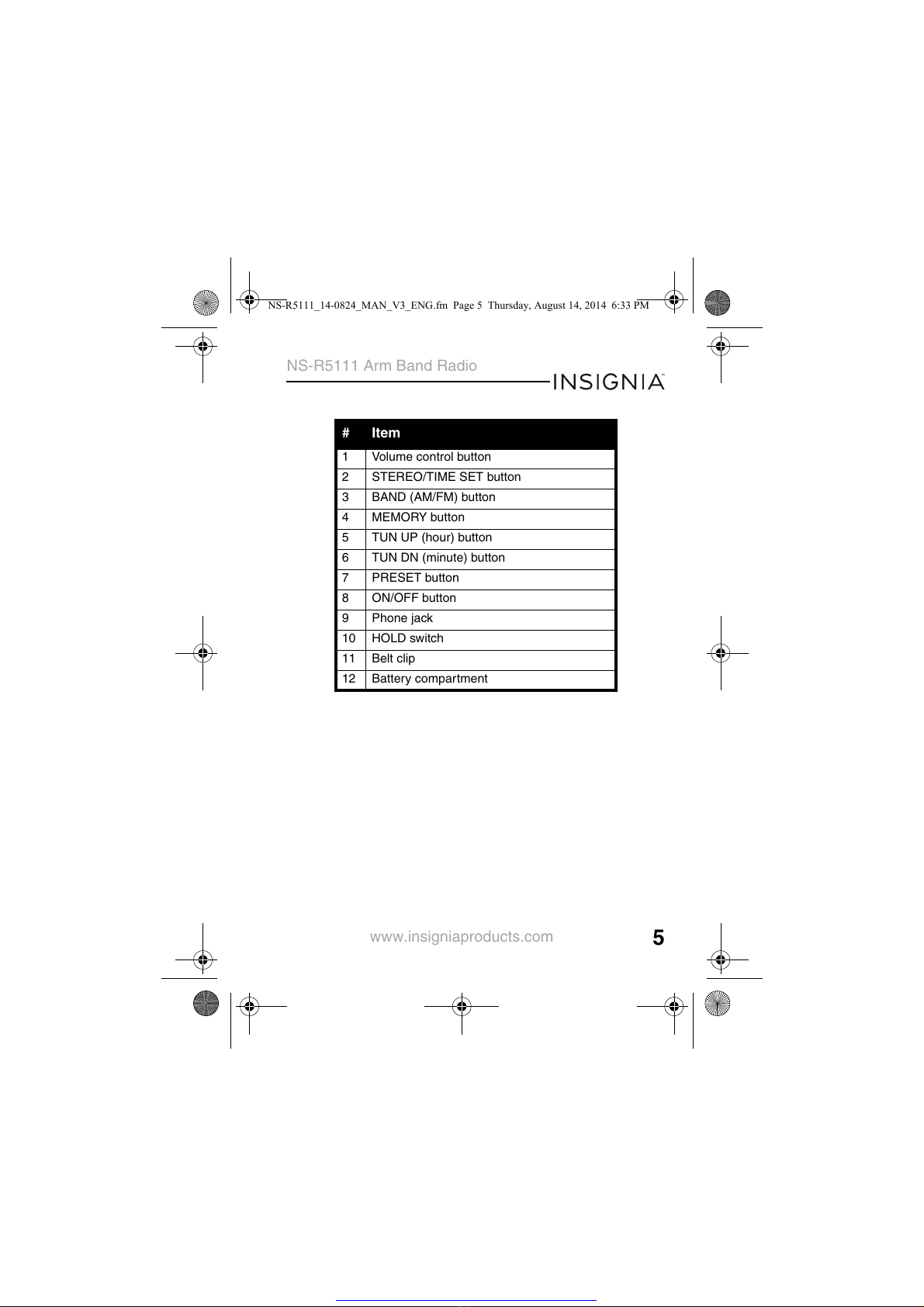

#Item

1 Volume control button

2 STEREO/TIME SET button

3 BAND (AM/FM) button

4 MEMORY button

5 TUN UP (hour) button

6 TUN DN (minute) button

7 PRESET button

8 ON/OFF button

9 Phone jack

10 HOLD switch

11 Belt clip

12 Battery compartment

NS-R5111_14-0824_MAN_V3_ENG.fm Page 5 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

Display

#Item

1 Volume level indicator

2 Radio frequency

3 AM/FM indicator

4 Preset indicator

5 FM stereo indicator

6 Hold indicator

7 AM/PM indicator

8 Low battery indicator

9LCDdisplay

NS-R5111_14-0824_MAN_V3_ENG.fm Page 6 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

Installing the batteries

To install the batteries:

Open the battery compartment door located on the

back of your radio.

Insert two AAA batteries, making sure that the + and

– on the batteries match the + and – inside the

battery compartment.

Replace the battery compartment door.

Flashing low battery alert

If the low battery indicator on the LCD starts flashing, the

batteries should be replaced. Replace batteries when

required. When not using your radio for an extended

period of time, remove the batteries.

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-zinc), or

rechargeable (nickel-cadmium) batteries.

• Dispose of batteries according to local

environmental laws.

Operating your radio

To operate your arm band radio:

Press the ON/OFF button to turn on the radio.

Press the BAND button to select AM or FM.

Insert the headphone plug into the Phone Jack.

Note

Your earphone soft wire works as the antenna

for FM reception. You may need to extend the

wire to obtain the best reception.

NS-R5111_14-0824_MAN_V3_ENG.fm Page 7 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

To listen to your radio:

Press and release the TUN UP or TUN DN button to

go to the next radio station.

Press and hold the TUN UP or TUN DN button to

scan for the next radio station with clear reception.

Press the volume control button +or –to adjust the

volume.

Press and release the STEREO/TIME SET button to

select Stereo or Mono mode.

To manually store stations:

Press the BAND button to select AM or FM.

Press the TUN UP or TUN DN button to select the

radio station you want.

Press the MEMORY button. The PRESET Indicator

on the LCD flashes.

Press the PRESET button to select the preset

channel you want.

Press the MEMORY button again to store the station

as a preset.

Repeat Steps 1 to 5 to store additional stations.

Note

Stereo mode is only available when listening

to FM radio stations.

Note

You can store up to 10 AM and 10 FM radio

stations into preset numbers (erasing any

preset stations).

NS-R5111_14-0824_MAN_V3_ENG.fm Page 8 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

To recall preset stations within the

selected band:

Press the PRESET button.

Press the TUN UP or TUN DN button to change to a

different stored station.

When the batteries are low, the LCD will start flashing

and eventually shut off.

• Press the ON/OFF button to turn off the radio,

then replace the batteries.

Using Hold

To use the Hold feature:

Set the HOLD switch to ON and all buttons will be

disabled. The Hold indicator appears on the LCD.

Set the HOLD switch to OFF to enable all buttons.

Setting the time

To set the time during power off mode:

Press and hold the STEREO/TIME SET button.

Press the TUN UP button (hour) to set the hour, then

press the TUN DN button (minute) to set the minute.

Note

Time must be reset after you change the

batteries.

NS-R5111_14-0824_MAN_V3_ENG.fm Page 9 Thursday, August 14, 2014 6:33 PM

Get other manuals https://www.bkmanuals.com

NS-R5111 Arm Band Radio

www.insigniaproducts.com

Press and hold the STEREO/TIME SET button to

exit Time Set mode.

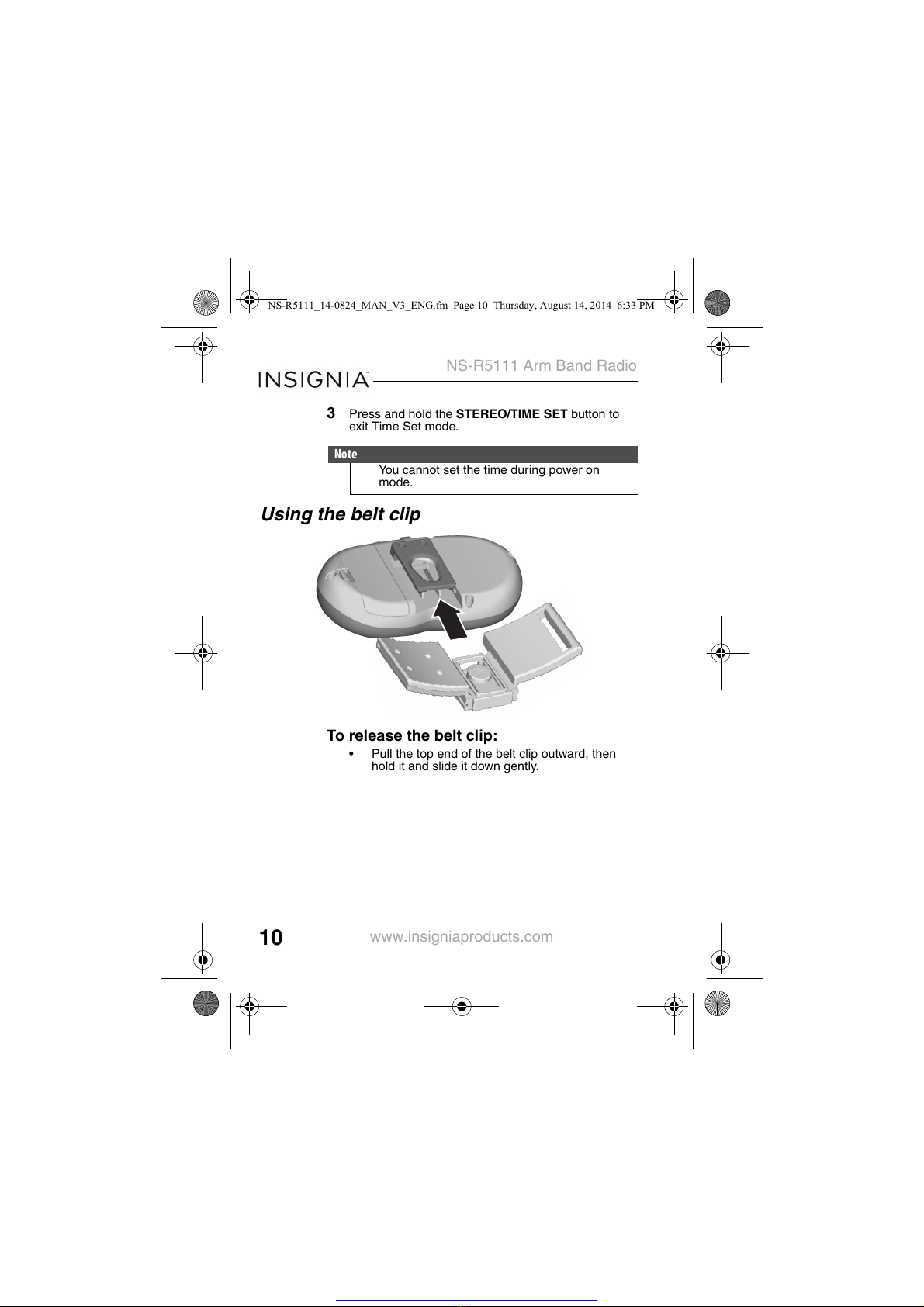

Using the belt clip

To release the belt clip:

• Pull the top end of the belt clip outward, then

hold it and slide it down gently.

Note

You cannot set the time during power on

mode.
