USER GUIDE

Multi-Function Stereo

Boombox with Bluetooth

NS-BBBT20

www.insigniaproducts.com

Contents

Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setting up your boombox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using your boombox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Maintaining your boombox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Welcome

Congratulations on your purchase of a high-quality Insignia product. Your

NS-BBBT20 represents the state of the art in boomboxes and is designed for

reliable and trouble-free performance.

Safety information

To prevent fire or shock hazard, do not plug the power cord into an extension

cord, receptacle, or other outlet unless the blades can be fully inserted to prevent

blade exposure. To prevent fire or shock hazard, do not expose this boombox to

rain or moisture.

Surge protectors:

We recommend that you use a surge protector when you use the AC power cord

with this boombox. Lightning and power surges ARE NOT covered under the

warranty for this product.

The lightning flash with arrowhead symbol within a triangle is

intended to alert you to the presence of uninsulated dangerous

voltage within your boombox’s enclosure that may be of sufficient

magnitude to constitute risk of electric shock to persons.

CAUTION: To reduce the risk of electric

shock, do not remove cover (or back). No

user-serviceable parts inside. Refer

servicing to qualified service personnel.

Multi-Function Stereo Boombox with Bluetooth

www.insigniaproducts.com

The exclamation point within a triangle is intended to alert you to the

presence of important operating and maintenance (servicing)

instructions in the literature accompanying your boombox.

Read instructions

Read all of the safety and operating instructions before you use your boombox.

Retain instructions

Retain the safety and operating instructions for future reference.

Follow warnings and instructions

Follow all warnings on your boombox and in the operating instructions. Follow all

operating and use instructions.

Placement

When placing your boombox on a lacquered or natural finish, protect your

furniture with a cloth or other protective material.

Avoid exposure to direct sunlight, temperature extremes, and moisture.

Your boombox uses a Class 1 laser to read

Compact Discs. Your boombox is equipped

with safety switches to avoid exposure when

the CD door is open and the safety interlocks

are defeated. Invisible laser radiation is

present when the CD door is open and the

system's interlock has failed or been

defeated. You should avoid direct exposure

to the laser beam at all times. Do not attempt

to defeat or bypass the safety switches.

WARNING: To reduce the risk of fire or electric shock, do not expose your

boombox to rain or moisture.

WARNING: Any use of the controls or an adjustment to the procedures other

than those specified herein may result in hazardous radiation.

CAUTION: Any change or modification to your boombox not expressly

approved by Insignia or its authorized parties could void your authority to

operate your boombox.

CAUTION: Your boombox should not be exposed to water (dripping or

splashing) and no objects filled with liquids, such as vases, should be placed on

it.

NS-BBBT20

www.insigniaproducts.com

Ventilation

Slots and openings in the cabinet and the back or bottom are provided for

ventilation, reliable operation, and protection from overheating. These openings

must not be blocked or covered. Do not block the openings by placing your

boombox on a bed, sofa, rug, or other similar surface.

Water and moisture

Do not use your boombox near water. For example, do not use it near a bath tub,

wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming

pool.

Do not let water splash or drip onto your boombox. Do not place objects

containing liquids, such as a vase, on top of your boombox.

Disconnecting power

The AC adapter is used as the disconnect device. It should remain readily

accessible and should not be obstructed during use. To completely disconnect

power, the AC adapter should be unplugged from the AC power outlet

completely.

The rating label of the boombox is located on the bottom.

Features

• Features Bluetooth, AM/FM radio, CD player, cassette player, and 3.5 mm

auxiliary input for the ultimate playback flexibility

• Blue backlit display for input and status

• Powerful stereo speakers for great sound, along with a headphone jack for

private listening

• 10 preset stations each for AM and FM radio

• CD player plays CD-R/RW media

• Can be powered by AC adapter (included) or 6 D-cell batteries (not included)

• Compact form factor allows for easy transportation and fits in tight spaces

Package contents:

• Boombox

• AC Adapter

• User Guide

• Quick Setup Guide

Multi-Function Stereo Boombox with Bluetooth

www.insigniaproducts.com

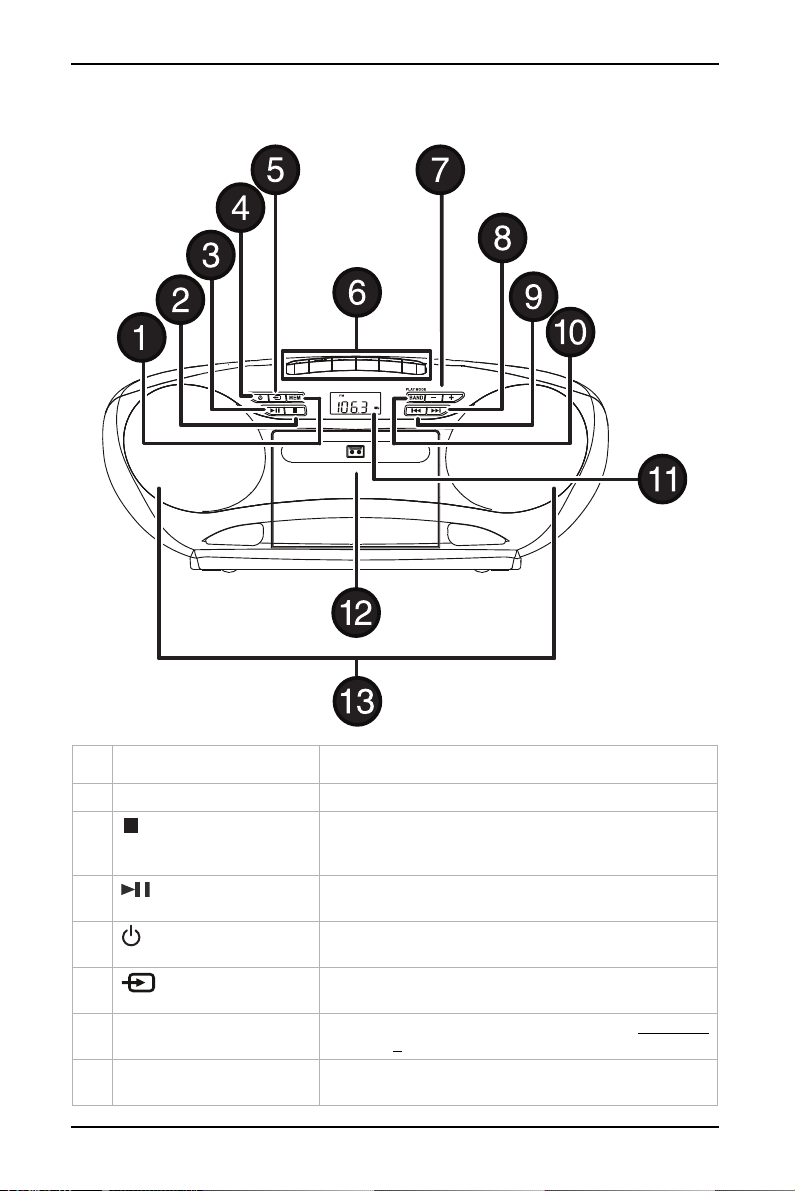

Front panel

# ITEM DESCRIPTION

1MEM button In radio mode, press to create/select preset stations.

2(stop/pairing) button • In CD mode, press to stop playback.

• In Bluetooth (BT) mode, press to initiate pairing.

Press again to turn Bluetooth off.

3(play/pause) button Press to begin CD or Bluetooth playback. Press

again to pause playback.

4Standby/ON button Press to turn on your boombox. Press again to

return your boombox to standby mode.

5(source) button Press to cycle through the sound sources

(CAS>AUX>RADIO>CD>BT>CAS).

6 Cassette tape control

buttons

These buttons control tape playback. See Top panel

on page 7 for additional information.

7VOLUME–/+ button Press to lower or raise the volume. Press and hold to

lower or raise the volume quickly.

VOLUME

NS-BBBT20

www.insigniaproducts.com

8(next) button In radio mode, press to tune to the next higher

station.

In CD or Bluetooth mode, press to search/skip to

the next track.

9(previous) button In radio mode, press to tune to the next lower

station.

In CD or Bluetooth mode, press to search/skip to

the previous track.

10 BAND/PLAY MODE

button

In radio mode, press to select the radio band (AM or

FM).

In CD mode, press to cycle through the playback

modes (repeat 1, repeat all, or random).

11 Display Shows the radio band, playback mode, program

mode, source, volume level, and radio frequency.

For additional information, see Display on page 9.

12 Cassette door Open to insert a cassette tape into the boombox for

playback.

13 Left and right speakers Produce sound so you can listen to your boombox.

# ITEM DESCRIPTION

Multi-Function Stereo Boombox with Bluetooth

www.insigniaproducts.com

Top panel

#Item Description

1 PAUSE button Press to pause the cassette tape playback. Press

again to resume playback.

2 STOP/ EJECT button Press to stop cassette tape playback. Press

again to open the cassette door.

3FWD button Press to fast forward the cassette tape.

4REW button Press to rewind the cassette tape.

5PLAY button Press to begin cassette tape playback.

6 PRESS TO OPEN Press to open the CD door.

7 CD door Open to place a CD on the spindle for playback.

8 REC button Press to begin cassette tape recording.

NS-BBBT20

www.insigniaproducts.com

Back panel

# Item Description

1 FM antenna wire Provides an improved FM signal. Do not

connect to an outside antenna.

2AUX IN jack Connect an external audio device to this jack.

3 Headphone jack Connect headphones to this jack to listen to

radio/playback through your headphones.

4AC IN jack Connect the AC adapter (included) to this jack

to operate your boombox on AC power.

5 Battery compartment Insert six (6) “D” sized alkaline batteries (not

included) into this compartment to operate

your boombox on battery power.

AC ~

Multi-Function Stereo Boombox with Bluetooth

www.insigniaproducts.com

Display

In CD mode—the display shows the current track time elapsed (during playback)

and the total number of tracks (in stop mode).

In Radio mode—the display shows the preset selected and the frequency.

In Tape mode—the display shows “CAS.”

In Bluetooth mode—the display shows “BT.”

In AUX mode—the display shows “Aud.”

Setting up your boombox

Connecting the AC adapter

1Make sure that your local AC power source matches the voltage shown on the

plate located on the bottom of the boombox. If it does not, consult your

dealer or service center.

2Insert the small connector at the end of the AC adapter into the AC IN jack on

the back of your boombox.

3Plug the AC adapter into a wall power outlet.

Installing the batteries

1Turn your boombox over, then open and remove the door to the battery

compartment.

CAUTION: To protect your boombox during thunderstorms, unplug the AC

adapter from the AC power outlet.

Notes:

Unplug the AC adapter when not in use.

The batteries are automatically bypassed when the AC adapter is used.

- Power Electrical Specs: 120V ~ 60 Hz

- Device Electrical Specs: 10 VAC, 1.0 A

Radio band

Random

playback

activated

Radio program mode

activated

Repeat mode:

On (1)–repeat current

track

On (no 1)–repeat all

tracks

Tuner frequency unit

Source, volume level, or program

FM Stereo

signal

indicator

NS-BBBT20

www.insigniaproducts.com

2Insert six (6) “D”size alkaline batteries into the battery compartment. Make

sure that you match the + and – symbols on the batteries with the + and –

symbols in the battery compartment.

3Reinstall and close the battery compartment door and return your boombox

to the upright position.

Connecting headphones

• Plug the headphones (not included) into the headphone jack on the back of

your boombox.

Using your boombox

Playing the radio

1Press (Standby/ON) to turn on the boombox.

2Press (source) repeatedly to select RADIO mode, then press BAND to

select AM or FM.

3Press (next) or (previous) to tune the radio to a higher or lower

frequency.

4Press and hold (next) or (previous) for two seconds to automatically

tune to the next or previous station.

5Adjust the volume to a comfortable level by pressing either the VOLUME + or

VOLUME – button.

6Press (Standby/ON) to turn off the boombox.

Note: The AC adapter must be disconnected from both the AC IN jack on the

back of your boombox and the AC power outlet in order for your boombox to

operate on battery power.

CAUTIONS:

Follow these precautions when using batteries in this device:

• Use only the size and type of batteries specified.

• Make sure that you follow the correct polarity as indicated in the battery

compartment when installing batteries. Reversed batteries may cause

damage to your boombox.

• Do not mix different types of batteries together (for example, alkaline,

rechargeable, and carbon zinc), or semi-used batteries with fresh ones.

• If your boombox is not to be used for a long period of time, remove the

batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries not intended to be recharged, because they

can overheat and rupture. (Follow battery manufacturer’s directions.)

• Do not throw batteries into a fire. Dispose of used batteries as hazardous

waste.

CAUTION: Listening to music with the volume too loud can damage your

hearing. Before you connect headphones, turn the volume down. After you put

on the headphones, gradually increase the volume to a comfortable level.

Tabla de contenidos

Otros manuales de Sistema estéreo portátil de Insignia

Insignia

Insignia NS-BIPCD03 Manual de lista de piezas

Insignia

Insignia NS-BIPCD03 Guía de inicio rápido

Insignia

Insignia NS-BBTCD01 Manual de instalación y operación

Insignia

Insignia NS-B3112 Manual de usuario

Insignia

Insignia NS-B4111 - CD Boombox With AM/FM Tuner Manual de lista de piezas

Insignia

Insignia NS-BCDCAS1 Guía de inicio rápido

Insignia

Insignia NS-BCDCAS1 Guía de inicio rápido

Insignia

Insignia NS-B3113B Guía de inicio rápido

Insignia

Insignia NS-BCDCAS1 Manual de usuario

Insignia

Insignia NS-B3112A Manual de usuario

Insignia

Insignia NS-B3113 Manual de usuario

Insignia

Insignia NS-BHDIP01 Manual de instalación y operación

Insignia

Insignia NS-BIPCD02 Guía de inicio rápido

Insignia

Insignia NS-B4111 - CD Boombox With AM/FM Tuner Manual de usuario

Insignia

Insignia NS-BIPCD02 Manual de usuario

Insignia

Insignia NS-BCDCAS1 Manual de usuario

Insignia

Insignia NS-BBTCD01 Guía de inicio rápido

Insignia

Insignia NS-4111B Manual de lista de piezas

Insignia

Insignia NS-B2114 Manual de usuario

Insignia

Insignia NS-BBTCD01 Manual de usuario

Insignia

Insignia NS-BIPCD01 Manual de usuario

Insignia

Insignia NS-BIPCD02 Manual de usuario

Insignia

Insignia NS-B3111 Manual de usuario

Insignia

Insignia NS-BHDIP01 Guía de inicio rápido

Manuales populares de Sistema estéreo portátil de otras marcas

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Manual de usuario

LG SB159ST Manual de usuario

Philips

Philips AZ305 Manual de usuario

Manta

Manta BBX002 Manual de usuario

Sony

Sony ZS-BTG900 Manual de usuario

Memcorp

Memcorp Disney DB3000-P Manual de usuario

Sharp

Sharp GF-800HS Manual de usuario

Philips

Philips AZ 2760 Manual de usuario

Hyundai

Hyundai H-1443 Manual de usuario

Grundig

Grundig RR 300 CD Manual de usuario

Philips

Philips AZ380W Manual de usuario

Sony

Sony ZS-S10CP Manual de instrucciones de instalación

AudioSonic

AudioSonic 42373117 Manual de usuario

Akai

Akai A60009 Manual de usuario

Sony

Sony HCD-E301 Manual de usuario

Memorex

Memorex MW5554 Manual de usuario

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Manual de usuario

GPX

GPX BC232 Manual de usuario
