Welcome

Congratulations on your purchase of a high-quality Insignia product.

Your NS-C2115 under-counter clock radio represents the state of the

art in clock radio design and is designed for reliable and trouble-free

performance.

Contents

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Setting up your radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Using your clock radio and TV . . . . . . . . . . . . . . . . . . . . . . . .10

Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Safety information

This symbol, located on the back or bottom of the unit, is intended

to alert you to the presence of uninsulated, dangerous voltage

within your radio’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock.

This symbol is intended to alert you to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying your radio.

Warning To prevent fire or shock hazards, do not expose this unit to rain or

moisture.

Warning This product utilizes a Class 1 laser to read CDs and DVDs. This

laser disc player is equipped with safety switches to avoid exposure

when the disc tray is open and the safety interlocks are defeated.

Invisible laser radiation is present when the player's tray is open

and the system's interlock has failed or been defeated. It is very

important that you avoid direct exposure to the laser beam at all

times. Do not attempt to defeat or bypass the safety switches.

Any use of the controls or an adjustment to the procedures other

than those specified herein may result in hazardous radiation.

Warning To reduce the risk of fire, do not place any heating or cooking

apparatus beneath your radio.

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

Warning To reduce the risk of electric shock, do not remove the cover or

back. There are no user-serviceable parts inside. Refer all

servicing to qualified service personnel.

Warning To prevent electric shock, match the wide blade on the power cord

plug to the wide slot in the electrical outlet, and fully insert the plug.

Caution Batteries contain mercury. Do not put batteries in the trash.

Recycle or dispose of batteries as hazardous waste.

Caution When placing your unit on a lacquered or natural finish, protect

your furniture with a cloth or other protective material.

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

Features

Front

#Feature Description

1POWER button Press to turn your radio on and off.

2 TIMER button Press to set the kitchen timer.

3PLAYMODE/

PROG MEM/

CLOCK SET button

Press to set Random and Program mode.

Press to set preset radio stations and program CD

tracks.

Press to set the time (with power off).

4 REPEAT/MEM DN

button If you are listening to a CD or watching a DVD,

press to repeat a disc track or an entire disc.

If you are listening to the radio or watching TV,

press to go to a lower preset station.

5 DISPLAY button Press to toggle between current function display

and clock. For example, when listening to FM

radio, press to see the clock time, then press

again to see the FM channel you are listening to.

6 EQ button Press repeatedly to cycle through available

equalizer presets.

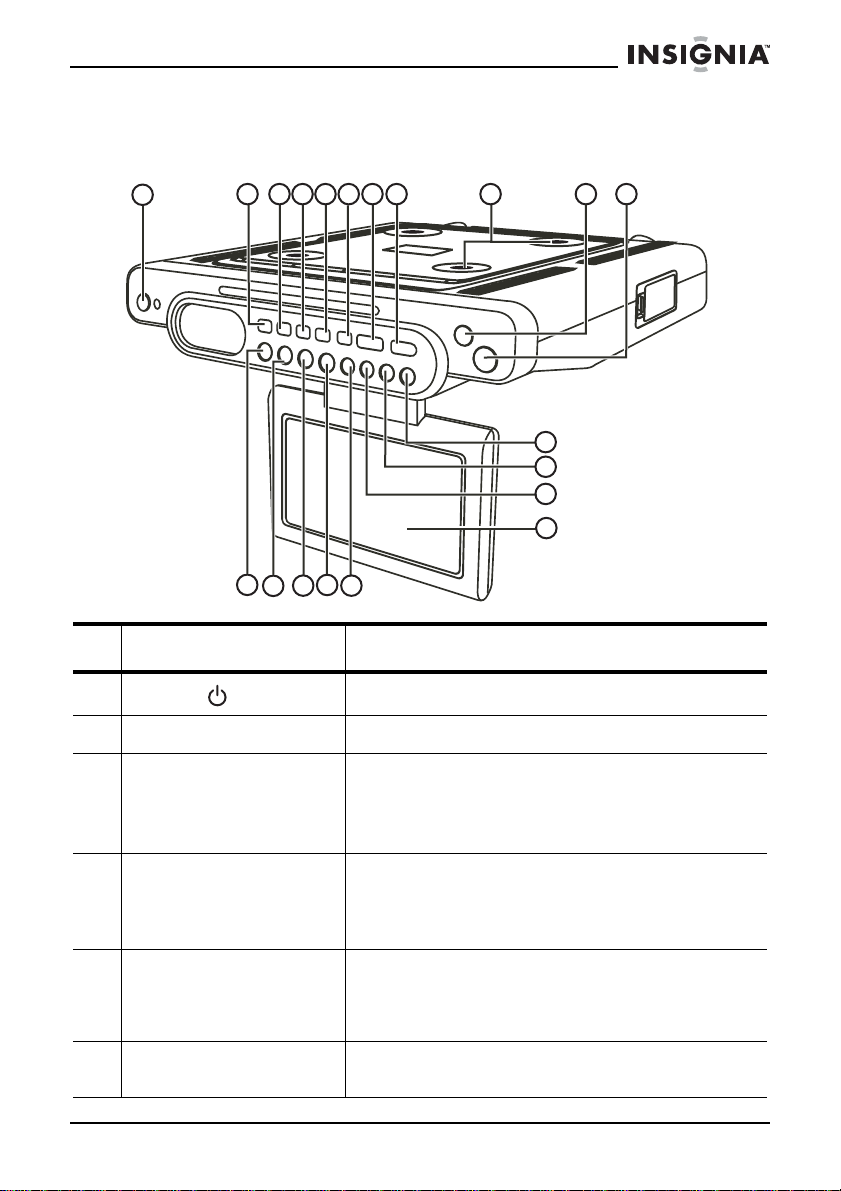

12 3 4 5 6 7 8 9

10 11

12 13 14 15

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

7 FUNCTION button Press to select the play mode. You can select:

• TUNER–Radio

• TV–Television

• DVD–DVD and CD player

• AUX–External audio/video device

8 OPEN/CLOSE button Press to open and close the disc tray.

9 Mounting bracket Use this bracket to mount your radio under a

cabinet.

10 VOL + button Press to increase the volume.

11 VOL – button Press to decrease the volume.

12 SKIP/CLOCK/TUNING

DOWN button If you are listening to a CD, press to go to the

previous track.

If you are setting the kitchen timer, press to

remove minutes.

If you are listening to the radio, press to go to a

lower frequency.

13 SKIP/CLOCK/TUNING

UP button If you are listening to a CD, press to go to the next

track.

If you are setting the kitchen timer, press to add

additional minutes.

If you are listening to the radio, press to go to a

higher frequency.

14 STOP/BAND button If you are playing a disc, press to stop playback.

If you are listening to the radio, press to select the

AM or FM band.

15 PLAY/PAUSE/MEM UP

button If you are listening to a CD or watching a DVD,

press to pause disc playback. Press again to

resume playback.

If you are listening to the radio or watching TV,

press to go to a higher preset station.

16 NAVIGATION button Press to go to a submenu.

17 MENU button Press to access the TV or DVD setup menu.

18 TV CHANNEL DOWN

button Press to go to a lower TV channel. With an

on-screen menu open, press to adjust the

selected option downward.

#Feature Description

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

Remote control

19 TV CHANNEL UP button Press to go to a higher TV channel. With an

on-screen menu open, press to adjust the

selected option upward.

20 LCD screen Displays the TV picture.

#Feature Description

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

Button Description

1STANDBY Press to turn your radio on and off.

2 FUNCTION Press to select the play mode. You can select:

• TUNER–Radio

•TV–Television

• DVD–DVD and CD player

• AUX–External audio/video device

3 Number buttons Press to directly select a TV channel.

4 DVD MENU Press to go to DVD Setup Menu (while in DVD

mode).

5VOL + or – Press to increase or decrease the volume.

6CH /CH In TV mode, press to go to the next higher or

next lower channel.

In a TV menu, press to increase or decrease a

setting.

In DVD setup mode, press to scroll the

submenu up or down.

7 EQ Press to select the equalizer mode. You can

select CLASSIC, JAZZ, ROCK, or POP.

8(mute symbol) Press to mute the volume. Press again to

unmute the volume.

9 PBC Press to turn on and turn off Play Back

Control for VCD discs.

10 GOTO Press to go to a different DVD chapter.

11 SKIP/TUNE If you are listening to a CD, press to go to the

previous track.

If you are watching a DVD, press to skip to the

previous chapter.

If you are setting the kitchen timer, press to

subtract minutes.

If you are listening to the radio, press to go to

a lower frequency.

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

12 SKIP/TUNE If you are listening to a CD, press to go to the

next track.

If you are watching a DVD, press to skip to the

next chapter.

If you are setting the kitchen timer, press to

add minutes.

If you are listening to the radio, press to go to

a higher frequency.

13 (fast backward) Press to fast backward a DVD, or to backward

search a CD track.

14 (fast forward) Press to fast forward a DVD, or to forward

search a CD track.

15 OPEN/CLOSE button Press to open and close the disc tray.

16 TIMER Press to set the kitchen timer.

17 AUDIO Press to select the audio channel settings in

DVD mode. (Some DVDs may not have this

option.)

18 TITLE Press to turn on or turn off the DVD title.

19 ANGLE Press to select DVD viewing angle options.

(Some DVDs may not have this option.)

20 SETUP Press to open the TV or DVD setup menu.

21 SUBTITLE Press to select DVD subtitle options. (Some

DVDs may not have this option.)

22 TV MENU Press to go to the TV menu (while in TV

mode).

23 and Press to scroll to left or right in a DVD

sub-menu.

24 NAV/ENTER Press to navigate through the sub menus (in

TV menus).

Press to confirm a setting (in DVD menus).

25 ZOOM Press to zoom into or out of a DVD picture.

(Some DVDs may not have this option.)

26 SLOW Press to go to slow motion (in DVD mode).

Button Description

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

Setting up your radio

Checking AM radio reception

Your clock radio has a built-in antenna for the AM radio. To improve

reception, you need to rotate your clock radio.

Before you mount your clock radio under a counter, tune to an AM

station and rotate your clock radio until you get the best reception.

This is the orientation you need to use when you mount your clock

radio for best AM reception. For more information, see “Improving

reception” on page 11.

Installing the backup batteries

Your clock radio uses two AAA backup batteries that store your

settings. You cannot use the batteries to power your clock radio.

If your clock radio does not save your settings, you may need to

replace the batteries.

27 OSD Press to change languages on the on-screen

display.

28 BAND (stop) If you are listeningto a CD or watching a DVD,

press to stop playback.

If you are listening to the radio, press to select

the AM or FM band.

29 MEM-UP If you are listening to a CD or watching aDVD,

press to pause disc playback. Press again to

resume playback.

If you are listening to the radio, press to go to

a higher preset station.

30 MEM/CLK SET/RAND When the power is off, press to set the clock.

When the power is on, press to program radio

station presets. For more information, see

“Programming radio station presets” a la

página 11.

In CD stop mode, press to program CD tracks.

In CD playback mode, press to select Random

playback

31 MEM DN/REPEAT If you are listening to a CD or watching a DVD,

press to repeat a track, chapter, or the entire

disc.

If you are listening tothe radioor watching TV,

press to go to the next lower preset station.

Button Description

NS-C2115 Under-counter DVD Player/Clock Radio

www.insignia-products.com

To install the backup batteries:

1Open the battery compartment located on the right side of your

radio.

2Insert two AAA batteries (not included) into the battery

compartment. Make sure that the + and – symbols on the

batteries match the + and – symbols in the battery compartment.

3Close the battery compartment.

To install the remote control battery:

1Remove the battery holder.

2Insert one CR2025 (3-volt) battery into the battery holder. Make

sure that the + and – symbols on the battery match the + and –

symbols on the battery holder.

3Replace the battery holder.

Connecting to AC power

To connect the power:

• Plug the AC power cord into a power outlet.

EPO

TTA

MUIHTI

520

Tabla de contenidos

Idiomas:

Otros manuales de Reproductor de DVD de Insignia

Insignia

Insignia NS-FSDVD Manual de usuario

Insignia

Insignia NS-BRDVD Manual técnico

Insignia

Insignia NS-D150A13 Manual de funcionamiento

Insignia

Insignia NS-HDVD18 Manual de usuario

Insignia

Insignia NS-D160A14 Manual de usuario

Insignia

Insignia NS-D150A13 Manual de usuario

Insignia

Insignia NS-VDVD1 Manual de usuario

Insignia

Insignia NS-D150A13 Manual de usuario

Insignia

Insignia NS-D160A14 Manual de usuario

Insignia

Insignia NS ES6111 - Micro System Guía de inicio rápido

Insignia

Insignia NS-MVDS7 Manual de usuario

Insignia

Insignia NS-D160A14 Manual de funcionamiento

Insignia

Insignia NS-D160A14 Manual de usuario

Insignia

Insignia NS-D160A14 Manual de funcionamiento

Insignia

Insignia NS-D160A14 Manual de funcionamiento

Insignia

Insignia NS-D150A13 Manual de lista de piezas

Insignia

Insignia NS-D160A14 Manual de funcionamiento

Insignia

Insignia NS-A3111 - AV System Manual de usuario

Insignia

Insignia NS-DVD1 Manual de usuario

Insignia

Insignia NS-D150A13 Manual de usuario

Insignia

Insignia NS-D9PDVD15 Manual de usuario

Insignia

Insignia NS-MVDS7 Guía de inicio rápido

Insignia

Insignia NS-UPDVD Manual de usuario

Insignia

Insignia NS-MVDS7 Guía de inicio rápido

Manuales populares de Reproductor de DVD de otras marcas

Sony

Sony DVP-F11 Manual de usuario

Philips

Philips DVP3560K/F8 Manual de usuario

LENCO

LENCO DVP-740 X2 Manual de usuario

JVC

JVC XV-N650BEU Manual de usuario

Aiwa

Aiwa XD-DV370 Manual de usuario

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manual de usuario

Denon

Denon DVM-1805 - DVD Changer Manual de usuario

Toshiba

Toshiba SD-3815 Manual de usuario

Tevion

Tevion 44330 Manual de usuario

Samsung

Samsung DVD-HD860 Manual de usuario

Sylvania

Sylvania DP170SL8 Manual de usuario

Toshiba

Toshiba SD-P1200 Manual de usuario

JVC

JVC XV-D9000E Manual de usuario

Dolby Laboratories

Dolby Laboratories CP650 Manual de usuario

Philips

Philips DVD737K/931 Manual de usuario

Denon

Denon DVD-5900 Manual de usuario

Philips

Philips DVD 951 Manual de usuario

Philips

Philips DVDR3460 Manual de usuario
