Inscape Data AirGoogle NVC360 Manual de usuario

NVC 360 User’s Guide

Rev0.1(Dec. 2007)

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 2

Directions

NVC 360 series network cameras are designed for outdoor/indoor use. Don’t use NVC 360 in an environment

beyond the condition limit.

Be careful not to cause any physical damage by dropping or throwing the NVC 360 network camera.

Especially keep the network camera out of reach of children.

Do not disassemble NVC 360. Warrantee terms and conditions are not applied for the units that went through

disassembly process.

Use only the DC 12V power adapter which conforms to the specification in data sheet for NVC 360.

If you would like to use the NVC 360 for security, monitoring, please check the legal regulations within the

country.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generate, use and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into and outlet on a circuit different from that to which the receiver is

connected

Consult the dealer or an experienced radio/TV technician for help.

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 3

Warning & Caution

If you fail to read this information and

handle the product incorrectly, death or

serious injury may occur.

The unit should be installed by trained

personnel.

Always stop using when the product emits

smoke or abnormal heat.

Never install the product in area exposed to

oil or gas.

Never install the product on a ceiling that

cannot hold its weight.

Never touch the power cord with wet hands.

Clean only with dry cloth.

Never use the product in extremely high or

low temperature condition.

Never drop, hit strongly nor vibrate the

product.

Never expose the product to direct sunlight

or severe ray.

Never touch the front glass of the product.

This symbol is intended to alert the user to

the presence of un-

insulated “dangerous

voltage” within the product’s enclosure

that

can cause electric shock..

This symbol is intended to alert the user to

the presence of

important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

Do not apply force to adjust Pan/Tilt

position. It may causes serious damage

Additional Warning & Caution

for NVC 360

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 4

Revision History

Date Rev. No Description

2007-12-19 0.1 Creation of the document

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 5

1. Introduction ......................................................................................................................................................... 6

1.1. Overview........................................................................................................................... 6

1.2. Features of NVC 360......................................................................................................... 6

1.3. Applications of NVC 360 .................................................................................................... 8

2. Product Description............................................................................................................................................. 9

2.1. Package Contents ............................................................................................................. 9

2.2. Preview............................................................................................................................. 9

2.3. PC Requirements ............................................................................................................ 10

2.4. Physical description......................................................................................................... 10

2.5. Specification of the analog camera module....................................................................... 13

2.6. Quick Installation Guide ................................................................................................... 15

3. Connecting NVC 360 to IP Network ................................................................................................................. 18

3.1. Connecting to LAN .......................................................................................................... 18

3.2. Connecting to xDSL/Cable Modem................................................................................... 19

4. IP-Installer ......................................................................................................................................................... 21

4.1. Main window of IP-Installer .............................................................................................. 21

5. Configuring NVC 360 in Administrative Mode .................................................................................................. 22

5.1. Log On............................................................................................................................ 22

5.2. Basic Setup..................................................................................................................... 24

5.3. Network Configuration ..................................................................................................... 26

5.4. User Admin & Time Setup ................................................................................................ 29

5.5. Sensor & Capture Setup .................................................................................................. 32

5.6. Alarm Device Setup ......................................................................................................... 34

5.7. Motion Region Setup ....................................................................................................... 36

5.8. PTZ Setup....................................................................................................................... 38

5.9. Encryption Set up ............................................................................................................ 40

5.10. Upgrade & Reset........................................................................................................... 42

5.11. Status Report................................................................................................................. 44

6. Tips for Using NVC 360 .................................................................................................................................... 45

6.1. Alarm (for Sensor input) and AUX(for Relay output) .......................................................... 45

6.2. Trouble Shooting ............................................................................................................. 47

6.3. Web Viewer..................................................................................................................... 49

6.4. How to upgrade NVC 360 firmware .................................................................................. 51

Appendix 1. On Site Installation of NVC 360 ........................................................................................................ 52

Table of Contents

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 6

1. Introduction

1.1. Overview

The NVC 360 is a state-of-the-art dual CCD vandal proof network camera which transmits synchronized video

and audio data in real time with D1 resolution at full frame rate. This is possible through MPEG4 CODEC

technology, which provides high quality video with highly compressed data streams. The NVC 360 can be

connected, controlled and monitored from a remote location through an IP connection over internet or intranet.

Unlike CCTV or DVR, the NVC 360 is easy to install and owner will experience cost and space savings in the

installation owing to the state of the art technologies embedded in the system. Based on Embedded Software

Solution (Embedded Web Server, Embedded Streaming Server, Network Protocol), the NVC 360 ensures

unprecedented performance and stability to be an ideal network camera solution for system integration solutions.

NVC 360 is offered with standard Ethernet interface.

1.2. Features of NVC 360

•

••

•State-of-the-art CPU, Codec & Embedded S/W

•

••

•Superior video compression – MPEG-4

•

••

•Max 30 frames/sec @ D1 resolution

•

••

•Full D1 Resolution with De-interlaced filter

•

••

•Http streaming based on CGI

•

••

•Full duplex audio communication (internal MIC & Speaker(1W))

•

••

•Synchronized 1CH audio & video data transmission

•

••

•Intelligent Bit Rate Control for flexible network deployment

•

••

•Enhanced Image Quality

•

••

•MPEG4+JPEG Dual Stream

•

••

•Embedded Streaming Server and Embedded Web Server

•

••

•Motion detected and event triggered alarm processing

•

••

•Easy recording and playback on client PC

•(1) alarm input & (1) relay output

•Wide range of network protocols supported

•Dual CCD (Color CCD for day and B/W CCD for night)

- CCD is exchanged according to the light condition

•

••

•Vandal Proof

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 7

•

••

•The same sensitivity with B/W Ex-view CCD. 0.003 lux.

•

••

•Integrated Heater

•

••

•System time management

RTC and with Time Server synchronization

1 Alarm sensor inputs / 1 relay outputs





Resolution

- NTSC : 720x480, 352x240, 176x144. - PAL/SECAM : 720x576, 352x288, 176x144





Remote administration control

Entire operational parameter set up, Software upgrade

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 8

Detailed Features for camera parts

1.3. Applications of NVC 360

IP surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.,

Real time Internet broadcasting

Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.,)

Teleconference (Bi-directional audio conference)

Remote Learning

Weather and environmental observation

Polarity Protection of Power (DC12V)

This protection function prevents damage to

the domes power board if the dc supply is

connected with incorrect polarity.

DUAL CCD For extreme 0 Lux Surveillance

The power of LEDs is selectable, low or

high. (High is recommended for over 30m

surveillance )

The exchanging time of CCD or filter is

selectable.

Only DC 12V is available.

Operating Temperature down to – 40

degree Celcius with built in heater.

Various Surveillance Functions

Dome Housing

The elegantly designed aluminum body and Poly

Carbonate dome cover provide a very solid product for a

wide range of applications.

X-Y-Z Axis available.

It has ball-shaped bracket inside, so

you can install it any place you want.

Indoor / Outdoor applications

The domes small size and construction to IP

66 ingress protection rating make it ideal for

internal or external applications

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 9

2. Product Description

2.1. Package Contents

Open the package and check if you have the followings:

2.2. Preview

NVC 360 IP-Installer NVR100 & Virtual System

Controller

Picture Shown with Optional Wall Mount

Bracket

MPEG-4 Dual CCD Vandal Proof

Network Camera

PC software to allocate IP

parameters to NVC 360

PC software to view and record the A/V

streaming data transmitted from NVC

360

1. Wall Mount Bracket

1. Camera main body

2. CD(Manual, S/W)

3. Screw (Ø 4x16 screw 5EA,

Ø4x16 screw 5EA )

4. Manual

5. Terminal Block (5Pin 2EA)

Optional Items

NVC 360 User’s Guide

Rev.0.1 (Dec.2007) 10

2.3. PC Requirements

AV streaming data received from NVC 360 can be decoded or stored in a PC running NVR100 program which is a

viewing & recording program for a PC. Minimum requirement of the PC is described below:

Recommended

CPU Pentium IV 1.8G above

Main Memory 512MB above

Operating system*Windows XP or later

Web browser Internet Explorer 6.0 above

Resolution 1024 X 768

Network 10/100 Base-T Ethernet

* Operating Systems supported : Windows 2000 Professional

Windows XP Professional / Windows XP Home Edition

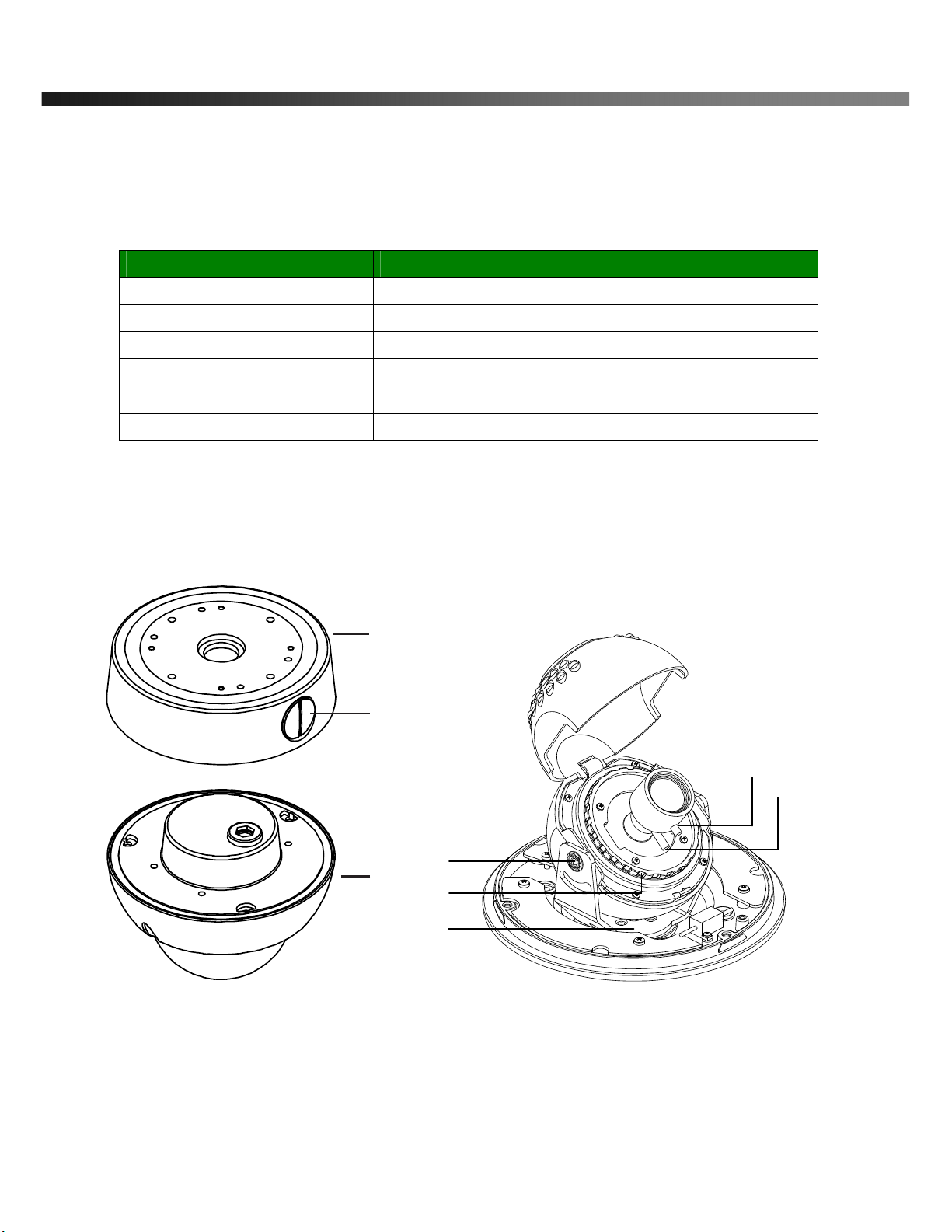

2.4. Physical description

2.4.1 Name of each parts

FIG. 1 FIG. 2

○
