Ingrasys G3211E Manual de usuario

G3211E

User’s Manual

Version 1.1

Table of Contents

Important Notices –Read Before Use ............................................................................2

Overview.........................................................................................................................2

Package Contents ............................................................................................................3

Installation.......................................................................................................................4

Hardware Installation.......................................................................................................................................................4

Software Installation ........................................................................................................................................................ 4

Discover IP Cameras........................................................................................................................................................ 4

Assigning IP Address to the device ................................................................................................................................. 5

Discovering devices in Windows Network......................................................................................................................7

ActiveX add-on Installation.............................................................................................................................................8

Accessing the camera....................................................................................................10

Viewing the live video...................................................................................................................................................10

The Live view page........................................................................................................................................................ 12

Video & Audio..............................................................................................................14

Network Configuration .................................................................................................22

Recording......................................................................................................................27

Event Management........................................................................................................33

Configuration of Event Handling...................................................................................................................................33

Examples of Event Handling ......................................................................................................................................... 40

System Options .............................................................................................................42

Connectors & LED........................................................................................................46

Cable connectors............................................................................................................................................................ 46

Schematic diagram of Digital I/O .................................................................................................................................. 46

LED Indicators............................................................................................................................................................... 46

Install a Micro-SD card.................................................................................................47

Desiccant Bag Replacement..........................................................................................48

Troubleshooting ............................................................................................................49

Check firmware version.................................................................................................................................................49

Upgrade device firmware............................................................................................................................................... 49

Recover device settings..................................................................................................................................................51

Technical Specifications ...............................................................................................52

Important Notices

–Read Before Use

This instruction manual is intended for administrators and users of the Ingrasys G3211E IP Camera, including

instructions for using and managing the camera on your network. The use of video surveillance devices can

be prohibited by laws that vary from country to country. It is the user’s responsibility to ensure that the

operation of such devices is legal before installing this unit for surveillance purposes.

Heed all warnings

Before installing the IP Camera, please read and follow all the safety and operating instructions to avoid any

damages caused by faulty assembly and installation. The user must adhere to all the warnings on the product

and in this manual.

Liability

Every reasonable care has been taken in the preparation of this instruction manual. We cannot be held

responsible for any technical or typographical errors and reserves the right to make alterations to the product

and manuals without prior notice. We make no warranty of any kind with regard to the material contained

within this manual, including, but not limited to, the implied warranties of merchantability and fitness for a

particular purpose. The user should verify the relevant information is current and complete before placing

orders. All products are sold subject to our terms and conditions of sale at the time of order acknowledgement.

We shall not be liable nor responsible for the applications and resale of its products or bundled software with

statements different from or beyond the specification/parameters stated by us. We are under no obligation to

provide any further technical support service or product/software alteration beyond our representation.

Trademarks

All names used in this manual and products are probably registered trademarks of respective companies.

CE/FCC Statement (EMC)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. If the equipment is not installed and used in

accordance with the instruction, it generates, uses, and can radiate radio frequency energy which may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause interference, in which case the user at his/her own expense will be required to take whatever measures

may be required to correct the interference.

Overview

The ingenious Small 2MP IR Bullet Type IP Camera –G3211E is with incredibly tiny housing (length of 10

CM) and full-functioned design. The weather proof IP 67 housing makes an ease of installation in various

environments including indoor and outdoor application. In addition, the clever light sensor design is an

enhancement for IP function (IR distance up to 10 meters).

Equipped with removable IR-Cut filter for Day/Night vision, built-in multiple power source as redundant power

supply that makes G3211E a value-added option fitted in all kinds of projects.

Package Contents

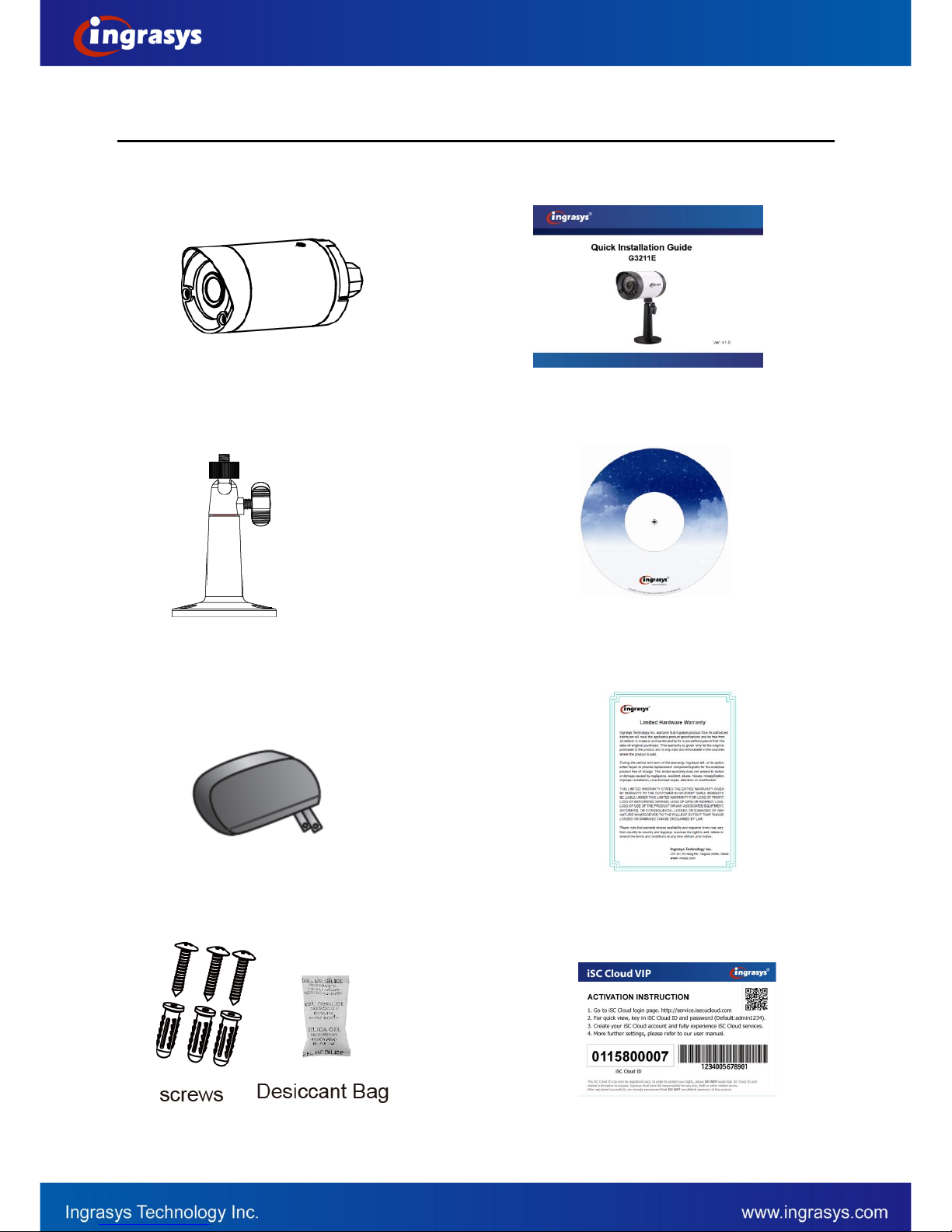

G3211E Quick Installation Guide

Camera Stand Product CD

Power Adapter (Optional) Warranty Card

Hardware Pack VIP Card (Optional)

Installation

Hardware Installation

1. Define the type of network device.

2. If the network device supports PoE Power over Ethernet) function, simply connect the camera to it via

Ethernet cable.

3. If not, the connections to the network device (via Ethernet cable) and DC12V or AC24V adapter are

required.

Software Installation

Discover IP Cameras

Discovery Tool is a utility provided for not only searching and displaying the available IP cameras information

in a network but also managing the multiple networking settings such as static IP address assignment.

After completing the hardware installation, run ingrasysDiscovery.exe to search for the IP camera installed.

Assigning IP Address to the device

The steps of applying this search tool are described as below.

1. Launch IPCAM Discovery Tool (ingrasysDiscovery.exe)

2. Assign IP address

The selection is based on a single or multiple camera devices.

[Set IP]

This is applied to one specific camera selected from the Device List.

Step1: Select one specific camera device

Step2: Input desired IP information

The default settings of account /password are Admin / Admin. If that were been changed, please enter

the set values.

[Auto Set IP]

This is applied to a group of specific cameras selected from the Device List.

Step1: Select specific cameras

Step 2: Input Account / Password

The default account information is Admin / Admin. If the values have been re-set, please enter the set

values.

Step 3: Input IP information

Discovering devices in Windows Network

If the IP camera is installed in a network with DHCP and UPnP services, after obtaining an IP address from

DHCP server, it can then be discovered in “Windows Network” of a client PC, see figure below. The reason for

being automatically discovered is that the IP camera’s UPnP is default enabled (see Network



Network

Connectivity).

NOTE

The term “Windows Network” in given figure above is used in Windows Vista / 7. It can be referred to Windows XP “My

Network Places”which possesses the same capability of discovering UPnP devices.

Right-click on the device and select “Properties”, the pop-up window shows all the information related to the

device, including the web access info. Use the web address to connect to the IP camera. Or simply double-

click on the selected device, which gets immediately access to the camera webpage.

To identify the camera from the listed devices in “Network”, utilize the UPnP name and the device’s MAC

address. This MAC address can be found on the label.

ActiveX add-on Installation

It is recommended to use Internet Explorer 8 or later as the primary browser to access the IP cameras website.

The first-time access to the camera webpage will be prompted to install the ActiveX. To allow the installation,

click “Install”on the message bar and follow the instructions to complete ActiveX installation.

When the installation is completed, IE browser can display the live video of the IP camera as the below figure.

NOTE

If, however, there is not any prompted message or ActiveX can not be installed at all, it is needed to

change the IE security level and settings.

Internet Explorer 9: Internet Options Security Custom level

Ensure the “Download signed ActiveX controls” setting is either “Enable”or “Prompt”selected.
