Infomir MAG-00 Manual de usuario
IPTV SD / HD Set-Top Box
MAG-200.
User Guide
© 2009 Infomir
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Precautions
Read and observe all warnings and instructions given in this manual.
•Do not try to service or repair this product on your own. Under no
circumstances should the case be opened because it does not contain any parts to be
serviced by the user. Opened product presents mortal danger if connected to power
supply. In all technical questions relating to the repair and servicing of the product,
please, refer to the manufacturing company or an authorized service center.
•Do not expose the product to water and moisture to avoid ignition or
electric shock. In case of moisture ingress inside the case, immediately disconnect
the product from power supply and refer to the service center for carrying out a
thorough check. You must not turn on the product on any account unless the check
had been carried out.
•Do not expose the product to very high or low temperatures.Do not place
the product beside heat generating devices such as radiators, ovens, etc.
•Do not create obstacles to air flow though air gaps and near radiators.
•Power cable should be laid in such manner as to avoid twisting, bending
and excessive mechanical loads. Do not pull at the supply cable when turning
off the product. If the supply cable is damaged refer to the service center.
•If you do not intend to use the product during a long period of time (being
on leave, etc.), better disconnect the power supply from the mains to avoid possible
problems due to voltage jumps or lightning strokes. Always disconnect the power
supply of sensitive electronic equipment from the mains during a thunderstorm.
2
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Copyrights and trademarks
Dolby Digital:
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
3
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Contents
Purpose of the device...............................................................................................................................5
MAG-200 main features ........................................................................................................................... 6
Getting acquainted ................................................................................................................................... 7
Unpacking and placing the device ...................................................................................................... 7
Front panel .......................................................................................................................................... 8
Rear panel........................................................................................................................................... 9
MAG-200 connection to TV set......................................................................................................... 10
Remote control .................................................................................................................................. 12
Operation of the device .......................................................................................................................... 13
Bootstrap menu ................................................................................................................................. 13
Basic software loading ...................................................................................................................... 15
Loading from internal flash-memory of the device (“NAND”)....................................................... 15
Loading from local network (“DHCP”) .......................................................................................... 15
Indication the stages of basic software loading ...........................................................................16
Loading the portal.............................................................................................................................. 17
Service Menu .................................................................................................................................... 19
Characters input...........................................................................................................................19
Characters input using remote control.................................................................................... 20
Characters input using standard keyboard .............................................................................21
Working with input forms.............................................................................................................. 21
Network settings........................................................................................................................... 22
API Demonstration .......................................................................................................................23
TV Channels viewing ................................................................................................................... 25
TV channels list....................................................................................................................... 25
Manual creation of the channels list .................................................................................. 26
Loading the predefined list from the server .......................................................................27
Channel launching parameter («Solution») ............................................................................ 28
Video preview window ............................................................................................................28
Control buttons........................................................................................................................ 28
Viewing media files (Media Browser)...........................................................................................31
General notes..........................................................................................................................31
Content playing ....................................................................................................................... 33
Positioning .........................................................................................................................33
Rough positioning .............................................................................................................. 33
Precise positioning............................................................................................................. 33
Video format conversion (Aspect Ratio) ................................................................................. 35
Upgrade of the device software ........................................................................................................ 38
Variants of the device basic software upgrade ............................................................................ 38
1. Upgrade using cyclic multicast groups.....................................................................................38
2. Upgrade from USB-storage .....................................................................................................38
3. Upgrade using the nfs-Image of the root file system ...............................................................38
4. Upgrade using fixed multicast groups...................................................................................... 39
Description of mcast.exe utility ....................................................................................................39
The procedure of changing firmware for MAG200 ............................................................ 42
Basic software upgrade stages on the device ...................................................................42
Requirements to operating system .................................................................................... 44
Troubleshooting...................................................................................................................................... 45
Specification ........................................................................................................................................... 47
Appendices............................................................................................................................................. 48
Supported content formats................................................................................................................ 48
Media server settings (UPnP) ........................................................................................................... 49
Format of the file with the list of TV channels ................................................................................... 50
4
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Purpose of the device
«MAG200» IPTV HD (high resolution) set-top box has been developed for use in hotels,
holiday centers, health resorts, hospitals and in apartment houses for viewing and listening
video and audio content.
The device conforms to the following standards:
•EMC Directive
•89/336 EEC
•ДСТУ CISPR 14-1:2004
•ДСТУ 4210:2003
•ДСТУ 4211:2003
•ДСТУ EN 50106:2003
•СОУМПП29.130.20-037:2004
Climatic version УХЛ 4.2 according to state standard ГОСТ 15150.
Continuous operation of the device is provided under the following climatic conditions:
а) limiting working temperature of the ambient air from +10 to +40°С;
б) working humidity (relative humidity and temperature) from 40 to 60 % at the
temperature +25°С;
в) limiting working atmospheric press from 84 to 106,7 кPа(630 – 800 mm of
mercury).
You can obtain further information concerning MAG-200, as well as the electronic version of
this document at the Internet address: http://iptv.infomir.com.ua/en/ip_stb.
5
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
MAG-200 main features
•Viewing HD video content
•Viewing multicast streams (TV channels) according to the list
•Manual generation of TV channels list
•Loading previously prepared list of channels according to http protocol
•TV channel preview window
•Display format conversion
•Playback of audio and video data in various formats:
MPEG-TS, MPEG-PS, avi, mkv, mov, mp4, wmv, ac3, mp3
•Decoding video streams in the following standards:
MPEG2, MPEG4P2, h264, VC-1, WMV9
•Decoding audio streams in the following standards:
mpeg2-audio, mp3, AC-3
•Playback of media data from UPnP-servers
•Playback of media data from USB (flash memory)
•Capability of connecting USB–keyboard, USB–mouse
•Remote volume control and shutdown
•Low power consumption
6
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Getting acquainted
Unpacking and placing the device
Carefully unpack the device and take all accessories out of the case.
Please, keep all packing materials during the whole period of guarantee. You may
need them to transport the device to the manufacturer.
MAG-200 is designed for optimal operation on any stable and even surface, for example a
shelf.
It should be taken into account that some space should be left behind the device for free
placing of power and connecting cables. Twenty centimeters of free space is enough for
laying the cables without twists and deformations.
In the process of regular operation the device generates little heat. However, free space
should be left above and at the sides of the device for the dissipation of heat due to air
circulation. Avoid placing the device on a soft surface, which may limit the airflow (for
example, on a pile carpet).
7
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Front panel
8
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)
Rear panel
9
MAG-200. User Guide (Rev 1.2 05/02/2010,17:23)

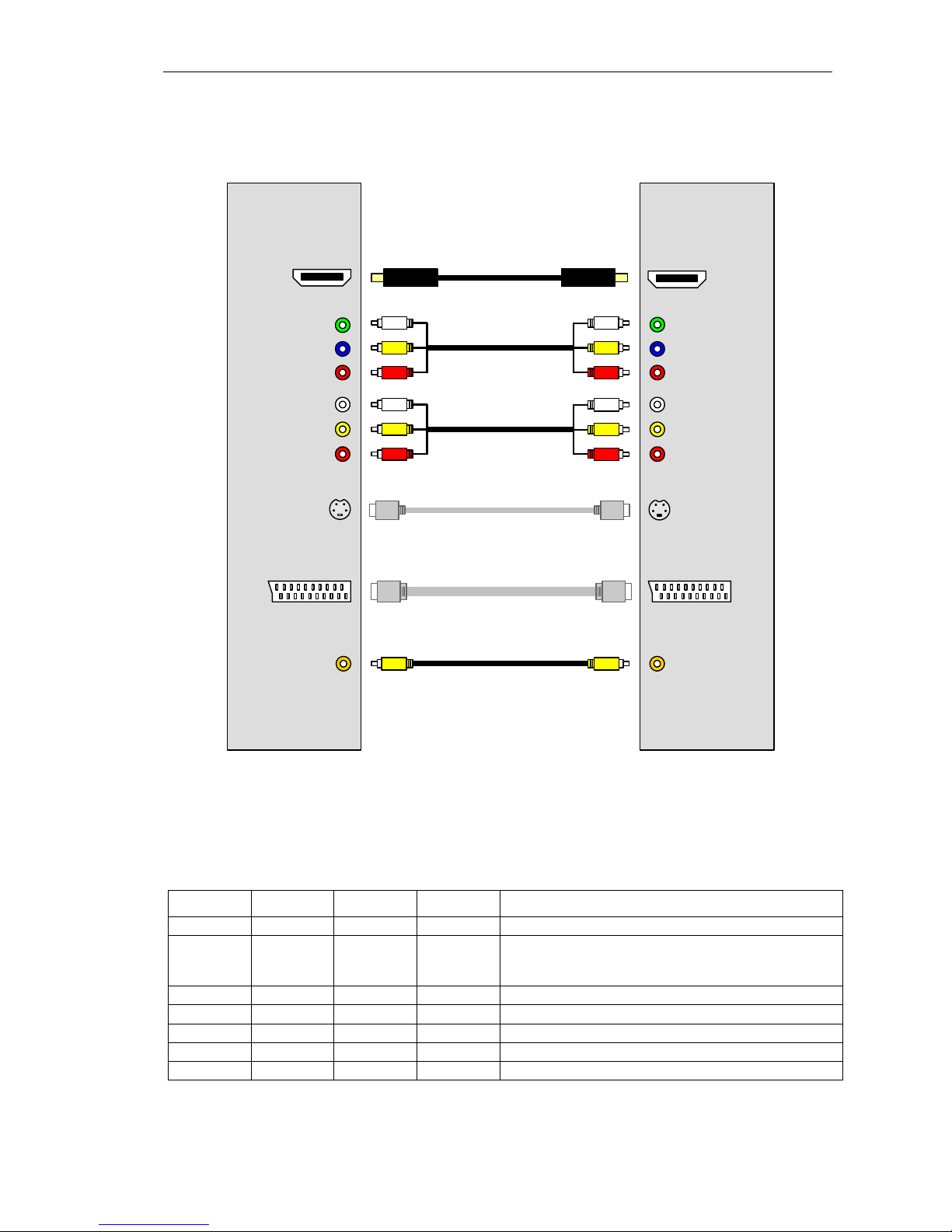

MAG-200 connection to TV set
MAG-200 TV set
S/PDIF S/PDIF
1xRCA cable
HDMI HDMI
HDMI cable
Y
Pr
Pb
Y
Pr
Pb
3xRCA cable
video (component)
L
R
CVBS
video (composite) + sound
L
CVBS
R
3xRCA cable
S-Video S-Video
S-Video cable
SCART SCART
SCART cable
MAG-200 can be connected to TV set using one of the methods shown in the picture above.
It depends on the quality of video and audio signal you wish to playback on your TV and on
the availability of the corresponding cable.
Short specification of various types of connections is shown below.
Connector Cable Video Audio Remark
CVBS, L, R 3 хRCA SD only Analog Composite signal
Y-Pr-Pb 3 хRCA SD + HD No Component video-signal.
Additional cable 2xRCA is required for connecting audio
signal (L and R)
L, R 2 хRCA No Analog When connecting video through Y-Pr-Pb
S-Video S-Video SD only No Otherwise called «Separate Video»
SCART SCART SD only Analog
HDMI HDMI SD + HD Digital
S/PDIF 1 хRCA No Digital To music center
10
