LP280/290

™

USER’S

GUIDE

5166dividers.qxd 5/1/01 3:10 PM Page 2

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communi-

cations. Operation of this equipment in a residential area is likely to cause harm-

ful interference in which case the user will be required to correct the interference

at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Can-

ada.

Safety Certifications

UL, CUL, TÜV, NOM, IRAM, GOST R

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interfer-

ence, in which case the user may be required to take adequate measures.

Declaration of Conformity

Manufacturer: InFocus Corporation

27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA

European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands

We declare under our sole responsibility that the LP280 and LP290 projectors con-

form to the following directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 1992 + A1 + A2 + A3 + A4: 1997

May, 2001

Australian Certification C-tick mark

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of

Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of

International Business Machines, Inc. Microsoft, PowerPoint, and Windows are

trademarks or registered trademarks of Microsoft Corporation. InFocus and LP

are trademarks or registered trademarks of InFocus Corporation.

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1

Compatibility 2

Unpacking the Projector 2

Usage Guidelines 5

If You Need Assistance 5

Warranty 6

Setting up the Projector 7

Connecting a Computer 9

Connecting a Video Player 11

Powering up the Projector and Adjusting the Image 13

Turning Off the Projector 14

Using the Projector 15

Basic Image Adjustment 15

Adjusting the Projector 15

Using the Remote Control 17

Using the Keypad and Remote Buttons 18

Using the On-Screen Menus 21

Basic Menu 22

Setup menu 24

Maintenance & Troubleshooting 29

Cleaning the Lens 29

Cleaning the Dust Filters 29

Replacing the Projection Lamp 31

Replacing the Batteries in the Remote Control 32

Using the Security Lock 33

Troubleshooting 34

Ta b l e o f C o n t e n t s

Appendix 39

Specifications 39

Accessories 40

Portable and Laptop Activation Chart 42

Using Video Mirroring with a PowerBook Computer 47

Projected Image Size 48

Index 49

iii

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE

using your new projector. Failure to comply with safety instruc-

tions may result in fire, electrical shock, or personal injury and

may damage or impair protection provided by equipment. Please

save all safety instructions.

Safety Definitions:

•Warning: Statements identify conditions or practices that

could result in personal injury.

•Caution: Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention: For information about usage of a feature, please

refer to the User’s Guide.

Warning: Hot surface. Do not touch.

An arrow pointing to the lamp door on the projector.

Safety Terms:

•Warning: Don’t look directly into the lens when the projector is

turned on.

•Warning: To replace the lamp, turn the projector off

and unplug the power cord. To avoid burns, wait 60 min-

utes before opening the lamp door. Follow all instructions pro-

vided in this User’s Guide.

•Warning: Please use the power cord provided. Connect

the power cord to a receptacle with a protective safety

(earth) ground terminal.

•Warning: Refer all service to qualified service personnel. Ser-

vicing your own projector will void the warranty. See the fol-

lowing page for the customer service contact information.

•Caution: Don’t block ventilation openings.

Safety Instructions

•Caution: Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•Caution: Don’t place the projector on a hot surface or in direct

sunlight.

•Caution: Do not drop the projector. Transport the projector in

an InFocus-approved case; see page 41 for a list of cases.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering

that may block the vents. In the unlikely event of the bulb ruptur-

ing, thoroughly clean the area in back of the projector and discard

any edible items placed in that area.

Customer Service

If you need assistance, call InFocus Customer Service directly at

1-800-799-9911. Support is free between 6 a.m. and 6 p.m. PST,

Monday through Friday. Support is available in North America

after hours and weekends for a fee at 1-888-592-6800.

Or, send us an e-mail at techsupport@infocus.com.

In Europe, call InFocus in The Netherlands at (31) 35-6474010.

In Asia, call InFocus in Singapore at (65) 353-9449.

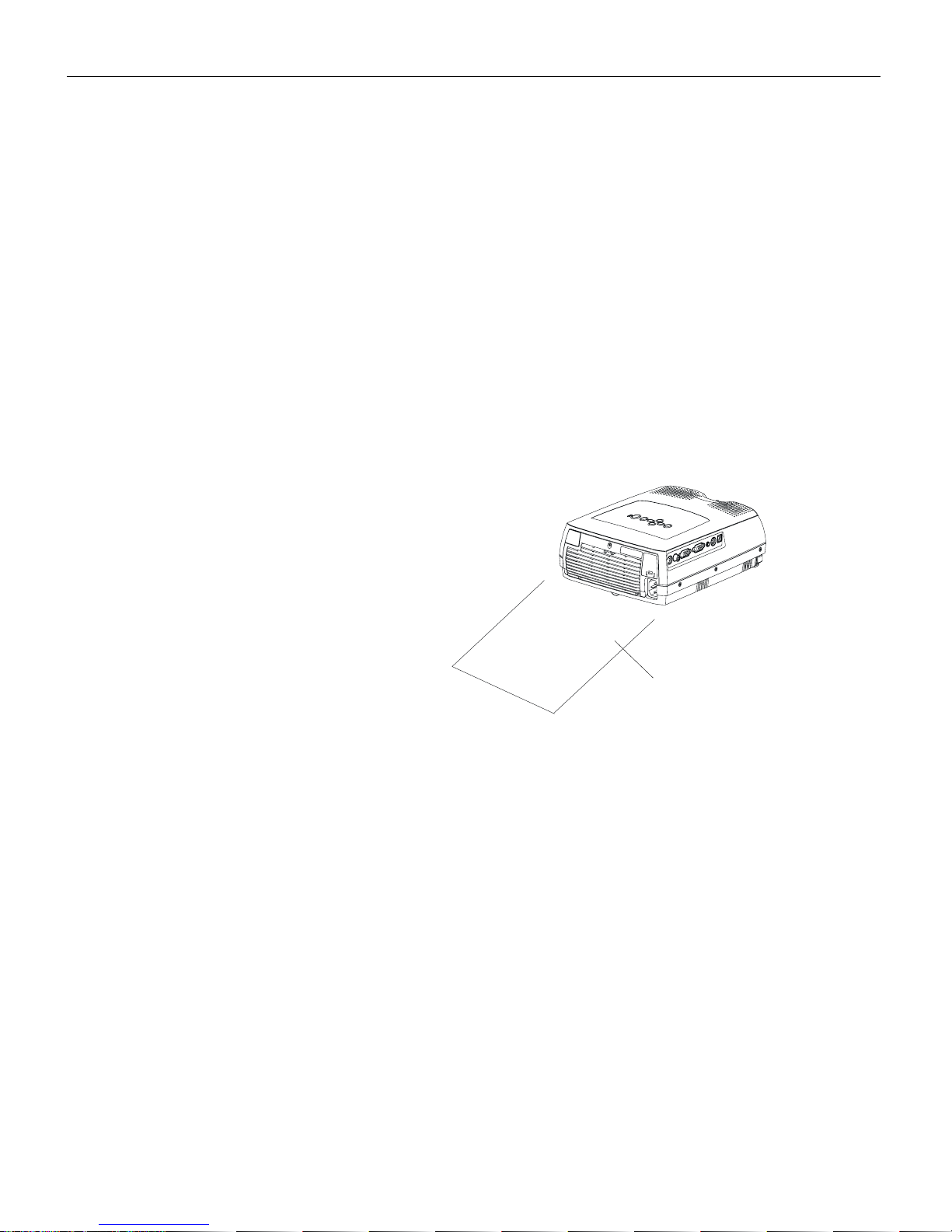

Do not place objects in

this area in back of the projector

2ft(.6m)

INTRODUCTION

The InFocus®LP280™ and LP290™ multimedia projectors are

specifically designed for multipurpose use. They are easy to con-

nect, easy to use, easy to transport, and easy to maintain. The

LP280 has native SVGA 800x600 resolution, the LP290 has XGA

1024x768 resolution. The user interfaces of the two products are

identical; information in this user’s guide applies to both prod-

ucts.

Image Resolution

NOTE: The LP280 automatically

expands 640x480 images to

800x600.

LP280

The SVGA resolution of the LP280’s projected image is 800x600.

The projector is compatible with screen resolutions up to

1280x1024. If your computer’s screen resolution is higher than

1280x1024, reset it to a lower resolution before you connect the

projector.

LP290

The XGA resolution of the LP290’s projected image is 1024x768.

The projector is compatible with screen resolutions up to

1280x1024. If your computer’s screen resolution is higher than

1280x1024, reset it to a lower resolution before you connect the

projector.

NOTE: The LP290 automatically

expands 640x480 and 800x600

images to 1024x768.

Introduction

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

•IBM-compatible computers, including laptops, up to 1280x1024

resolution.

•Apple®Macintosh®and PowerBook®computers up to

1280x1024 resolution.

•Most standard VCRs, DVD players, camcorders and laser disc

players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your InFocus dealer imme-

diately if anything is missing.

If you are experienced in setting up presentation systems, use the

Quick Start card that was included in the shipping box. For com-

plete details on connecting and operating the projector, refer to

this User’s Guide. Electronic versions of this user’s guide in mul-

tiple languages are available on the included CD and on our web-

site at www.infocus.com.

A registration card is included in the box. Register to receive

product updates, announcements, and special offers from

InFocus. Or, register online at www.infocus.com/service/register

and you will be automatically entered to win free merchandise.
