InFocus LP 730 Manual de usuario

TABLE OF CONTENTS

Safety Summary iii

Introduction 1

Image Resolution 1

Compatibility 2

Unpacking the Projector 2

Usage Guidelines 5

If You Need Assistance 5

Warranty 5

Setting up the Projector 7

Connecting the CableWizard™ to the Projector 8

Selecting Connectors on the CableWizard 8

Preparing to Connect Your Equipment to the Projector 10

Connecting an IBM-Compatible Laptop Computer 11

Connecting an IBM-Compatible Desktop Computer 13

Connecting an Apple PowerBook Computer 15

Connecting a Macintosh Desktop Computer 17

Connecting a Video Player 19

Connecting an External Speaker 21

Powering up the Projector and Adjusting the Image 21

Turning Off the Projector 22

Using the Projector 23

Basic Image Adjustment 23

Using the Remote Control 23

Adjusting the Projector 25

Using the Keypad Buttons 27

Using the On-Screen Menus 29

Display Menu Functions 31

Audio Menu Functions 33

Image Menu Functions 35

Controls Menu Functions 37

Table of Contents

Maintenance & Troubleshooting 39

Cleaning the Lens 39

Cleaning the Fan Intake Filter 39

Replacing the Projection Lamp 41

Replacing the Batteries in the Remote Control 43

Using the Kensington Lock 43

Troubleshooting 44

Solutions to Common Problems 45

Appendix 49

Specifications 49

Accessories 51

Portable and Laptop Activation Chart 53

Using Video Mirroring with a PowerBook Computer 57

Projected Image Size 58

Index 61

iii

SAFETY SUMMARY

Please read these instructions carefully before using your projec-

tor. Failure to comply with them could result in fire, electrical

shock, personal injury or damage to equipment.

These graphics are used throughout this manual to draw your

attention to important information about the projectors.

NOTE: Additional useful details or tips.

CAUTION: Steps to take to avoid damage to your equipment.

WARNING: Steps to take to avoid personal injury.

These graphics are used on the projector’s labels.

Attention - Refer to this User’s Guide for important

safety information.

CAUTION- Hot Surfaces - Avoid touching hot surfaces.

Do not touch until the projector has cooled.

Do Not Look Into The Lens!

Be extremely careful not to look into the projection lens when the

projector is turned on. The bright light may harm your eyes. Be

especially careful to keep children from looking into the lens.

Power Source

Use only a three-wire grounding type power source. The power

source should not exceed 250 volts rms between the supply con-

ductors or between either conductor and the ground.

Power Cord

Use only the power cord that was shipped with the projector.

Although other power cords might be similar in appearance, they

have not been safety-tested with the projector. Do not use a

power cord if it has become damaged or frayed. Contact your In

Focus dealer or call In Focus if you need to replace your power

cord.

Safety Summary

Grounding

The projector is grounded through the grounding conductor on

the power cord. To avoid electric shock, plug the power cord into

a properly wired receptacle. Do not defeat the purpose of the

grounding-type plug.

Lamp

To avoid overheating and unacceptable image quality, replace the

projection lamp with a lamp of the specified type. Refer to

page 49 for lamp specifications and to page 41 for instructions on

replacing the lamp.

Lamp Compartment

To avoid burns, do not open the lamp module door until the pro-

jector is turned off and the lamp has cooled for at least 2 minutes.

Follow the instructions in this manual for lamp replacement care-

fully.

Hot Surfaces

Allow the projector to cool at least 2 minutes before replacing a

lamp. When you open the lamp housing, be very careful not to

touch the hot surfaces inside.

Ventilation and Overheating

Openings in the projector case provide ventilation to protect it

from overheating. Keep loose papers and other objects well away

from the grills. Do not place the projector on top of or close to a

computer or other heat-producing equipment.

Liquid Spills

Do not set drinks on top of the projector. Spilled liquids can flow

inside and cause damage.

NOTE: If you open the projector

case, you will void the warranty.

Do Not Disassemble

All projector service must be performed by an authorized In

Focus service center. The only user-serviceable part in the projec-

tor is the projection lamp, which you can replace by opening the

lamp cover on the bottom of the projector (see page 41). Do not

open any other part of the projector. If your projector needs

repair, call In Focus Technical Support as described on page 5.

Before you call Technical Support, you may want to refer to

“Troubleshooting” on page 44 to see if you can resolve the prob-

lem yourself.

INTRODUCTION

The In Focus®LP™ 725 and 730 lightweight multimedia projec-

tors combine powerful and sophisticated features with easy-to-

use, intuitive controls. Built-in multimedia features include

audio, a palette of 16.7 million colors and active matrix liquid

crystal display (LCD) technology. The 700 series projectors are

ideal for high-performance business, training and imaging appli-

cations that demand exceptional color quality. The 725 has SVGA

800x600 graphics, the 730 has XGA 1024x768 graphics. The user

interfaces of the two products are identical; information in this

User’s Guide applies to both products.

NOTE: The 725 automatically

expands 640x480 images to

800x600. You can display these

images at 640x480 by turning off

the Auto Resize feature. See “Auto

Resize” on page 35 for more infor-

mation.

Image Resolution

LP 725

The SVGA resolution of the 725’s projected image is 800x600.

Screen resolutions between 800x600 and 1024x768 are com-

pressed to 800x600. The 725 cannot compress screen resolutions

above 1024x768. If your computer’s screen resolution is higher

than 1024x768, reset it to a lower resolution before you connect

the 725.

LP 730

NOTE: The 730 automatically

expands 640x480 and 800x600

images to 1024x768. You can dis-

play these images at their original

resolutions by turning off the Auto

Resize feature. See “Auto Resize”

on page 35 for more information.

The XGA resolution of the 730’s projected image is 1024x768.

Screen resolutions between 1024x768 and 1280x1024 are com-

pressed to 1024x768. The 730 cannot compress screen resolutions

above 1280x1024. If your computer’s screen resolution is higher

than 1280x1024, reset it to a lower resolution before you connect

the 730.

Introduction

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

NOTE: Selected workstations are

also supported. Contact your In

Focus dealer for details.

•IBM-compatible computers, including laptops, up to 1024x768

resolution (LP 725) or 1280x1024 resolution (LP 730) at 75 Hz.

•Apple Macintosh and PowerBook computers up to 1024x768

resolution (LP 725) or 1280x1024 resolution (LP 730).

•Most standard VCRs, camcorders and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your In Focus dealer immedi-

ately if anything is missing.

If you are experienced in setting up presentation systems, use the

LP 725/730 Quick Start card that was included in the shipping

box. For complete details on connecting and operating the projec-

tor, refer to this User’s Guide. User’s Guides are also available for

download from our website at www.infocus.com.

NOTE: The contents of your

shipping box may vary depending

on the configuration you’ve

ordered.

FIGURE 1

Shipping box contents

1. LP 725 or 730 projector 6. CableWizard

2. LP 725/730 User’s Guide 7. CableWizard computer cable

3. power cord 8. CableWizard mouse cable

4. remote and batteries 9. CableWizard audio cable

5. RCA audio/video (A/V) cable

Not shown: Quick Start card, online user guide CD-ROM, lens cap

Introduction

IGURE 2

Side view of projector

FIGURE 3

Front view of projector

connector panel

elevator button

speaker

power

switch power

cord

connector focus ring zoom ring

remote control

receiver

Usage Guidelines

•Do not look directly into the projection lens when the projector

is turned on. The bright light may harm your eyes.

NOTE: If the projector overheats

and turns off, you must wait about

30 seconds before you attempt to

turn it back on.

•Do not block the grills on the projector. Restricting the air flow

can cause it to overheat and turn off.

•Handle the projector as you would any product with glass

components. Be especially careful not to drop it.

•Avoid leaving the projector in direct sunlight or extreme cold

for extended periods of time. If this happens, allow it to reach

room temperature before use.

•This projector is not intended for use in a mainframe computer

room as defined in the Standard for the Protection of Electronic

Computer/Data Processing Equipment, ANSI/NFPA 75.

•Transport the projector in a vendor-approved hard or soft case.

Part numbers for these cases are listed on page 52. Call your In

Focus dealer to order.

If You Need Assistance

The first place to look for help is in this manual. Be sure to check

the guidelines in “Troubleshooting” on page 44.

If this manual doesn’t answer your question, call your In Focus

dealer. You can also call In Focus Customer Service directly at

1-800-799-9911. Customer Service is free between 5 a.m. and

5 p.m. PST, Monday through Friday. Service is available in North

America after hours and on weekends for a fee.

In Europe, call In Focus in The Netherlands at

(31) 23-5540310. In Singapore, call (65) 740-6435. Or, send us an

e-mail at techsupport@infocus.com

Our World Wide Web address is http://www.infocus.com.

Warranty

This product is backed by a limited one-year warranty. The

details of the warranty are printed at the back of this manual.

Longer term warranties can be purchased from your In Focus

dealer. Refer to page 52 for part numbers.

SETTING UP THE PROJECTOR

1Place the projector on a flat surface.

•The projector must be within 10 feet (3 m) of your power

source and within 10 feet of your computer.

NOTE: An optional extension

cable, sold separately, lets you

increase the distance between the

projector and your computer to

70 feet (21 m). See “Optional

Accessories” on page 52.

•If you want to project from behind a translucent screen, set

up the projector behind your screen. See “Rear Projection”

on page 38 to reverse the image.

•If you are installing the projector on the ceiling, refer to the

LP 700 Series Ceiling Mount Installation Guide that comes

with the Ceiling Mount Kit for more information. To turn

the image upside down, see “Ceiling” on page 38. The Ceil-

ing Mount Kit is sold separately; see page 52.

2Position the projector the desired distance from the screen.

•The distance from the lens of the projector to the screen

determines the size of the projected image. Figure 4 shows

three projected image sizes using the lens at minimum

focusing distance. For more information about image size,

see “Projected Image Size” on page 58.

3Make sure the projector and your computer are turned off.

FIGURE 4

Projected image size (minimum focusing distance)

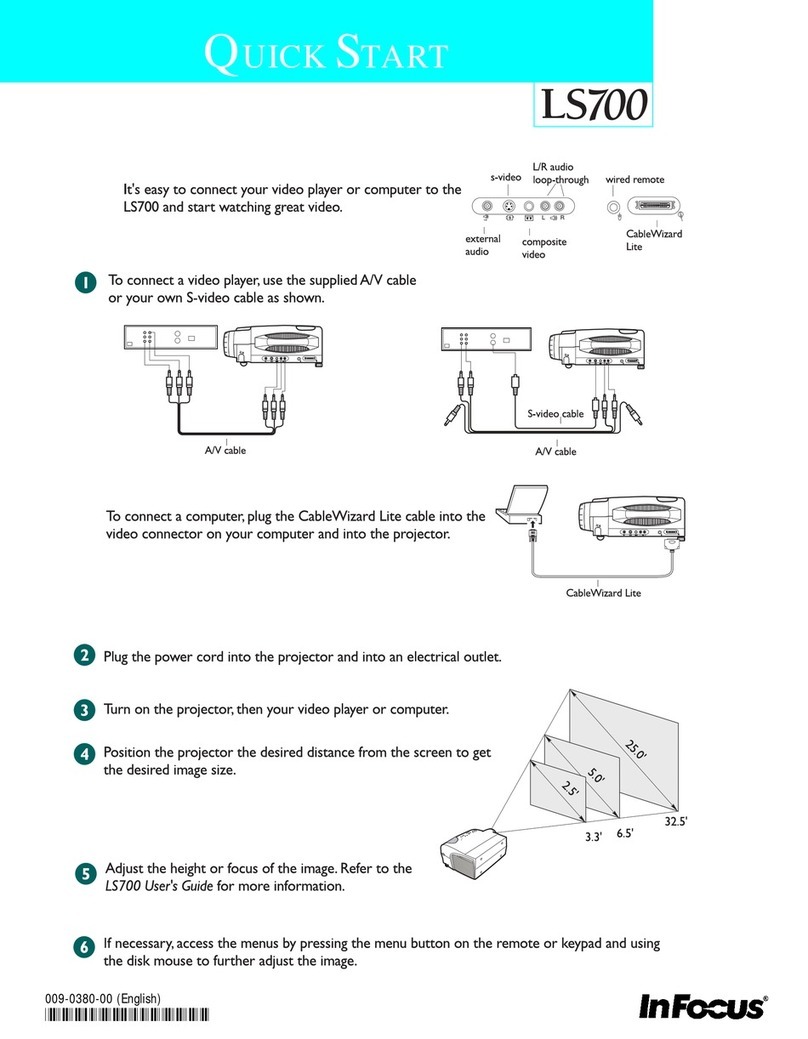

2.5ft.

25ft.

5ft.

3.3 ft.6.5 ft. 32.5 ft.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de InFocus

InFocus

InFocus LiteBoard IN3902LB Manual de usuario

InFocus

InFocus Play Big X10 Manual de usuario

InFocus

InFocus IN5142 Manual de usuario

InFocus

InFocus ScreenPlay 7205 Manual de usuario

InFocus

InFocus IN5132 Guía de inicio rápido

InFocus

InFocus LP 240 Manual de usuario

InFocus

InFocus Work Big IN10 Manual de usuario

InFocus

InFocus Proxima Ovation+ 846 Manual de usuario

InFocus

InFocus IN42+ Manual de usuario

InFocus

InFocus X1 Manual de usuario

InFocus

InFocus LP 120 Manual de usuario

InFocus

InFocus LP70+ Manual de usuario

InFocus

InFocus Play Big IN82 Manual de usuario

InFocus

InFocus C110 Manual de usuario

InFocus

InFocus LASER PROJECTOR LP 540 Manual de usuario

InFocus

InFocus LP 850 Manual de usuario

InFocus

InFocus SP4800 Manual de usuario

InFocus

InFocus LP 240 Manual de usuario

InFocus

InFocus IN112 Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

InFocus

InFocus LP 850 Manual de usuario

InFocus

InFocus X2 multi-use perfomance Manual de usuario

InFocus

InFocus IN112a Manual de usuario

InFocus

InFocus IN72 Guía

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
