Models:

SSW-10 subwoofer

Infinitesimal IV subwoofer

Servo Controlled subwoofer

RS Subwoofer

SERVICE MANUAL

Infinity Systems Incorporated

250 Crossways Park Dr.

Woodbury, New York 11797 Rev0 12/2003

CONTENTS

SPECIFICATIONS/PRODUCT ID……………..…….…….……….……………1

INSTALLATION/CONTROLS…………………..…….……………..……………2

OPERATION………………………………………..………………..…………….4

CIRCUIT DESCRIPTION…………………………..………………..……………5

THEORY OF OPERATION…………………………..…………….……………11

DETAILED TROUBLESHOOTING…………………….………….……………18

EXPLODED VIEWS………………………………………………….…………..24

MECHANICAL/ELECTRICAL PARTS LISTS……………………….…………26

PCB DRAWINGS…………………………………………………………………33

POWER TRANSFORMER………………………………………………………35

SEMICONDUCTOR PINOUTS…………………………………………………36

SCHEMATICS (Infinitesimal IV/SSW-10/Servo Controlled Subwoofer)……37

SCHEMATICS (RS Subwoofer)……………………………………….. ………38

PACKING (Infinitesimal IV/SSW-10/Servo Controlled Subwoofer)……..…… 39

SPECIFICATIONS

Frequency Response 40 - 200 Hz

Crossover Frequency 40 - 200 Hz (Continuously Variable)

Output Power 100 Watts (RMS) into 2 ohms

THD (@ 75 W/100 Hz) < .l %

Signal to noise ratio > 80db

Input Impedance 25K Ω

Driver 10" (254mm) IMG Woofer - (DCR = 1.8 Ω)

Inputs Line Level and Speaker Level

Outputs

Infinitesimal IV/SSW-10/Servo Controlled Subwoofer Full Range Speaker

RS Subwoofer 180 Hz High Pass Filter

Dimensions

Infinitesimal IV/SSW-10/Servo Controlled Subwoofer 13.25" x 13.25" x 13" (337 x 337 x 330mm)

RS Subwoofer 23.25" x 7.25" x 13.25" (59x18.5 x 33.5mm)

Weight (Infinitesimal IV/SSW-10/Servo Controlled Subwoofer) 34 lbs. (15.4kg)

PRODUCT IDENTIFICATION

This service manual covers the following models:

SSW-10 subwoofer

Infinitesimal IV subwoofer

Servo Controlled subwoofer

RS Subwoofer (actually a different product, but the amplifier is nearly identical)

The Infinitesimal subwoofer, Infinitesimal IV Subwoofer, SSW-10, or Servo Controlled Subwoofer may

be identified from the owner's manual, outer carton or amplifier plate.It is a square black cube and is ported.

Alternately, the RS Subwoofer has a distinct rectangular enclosure. The differences in the RS Subwoofer

include a non-removable power cord, two high level input terminals, and a passive high-pass filter for satellite

speakers (active when the high level input terminals are utilized). There is no port.

1

2

3

4

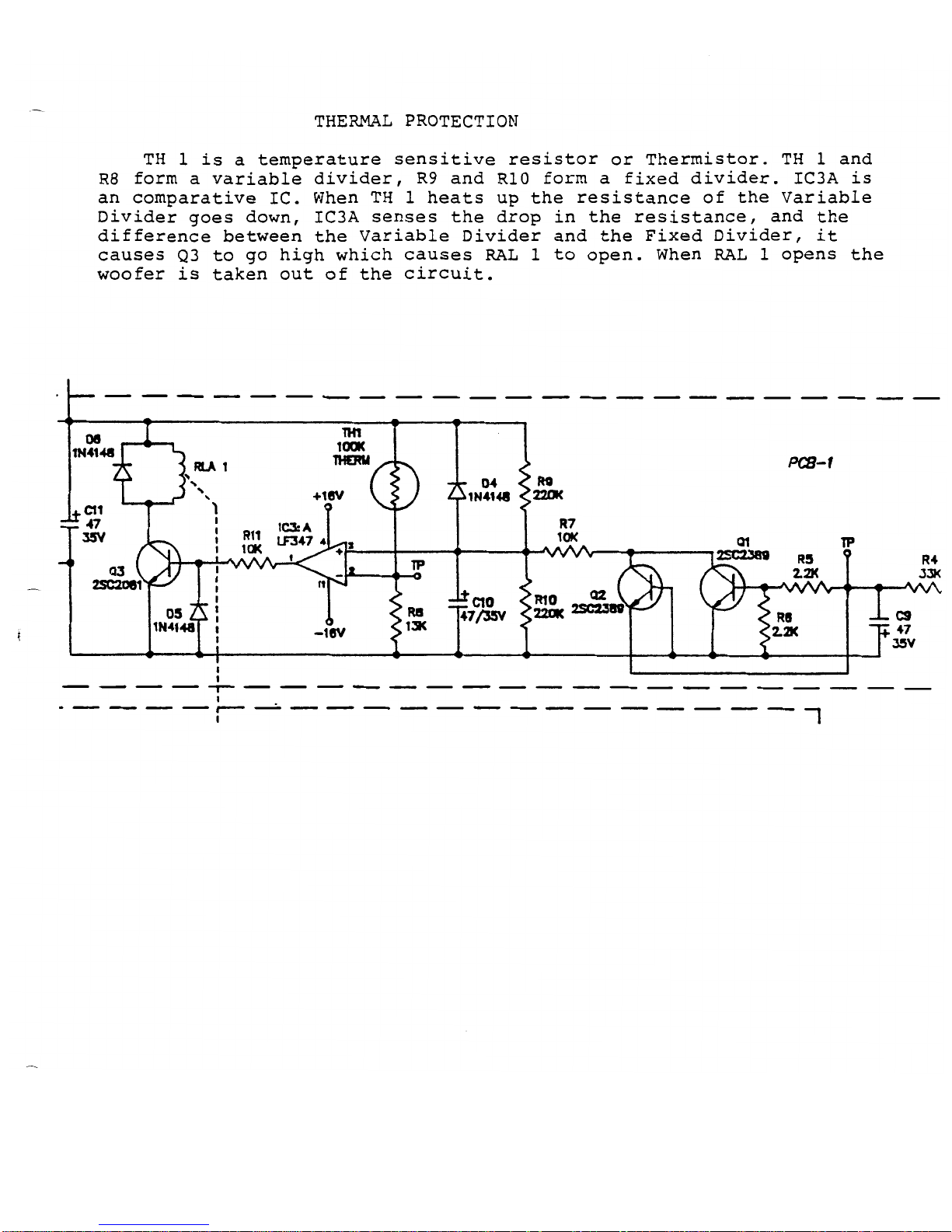

CIRCUIT DESCRIPTION

5

CIRCUIT DESCRIPTION (cont'd)

6

CIRCUIT DESCRIPTION (cont'd)

7

CIRCUIT DESCRIPTION (cont'd)

8

CIRCUIT DESCRIPTION (cont'd)

9
